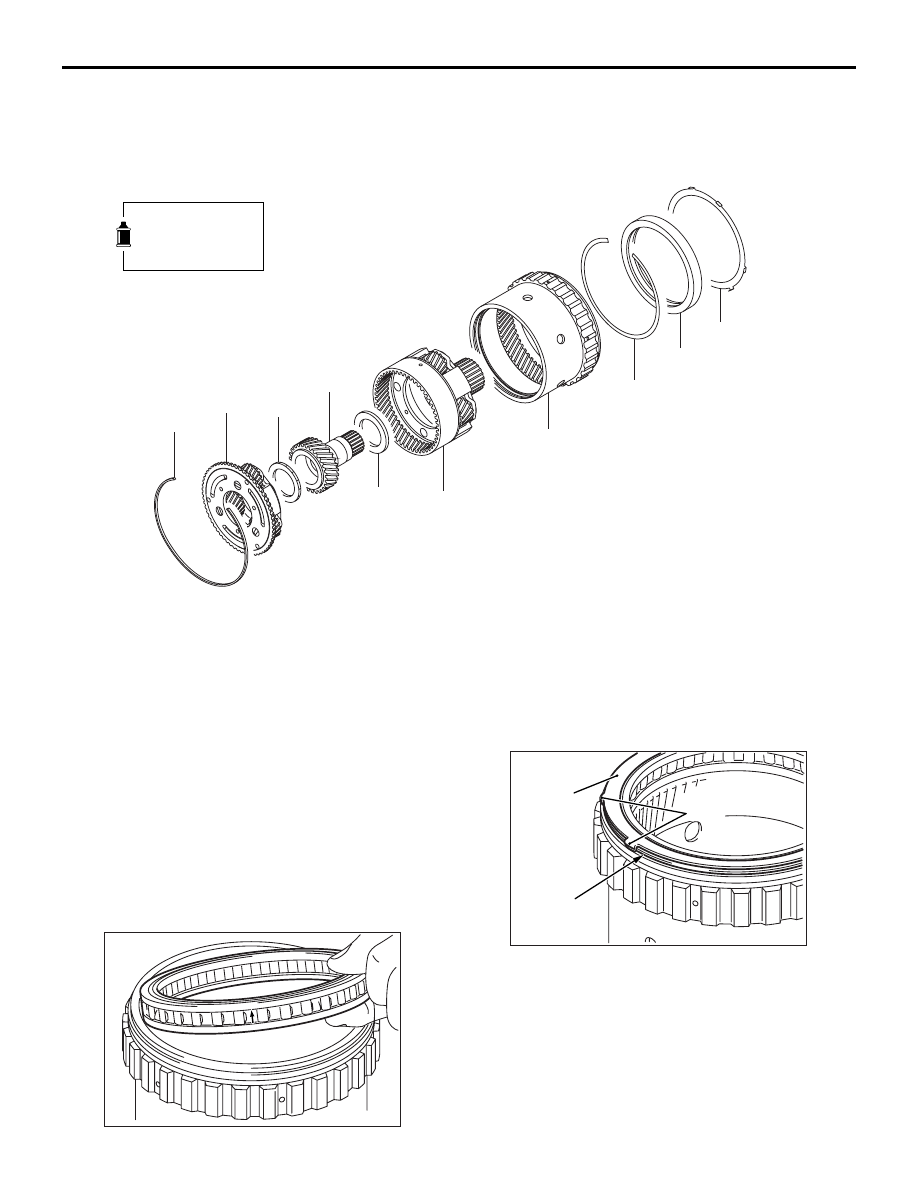

LOW REVERSE ANNULUS GEAR

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-59

LOW REVERSE ANNULUS GEAR

DISASSEMBLY AND REASSEMBLY

M1233027100202

AK602049

4

5

6

1

2

3

7

8

9

10

AC

Apply automatic
transmission fluid
to all moving parts
before installation.

Disassembly steps

1.

Snap ring

2.

Overdrive planetary carrier

>>D<<

3.

Thrust bearing No.5

4.

Underdrive sun gear

>>C<<

5.

Thrust bearing No.6

6.

Output planetary carrier

>>B<<

7.

Stopper plate

>>A<<

8.

One-way clutch

9.

Snap ring

10. Low/reverse annulus gear

REASSEMBLY SERVICE POINTS

>>A<< ONE-WAY CLUTCH INSTALLATION

AK602050 AC

Install the one-way clutch so that the arrow stamp is
oriented as shown in the illustration.

>>B<< STOPPER PLATE INSTALLATION

AK602051AC

Claw

Stopper
plate

Groove

Install the stopper plate onto the low/reverse annulus
gear. Make sure that the stopper plate claws are
securely engaged in the annulus gear groove.

CENTRE SUPPORT

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-60

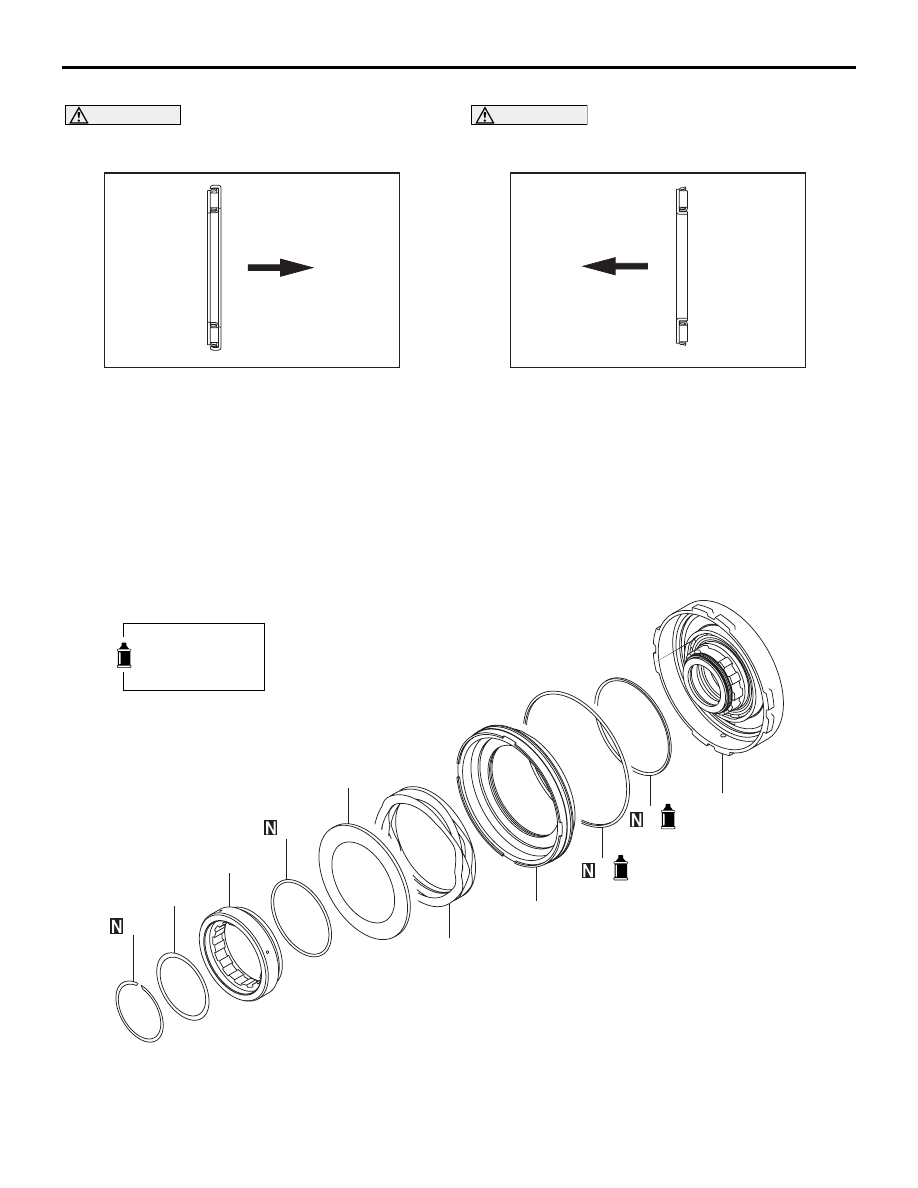

>>C<< THRUST BEARING No.6 INSTALLATION

CAUTION

Take care not to mistake the thrust bearing No.6
mounting direction.

AK602052AC

Output planetary
carrier side

Apply vaseline or petrolatum jelly on the thrust bear-
ing No.6, and then install on the output planetary car-
rier.

>>D<< THRUST BEARING No.5 INSTALLATION

CAUTION

Take care not to mistake the thrust bearing No.5
mounting direction.

AK602053AC

Overdrive planetary
carrier side

Apply vaseline or petrolatum jelly on the thrust bear-
ing No.5, and then install on the overdrive planetary
carrier.

CENTRE SUPPORT

DISASSEMBLY AND REASSEMBLY

M1233010000162

AK602054

4

5

6

1

2

3

7

8

9

10

AC

Apply automatic
transmission fluid
to all moving parts
before installation.

Disassembly steps

<<A>>

>>C<<

1.

Snap ring

2.

Plate

3.

One-way clutch inner race

>>B<<

4.

O-ring

Disassembly steps (Continued)

CENTRE SUPPORT

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-61

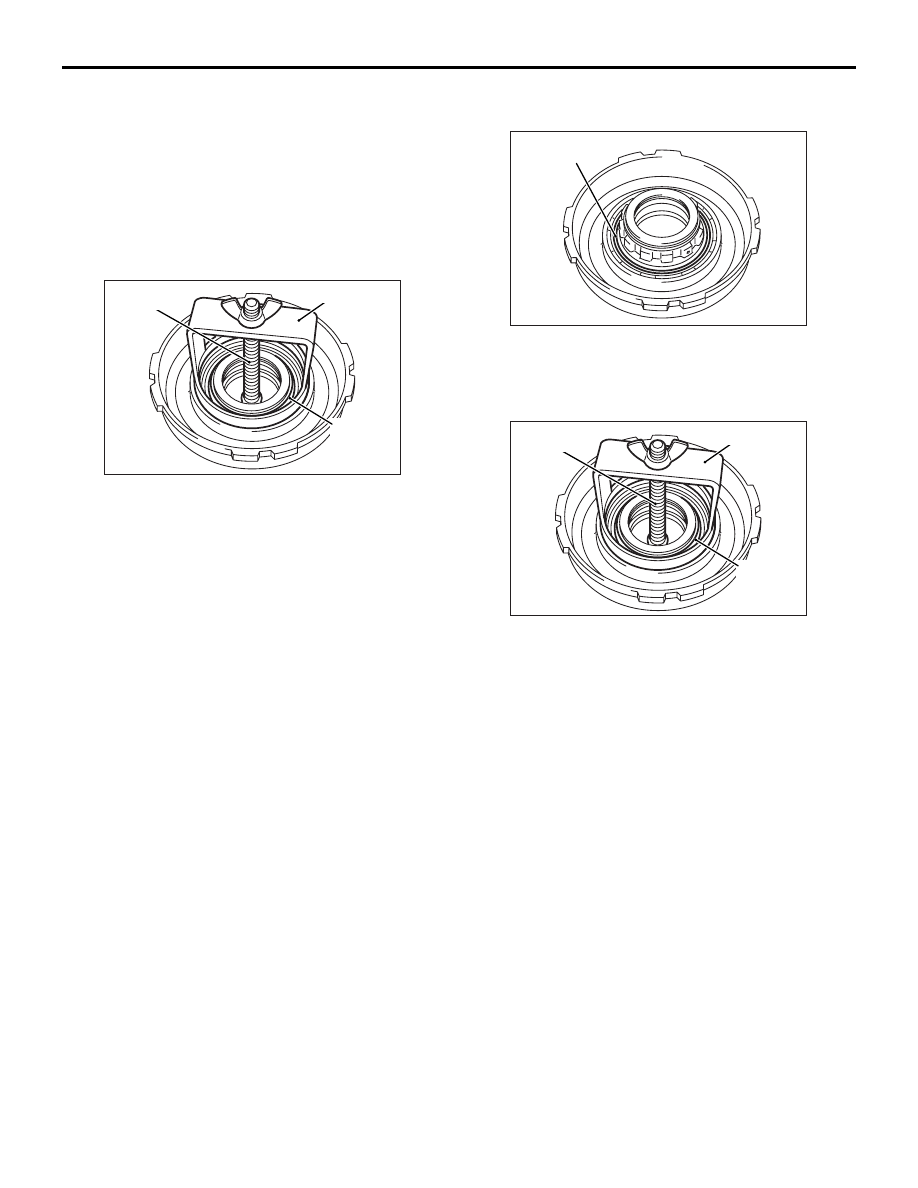

DISASSEMBLY SERVICE POINT

<<A>> SNAP RING REMOVAL

AK602055AC

MD998924

MB991630

Snap ring

1. Set the special tools as shown in the illustration so

that they are pressed against the inner race of the
one-way clutch.

• Spring compressor (MB991630)

• Spring compressor retainer (MD998924)

2. Screw in the special tool nut, and lightly press

against the inner race of the one-way clutch.

3. Remove the snap ring.

REASSEMBLY SERVICE POINTS

>>A<< D-RING INSTALLATION
1. Apply ATF to the D-ring.
2. Install the D-ring in the groove on the outer and

inner periphery of the piston. Make sure that the
D-ring is not twisted or damaged when installing.

>>B<< O-RING INSTALLATION

AK602056 AC

O-ring

Install the O-ring onto the center support at the posi-
tion shown in the illustration.

>>C<< SNAP RING INSTALLATION

AK602055AC

MD998924

MB991630

Snap ring

1. Set the special tools as shown in the illustration.

• Spring compressor (MB991630)

• Spring compressor retainer (MD998924)

2. Screw in the special tool nut, and lightly press

against the inner race of the one-way clutch.

3. Install the snap ring.

5.

Spring retainer

6.

Return spring

7.

Low/reverse brake piston

>>A<<

8.

D-ring

>>A<<

9.

D-ring

10. Center support

Disassembly steps (Continued)

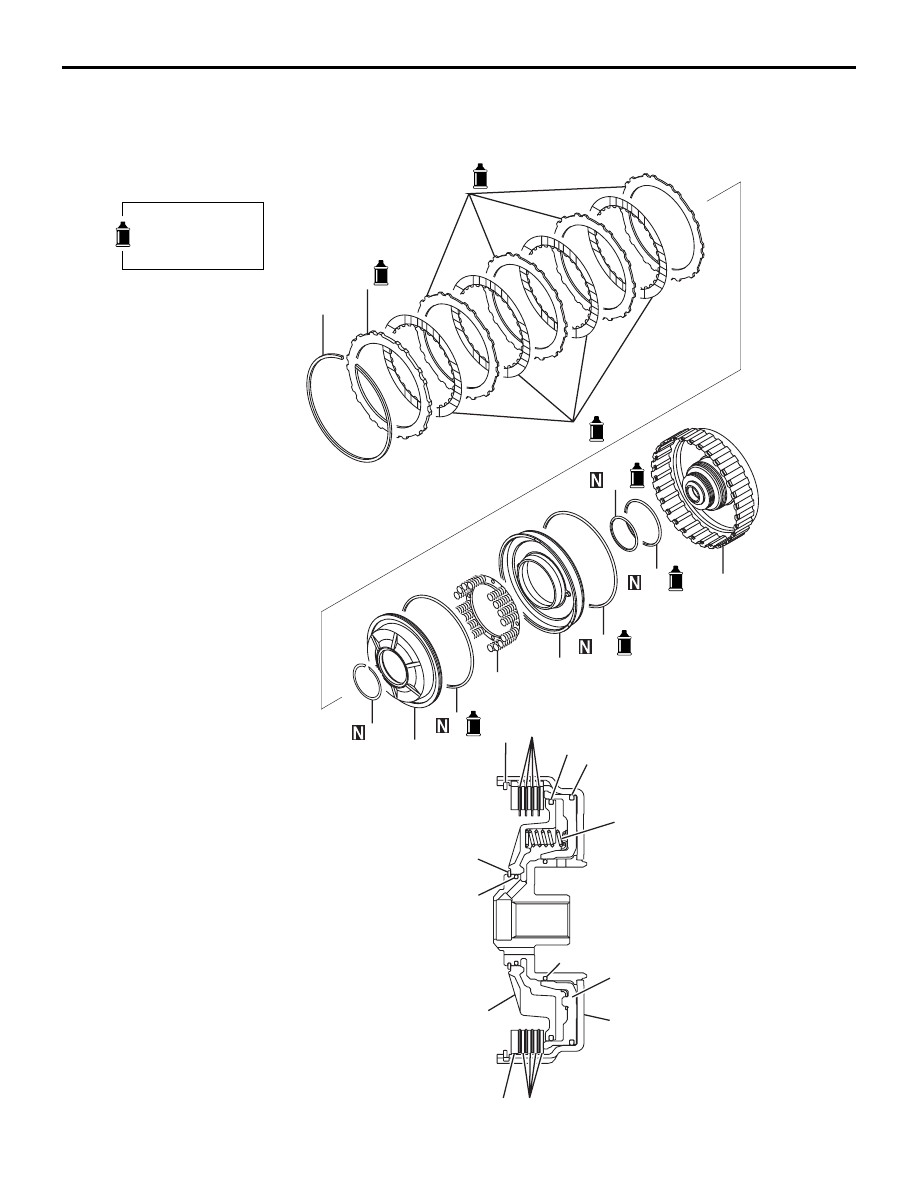

UNDERDRIVE CLUTCH

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-62

UNDERDRIVE CLUTCH

DISASSEMBLY AND REASSEMBLY

M1233027300314

AK700896

4

5

6

1

2

3

7

8

9

11

12

13

10

4

5

6

1

2

3

7

8

9

11

12

13

10

AB

Apply automatic
transmission fluid
to all moving parts
before installation.
