Mitsubishi L200. Manual - part 354





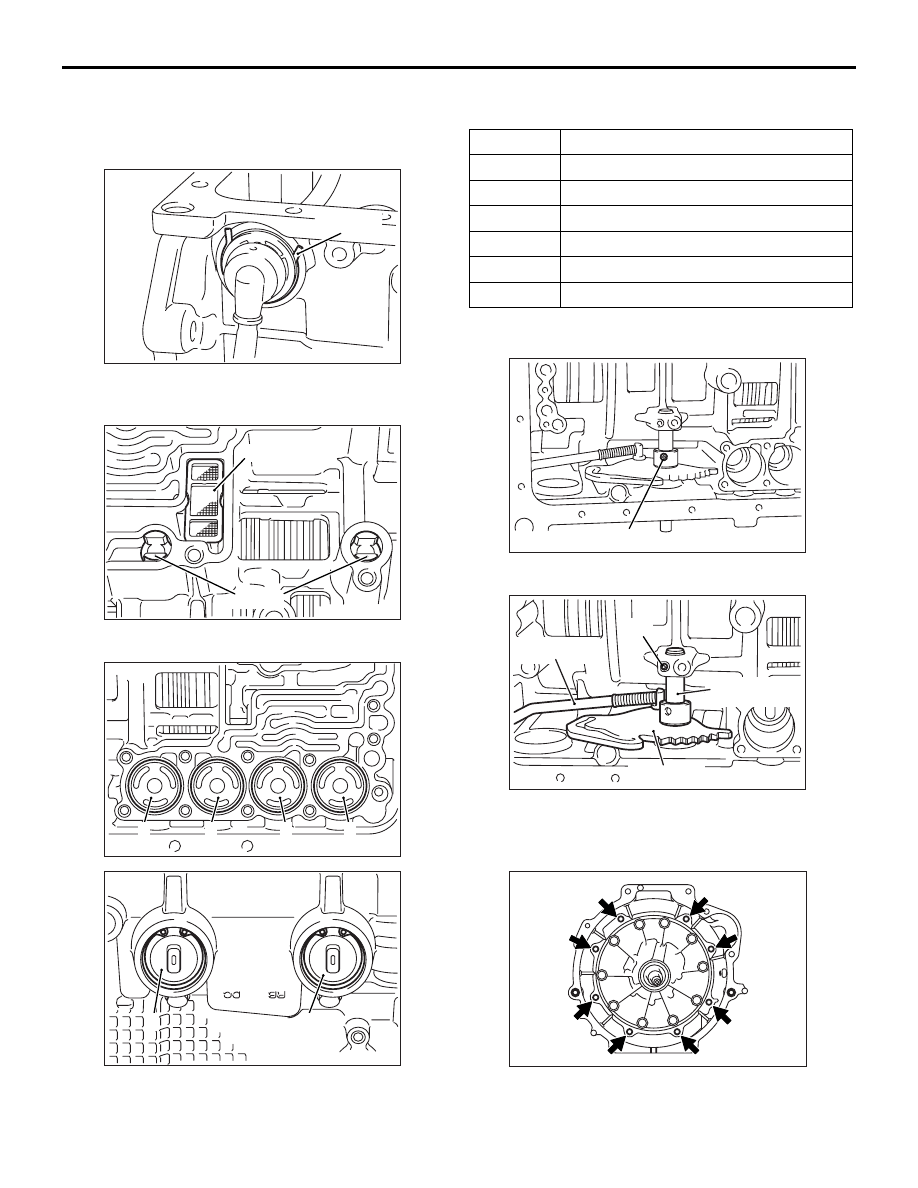

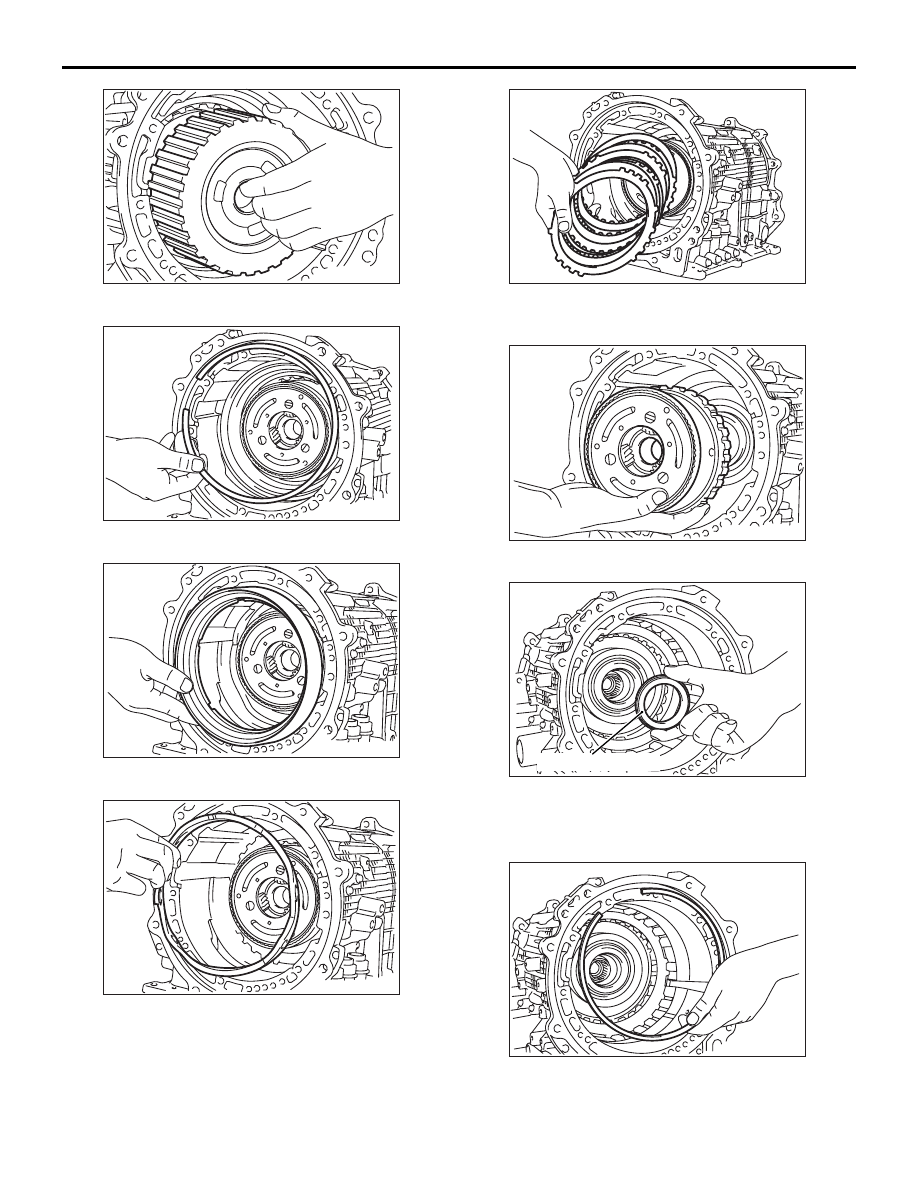

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-31

NOTE: The O-rings are mounted on the transmis-
sion case side as shown in the illustration. How-
ever there may be cases where they will come off
with the valve body.

AK601377AC

Snap ring

13.Remove the snap ring and disconnect the

solenoid valve harness.

AK601378AC

Oil strainer

Oil seal

14.Remove the oil strainer and two oil seals.

AK601921AC

4

3

2

1

AK601922 AC

6

5

15.Remove each accumulator piston, seal ring and

spring.

Remove the snap ring, then remove the
accumulator cover, O-ring and spring.

No.

Name

1

For overdrive clutch

2

For second brake

3

For low/reverse brake

4

For underdrive clutch

5

For reduction brake

6

For direct clutch

NOTE: To make assembly easier, attach an iden-
tification tag on the removed accumulator piston.

AK601923AC

Spring pin

16.Remove the detent lever spring pin.

AK601924AC

Pin

Parking roller
rod

Detent lever

Manual control
shaft

17.Remove the pin, and then remove the manual

control shaft, two O-rings, detent lever and
parking roller rod.

AK503505AB

18.Remove the eight converter housing mounting

bolts, and then converter housing.

AK601926AC

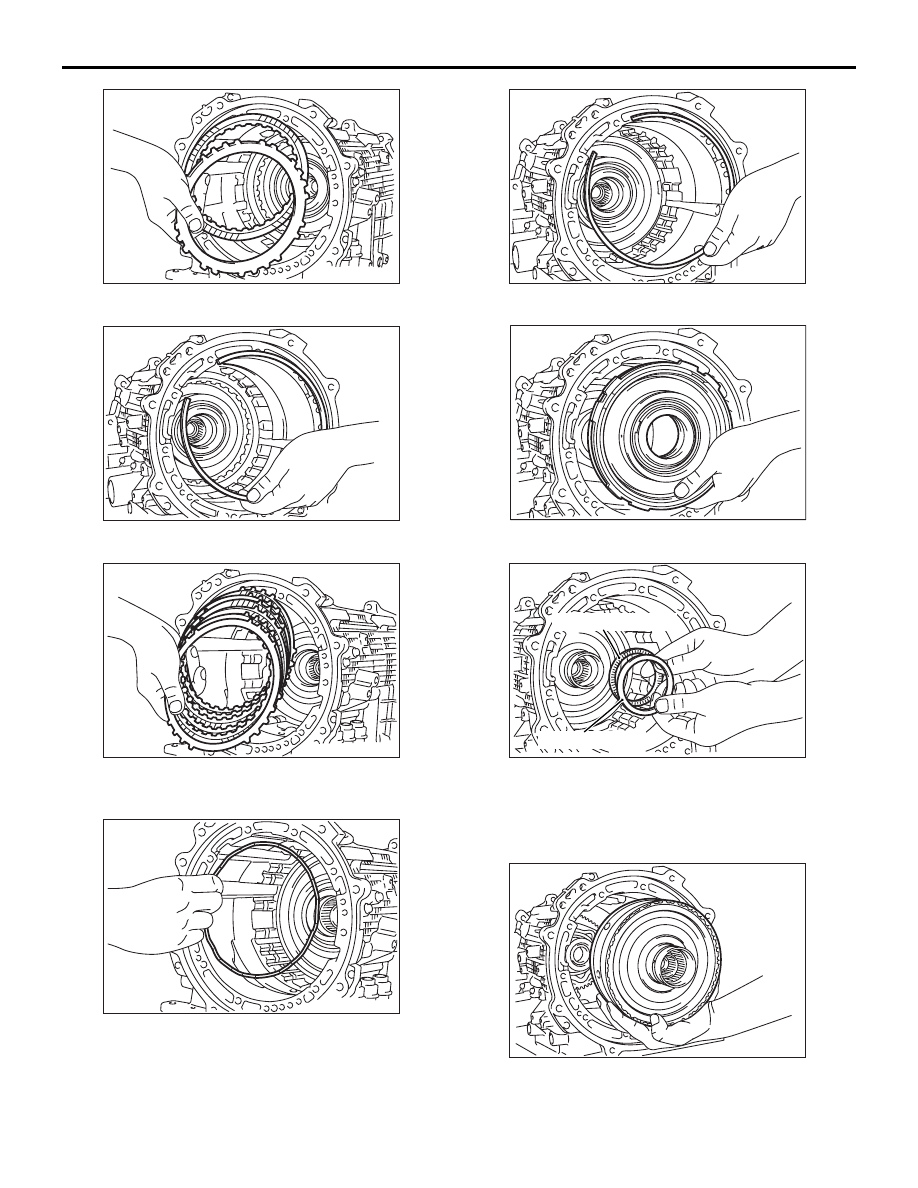

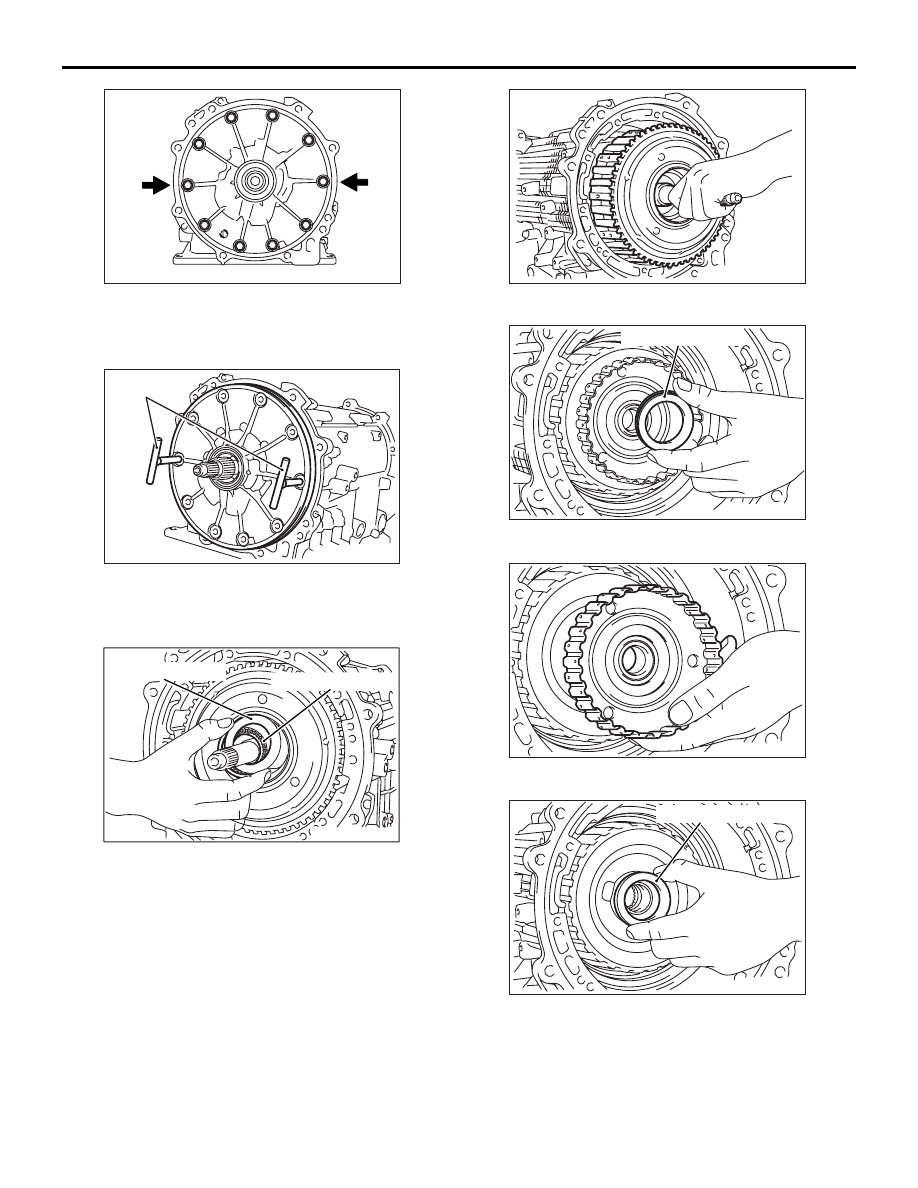

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-32

19.Remove the ten oil pump mounting bolts.
20.Install the special tool into the bolt hole shown in

the illustration.

AK601927AC

MD998333

21.While screwing in special tools Oil pump remover

(MD998333) evenly, remove the oil pump.

22.Remove the oil pump gasket.

AK601928AD

Thrust race No.1

Thrust bearing No.2

23.Remove the thrust race No.1 and thrust bearing

No.2.
NOTE: The thrust race No.1 may be attached to
the oil pump.

AK601929

24.Remove the reverse and overdrive clutch.

AK601930AD

Thrust bearing No.3

25.Remove the thrust bearing No.3.

AK601931

26.Remove the overdrive clutch hub.

AK601932AD

Thrust bearing No.4

27.Remove the thrust bearing No.4.

NOTE: The thrust bearing No.4 may be attached
to the overdrive clutch hub.

AB601933

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-33

28.Remove the reverse sun gear.

AK601934

29.Remove the snap ring.

AK601935

30.Remove the second brake.

AK601936

31.Remove the return spring.

AK601937

32.Remove the pressure plate, brake plates and

brake discs.

AK601938

33.Remove the low/reverse annulus gear.

AK601939AD

Thrust bearing No.7

34.Remove the thrust bearing No.7.

NOTE: The thrust bearing No.7 may be attached
to the low/reverse annulus gear.

AK601940

35.Remove the snap ring.

AK601941

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-34

36.Remove the reaction plate and one brake disc.

AK601942

37.Remove the snap ring.

AK601943

38.Remove the brake plates, brake discs, and

pressure plate.

AK601944

39.Remove the wave spring.

AK601945

40.Remove the snap ring.

AK601946

41.Remove the center support.

AK601947AD

Thrust race No.8

Thrust bearing No.9

42.Remove the thrust race No.8 and thrust bearing

No.9.
NOTE: The thrust race No.8 may be attached to
the center support.

AK601948

43.Remove the direct annulus gear.
