TRANSFER CASE ADAPTER

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-23

Specified lubricant:
 Mitsubishi Part No.0101011 or equivalent

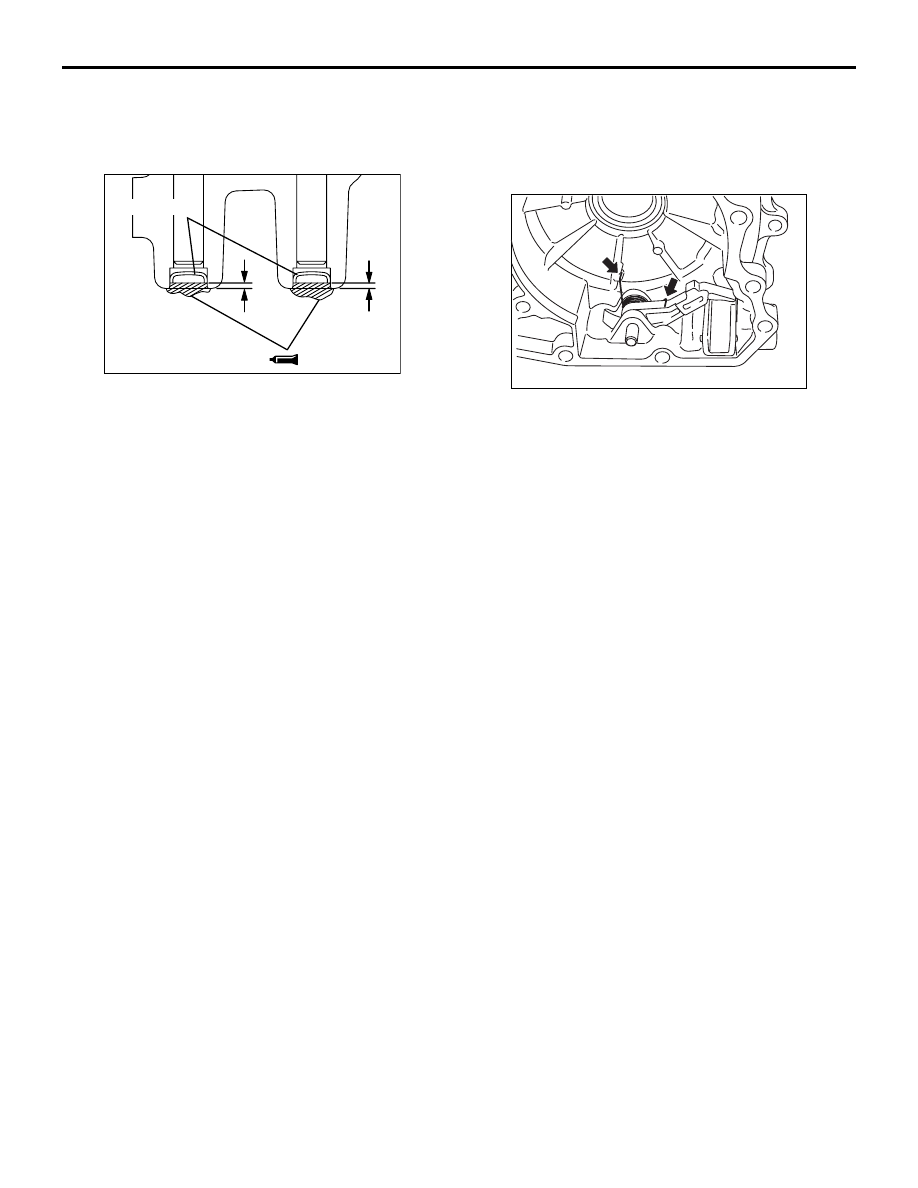

>>B<< SEALING CAP INSTALLATION

AK403557

1.5 mm

1.5 mm

Sealing cap

AB

1. Press into the dimensions shown in the illustration

so that it is not slanted.

2. Apply the sealant as shown in the illustration.

Specified sealant:
Mitsubishi 3M

™ ATD Part No.8672 or equiva-

lent

>>C<< PARKING SPRAG SPRING INSTALLATION

AK403340

AB

Attach the end of the spring to the position shown in
the illustration.

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-24

TRANSMISSION

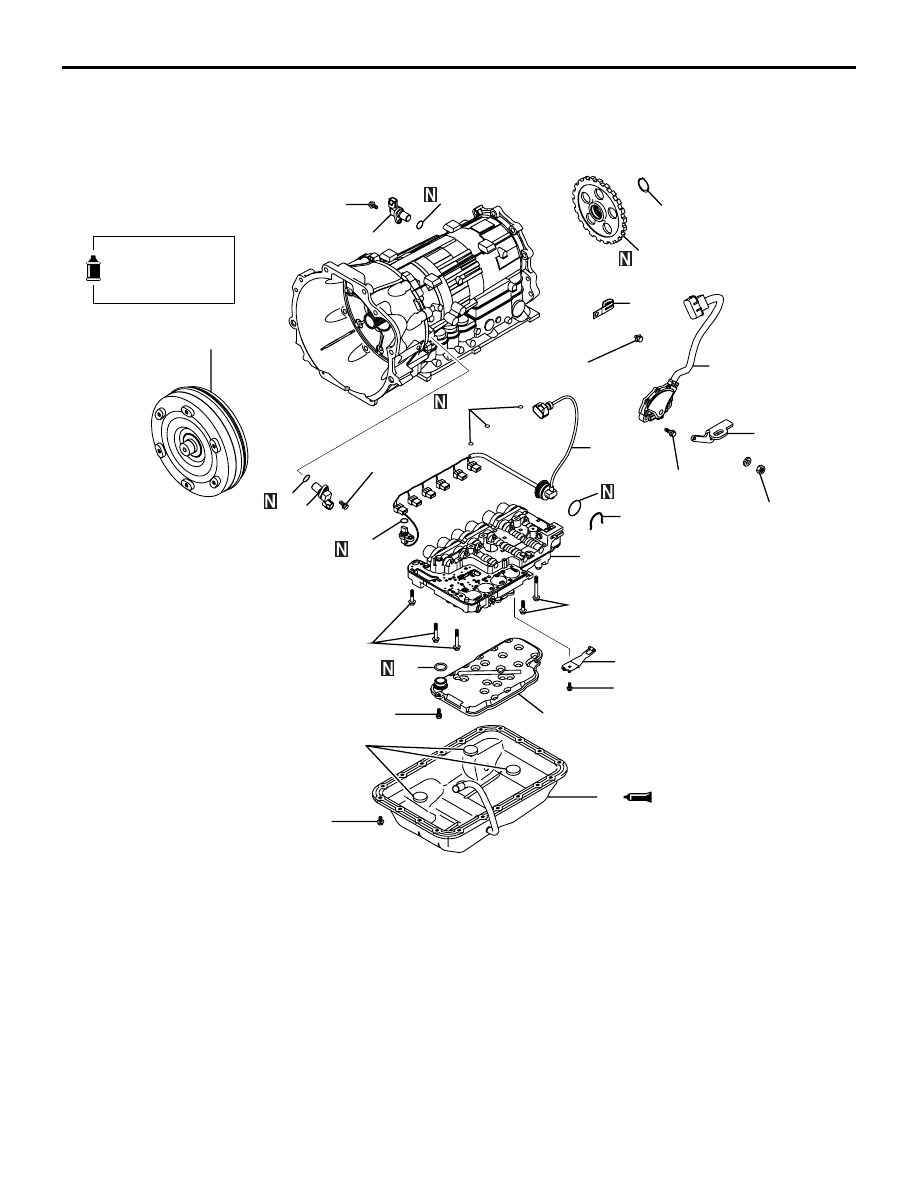

DISASSEMBLY AND REASSEMBLY

M1233101200024

AK900863

AB

1

2

3

4

5

6

7

8

10

11

12

13

14

15

16

17

Apply automatic
transmission fluid
to all moving parts
before installation.

11 ± 1 N·m

21.5 ± 3.5 N·m

11 ± 1 N·m

11 ± 1 N·m

6.0 ± 1.0 N·m

6.0 ± 1.0 N·m

11 ± 1 N·m

11 ± 1 N·m

11 ± 1 N·m

11 ± 1 N·m

9

18

19

20

21

1.

Torque converter

2.

Clamp

3.

Input shaft speed sensor

4.

O-ring

5.

Output shaft speed sensor

6.

O-ring

7.

Manual control lever

8.

Inhibitor switch

9.

Snap ring

10. Parking gear
11. Oil pan

12. Magnet
13. Oil filter
14. O-ring
15. Detent spring
16. Valve body
17. O-ring
18. Snap ring
19. Solenoid valve harness
20. O-ring
21. O-ring

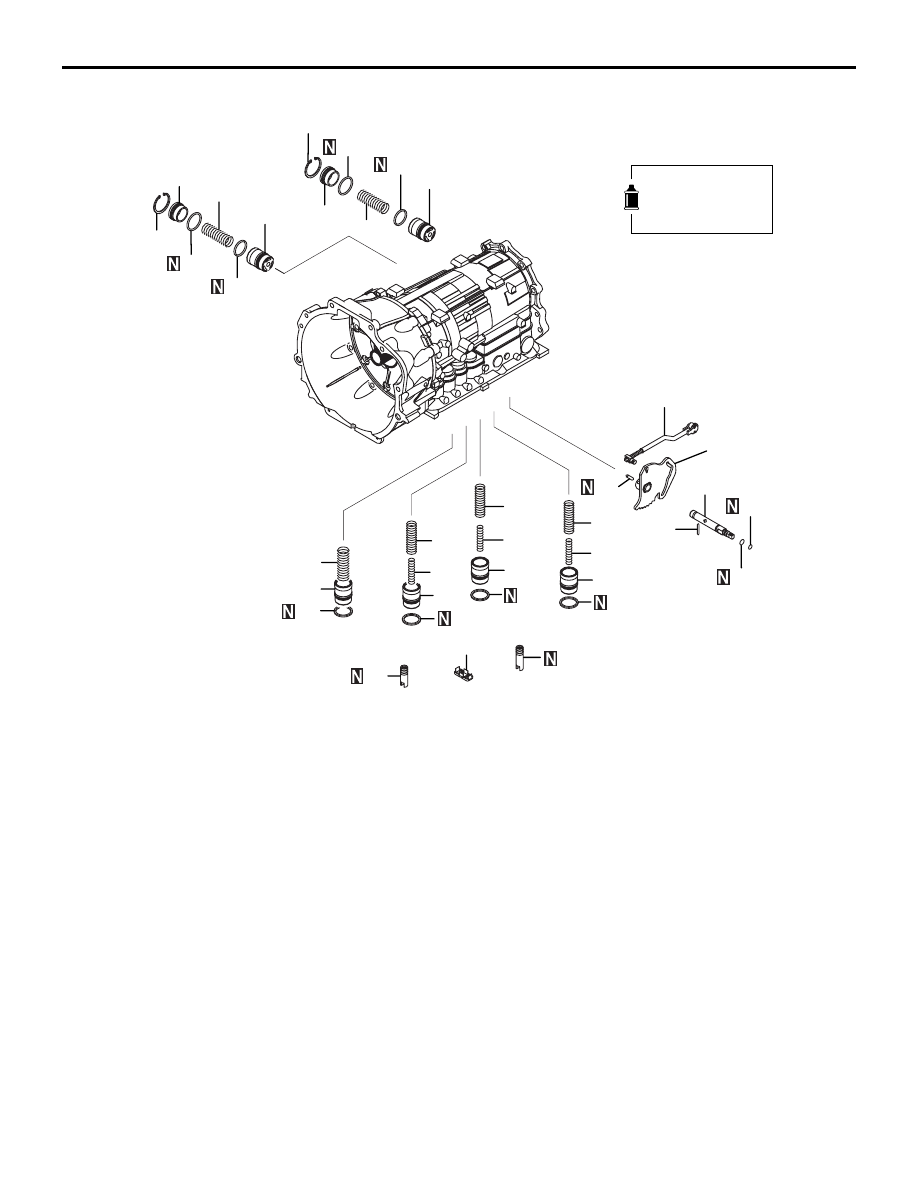

AK900864

22

23

24

25

26

27

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

37

38

39

40

43

AB

Apply automatic
transmission fluid
to all moving parts
before installation.

25

25

25

30

29

28

31

22. Oil seal
23. Oil seal
24. Oil strainer
25. Seal ring
26. Accumulator piston (for overdrive clutch)
27. Accumulator spring
28. Accumulator piston (for second brake)
29. Inner spring
30. Outer spring
31. Accumulator piston (for Low/reverse brake)
32. Inner spring
33. Outer spring
34. Accumulator piston (for underdrive clutch)
35. Inner spring
36. Outer spring

37. Snap ring
38. Accumulator cover
39. O-ring
40. Accumulator spring
41. Accumulator piston (for reduction brake)
42. Accumulator piston (for direct clutch)
43. Seal ring
44. Spring pin
45. Pin
46. Manual control shaft
47. O-ring
48. O-ring
49. Detent lever
50. Parking roller rod

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-25

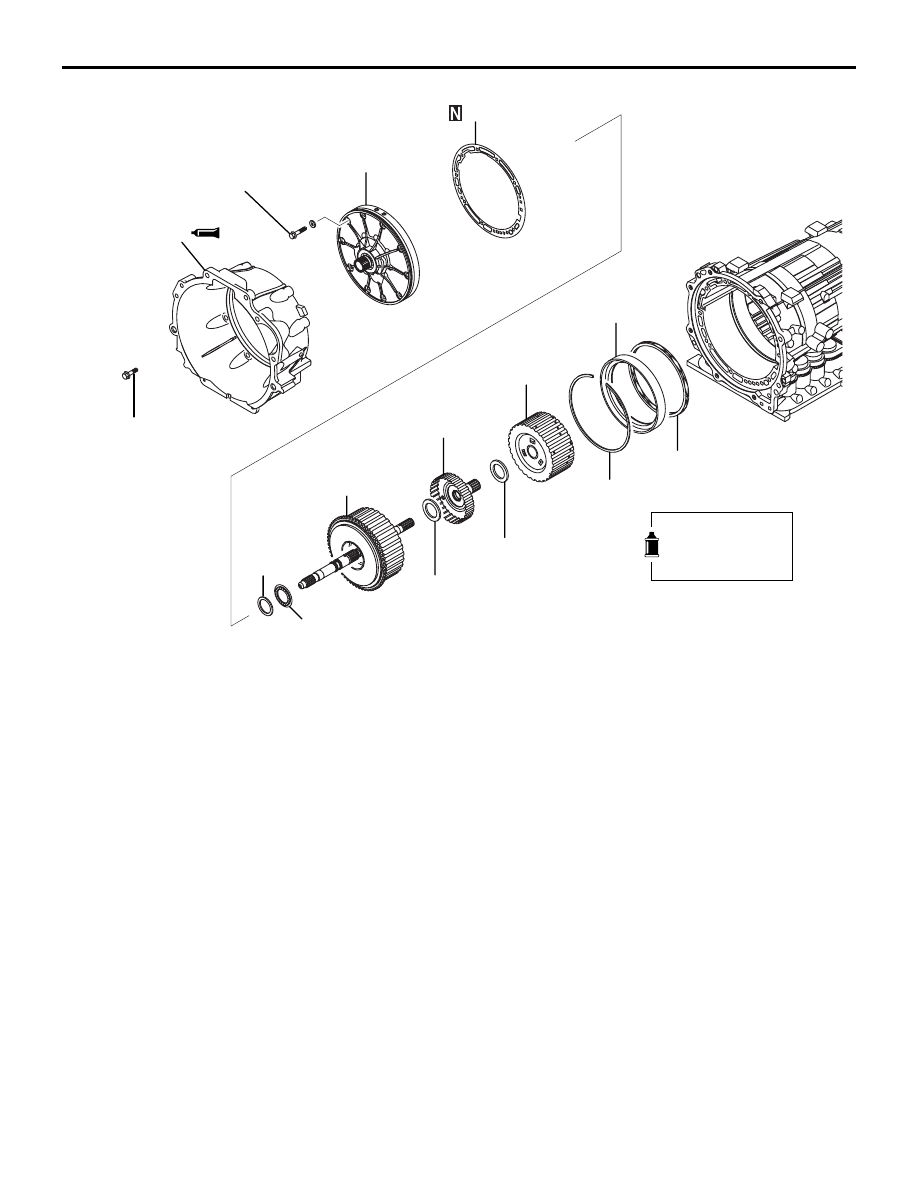

AK900865AB

60

61

62

63

51

52

53

54

55

56

57

58

59

23 ± 3 N·m

Apply automatic
transmission fluid
to all moving parts
before installation.

48 ± 6 N·m

51. Converter housing
52. Oil pump
53. Oil pump gasket
54. Thrust race No.1
55. Thrust bearing No.2
56. Reverse and overdrive clutch
57. Thrust bearing No.3

58. Overdrive clutch hub
59. Thrust bearing No.4
60. Reverse sun gear
61. Snap ring
62. Second brake
63. Return spring
