TROUBLESHOOTING

DIESEL FUEL

13A-360

DIAGNOSIS PROCEDURE

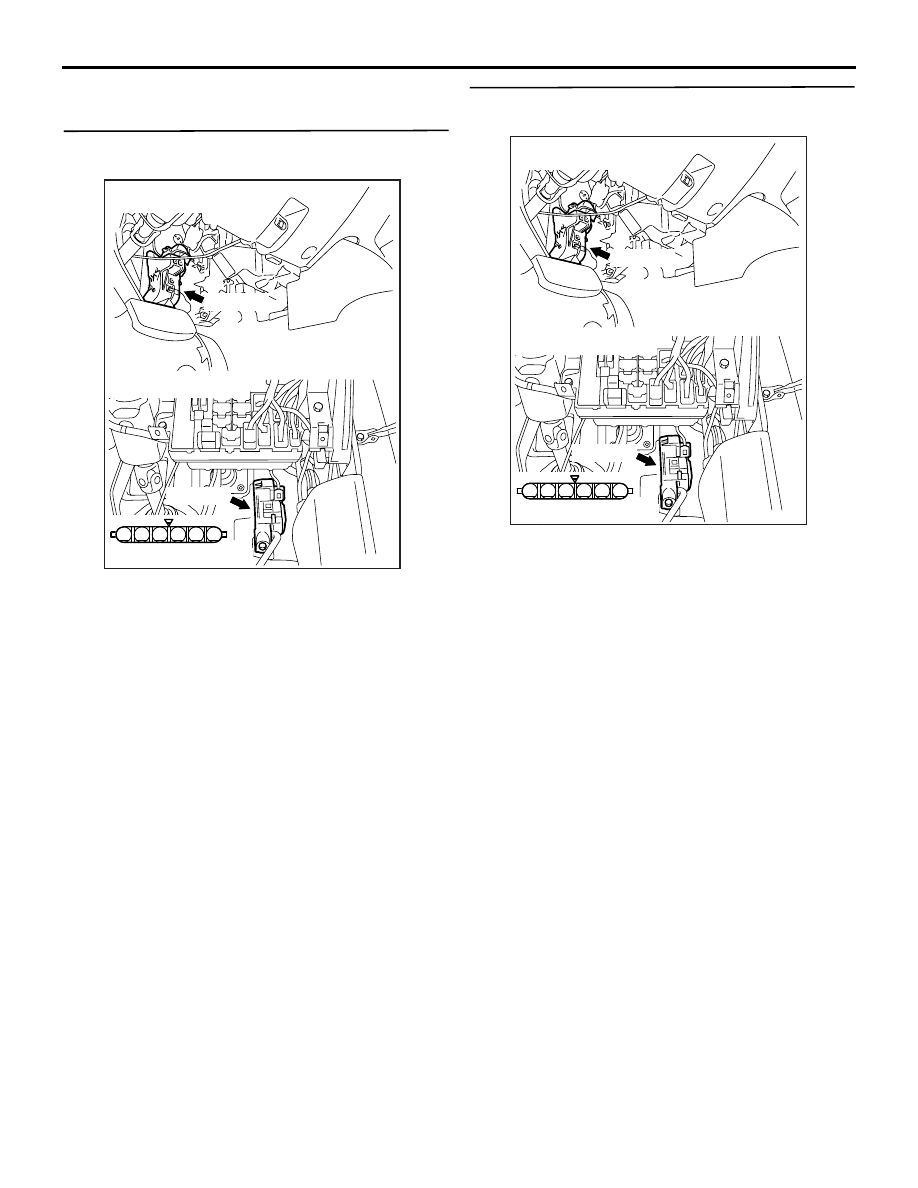

STEP 1. Connector check: C-115 accelerator
pedal position connector

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Repair or replace the connector.

STEP 2. Perform resistance measurement at C-
115 accelerator pedal position sensor connector.

• Disconnect connector, and measure at harness

side.

• Resistance between terminal No. 2 and earth.

OK: Continuity (2

 or less)

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Go to Step 3 .

AK700804

1

6 5 4 3 2

C-115 (B)

C-115 (B)

Connector: C-115

<R.H. drive vehicles>

<L.H. drive vehicles>

AB

Harness side connector

AK700804

1

6 5 4 3 2

C-115 (B)

C-115 (B)

Connector: C-115

<R.H. drive vehicles>

<L.H. drive vehicles>

AB

Harness side connector

TROUBLESHOOTING

DIESEL FUEL

13A-361

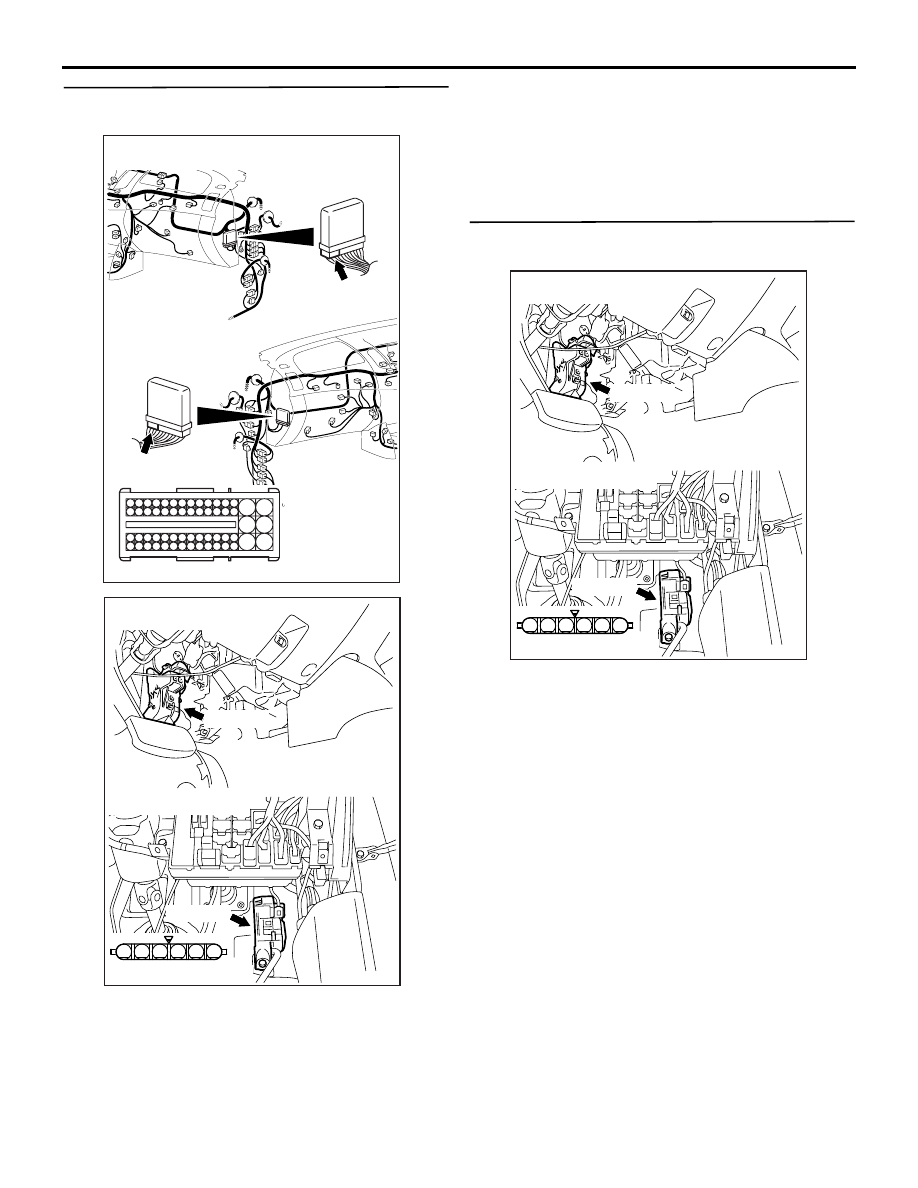

STEP 3. Connector check: C-103 engine-ECU
connector

Q: Is the check result normal?

YES :

Check and repair harness between C-115

(terminal No. 2) accelerator pedal position
sensor connector and C-103 (terminal No.
151) engine-ECU connector.

• Check earthing line for damage.

NO :

Repair or replace the connector.

STEP 4. Perform resistance measurement at C-
115 accelerator pedal position sensor connector.

• Disconnect connector, and measure at harness

side.

• Resistance between terminal No. 5 and earth.

OK: Continuity (2

 or less)

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Go to Step 5 .

AKA00090

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

146

147

148

149

150

151

152

153

154

155

156

157

158

117

145

116

144

C-103 (B)

C-103 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-103

AB

AK700804

1

6 5 4 3 2

C-115 (B)

C-115 (B)

Connector: C-115

<R.H. drive vehicles>

<L.H. drive vehicles>

AB

Harness side connector

AK700804

1

6 5 4 3 2

C-115 (B)

C-115 (B)

Connector: C-115

<R.H. drive vehicles>

<L.H. drive vehicles>

AB

Harness side connector

TROUBLESHOOTING

DIESEL FUEL

13A-362

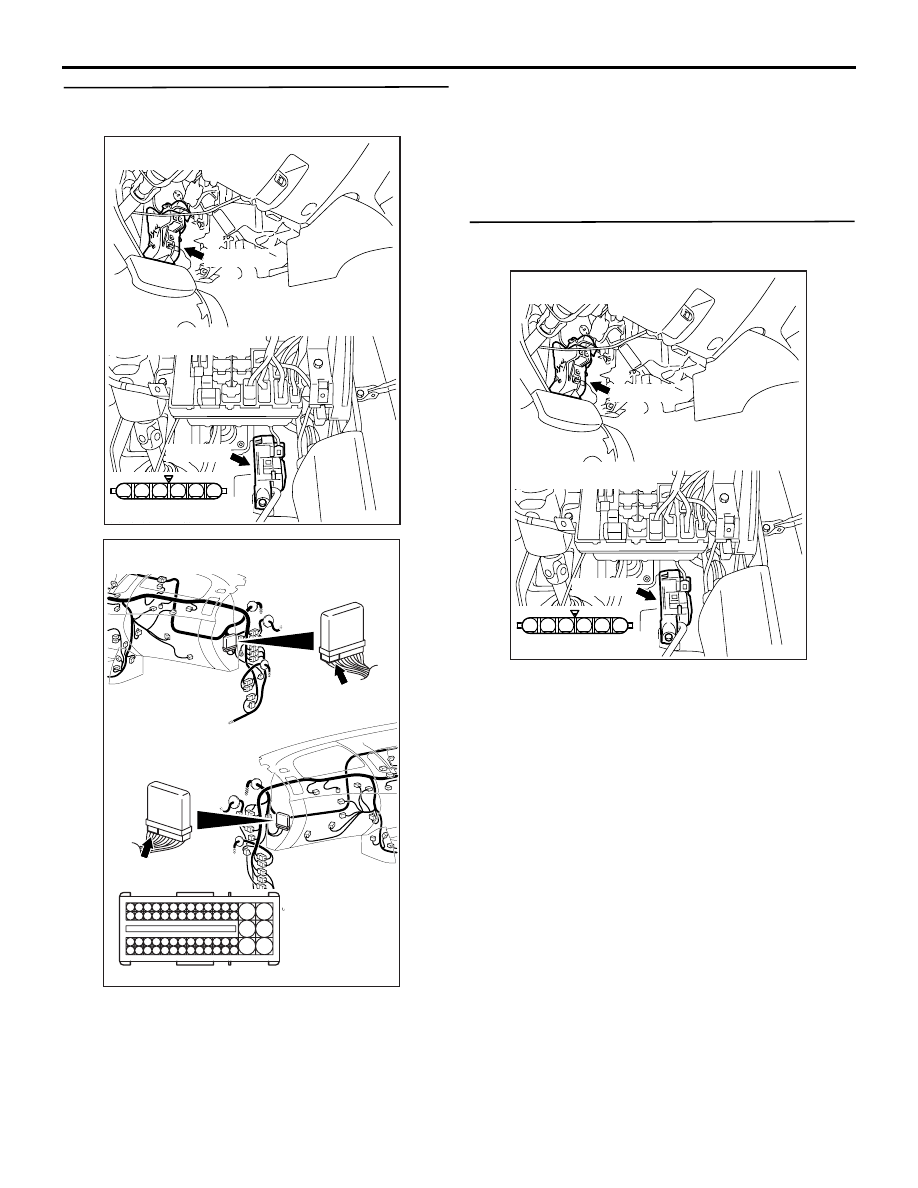

STEP 5. Connector check: C-103 engine-ECU
connector

Q: Is the check result normal?

YES :

Check and repair harness between C-115

(terminal No. 5) accelerator pedal position
sensor connector and C-103 (terminal No.
136) engine-ECU connector.

• Check earthing line for damage.

NO :

Repair or replace the connector.

STEP 6. Perform voltage measurement at C-115
accelerator pedal position sensor connector.

• Use special tool test harness (MB991658) to con-

nect connector, and measure at pick-up harness.

• Ignition switch: ON

• Voltage between terminal No. 1 and earth.

OK: 4.9

 5.1 V

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Go to Step 7 .

AKA00090

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

146

147

148

149

150

151

152

153

154

155

156

157

158

117

145

116

144

C-103 (B)

C-103 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-103

AB

AK700804

1

6 5 4 3 2

C-115 (B)

C-115 (B)

Connector: C-115

<R.H. drive vehicles>

<L.H. drive vehicles>

AB

Harness side connector

AK700804

1

6 5 4 3 2

C-115 (B)

C-115 (B)

Connector: C-115

<R.H. drive vehicles>

<L.H. drive vehicles>

AB

Harness side connector

TROUBLESHOOTING

DIESEL FUEL

13A-363

STEP 7. Connector check: C-103 engine-ECU
connector

Q: Is the check result normal?

YES :

Check and repair harness between C-115

(terminal No. 1) accelerator pedal position
sensor connector and C-103 (terminal No.
149) engine-ECU connector.

• Check power supply line for damage.

NO :

Repair or replace the connector.

STEP 8. Perform voltage measurement at C-115
accelerator pedal position sensor connector.

• Use special tool test harness (MB991658) to con-

nect connector, and measure at pick-up harness.

• Ignition switch: ON

• Voltage between terminal No. 4 and earth.

OK: 4.9

 5.1 V

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Go to Step 9 .

AK700804

1

6 5 4 3 2

C-115 (B)

C-115 (B)

Connector: C-115

<R.H. drive vehicles>

<L.H. drive vehicles>

AB

Harness side connector

AKA00090

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

146

147

148

149

150

151

152

153

154

155

156

157

158

117

145

116

144

C-103 (B)

C-103 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-103

AB

AK700804

1

6 5 4 3 2

C-115 (B)

C-115 (B)

Connector: C-115

<R.H. drive vehicles>

<L.H. drive vehicles>

AB

Harness side connector
