Mitsubishi L200. Manual - part 19





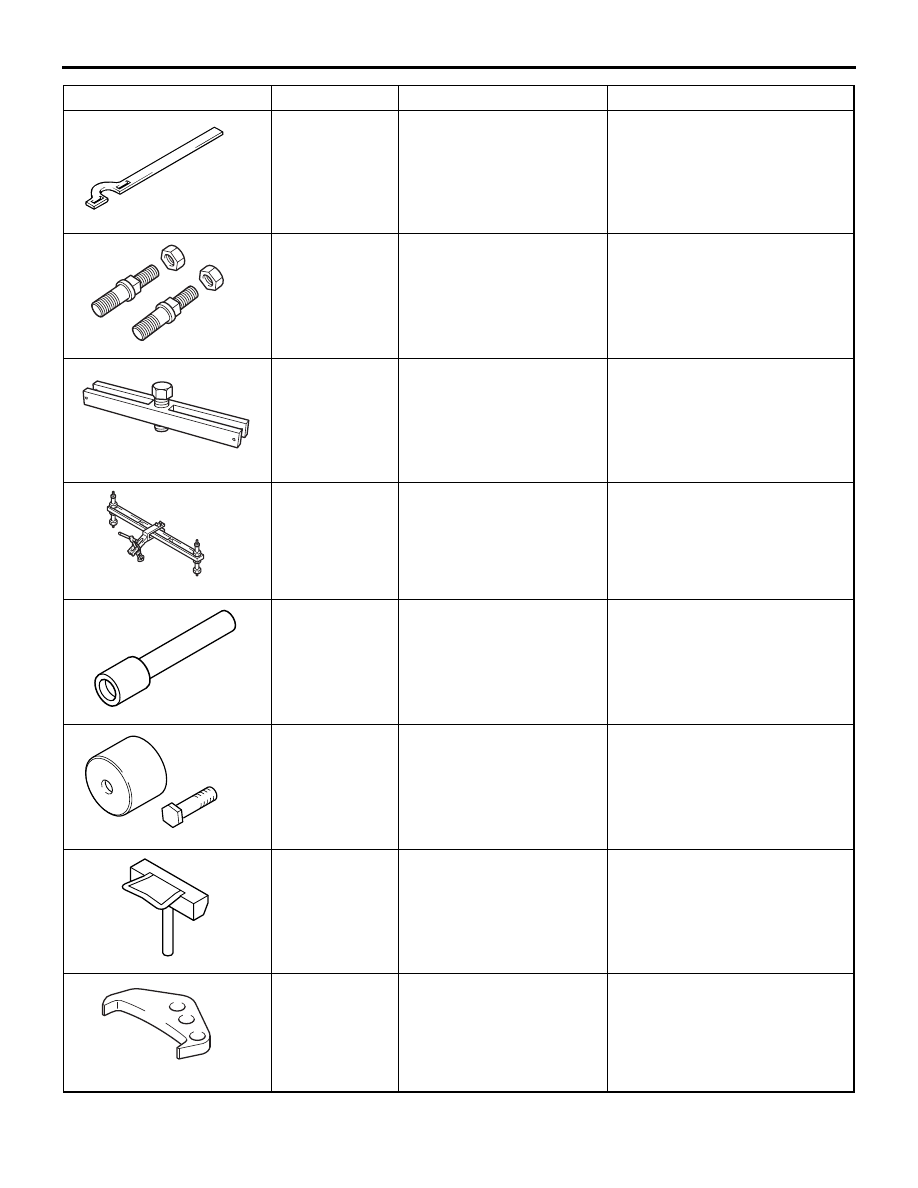

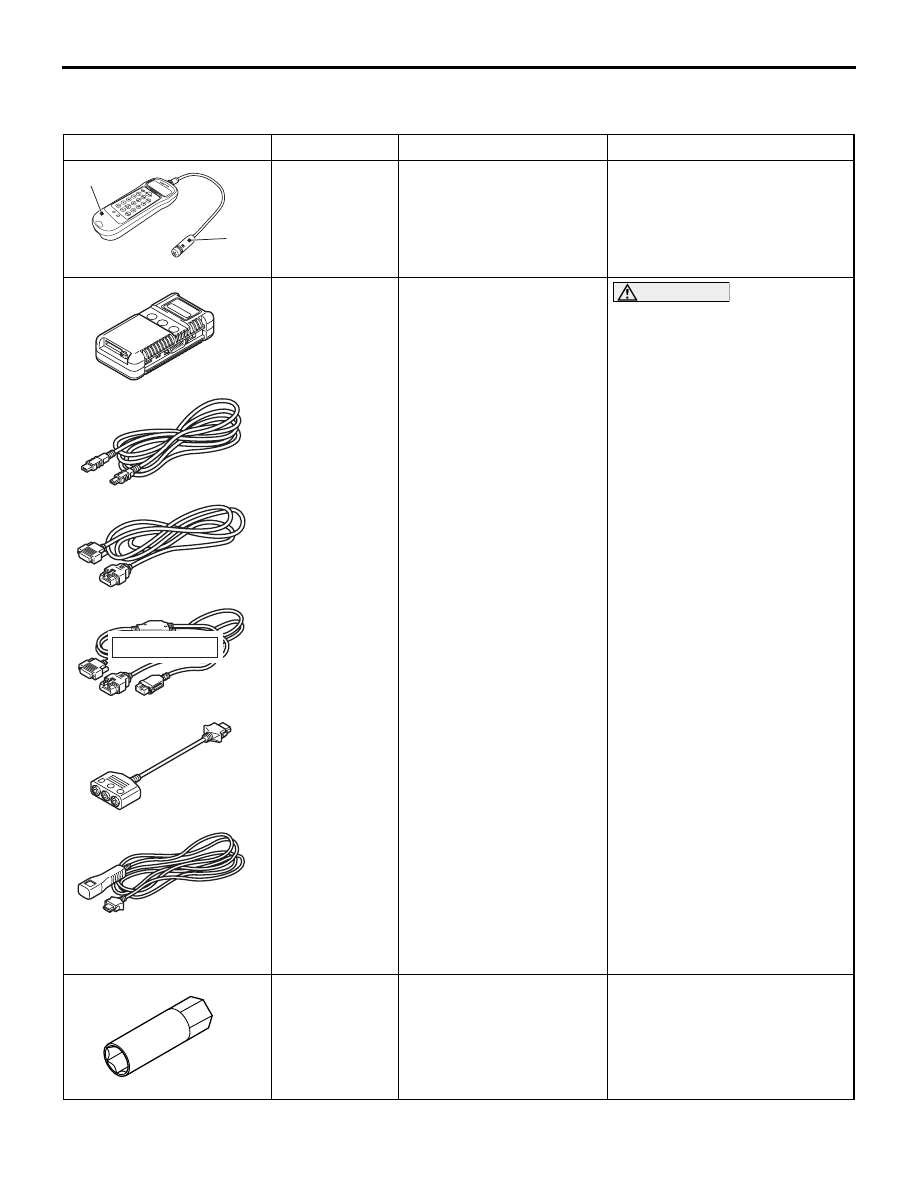

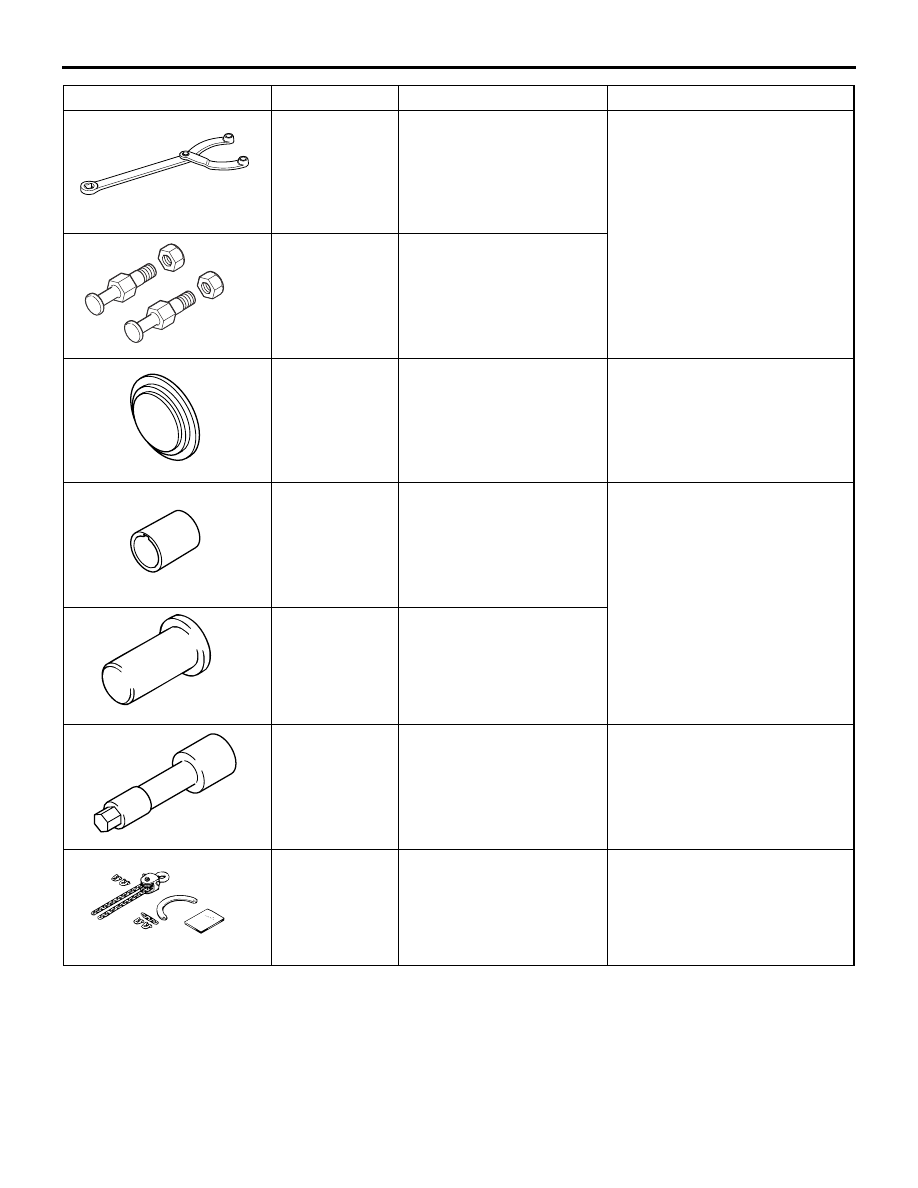

SPECIAL TOOLS

ENGINE MECHANICAL

11A-4

SPECIAL TOOLS

M1111000602799

Tool

Number

Name

Use

B992080

a

b

MB992080

a: MB992081
b: MB992082

Belt tension meter set

a: Belt tension meter
b: Microphone assembly

Drive belt tension check

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

MB991955

a: MB991824
b: MB991827
c: MB991910
d: MB991911
e: MB991825
f: MB991826

M.U.T.-III sub assembly

a: Vehicle communication

interface (V.C.I.)

b: M.U.T.-III USB cable
c: M.U.T.-III main harness

A (Vehicles with CAN
communication system)

d: M.U.T.-III main harness

B (Vehicles without CAN
communication system)

e: M.U.T.-III adapter

harness

f: M.U.T.-III trigger harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If
you connect M.U.T.-III main
harness B instead, the CAN
communication does not
function correctly.

• Checking the idle speed

• Erasing diagnosis code

MB992046

MB992046

Valve adjusting socket

Adjustment of valve clearance

MB991800

SPECIAL TOOLS

ENGINE MECHANICAL

11A-5

MB991800

Pulley holder

Holding the crankshaft pulley

B992100

MB992100

Crank pulley holder

• Holding the crankshaft pulley

• Crankshaft pulley removal

B992099

MB992099

Crank pulley puller

Crankshaft pulley removal

MD998772

MD998772

Valve spring compressor

Compressing valve spring

MB991999

Valve stem seal installer

Valve stem seal installation

D998713

MD998713

Camshaft oil seal installer

Camshaft oil seal installation

D998727

MD998727

Oil pan FIPG cutter

Oil pan removal

MB991883

MB991883

Flywheel stopper

• Supporting the flywheel

assembly <M/T>

• Supporting the inertia ring

assembly <A/T>

Tool

Number

Name

Use

B990767

SPECIAL TOOLS

ENGINE MECHANICAL

11A-6

MB990767

Front hub and flange yoke
holder

Holding the camshaft sprocket

D998719

MD998719

Pin

MB992147

Oil seal installer

Crankshaft rear oil seal
installation

D998383

MD998383

Crankshaft front oil seal
guide

Crankshaft front oil seal
installation

D998382

MD998382

Crankshaft front oil seal
installer

MD998051

Cylinder head bolt wrench Removal and installation of

cylinder head bolt

B991683

MB991683

Sling chain set

Removal and installation of
engine assembly

Tool

Number

Name

Use

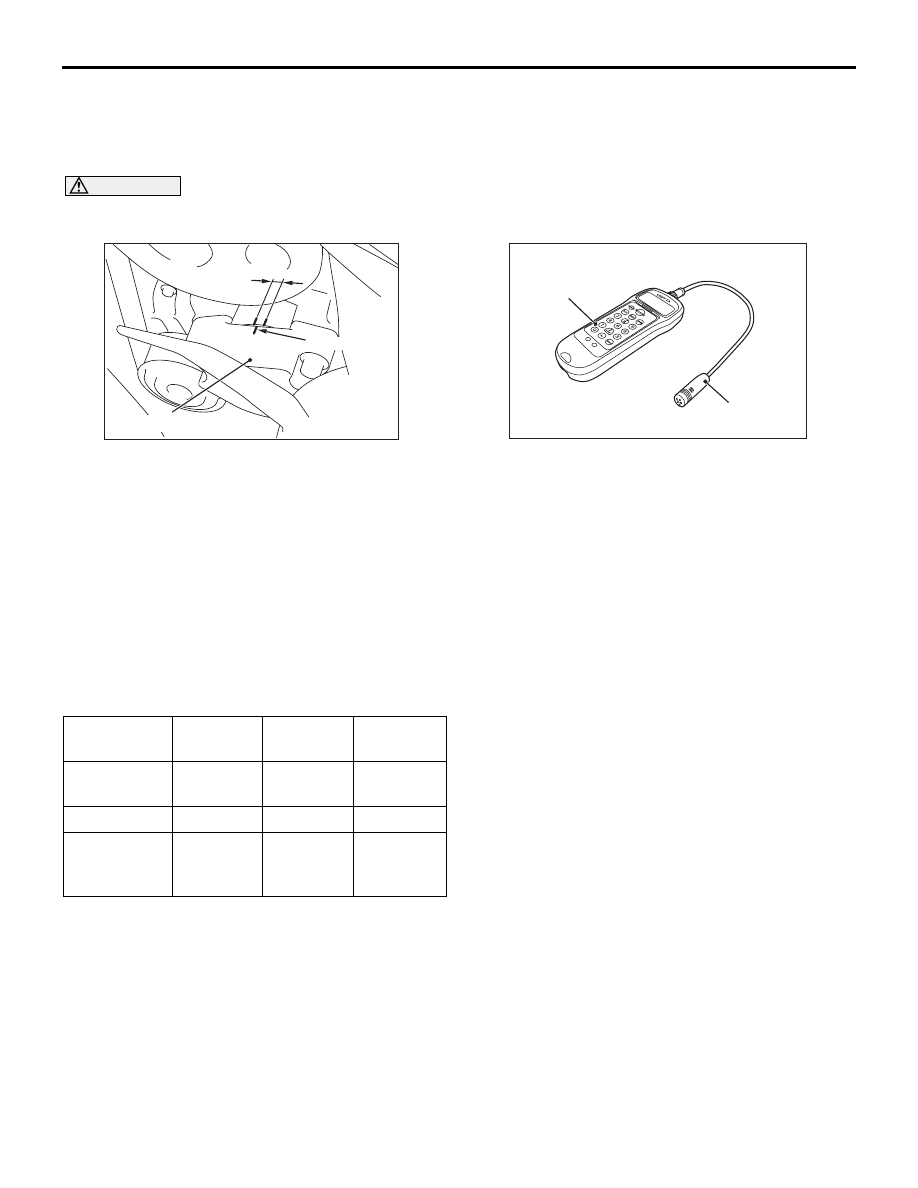

ON-VEHICLE SERVICE

ENGINE MECHANICAL

11A-7

ON-VEHICLE SERVICE

ALTERNATOR AND POWER STEERING
OIL PUMP DRIVE BELT TENSION CHECK

M1111001200033

CAUTION

Check the drive belt tension after turning the
crankshaft clockwise one turn or more.

AC501803AB

Indicator mark

A

Auto tensioner

1. Make sure that the indicator mark is within the

area marked with A in the illustration.

2. If the mark is out of the area, replace the drive

belt. (Refer to

P.11A-17

).

NOTE: The drive belt tension check is not neces-
sary as auto tensioner is adopted.

A/C COMPRESSOR DRIVE BELT
TENSION CHECK AND ADJUSTMENT

M1111001000363

Check the drive belt tension by the following proce-
dures.

STANDARD VALUE:

Item

When
checked

When
adjusted

When
replaced

Vibration
frequency Hz

222.5

−

251.0

222.5

−

251.0

259.8

−

300.0

Tension N

363

− 462 363 − 462 495 − 660

Deflection
mm
(Reference)

6.8

− 8.0

6.8

− 8.0

5.1

− 6.4

WHEN THE VIBRATION FREQUENCY IS
MEASURED (SPECIAL TOOL MB992080 IS
USED): RECOMMENDATION
NOTE: The vibration frequency measuring method is
recommended for check and adjustment of the drive
belt tension.

AC507219AB

MB992082

MB992081

Belt tension meter set (MB992080)

1. Connect special tool microphone assembly

(MB992082) to special tool belt tension meter
(MB992081) of special tool belt tension meter set
(MB992080).

2. Press the "POWER" button to turn on the power

supply.

3. Press the numeral key of "1" and check that

"No.1" appears on the upper left of the display.
NOTE: This operation is to temporarily set the
preset data such as the belt specifications,
because if the measurement is taken without input
of the belt specifications, conversion to tension
value (N) cannot be made, resulting in judgement
of error.

4. Press "Hz" button twice to change the display to

the frequency display (Hz).
