III–42

PANEL REPLACEMENT

ROOF PANEL INSTALLATION

A6E981270600B02

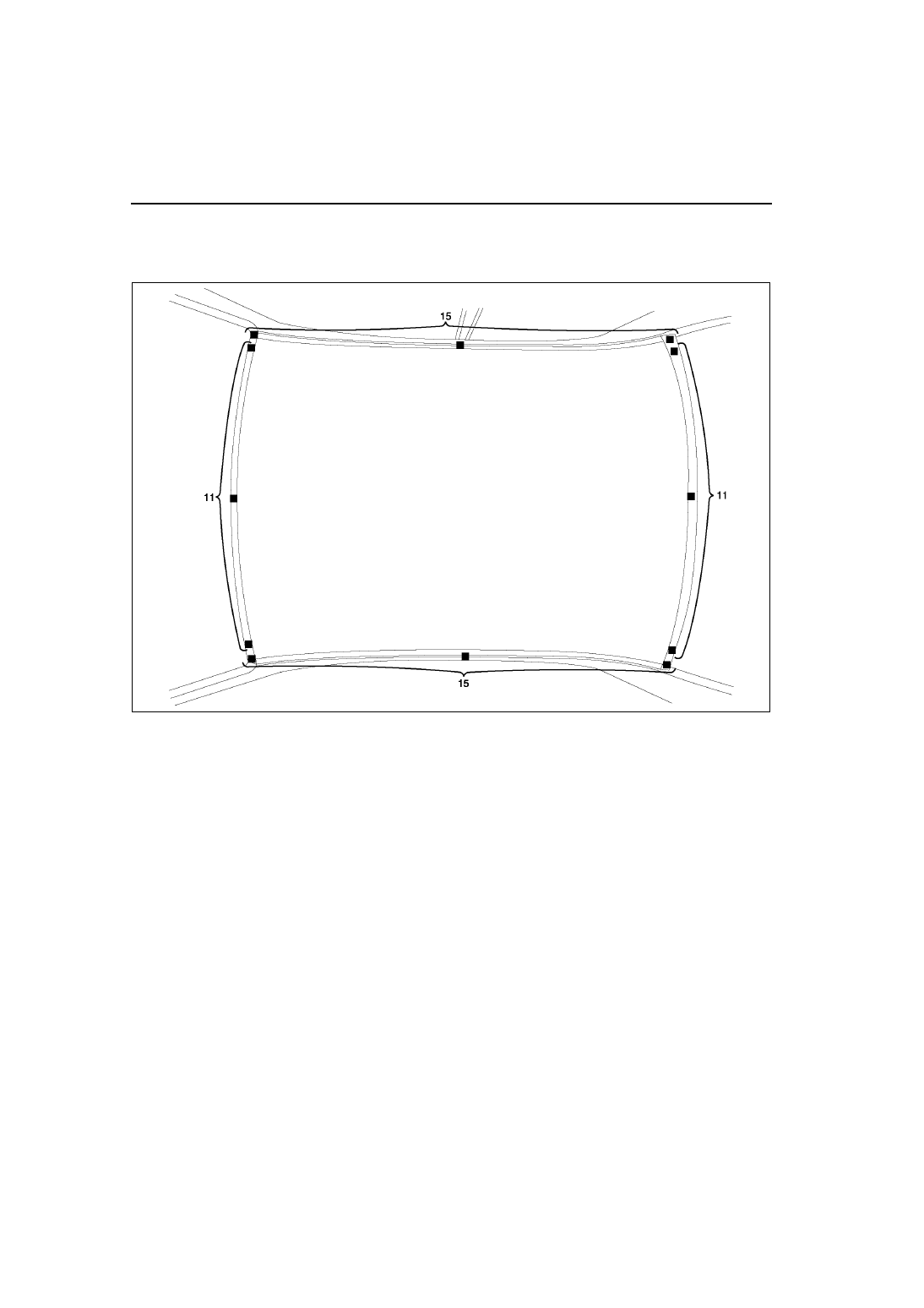

SEDAN

1. Drill holes for plug welds before installing new parts.
2. After trial-fitting new parts, make sure the related parts fit properly.

A6E9812B032

PANEL REPLACEMENT

III–43

III

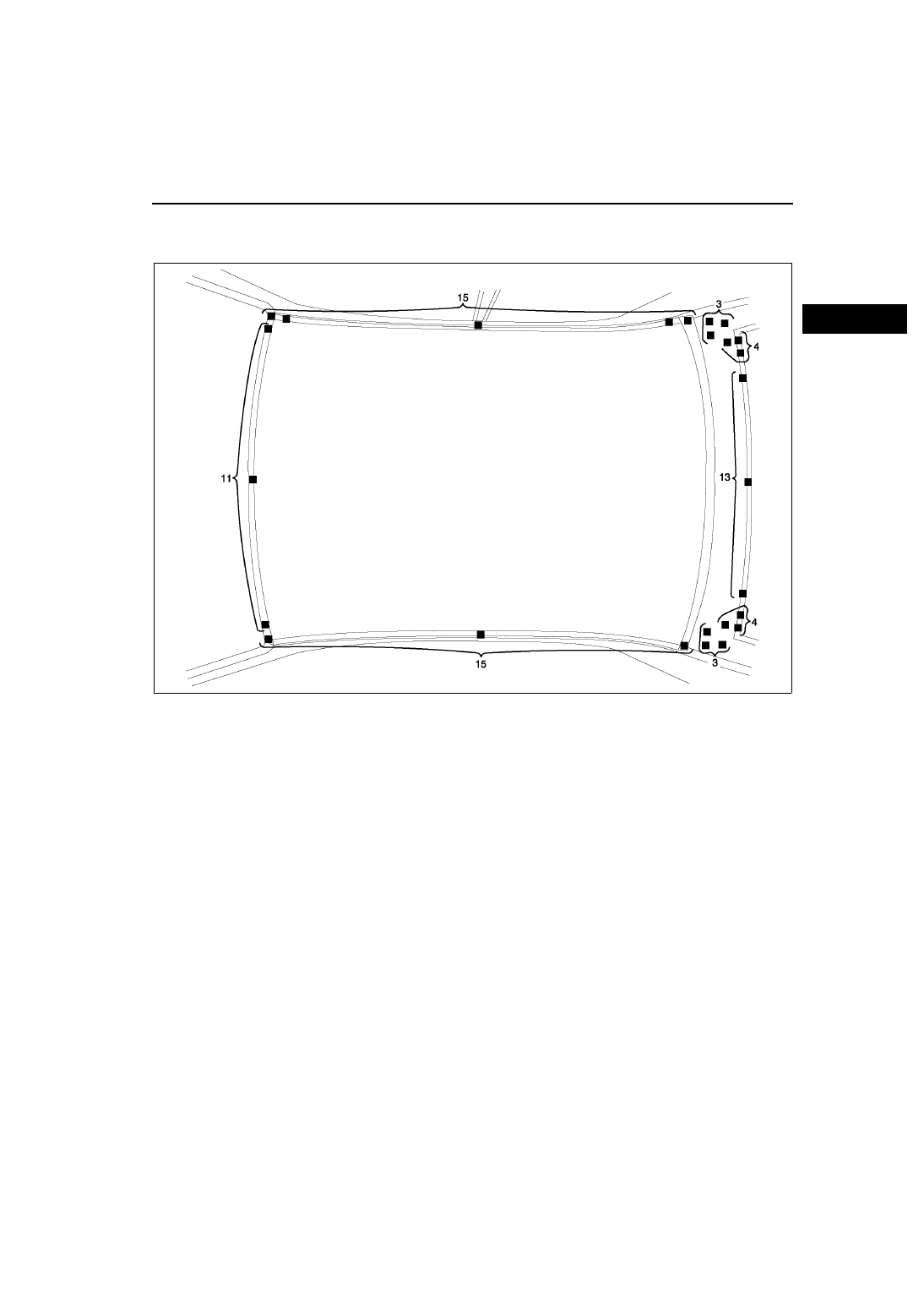

5HB

1. Drill holes for plug welds before installing new parts.
2. After trial-fitting new parts, make sure the related parts fit properly.

End Of Sie

A6E9812B034

IV–1

IV

IV

WATER-PROOF AND RUST PREVENTIVE

TREATMENT

WATER-PROOF AND RUST PREVENTIVE

TREATMENT ...................................................... IV-2
BODY SEALING ................................................. IV-2
UNDER COATING .............................................. IV-5
PVC PAINTING................................................... IV-6
RUST PREVENTIVE TREATMENT.................... IV-7

IV–2

WATER-PROOF AND RUST PREVENTIVE TREATMENT

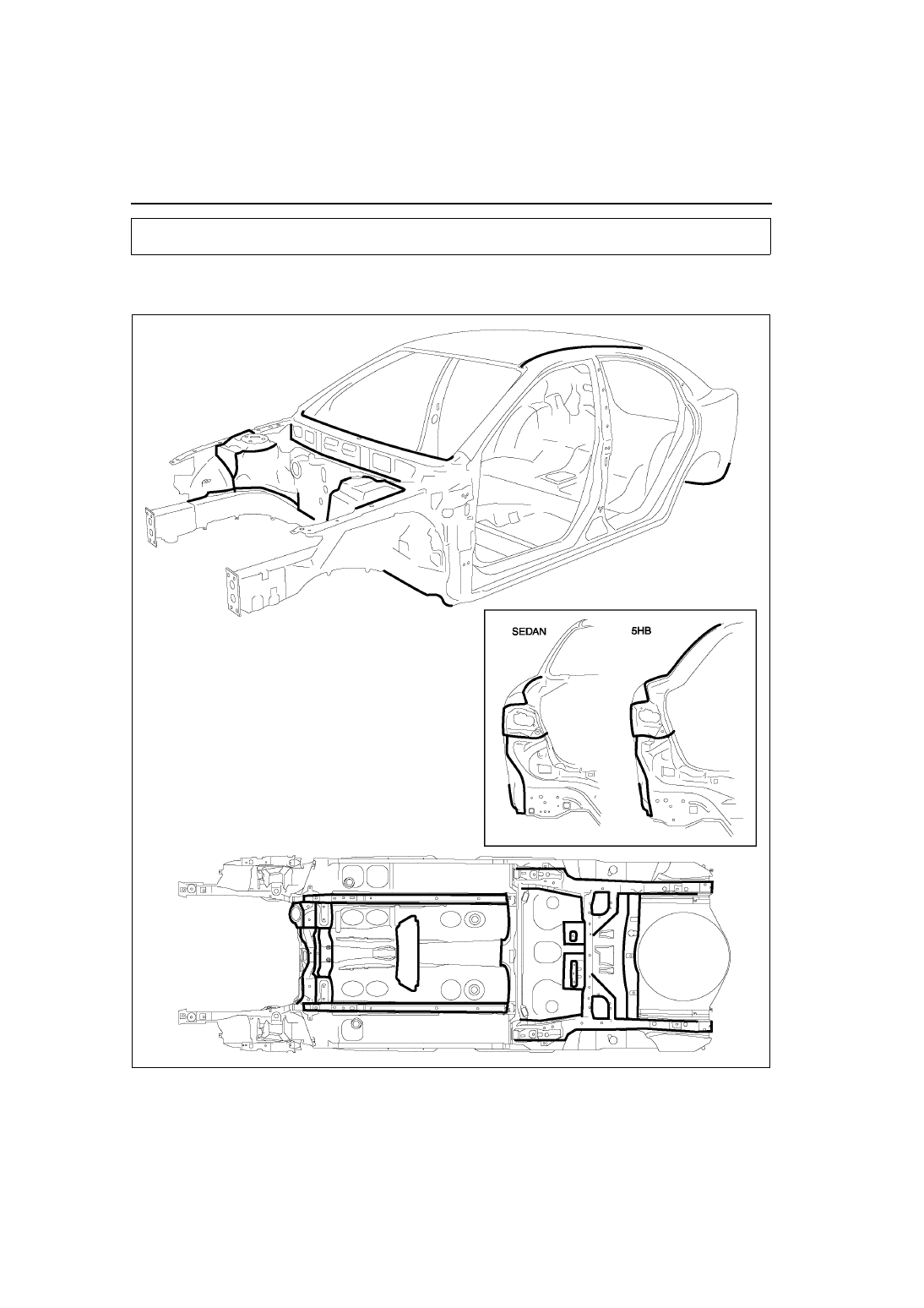

BODY SEALING

A6E981407000B01

Sealant is applied to the parts where the panels meet and to the hemmed parts of the door panel and bonnet to
provide waterproofing and rust proofing.

WATER-PROOF AND RUST PREVENTIVE TREATMENT

A6E9814B001
