III–38

PANEL REPLACEMENT

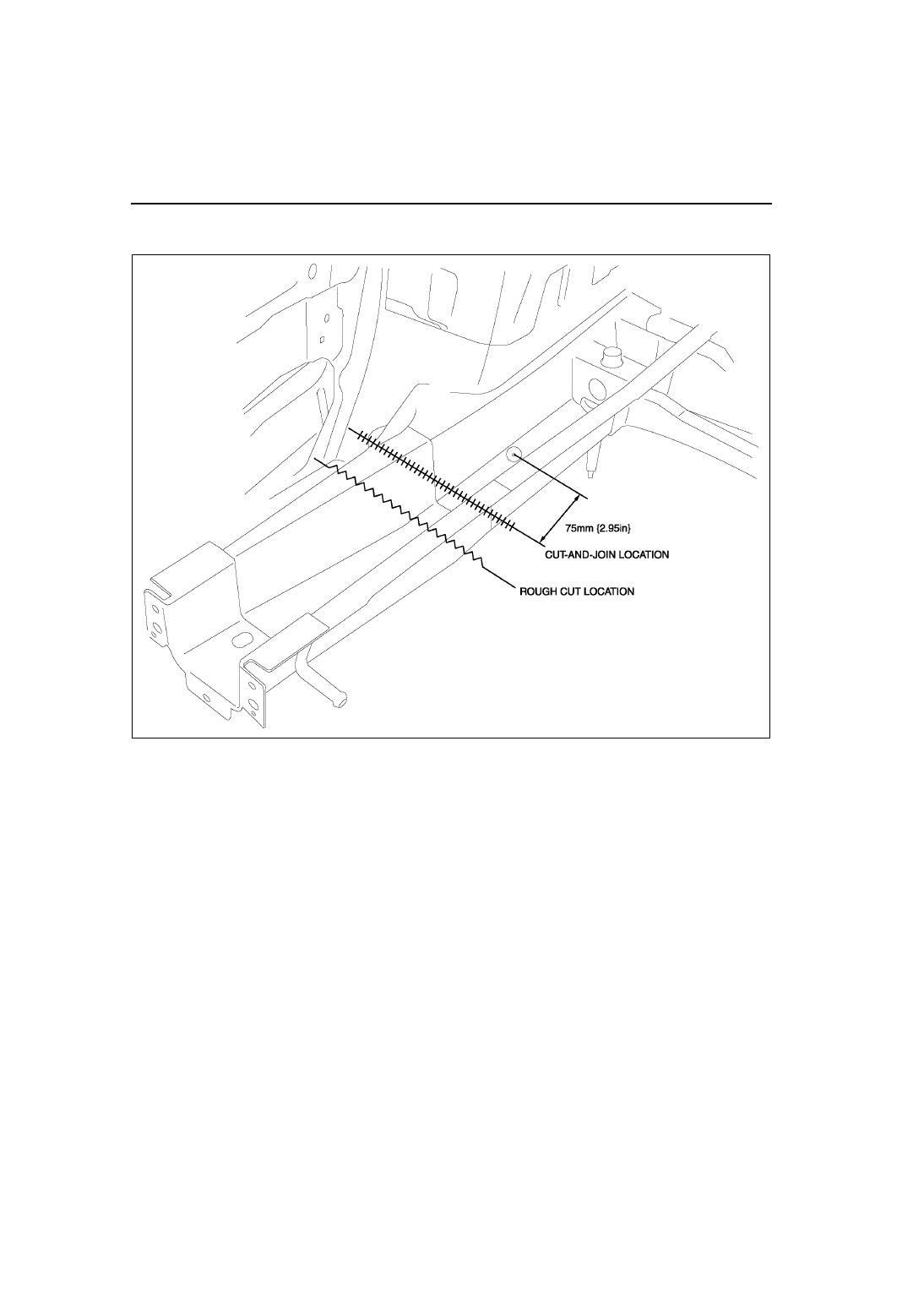

REAR SIDE FRAME (PARTIAL CUTTING) REMOVAL

A6E981253815B01

1. Rough cut and remove the damaged part of the rear side frame.

End Of Sie

A6E9812B041

PANEL REPLACEMENT

III–39

III

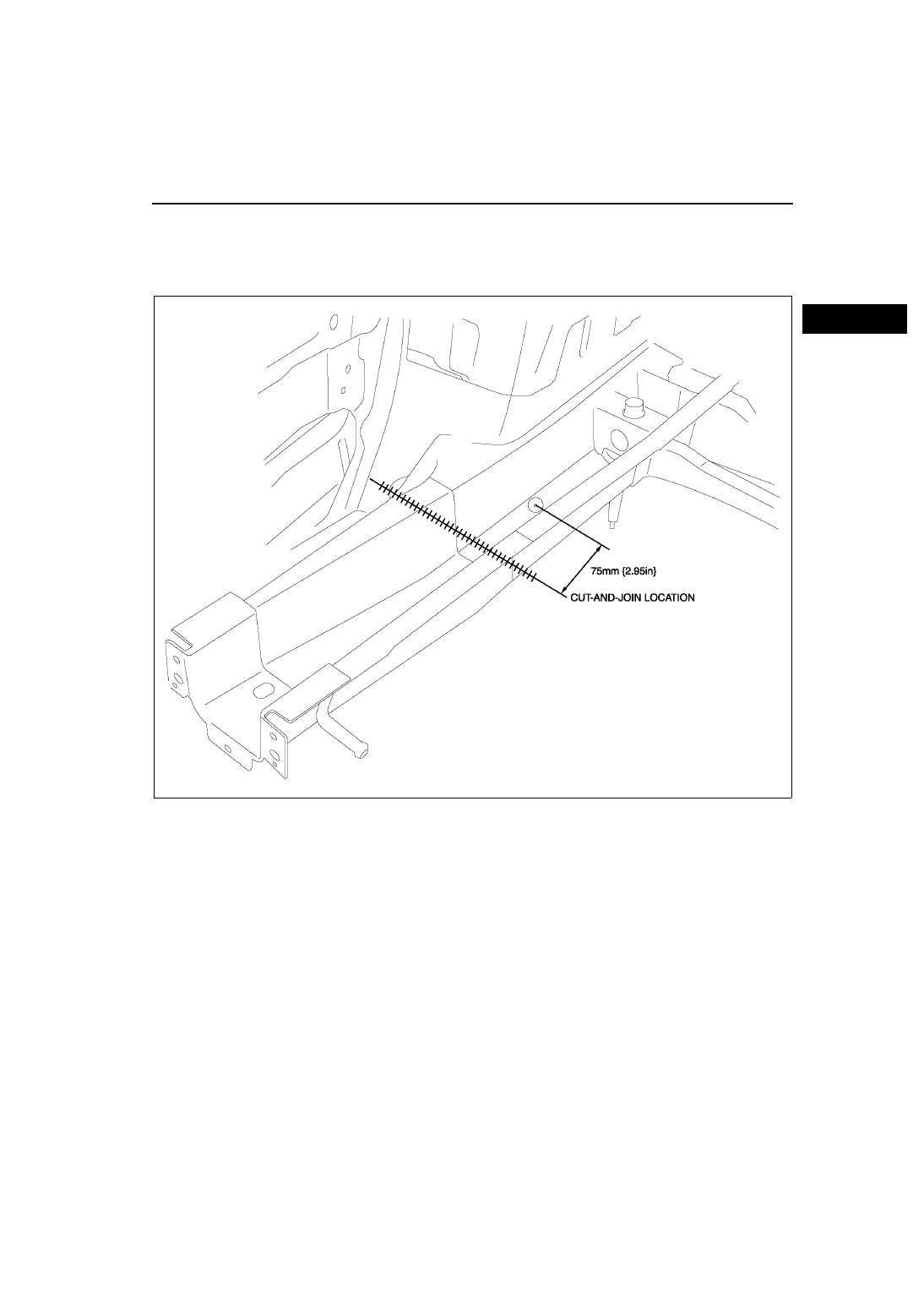

REAR SIDE FRAME (PARTIAL CUTTING) INSTALLATION

A6E981253815B02

1. Cut the new and old parts at the cut-and-join location, and bevel the parts.
2. When installing new parts, position each part so that the section measurement aligns to the standard

dimensions.

3. After trial-fitting new parts, make sure the related parts fit properly.

End Of Sie

A6E9812B042

III–40

PANEL REPLACEMENT

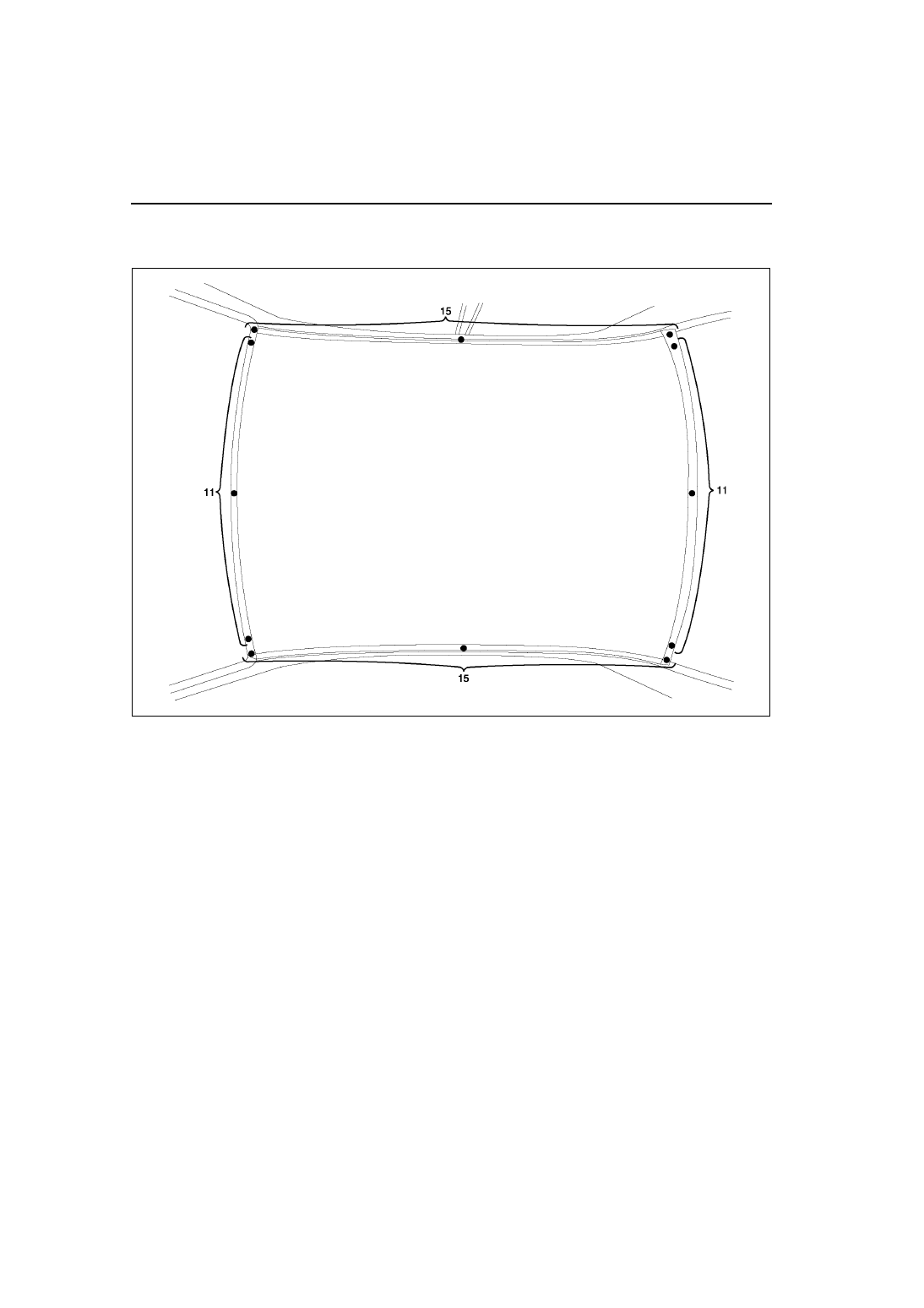

ROOF PANEL REMOVAL

A6E981270600B01

SEDAN

1. Remove the roof panel.

A6E9812B031

PANEL REPLACEMENT

III–41

III

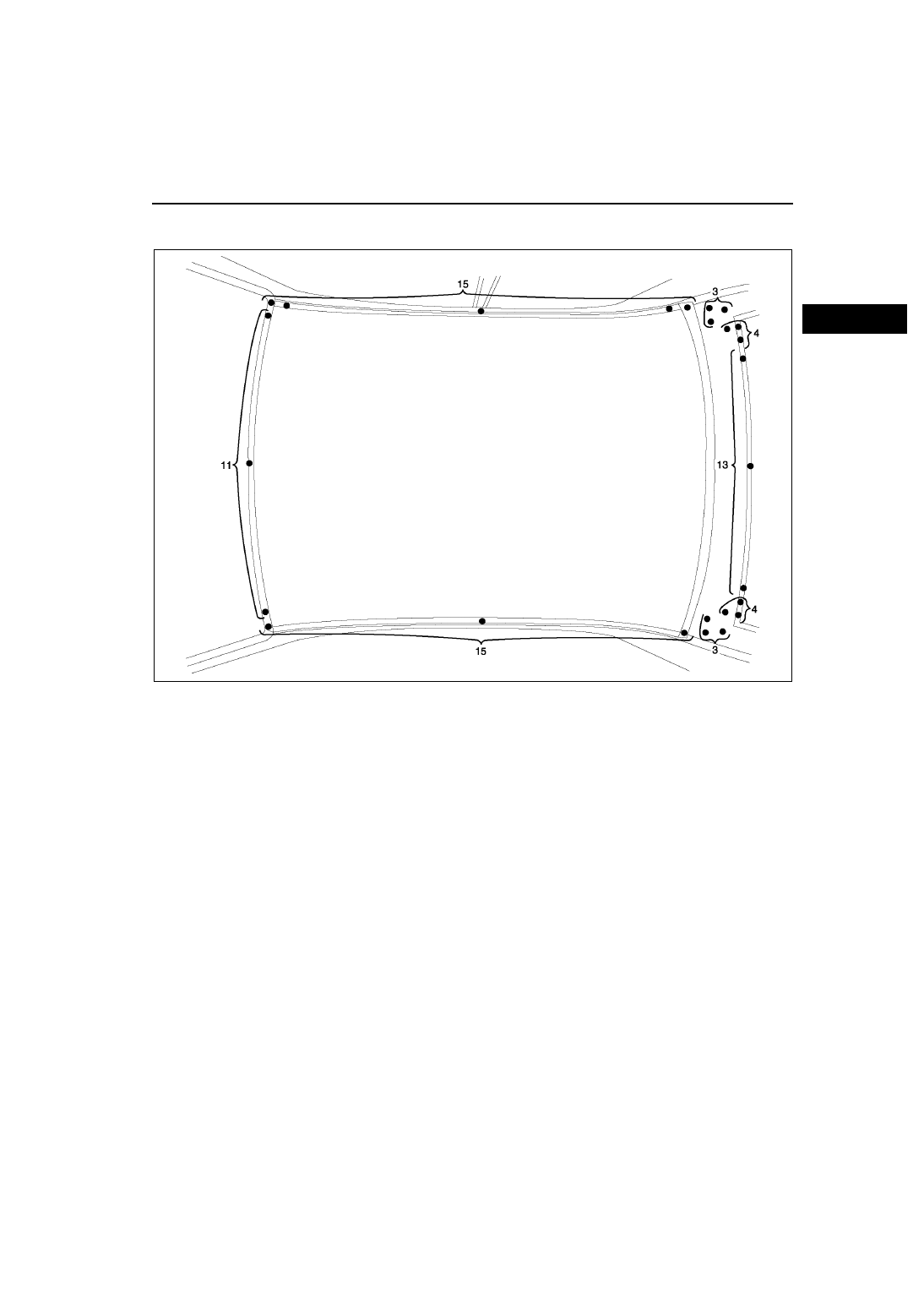

5HB

1. Remove the roof panel.

End Of Sie

A6E9812B033
