U–36

CONTROL SYSTEM

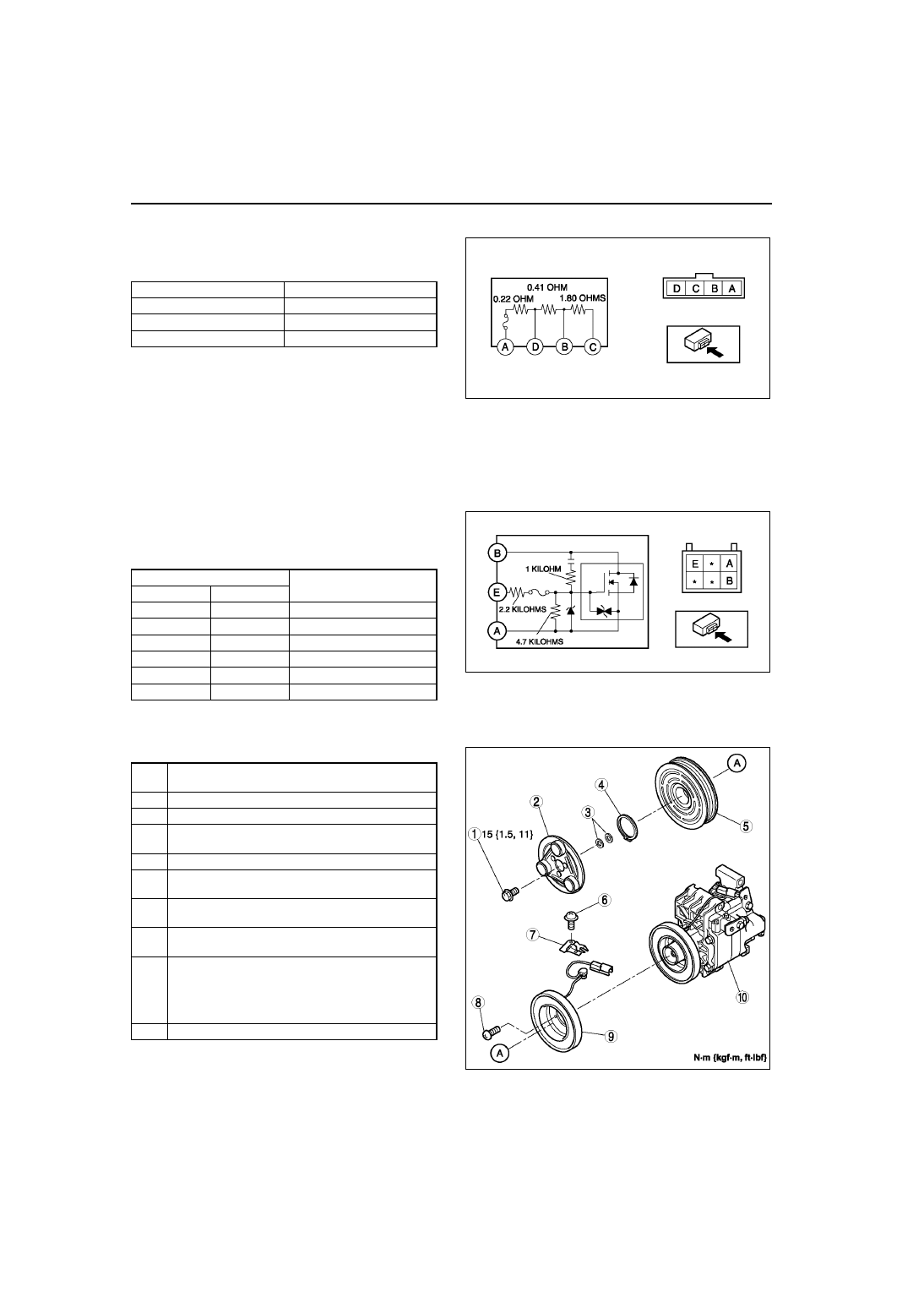

RESISTOR INSPECTION

A6E854061215W02

1. Verify that the resistance between the terminals of

the resistor is as shown in the table.

• If not as specified, replace the resistor.

End Of Sie

POWER MOS FET REMOVAL/INSTALLATION

A6E854061B15W01

(See

U–35 RESISTOR REMOVAL/INSTALLATION

.)

End Of Sie

POWER MOS FET INSPECTION

A6E854061B15W02

1. Verify that the resistance between the terminals

of the power MOS FET is as shown in the table.

• If not as specified, replace the power MOS

FET.

End Of Sie

MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY

A6E854061010W01

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.
3. Adjust the magnetic clutch clearance. (See

U–38

MAGNETIC CLUTCH ADJUSTMENT

.)

Terminal

Resistance (ohm)

A—D

0.21—0.23

A—B

0.60—0.68

A—C

2.29—2.62

A6E8540W012

Ohmmeter lead

Resistance (kilohm)

+

−

A

B

∞

A

E

6.9

B

A

Continuity

B

E

Continuity

E

A

6.9

E

B

∞

A6E8540W013

1

Bolt
(See

U–37 Bolt Removal/Installation Note

)

2

Pressure plate

3

Shim

4

Snap ring
(See

U–37 Snap Ring Installation Note

)

5

A/C compressor pulley

6

Screw
(See

U–37 Screw Installation Note

)

7

Clamp
(See

U–37 Clamp Installation Note

)

8

Screw
(See

U–37 Screw Installation Note

)

9

Stator and thermal protector
(See

U–37 Stator and Thermal Protector Removal

Note

)

(See

U–37 Stator and Thermal Protector Installation

Note

)

10

A/C compressor body

A6E8540W014

CONTROL SYSTEM

U–37

U

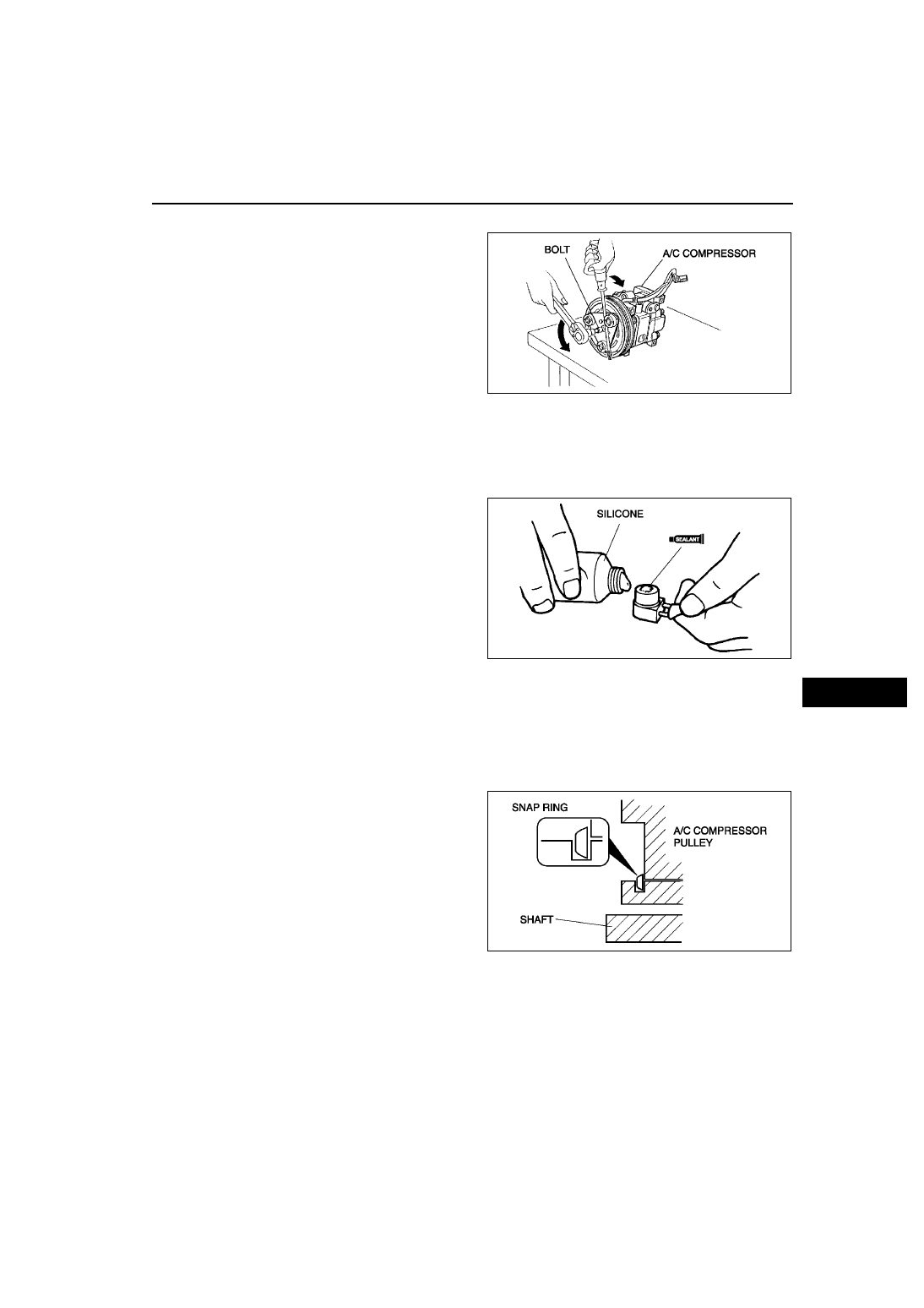

Bolt Removal/Installation Note

1. When removing or installing the bolt, hold the

pressure plate in place as shown in the figure.

2. When installing a new A/C compressor body,

replace the bolt.

Stator and Thermal Protector Removal Note

1. After removing the stator and thermal protector, completely remove the silicone adhering to the A/C

compressor side.

Stator and Thermal Protector Installation Note

1. Apply approximately 1 g {0.04 oz} of silicone

(Shin-Etsu Silicone KE-347W or similar) to the
contact surface of the thermal protector, then
thoroughly install it onto the A/C compressor,
leaving no gaps.

Screw Installation Note

1. When installing a new stator and thermal protector, replace the screw.

Clamp Installation Note

1. When installing a new stator and thermal protector, replace the clamp.

Snap Ring Installation Note

1. When installing a new pressure plate, A/C

compressor pulley, stator, or A/C compressor
body, replace the snap ring.

End Of Sie

A6E8540W048

A6E8540W049

A6E8540W050

U–38

CONTROL SYSTEM

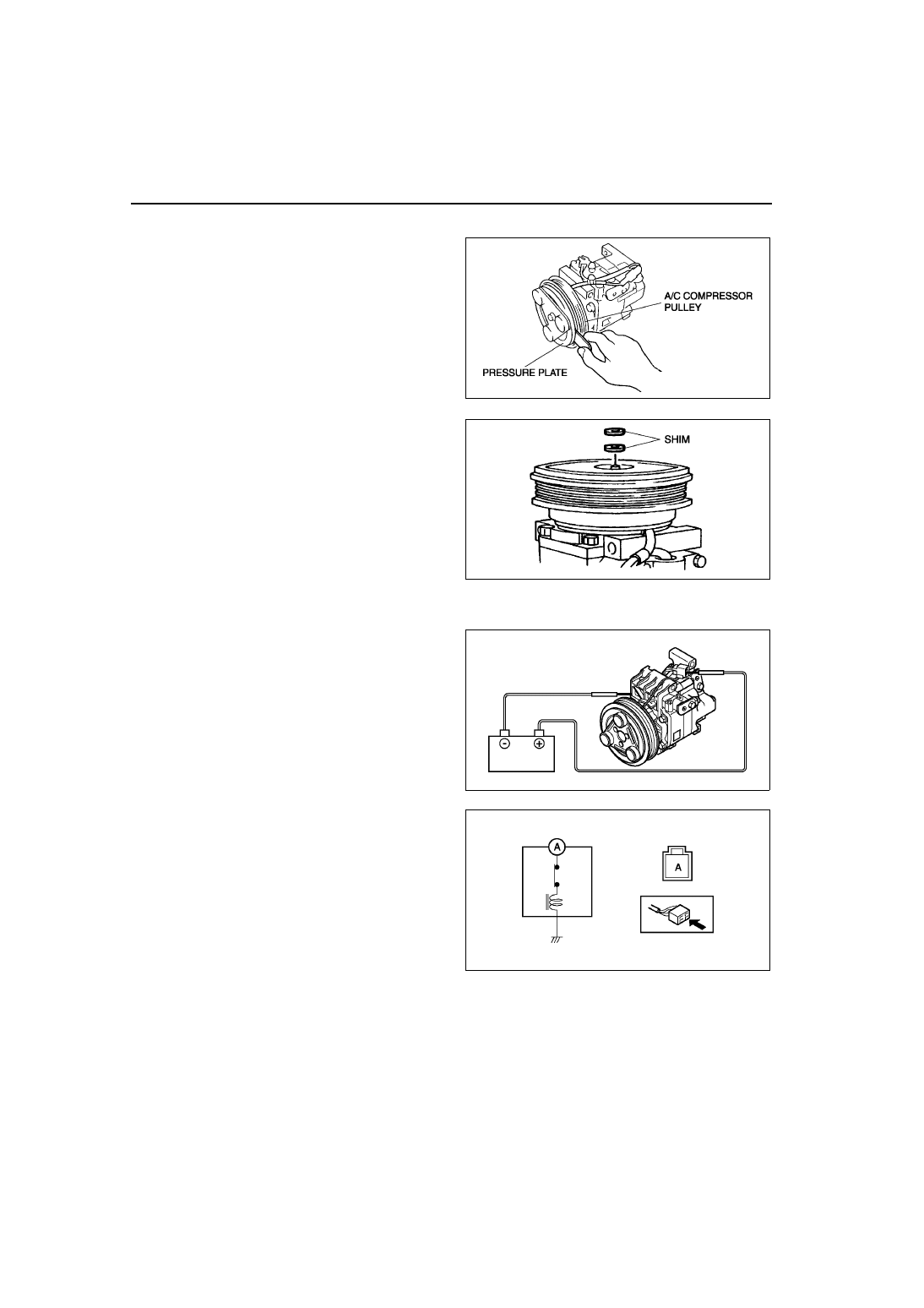

MAGNETIC CLUTCH ADJUSTMENT

A6E854061010W02

1. Measure the clearance around the entire

circumference between the pressure plate and A/
C compressor pulley using a thickness gauge.

2. Verify that the clearance is within the

specification.

• If not within the specification, remove the

pressure plate and adjust the clearance by
changing the shim (0.2 mm {0.008 in}, 0.5
mm {0.02 in}) or the number of shims.

Clearance

0.3—0.5 mm {0.012—0.019 in}

End Of Sie

MAGNETIC CLUTCH INSPECTION

A6E854061010W03

1. Connect battery positive voltage to terminal A of

magnetic clutch and ground to A/C compressor
body.

2. Verify that the magnetic clutch operates.

• If not as specified, replace the stator and

thermal protector.

End Of Sie

A6E8540W051

A6E8540W052

A6E8540W015

A6E8540W016

CONTROL SYSTEM

U–39

U

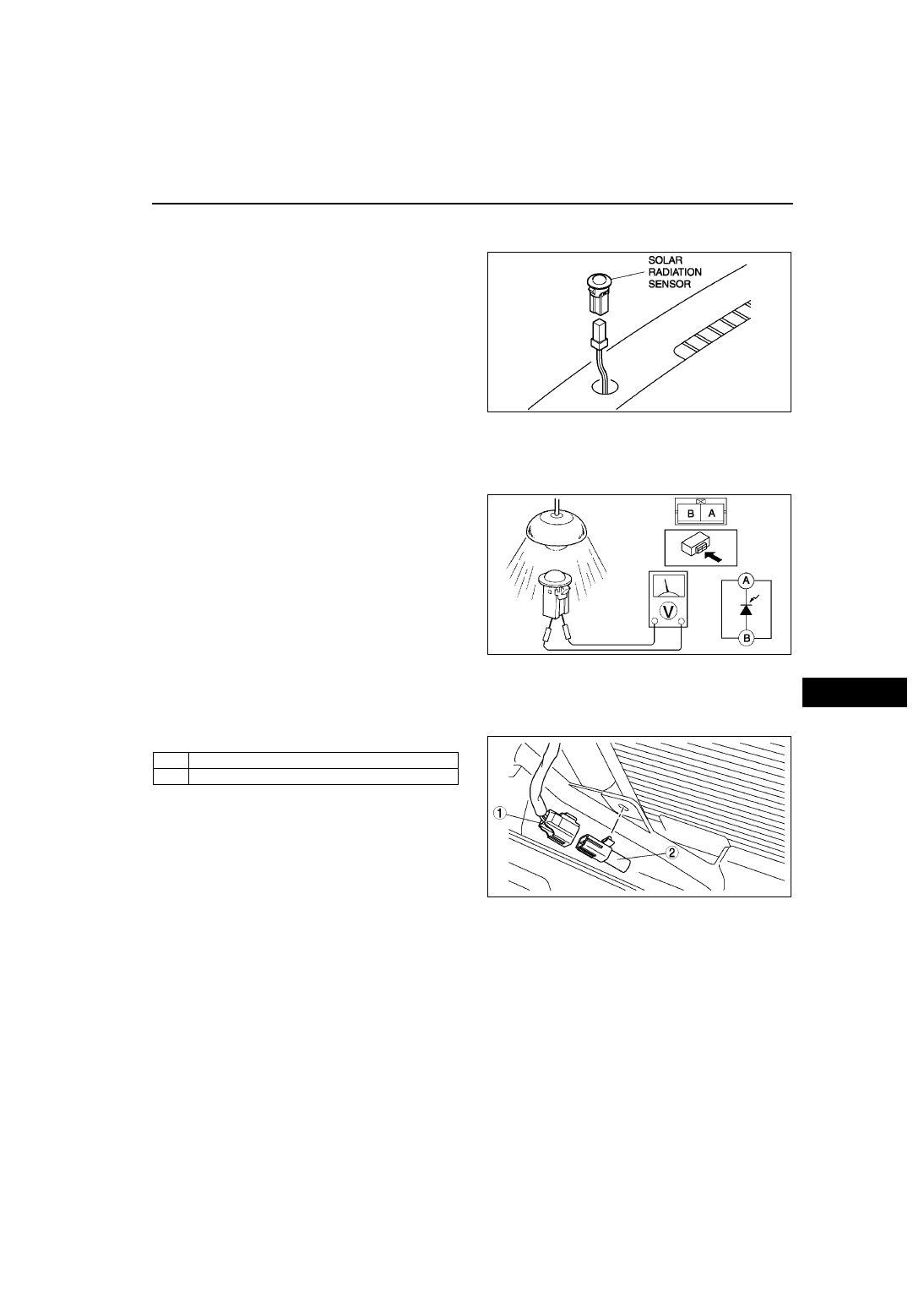

SOLAR RADIATION SENSOR REMOVAL/INSTALLATION

A6E854061751W01

1. Disconnect the negative battery cable.
2. Remove the solar radiation sensor from the

dashboard using a tape-wrapped flathead
screwdriver.

3. Install in the reverse order of removal.

End Of Sie

SOLAR RADIATION SENSOR INSPECTION

A6E854061751W02

1. Shine an incandescent light (60 W) on the solar radiation sensor from a distance of approximately 100 mm

{3.94 in}.

2. Connect positive (+) lead to terminal A and

negative (

−) lead to terminal B of the solar

radiation sensor.

• If the output voltage is not above 0.45 V,

replace the solar radiation sensor.

End Of Sie

AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION

A6E854061764W01

1. Disconnect the negative battery cable.
2. Remove the radiator grille. (See

S–50 RADIATOR GRILLE REMOVAL/INSTALLATION

.)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

A6E8540W017

A6E8540W058

1

Ambient tenperature sensor connector

2

Ambient temperature sensor

A6E8540W018
