AUDIO AND NAVIGATION SYSTEM

T–107

T

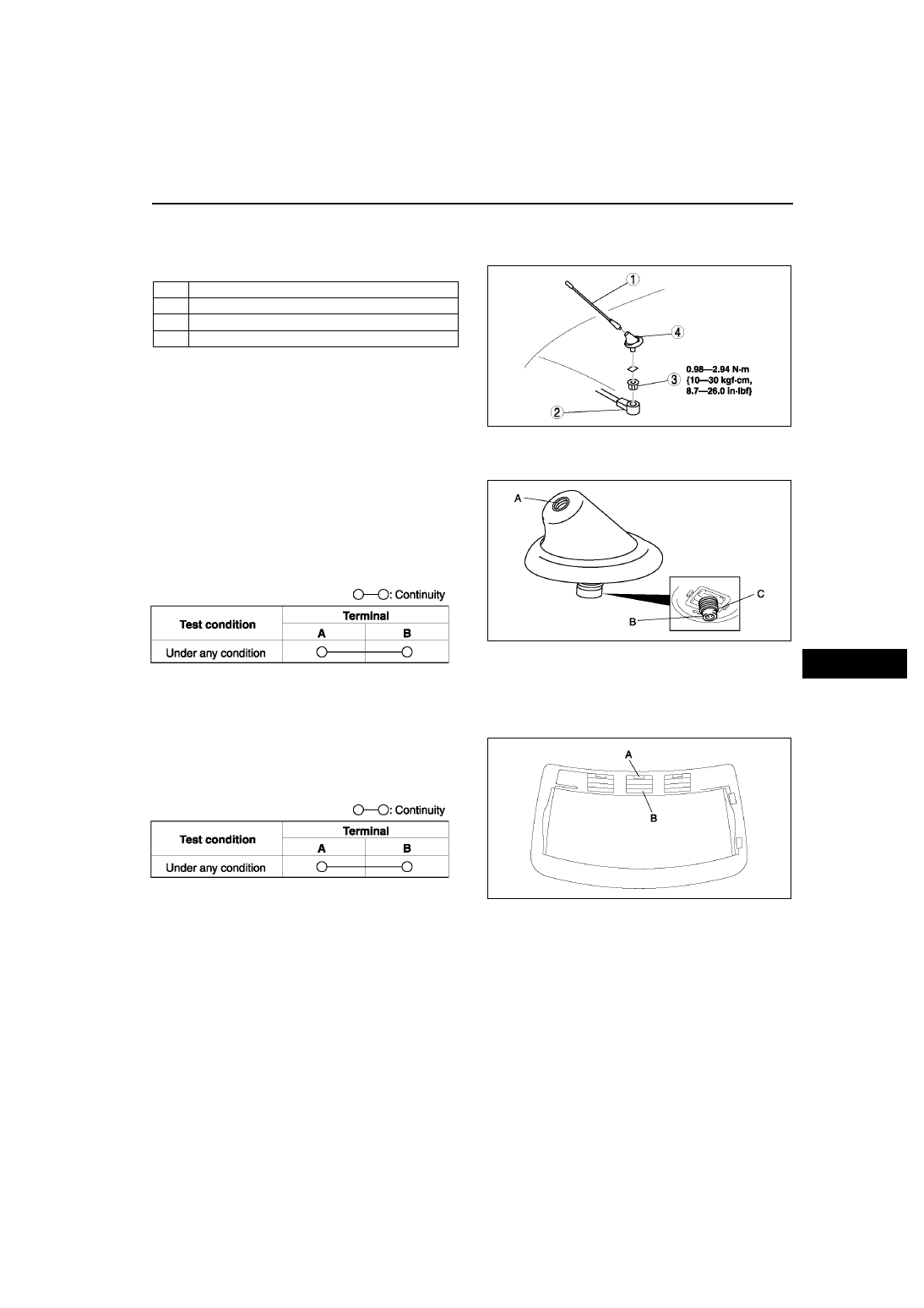

CENTER ROOF ANTENNA REMOVAL/INSTALLATION

A6E812466939W01

1. Disconnect the negative battery cable.
2. Remove the headliner. (See

S–96 HEADLINER REMOVAL/INSTALLATION

.)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.
5. After installation, verify that the rubber of the

center roof antenna is installed to the roof panel
with no space between them.

End Of Sie

CENTER ROOF ANTENNA INSPECTION

A6E812466939W02

1. Verify that there is no continuity between the

center roof antenna terminals A and C using an
ohmmeter.

2. Inspect for continuity between the center roof

antenna terminals using an ohmmeter.

• If not as specified, replace the center roof

antenna.

End Of Sie

GLASS ANTENNA INSPECTION

A6E812466931W01

1. Inspect the glass antenna for damage visually.
2. Inspect for continuity between the glass antenna

terminals using an ohmmeter.

• If not as specified, repair the glass antenna.

(See

S–63 FILAMENT REPAIR

.)

End Of Sie

1

Antenna rod

2

Antenna feeder

3

Nut

4

Center roof antenna

A6E8124W023

A6E8124W048

A6E8124W031

A6E8124W030

A6E8124W031

T–108

AUDIO AND NAVIGATION SYSTEM

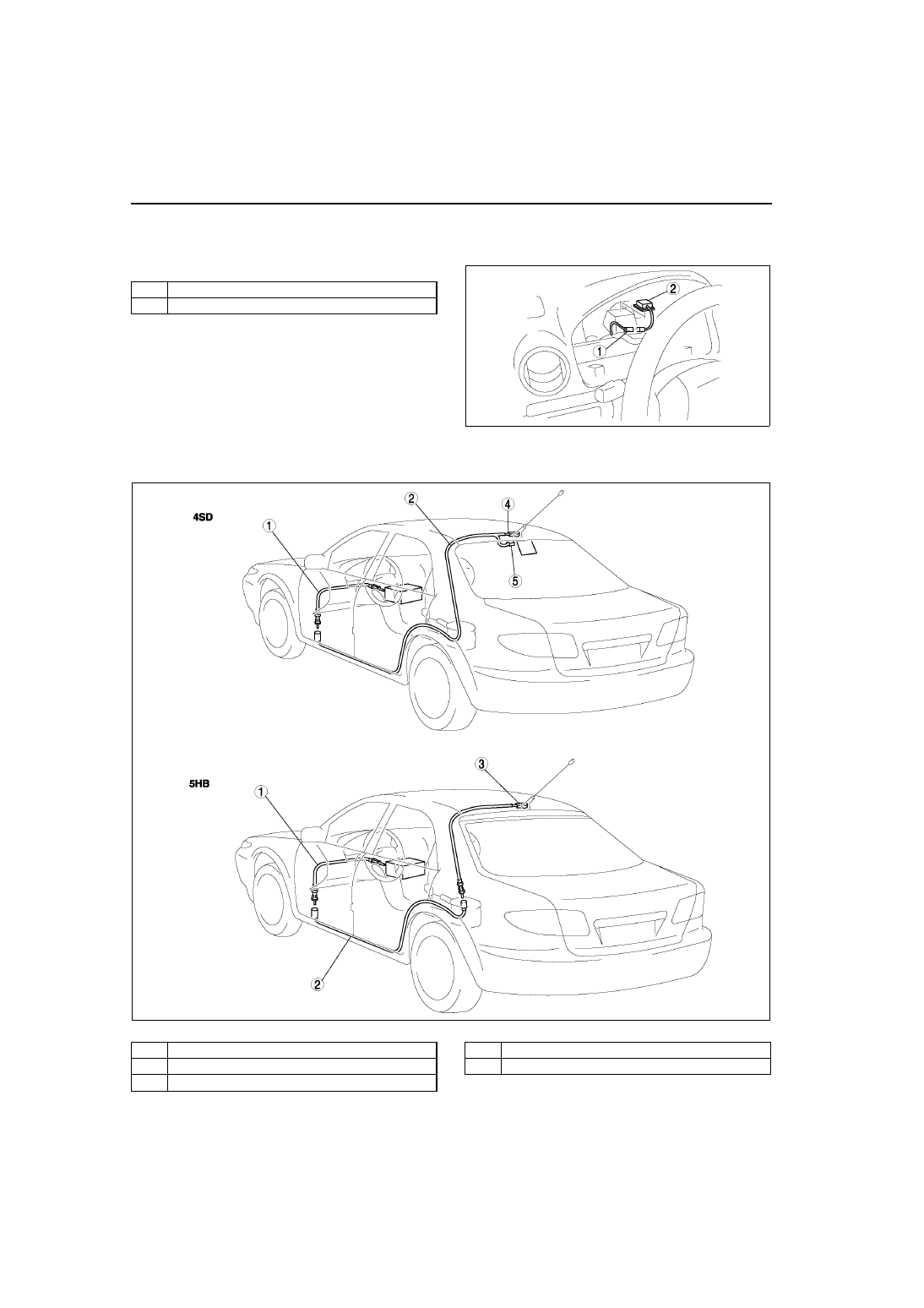

GPS ANTENNA REMOVAL/INSTALLATION

A6E812466936W01

1. Disconnect the negative battery cable.
2. Remove the instrument cluster.
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

ANTENNA FEEDER LOCATION

A6E812466941W01

.

End Of Sie

1

Connector

2

GPS antenna

A6E8124W022

A6E8124W038

1

Front antenna feeder

2

Rear antenna feeder No.1

3

Rear antenna feeder No.2

4

With center roof antenna

5

With glass antenna

AUDIO AND NAVIGATION SYSTEM

T–109

T

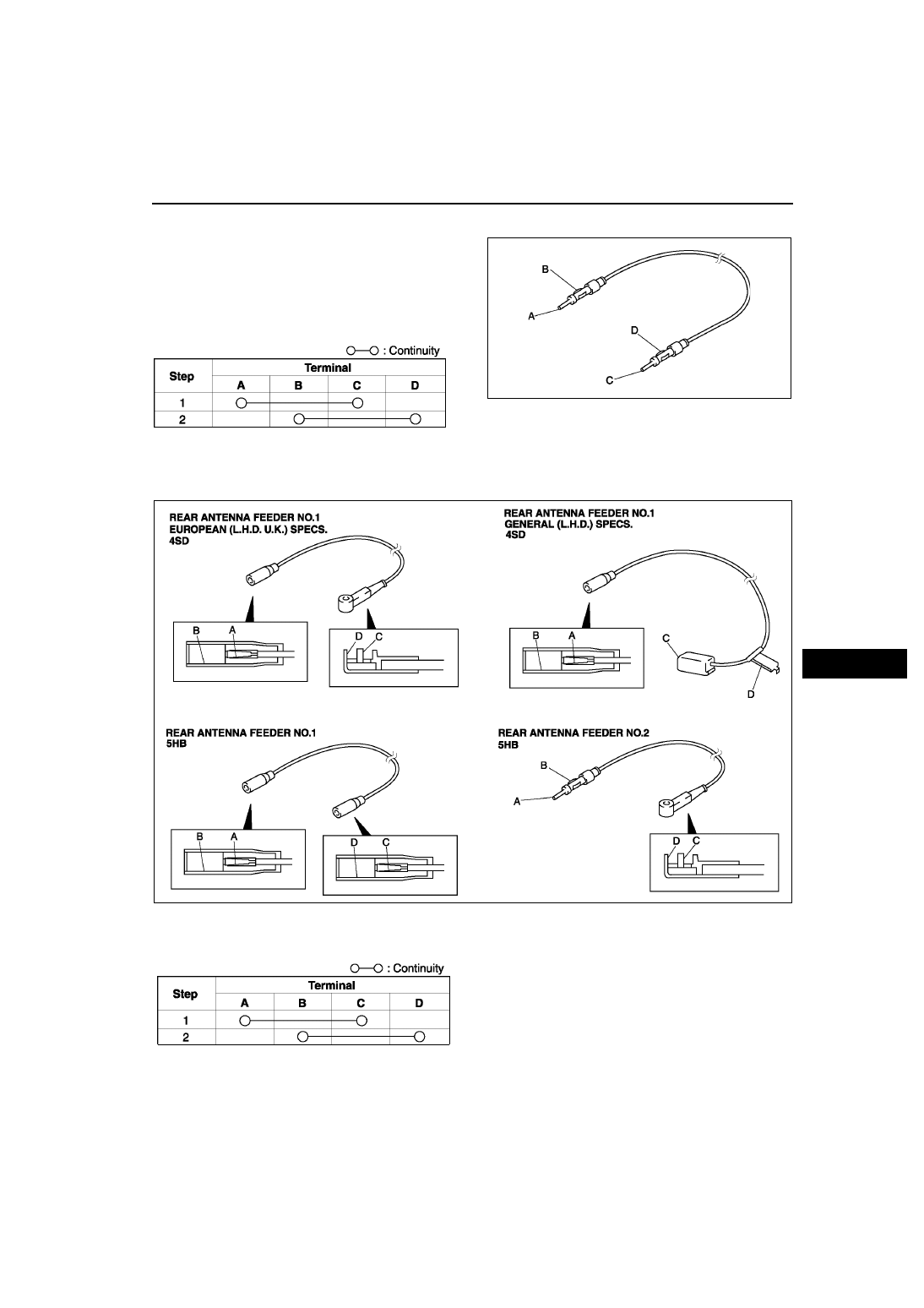

FRONT ANTENNA FEEDER INSPECTION

A6E812466941W02

1. Verify that there is no continuity between the front

antenna feeder terminals A and B using an
ohmmeter.

2. Inspect for continuity between the front antenna

feeder terminals using an ohmmeter.

• If not as specified, replace the instrument

panel harness.

End Of Sie

REAR ANTENNA FEEDER INSPECTION

A6E812466942W01

1. Verify that there is no continuity between antenna feeder terminals A and B using an ohmmeter.

2. Inspect for continuity between the antenna feeder terminals using an ohmmeter.

• If not as specified, replace the rear harness.

End Of Sie

A6E8124W039

A6E8124W047

A6E8124W042

A6E8124W047

T–110

CRUISE CONTROL SYSTEM

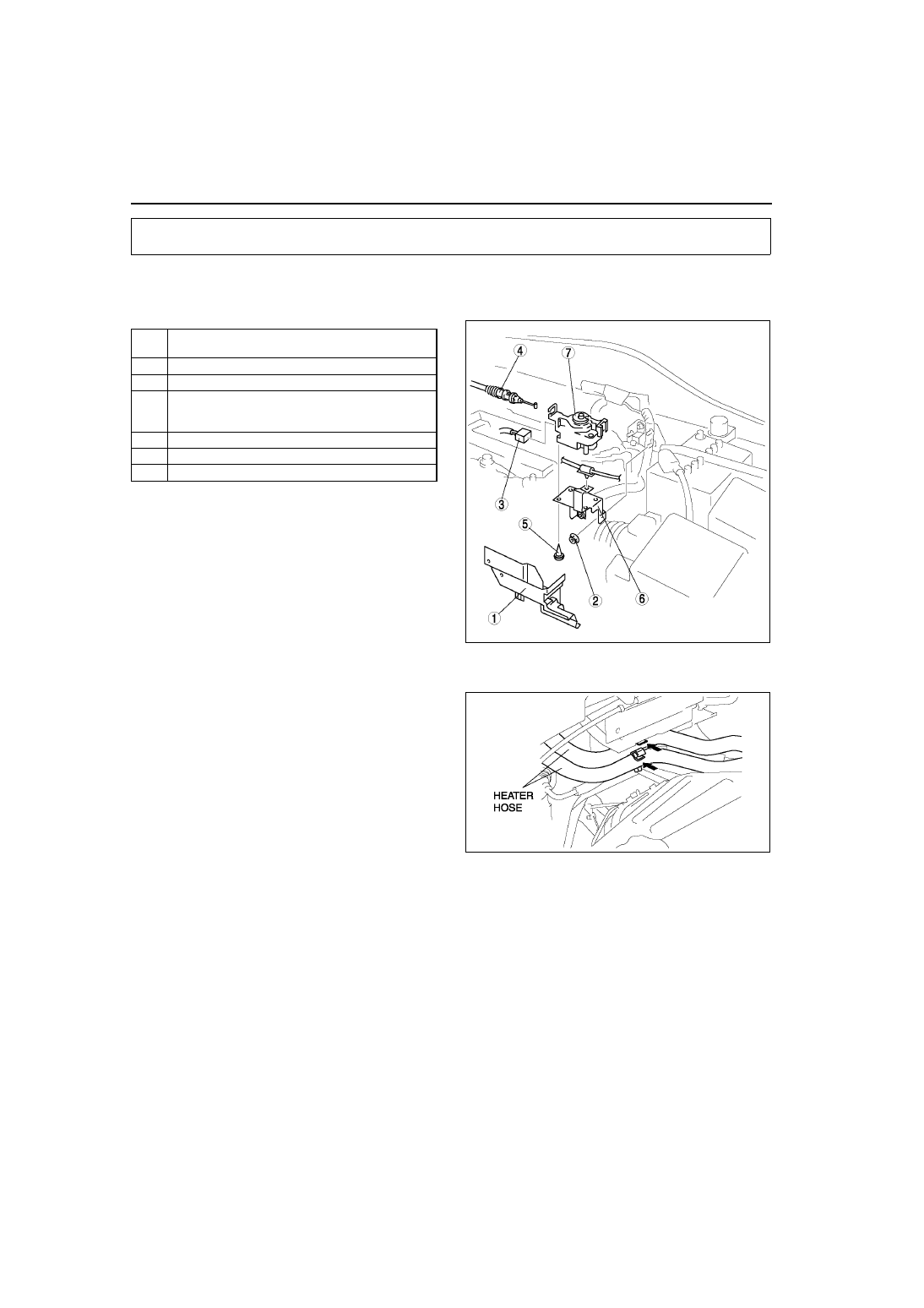

CRUISE ACTUATOR REMOVAL/INSTALLATION

A6E812866310W01

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

Cover Removal Note

1. Unclamp the clips of the heater hoses at the front

of the cover.

End Of Sie

CRUISE ACTUATOR INSPECTION

A6E812866310W02

1. Disconnect the cruise actuator connector.
2. Measure the voltage, continuity and resistance at the cruise actuator terminals as indicated below.

• If not as specified, inspect the parts listed under “Action.”

• If the parts and wiring harnesses are okay but the system still does not work properly, replace the cruise

actuator.

CRUISE CONTROL SYSTEM

1

Cover
(See

T–110 Cover Removal Note

)

2

Nut

3

Connector

4

Actuator cable
(See

T–112 ACTUATOR CABLE REMOVAL

)

(See

T–114 ACTUATOR CABLE INSTALLATION

)

5

Screw

6

Bracket

7

Cruise actuator

A6E8128W001

A6E8128W002
