AUDIO AND NAVIGATION SYSTEM

T–99

T

2. While pressing down the unit behind the LCD

unit, pull the LCD unit out from the dashboard.

End Of Sie

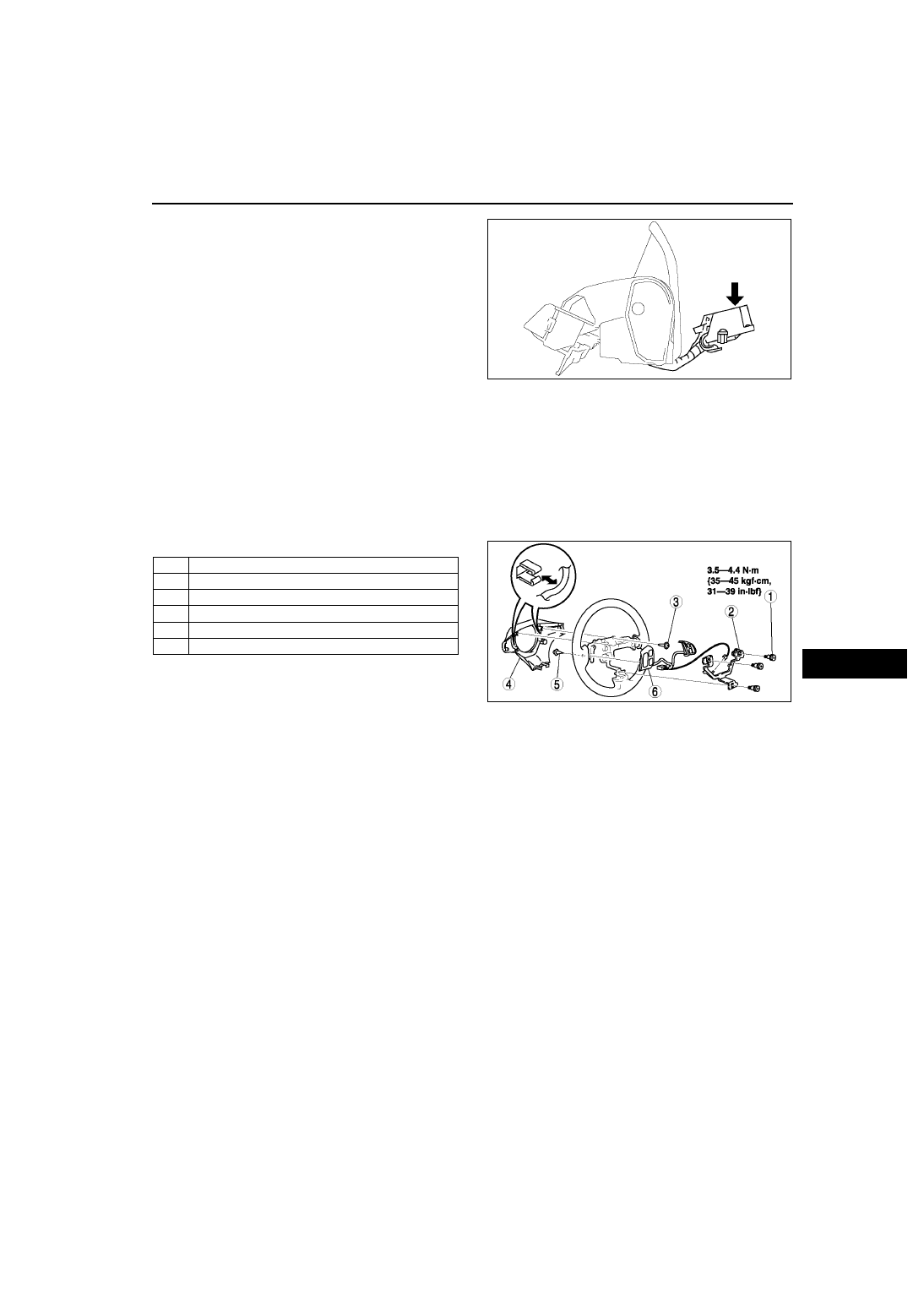

AUDIO CONTROL SWITCH REMOVAL/INSTALLATION

A6E812400148W01

Note

• The audio control switch and the cruise control switch use a common connector.

1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module. (See

T–120 DRIVER-SIDE AIR BAG MODULE REMOVAL/

INSTALLATION

.)

3. Remove the steering wheel.
4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

End Of Sie

A6E8124W018

1

Bolt

2

Bracket

3

Screw

4

Cover

5

Screw

6

Audio control switch/cruise control switch

A6E8124W019

T–100

AUDIO AND NAVIGATION SYSTEM

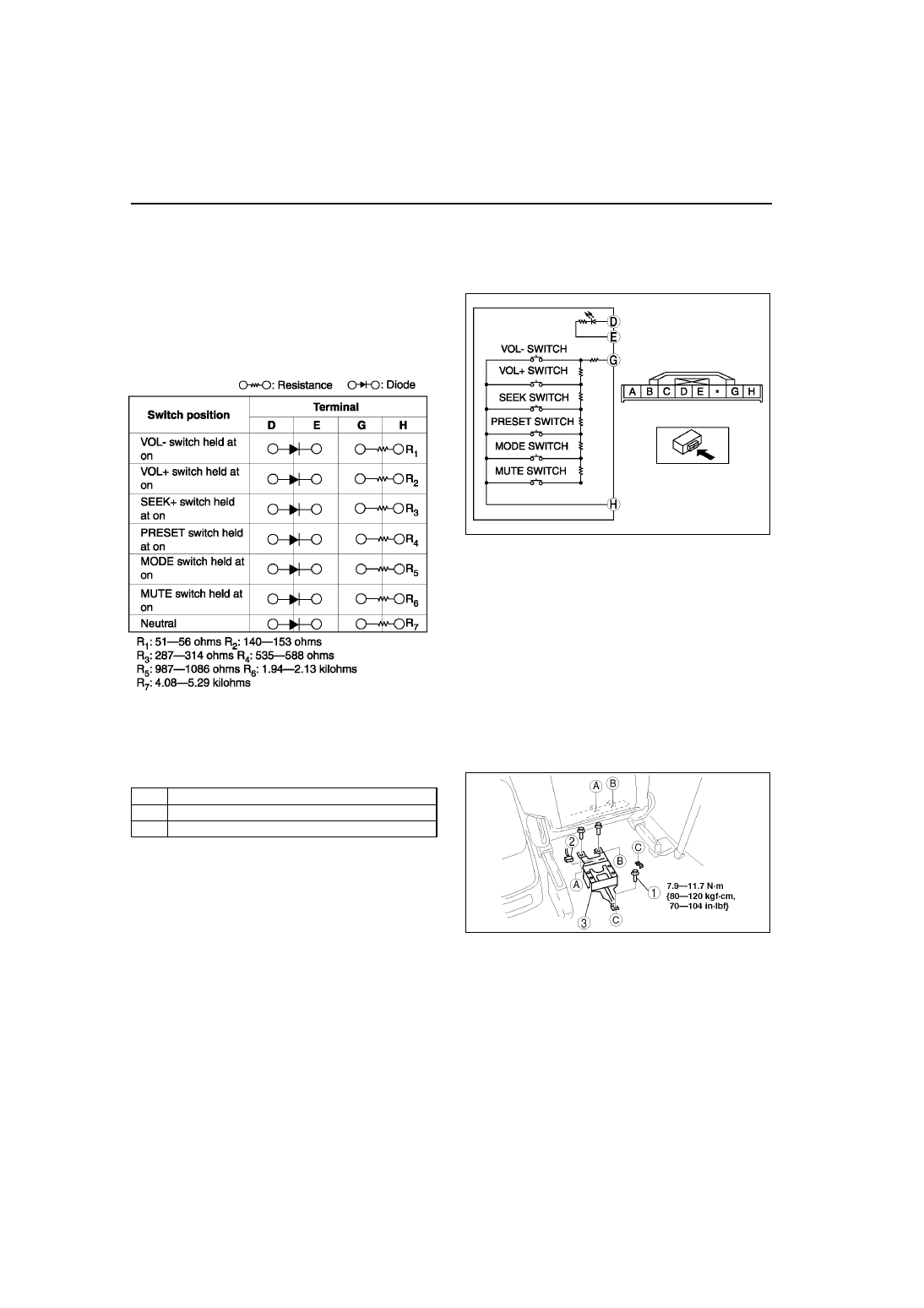

AUDIO CONTROL SWITCH INSPECTION

A6E812400148W02

1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module. (See

T–120 DRIVER-SIDE AIR BAG MODULE REMOVAL/

INSTALLATION

.)

3. Disconnect the audio control switch connector.
4. Measure the resistance and inspect for continuity

between the cruise control switch terminals using
an ohmmeter.

• If not as specified, replace the cruise control

switch.

End Of Sie

AUDIO AMPLIFIER REMOVAL/INSTALLATION

A6E812466910W01

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

End Of Sie

A6E8124W043

A6E8124W028

1

Bolt

2

Connector

3

Audio amplifier

A6E8124W010

AUDIO AND NAVIGATION SYSTEM

T–101

T

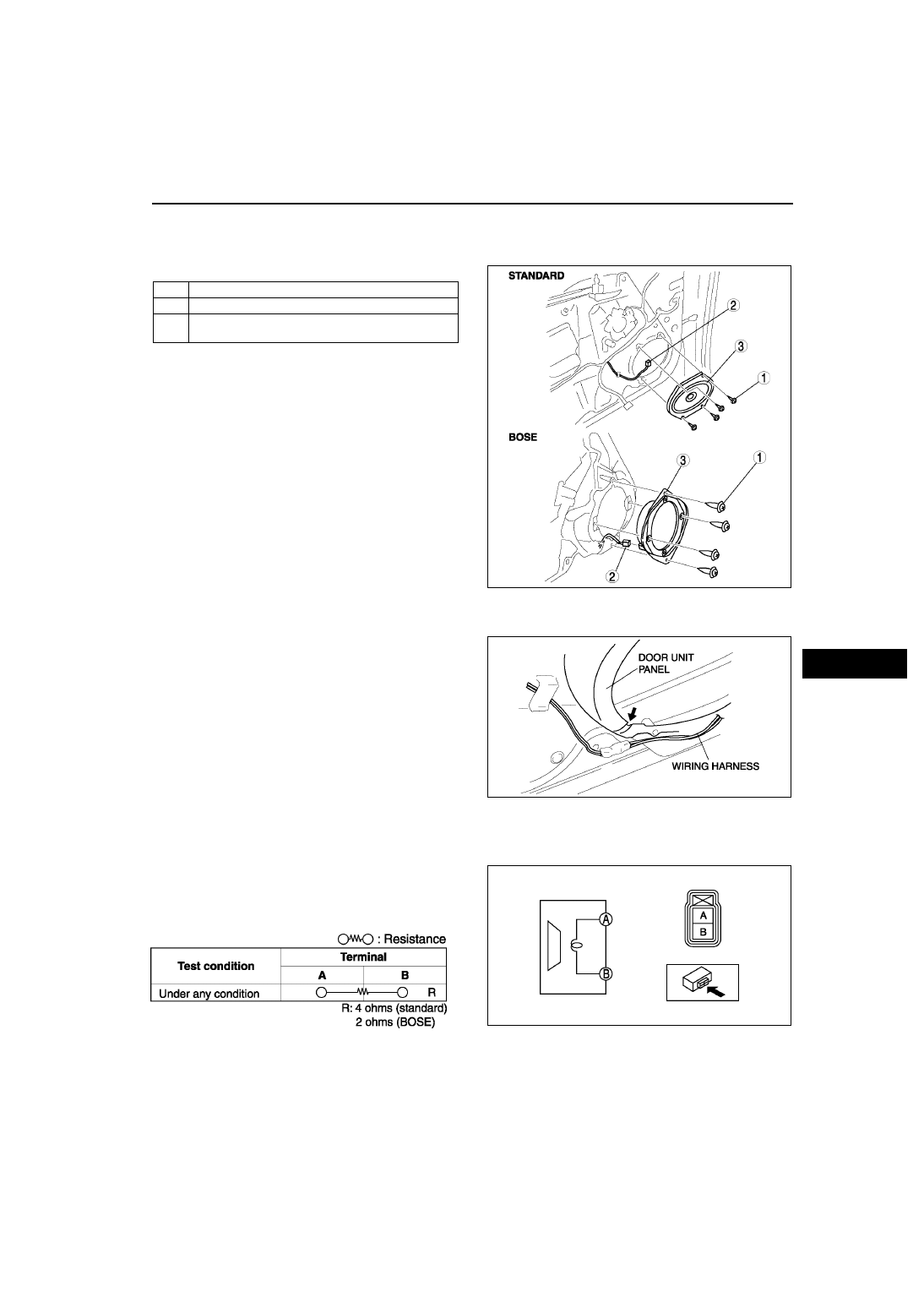

FRONT DOOR SPEAKER REMOVAL/INSTALLATION

A6E812466960W01

1. Disconnect the negative battery cable.
2. Remove the front door trim.
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

Front Door Speaker Installation Note

1. Attach the speaker with the wiring harness placed

in the groove of the door unit panel.

Caution

• If the speaker is attached with the

harness placed outside of the groove, the
wiring harness might be broken.

End Of Sie

FRONT DOOR SPEAKER INSPECTION

A6E812466960W02

1. Inspect for resistance between the front door

speaker terminals using an ohmmeter.

• If not as specified, replace the front door

speaker.

2. To verify that the front door speaker outputs sound, apply voltage to the front door speaker and release using a

1.5-V battery.

• If not outputs sound, replace the front door speaker.

End Of Sie

1

Screw

2

Connector

3

Front door speaker
(See

T–101 Front Door Speaker Installation Note

)

A6E8124W001

A6E8124W002

A6E8124W040

A6E8124W032

T–102

AUDIO AND NAVIGATION SYSTEM

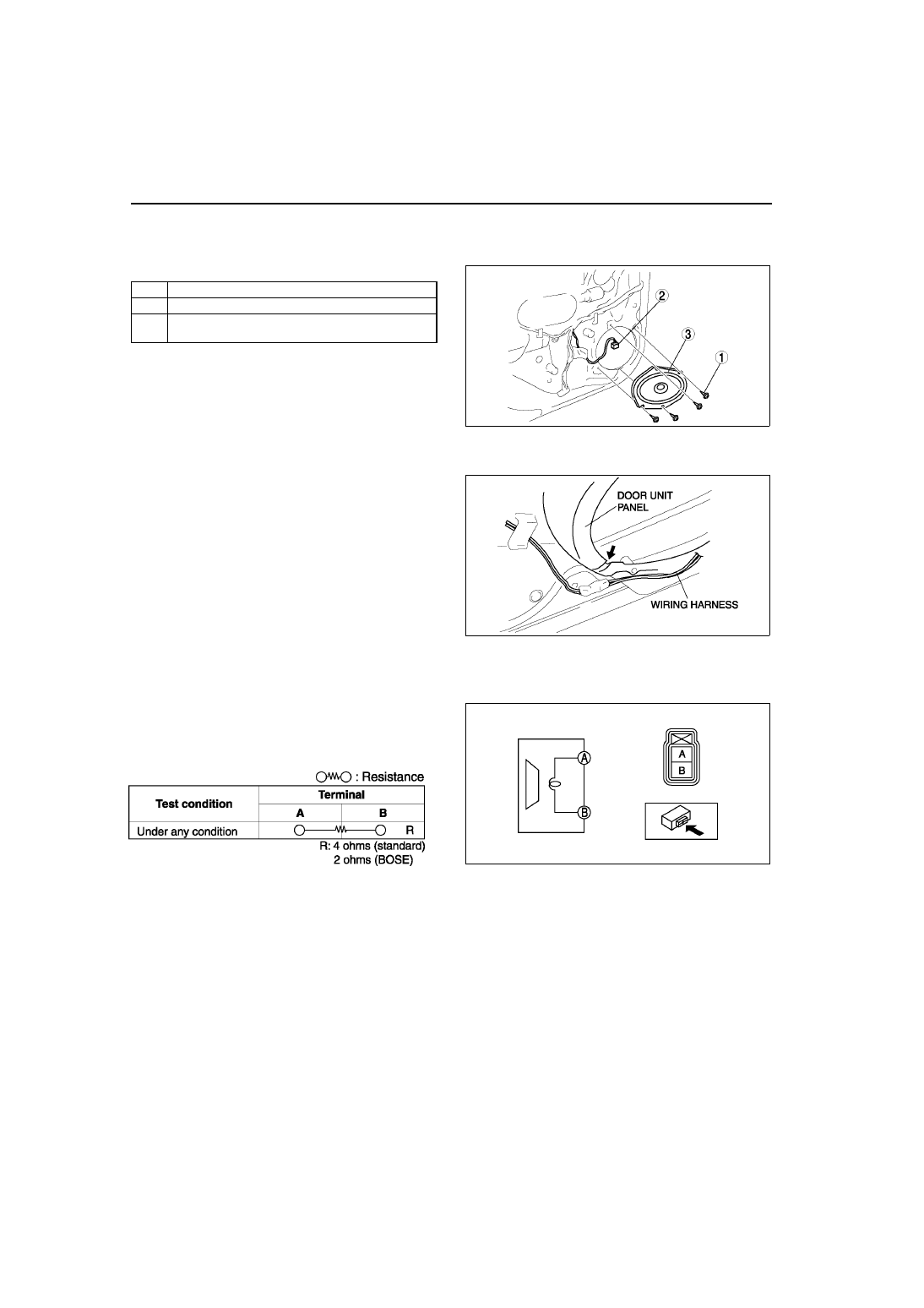

REAR DOOR SPEAKER REMOVAL/INSTALLATION

A6E812466964W01

1. Disconnect the negative battery cable.
2. Remove the rear door trim.
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

Rear Door Speaker Installation Note

1. Attach the speaker with the wiring harness placed

in the groove of the door unit panel.

Caution

• If the speaker is attached with the

harness placed outside of the groove, the
wiring harness might be broken.

End Of Sie

REAR DOOR SPEAKER INSPECTION

A6E812466964W02

1. Inspect for resistance between the rear door

speaker terminals using an ohmmeter.

• If not as specified, replace the rear door

speaker.

2. To verify that the rear door speaker outputs sound, apply voltage to the rear door speaker and release using a

1.5-V battery.

• If not outputs sound, replace the rear door speaker.

End Of Sie

1

Screw

2

Connector

3

Rear door speaker
(See

T–102 Rear Door Speaker Installation Note

)

A6E8124W003

A6E8124W002

A6E8124W040

A6E8124W032
