T–56
WIPER AND WASHER

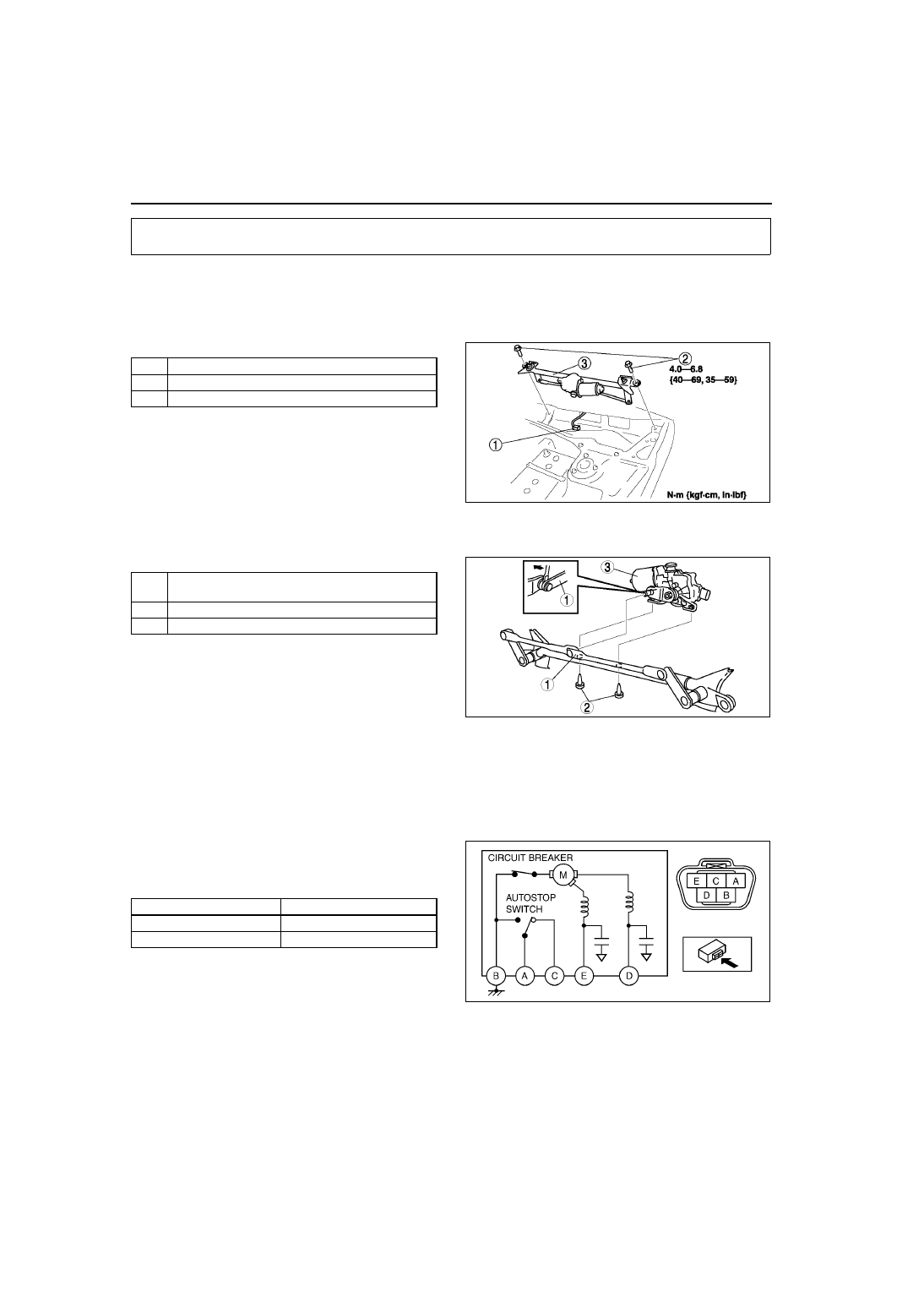

WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION
A6E811667340W01
1. Disconnect the negative battery cable.
2. Remove the windshield wiper arm and blade. (See
T–57 WINDSHIELD WIPER ARM AND BLADE REMOVAL/
3. Remove the cowl grille. (See
S–50 COWL GRILLE REMOVAL/INSTALLATION
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Adjust the windshield wiper arm and blade. (See
T–58 WINDSHIELD WIPER ARM AND BLADE
ADJUSTMENT
End Of Sie
WINDSHIELD WIPER MOTOR DISASSEMBLY/ASSEMBLY
A6E811667340W02
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
Windshield Wiper Link Removal Note
1. Pry off the connection between the windshield wiper motor and windshield wiper link.
End Of Sie
WINDSHIELD WIPER MOTOR INSPECTION
A6E811667340W03
L.H.D.
1. Disconnect the windshield wiper motor connector.
2. Connect battery positive voltage to terminal E or
D and ground to terminal B, and inspect the
operation of the windshield wiper motor as
indicated below.
3. Disconnect battery positive voltage from terminal
E of the motor while the wipers are operating.
4. Verify that the wipers do not stop in the park
position.
5. Short between the motor terminals A and D and
connect battery positive voltage to the motor terminal C.
6. Verify that the wipers operate at low speed again, then stop in the park position.
• If not as specified, replace the windshield wiper motor.
WIPER AND WASHER
1
Connector
2
Bolt
3
Windshield wiper motor
A6E8116W102
1
Windshield wiper link (See
2
Bolt
3
Windshield wiper motor
A6E8116W140

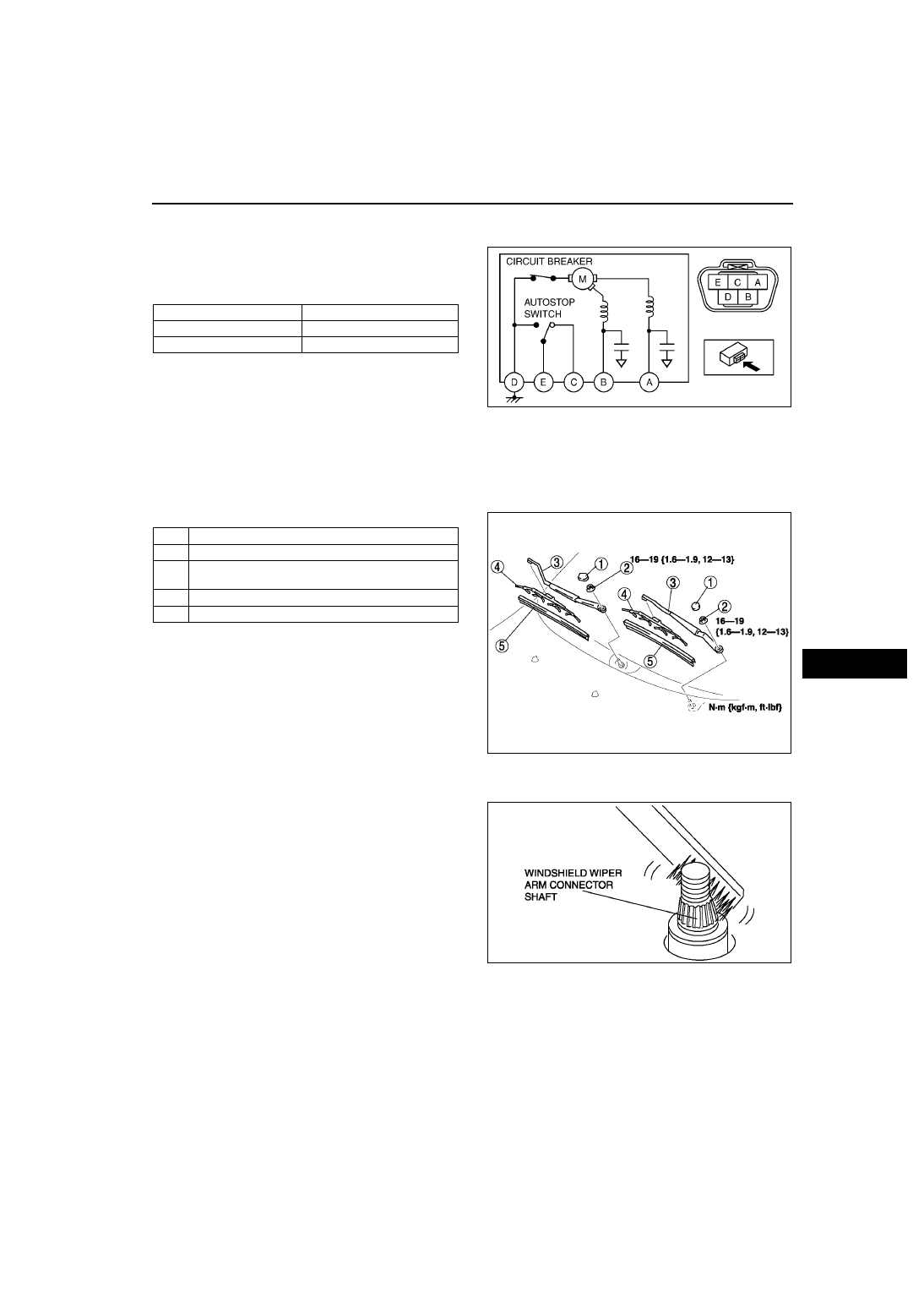

Terminal
Operation
E
High
D
Low
A6E8116W127
