SEAT WARMER UNIT INSPECTION

A6E775259000W03

1. Remove the front seat. (See

S–105 FRONT SEAT REMOVAL/INSTALLATION

2. Remove the seat cushion trim.

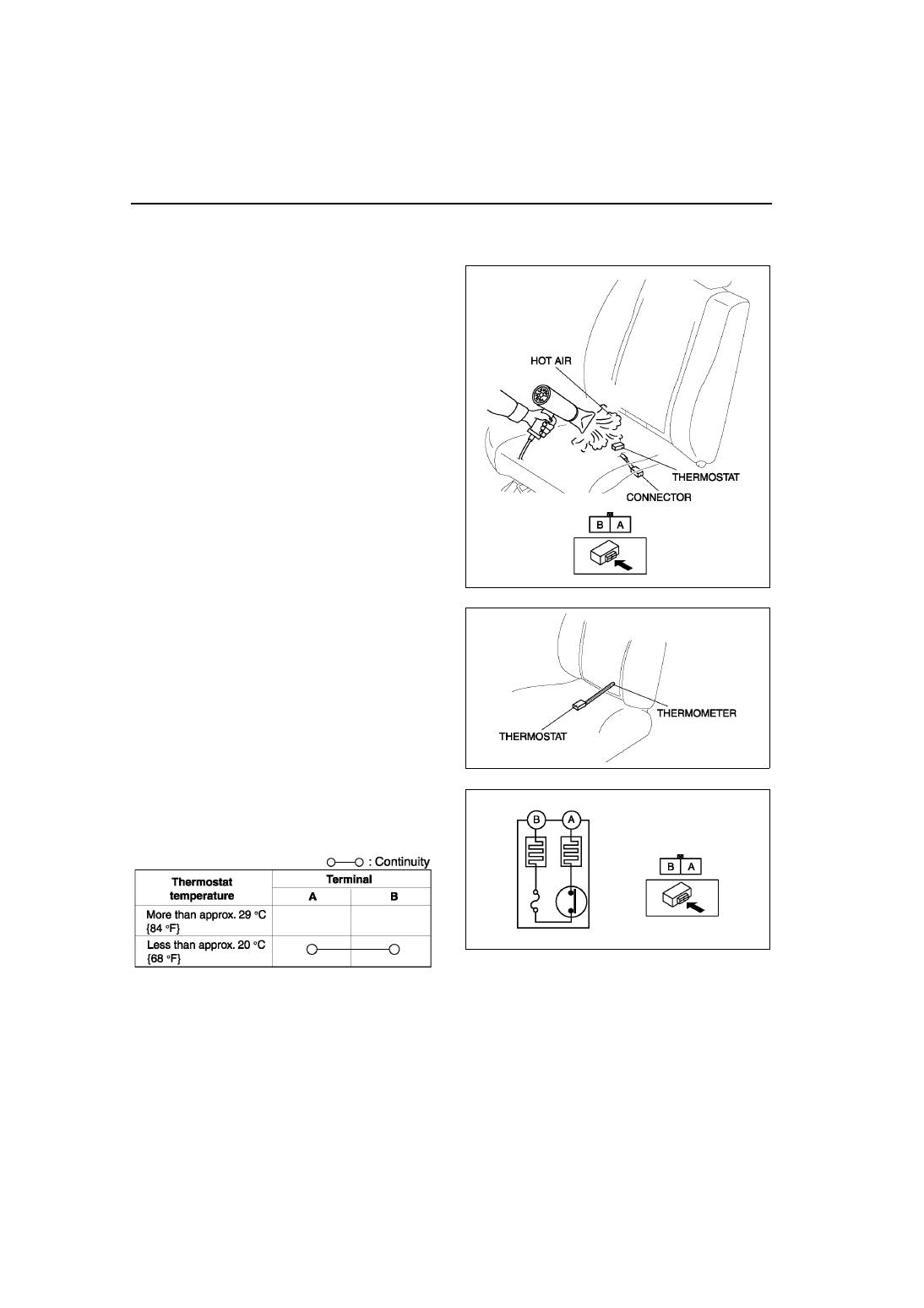

3. While inspecting for continuity between the

terminals A and B of the connector, use a dryer to
warm the thermostat of the seat warmer unit on
seat cushion.

4. When the indication on the ohmmeter is no

continuity, turn off the dryer, then use a
thermometer to measure the temperature of the
thermostat.

5. Verify that the temperature is approximately

°C {84 °F}.

6. Verify that there is continuity between the terminals

of seat warmer unit’s connector using an
ohmmeter when temperature drops to
approximately 20

°C {68 °F}.

End Of Sie

A6E7752W020

A6E7752W021

A6E7752W022

A6E7752W023

BODY SHELL

S–119

SHROUD PANEL REMOVAL/INSTALLATION

A6E775453140W01

1. Remove the bonnet. (See

S–10 BONNET REMOVAL/INSTALLATION

2. Remove the front bumper. (See

S–47 FRONT BUMPER REMOVAL/INSTALLATION

3. Remove the front combination light. (See

T–26 FRONT COMBINATION LIGHT REMOVAL/INSTALLATION

4. Remove the front bumper reinforcement. (See

S–48 BUMPER REINFORCEMENT REMOVAL/

INSTALLATION

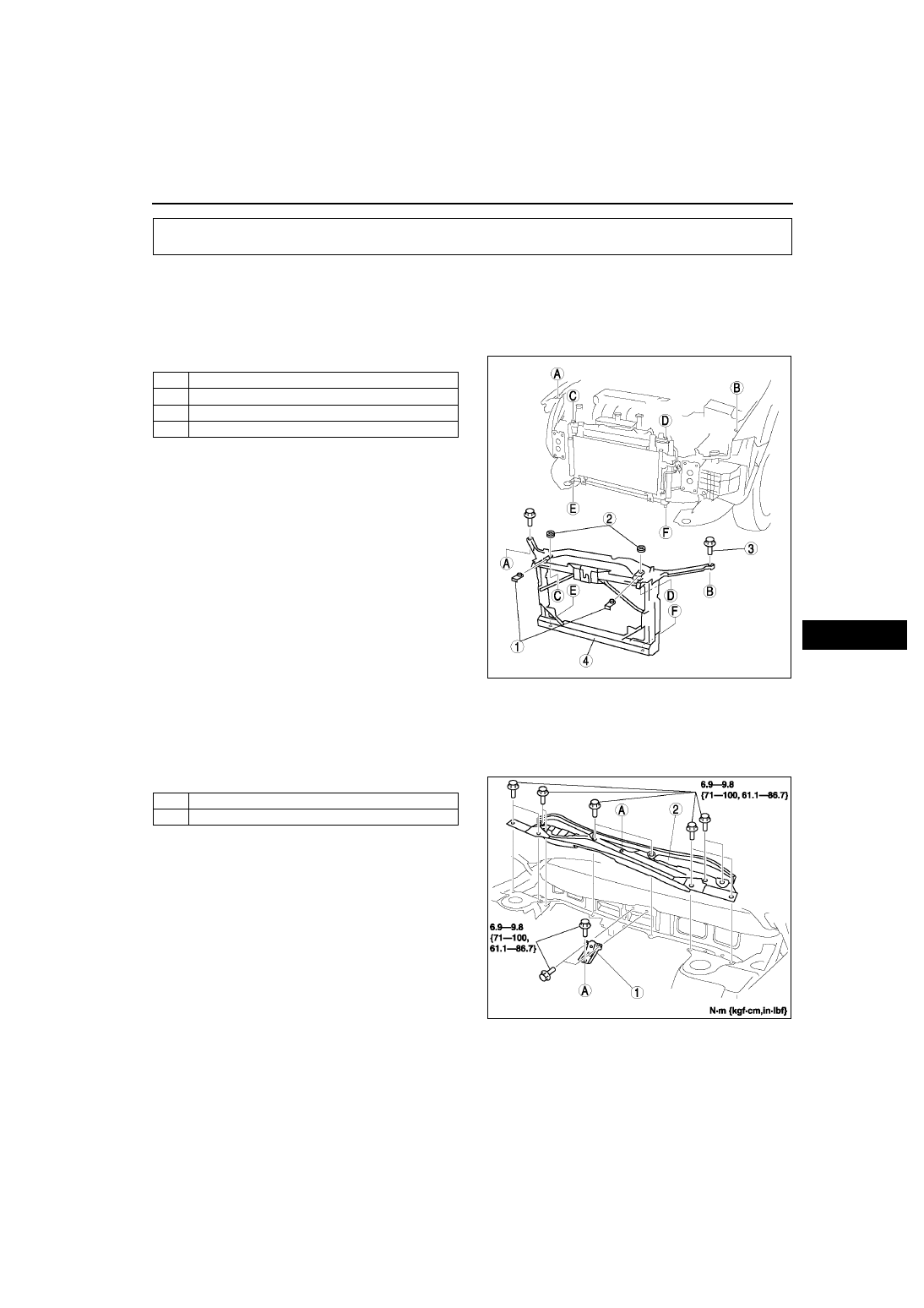

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

End Of Sie

COWL PANEL REMOVAL/INSTALLATION

A6E775453580W01

1. Remove the windshield wiper arm and blade. (See

T–57 WINDSHIELD WIPER ARM AND BLADE REMOVAL/

INSTALLATION

2. Remove the cowl grille.
3. Remove the windshield wiper motor. (See

T–56 WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

End Of Sie

BODY SHELL

Radiator mount cover

Radiator mount rubber

Bolt

Shroud panel

A6E7754W001

Gusset

Cowl panel

A6E7754W002

S–120

TROUBLESHOOTING [POWER WINDOW SYSTEM]

INTERMITTENT CONCERN TROUBLESHOOTING

A6E778058000W01

Vibration Method

• If malfunction occurs or becomes worse while driving on a rough road or when engine is vibrating, perform the

steps below.

Note

• There are several reasons why vehicle or engine vibration could cause an electrical malfunction. Some of

the things to check for:
— Connectors not fully seated.
— Wire harnesses not having full play.
— Wires laying across brackets or moving parts.
— Wires routed too close to hot parts.

• An improperly routed, improperly clamped, or loose harness can cause wiring to become pinched

between parts.

• The connector joints, points of vibration, and places where wire harnesses pass through the firewall, body

panels, etc. are the major areas to be checked.

• Check for DTCs or malfunctions by shaking

harnesses and connectors that are
suspected to be causing malfunction.

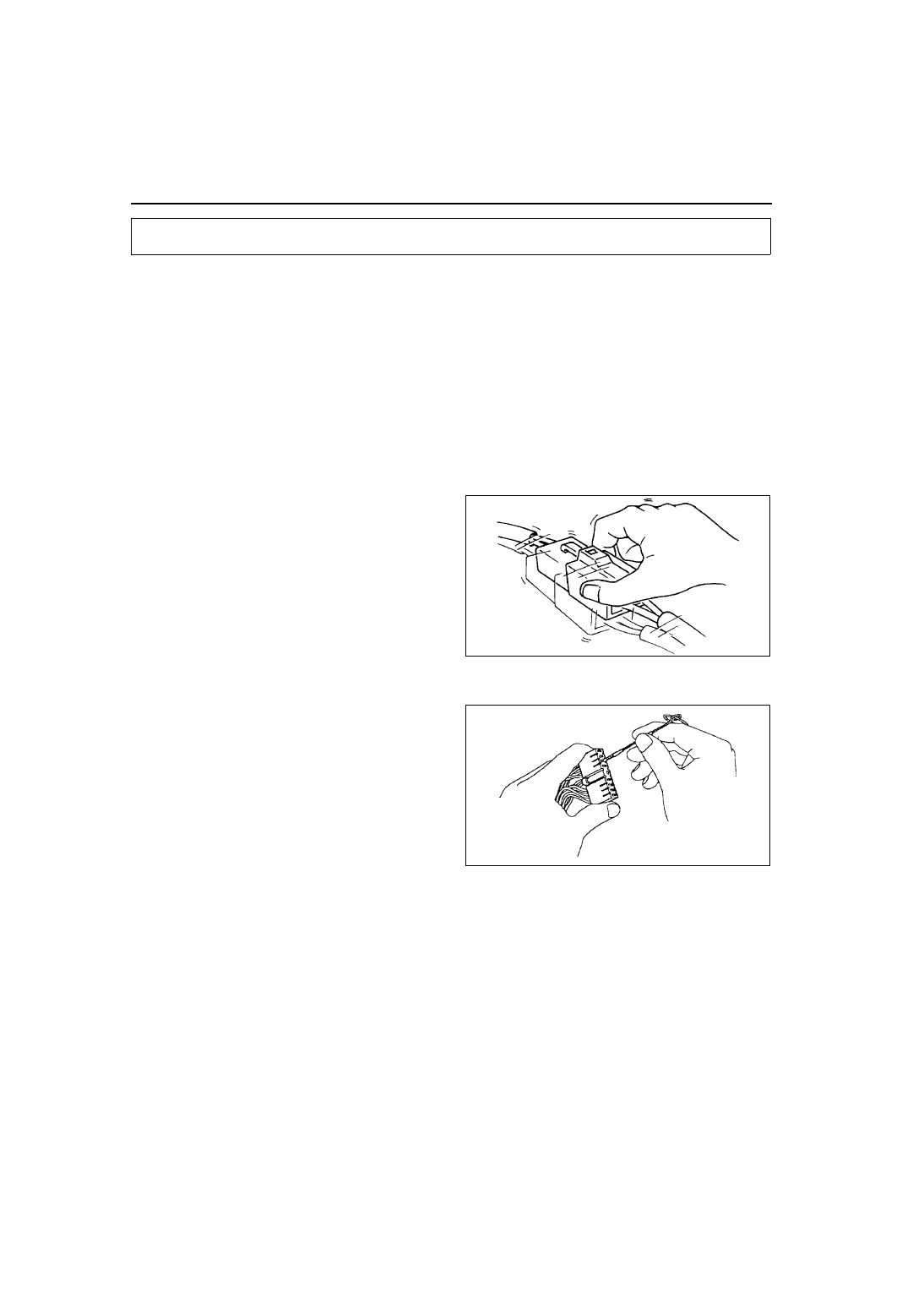

Connector Terminal Check Method

1. Check the connection condition of each female terminal.
2. Insert male terminal into the female terminals to

check for looseness.

End Of Sie

FOREWORD

A6E778058000W02

• Always perform basic power window system inspection before troubleshooting.

• Troubleshooting gives content unique to trouble caused by problems in the automatic window return function.

End Of Sie

TROUBLESHOOTING [POWER WINDOW SYSTEM]

YDE7780W001

YDA8180W000

TROUBLESHOOTING [POWER WINDOW SYSTEM]

S–121

BASIC POWER WINDOW SYSTEM INSPECTION

A6E778058000W03

Manual Mode Function Inspection

Automatic Mode Function Inspection

STEP

INSPECTION

ACTION

• Turn ignition switch to ON position.

• Do all windows go up and down in manual

mode using power window main switch?

Yes

Go to next step.

• Inspect the following items:

— Power window main switch power supply fuses
— Power window main switch ground wiring harness
— Power window main switch power supply wiring

harnesses

— Wiring harness between power window main switch

and power window motor

— Power window main switch
— Power window motor
— Each power window motor wire installation point
— Each window installation point on its carrier plate
— Each power window regulator installation point on

each door

• Repair or replace the problem area, then go to Step 4.

• Does each window go up and down in

manual mode using power window
subswitch?

Yes

Go to next step.

• Inspect the following items:

— Power window main switch (power-cut switch system

malfunction)

— Power window subswitch
— Subswitch power supply wiring harnesses

• Repair or replace the problem area, then go to automatic

mode function inspection.

• Turn power-cut switch UNLOCK.

• Push/pull power window main switch

(switches for all doors in manual mode).

• Does only driver-side front window go up and

down?

Yes

• Manual mode function is normal.

• Go to automatic mode function inspection.

Replace power window main switch, then go to automatic
mode function inspection (power-cut switch system
malfunction).

STEP

INSPECTION

ACTION

• Turn ignition switch to ON position.

• Operate power window main switch for

driver-side front door in automatic mode.

• Does driver-side front window go up and

down?

Yes

Go to next step.

Driver-side front window does not go up and

down in automatic mode:

• Go to Step 1 of NO. 1 DRIVER-SIDE FRONT WINDOW

DOES NOT GO UP AND DOWN IN AUTOMATIC
MODE.

Driver-side front window go up and down in

automatic mode, but driver-side front window
reverses:

• Go to Step 1 of NO. 3 DRIVER-SIDE FRONT WINDOW

REVERSES EVEN THOUGH THE GLASS DOES NOT
ENCOUNTER A FOREIGN OBJECT WHILE IT IS
GOING UP IN AUTOMATIC MODE.

• Gently pull the driver-side front power

window switch while driver-side front window
is going down in automatic mode.

• Does the glass stop?

Yes

Go to next step.

Replace power window main switch, then go to automatic
window return function inspection.

• Gently press the driver-side front power

window switch while driver-side front window
is going up in automatic mode.

• Does the glass stop?

Yes

• Automatic mode function is normal.

• Go to automatic window return function inspection.

Replace power window main switch, then go to automatic
window return function inspection.
