S–110

SEAT

End Of Sie

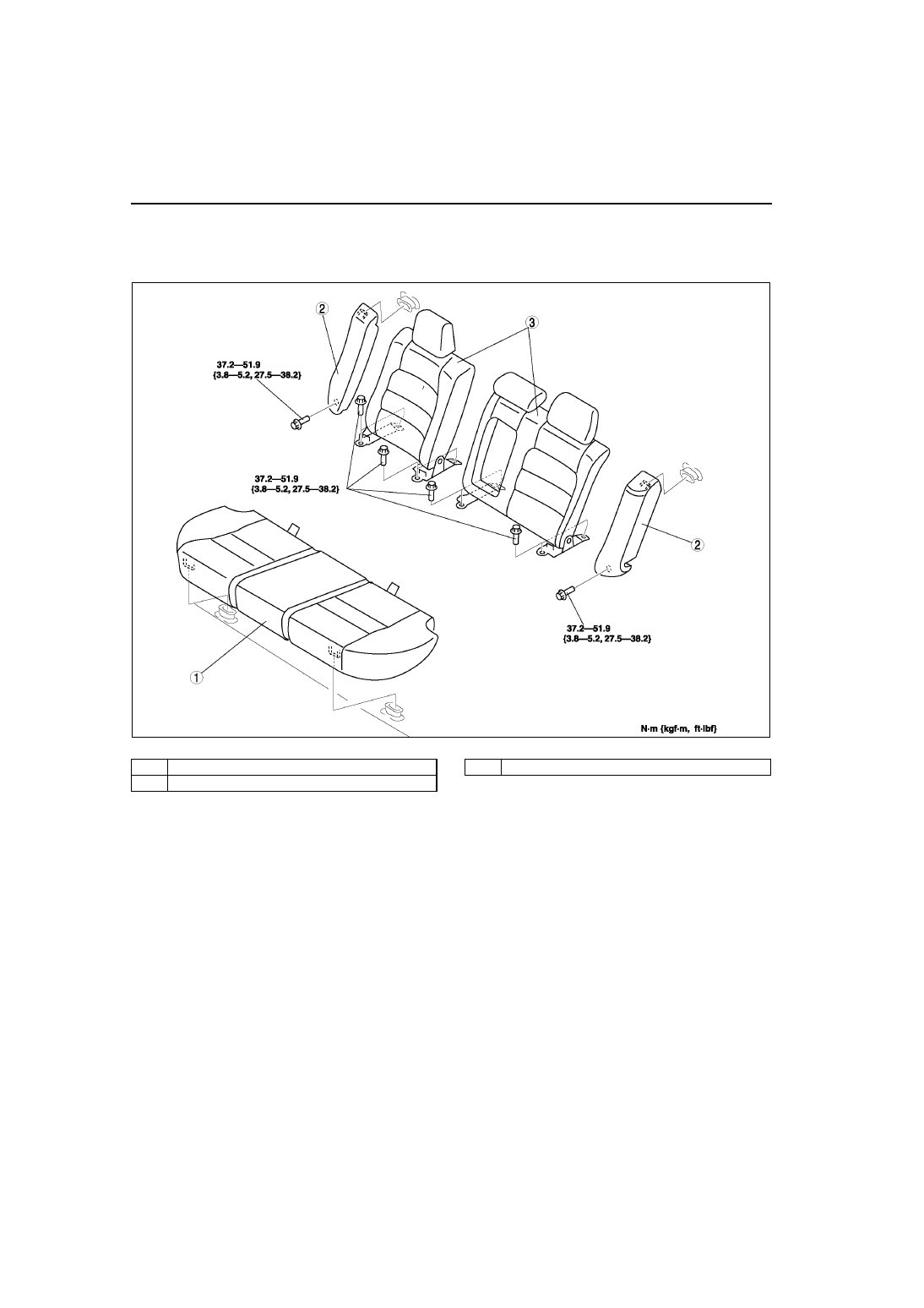

REAR SEAT REMOVAL/INSTALLATION

A6E775257200W01

4SD

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

.

A6E7752W006

1

Rear seat cushion

2

Rear side seat

3

Rear seat back

SEAT

S–111

S

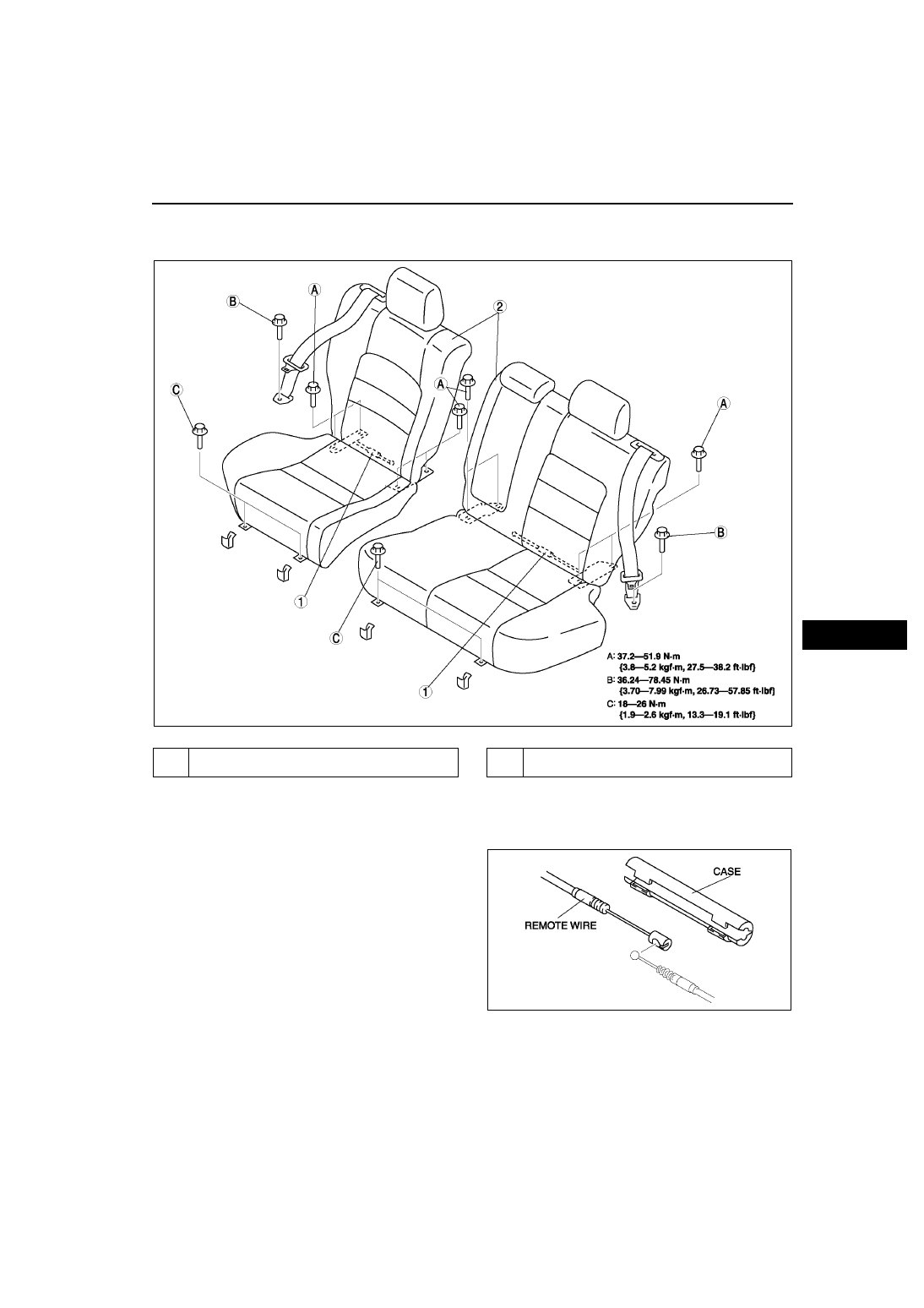

5HB

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

.

Remote wire removal note

1. Turn over the trunk floor mat.
2. Remove the case.
3. Remove the remote wire.

A6E7752W012

1

Remote wire
(See

S–111 Remote wire removal note

.)

2

Rear seat
(See

S–112 Rear seat removal note

.)

A6E7752W014

S–112

SEAT

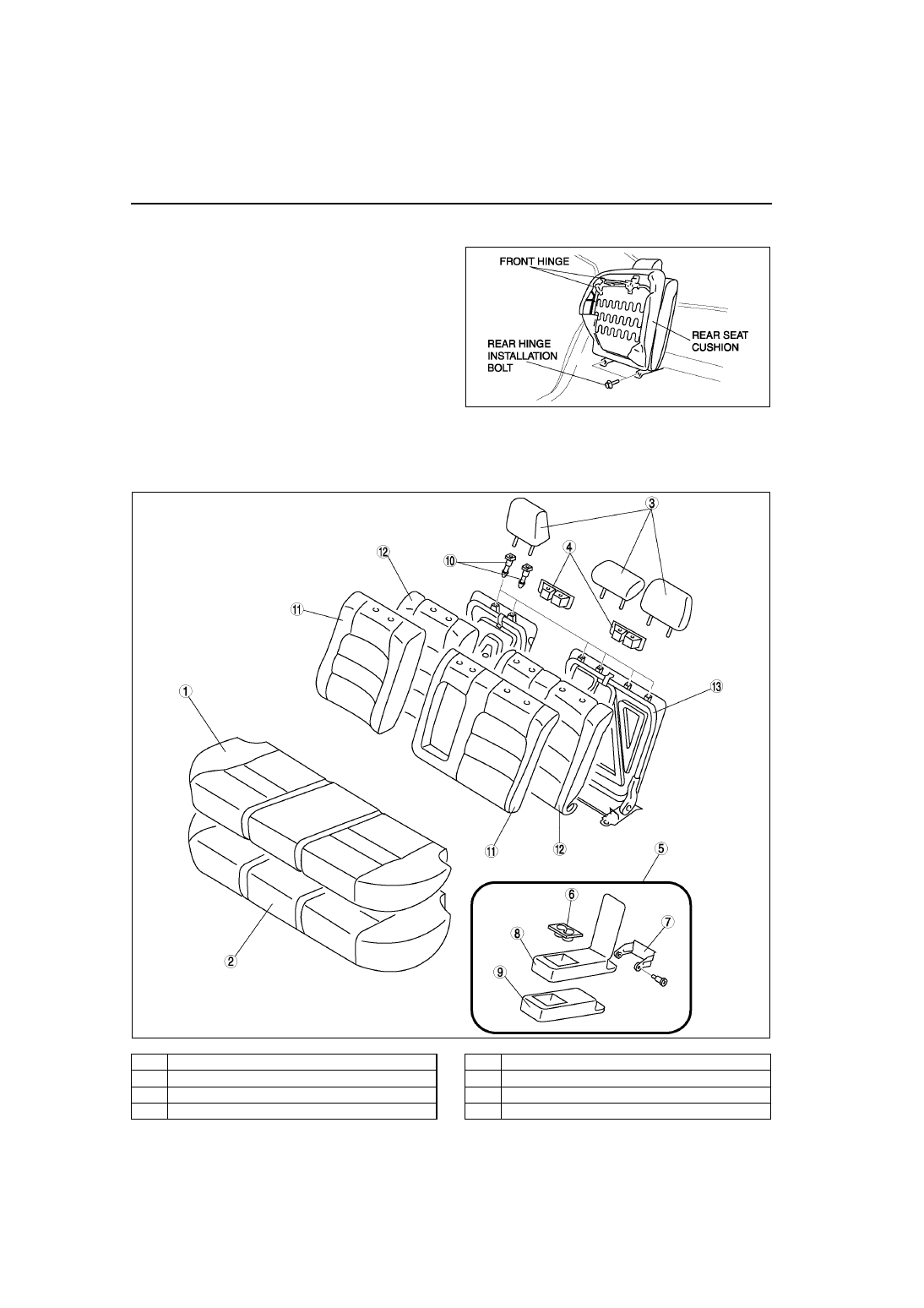

Rear seat removal note

1. Remove the front hinge installation bolts.
2. Lift the rear seat cushion, then remove the rear

hinge installation bolts.

End Of Sie

REAR SEAT DISASSEMBLY/ASSEMBLY

A6E775257200W02

4SD

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

.

A6E7752W013

A6E7752W007

1

Seat cushion trim

2

Seat cushion pad

3

Headrest

4

Striker cover

5

Armrest assembly

6

Cup holder

7

Armrest hinge

8

Armrest trim

SEAT

S–113

S

5HB

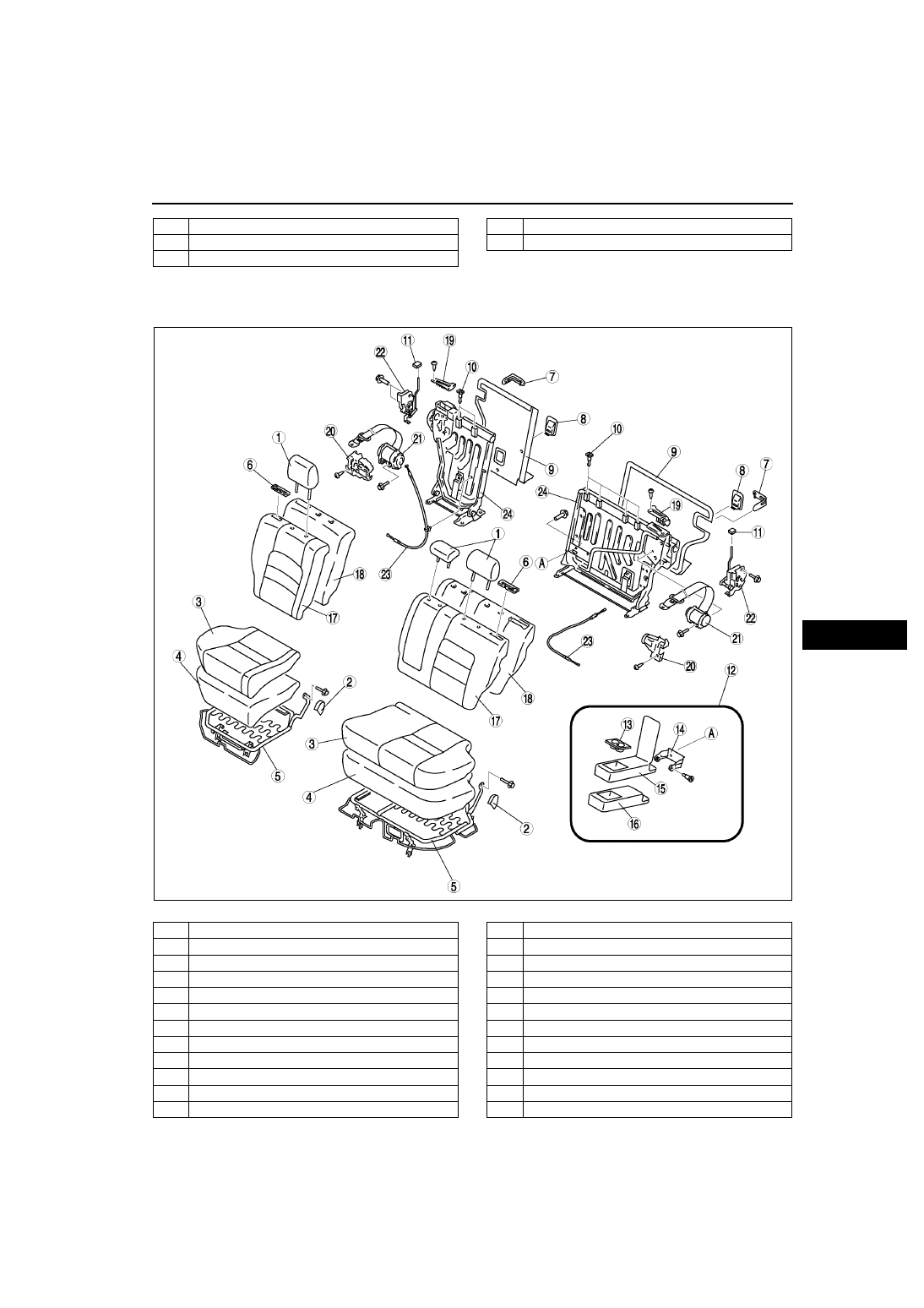

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

.

9

Armrest pad

10

Pole guide

11

Seat back trim

12

Seat back pad

13

Seat back frame

A6E7752W015

1

Headrest

2

Hinge cover

3

Seat cushion trim

4

Seat cushion pad

5

Seat cushion frame

6

Remote button cover

7

Seat back catch cover

8

Child seat anchor cover

9

Seat back board

10

Pole guide

11

Remote button

12

Armrest assembly

13

Cup holder

14

Armrest hinge

15

Armrest trim

16

Armrest pad

17

Seat back trim

18

Seat back pad

19

Seat belt guide

20

Retractor cover

21

Rear seat belt

22

Seat back catch

23

Remote wire

24

Seat back frame
