S–106

SEAT

FRONT SEAT DISASSEMBLY/ASSEMBLY

A6E775257100W02

Warning

• Handling the front seat (side air bag) improperly can accidentally deploy the side air bag, which

may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the front
seat. (See

T–117 SERVICE WARNINGS

.)

1. Disconnect the negative battery cable and wait for more than 1 minute.
2. Remove the side air bag module. (See

T–121 SIDE AIR BAG MODULE REMOVAL/INSTALLATION

.)

3. Disassemble in the order indicated in the table.
4. Assemble in the reverse order of disassembly.

Driver's Seat (Normal Seat)

.

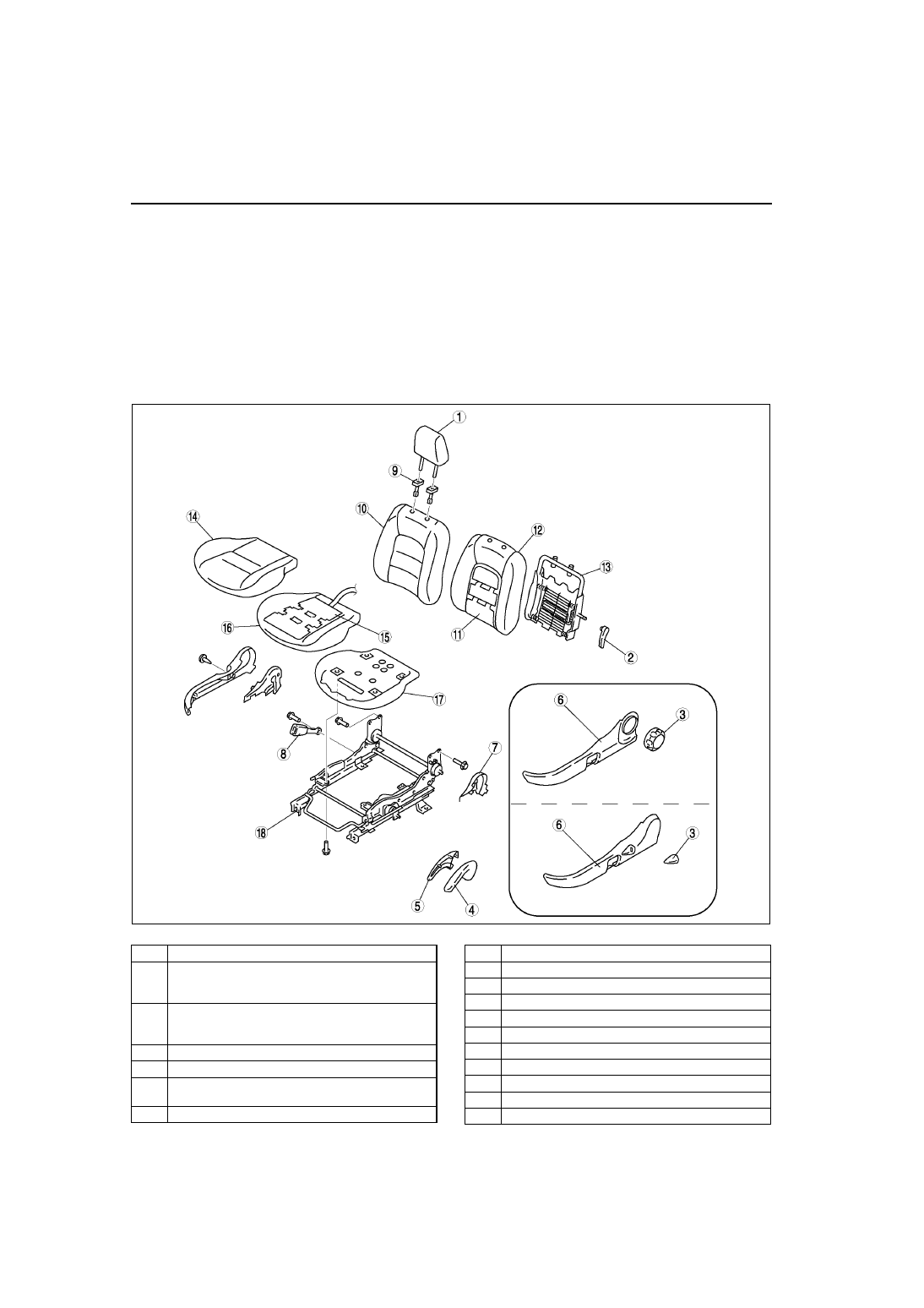

A6E7752W017

1

Headrest

2

Lumber support lever
(See

S–109 Lumber support lever disassembly

note

.)

3

Recliner dial (dial type)

(See

S–109 Recliner dial disassembly note

.)

Recliner lever (lever type)

4

Lift lever outer

5

Lift lever inner

6

Side  cover
(See

S–109 Side cover disassembly note

.)

7

Reverce cover

8

Front  buckle

9

Pole guide

10

Seat back trim

11

Seat warmer unit (European (L.H.D.) specs. only)

12

Seat back pad

13

Seat back frame

14

Seat cushion trim

15

Seat warmer unit (European (L.H.D.) specs. only)

16

Seat cushion pad

17

Seat cushion frame

18

Slide adjuster

SEAT

S–107

S

Driver's Seat (Power Seat)

.

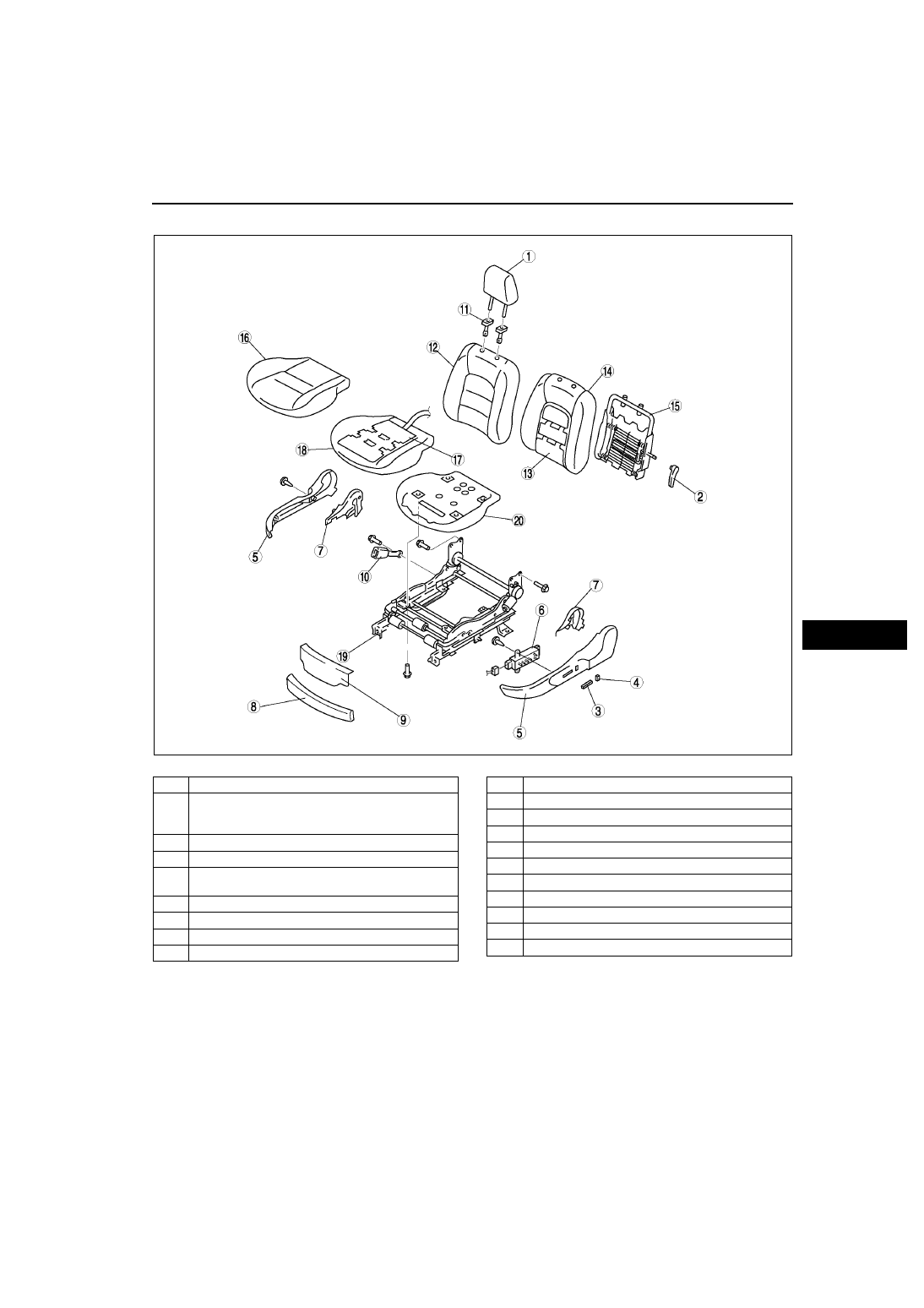

A6E7752W027

1

Headrest

2

Lumber support lever
(See

S–109 Lumber support lever disassembly

note

.)

3

Slider and lifter switch knob

4

Recliner switch knob

5

Side cover
(See

S–109 Side cover disassembly note

.)

6

Power seat switch

7

Reverce cover

8

Front cover No. 1

9

Front cover No. 2

10

Front buckle

11

Pole guide

12

Seat back trim

13

Seat warmer unit (European (L.H.D.) specs. only)

14

Seat back pad

15

Seat back frame

16

Seat cushion trim

17

Seat warmer unit (European (L.H.D.) specs. only)

18

Seat cushion pad

19

Seat cushion frame

20

Slide adjuster

S–108

SEAT

Passenger's Seat

Warning

• Do not disassemble the seat cushion. Doing so will necessitate reassembly which may damage or

press the occupancy sensor. This will cause the misoperation of the air bag system, which may
seriously injure you.

.

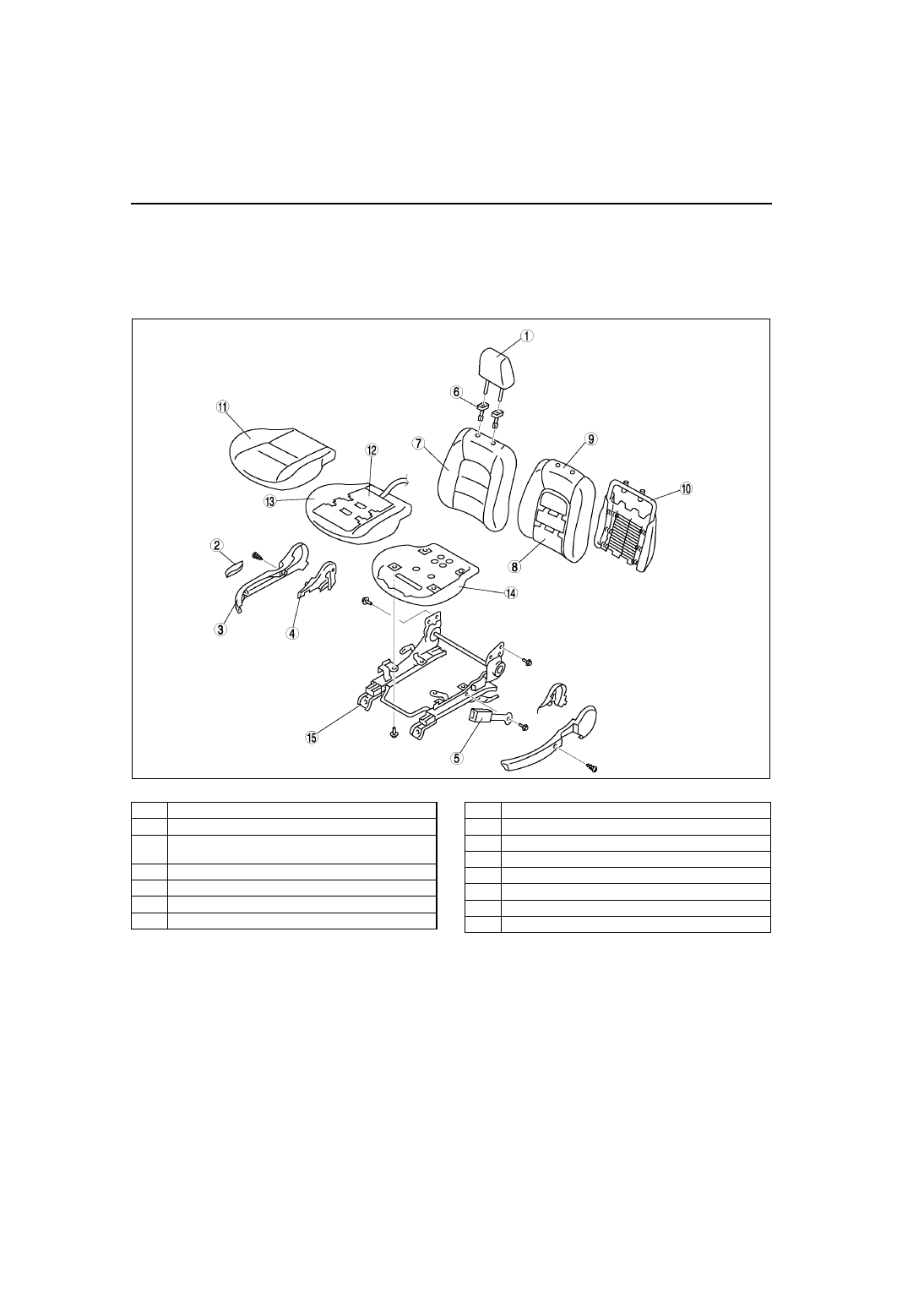

A6E7752W003

1

Headrest

2

Recliner lever

3

Side  cover
(See

S–109 Side cover disassembly note

.)

4

Reverse cover

5

Front  buckle

6

Pole guide

7

Seat back trim

8

Seat warmer unit (European (L.H.D.) specs. only)

9

Seat back pad

10

Seat back frame

11

Seat cushion trim

12

Seat warmer unit (European (L.H.D.) specs. only)

13

Seat cushion pad

14

Seat cushion frame

15

Slide adjuster

SEAT

S–109

S

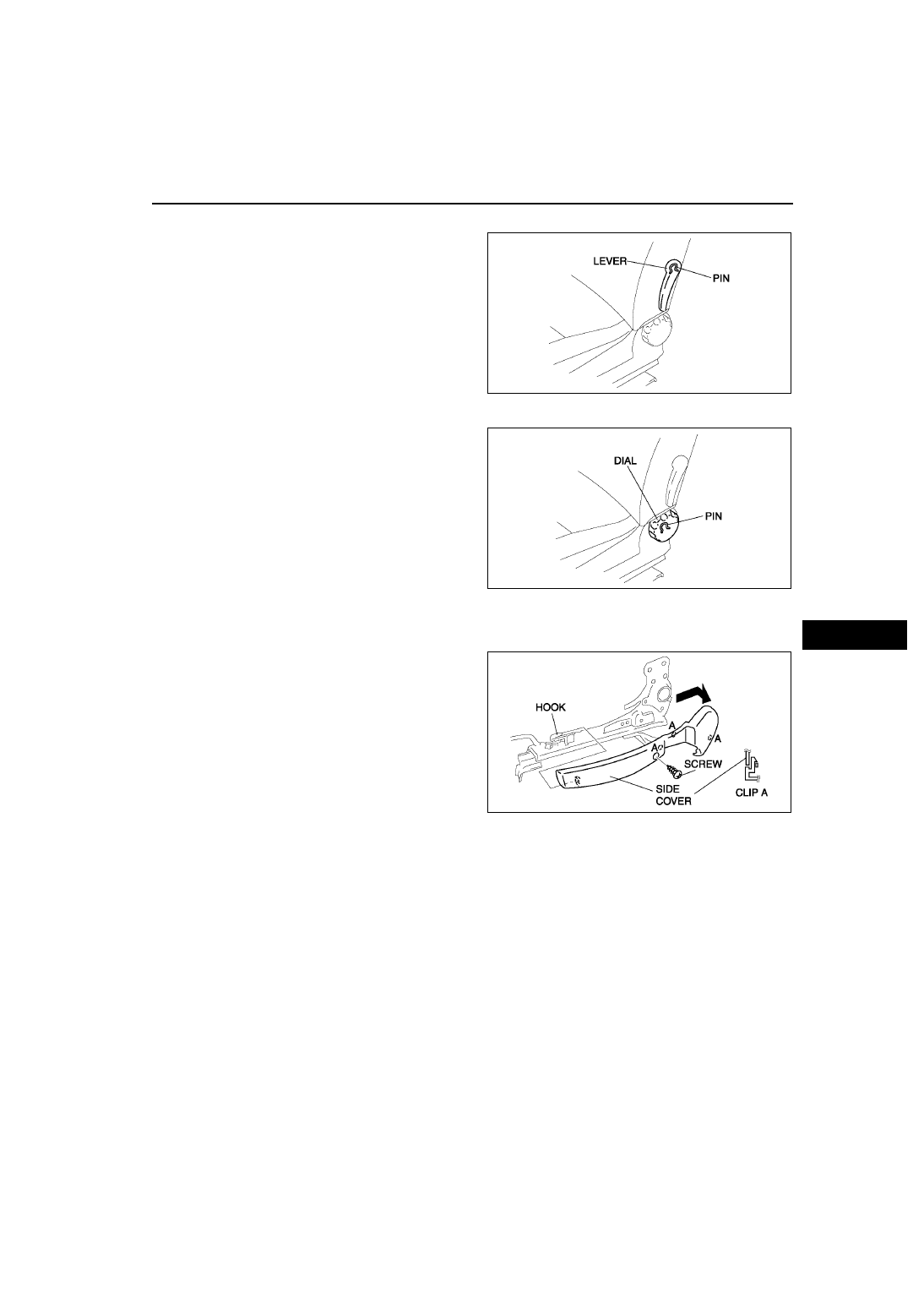

Lumber support lever disassembly note

1. Remove the pin from the lumber support lever

installation part with rag.

Recliner dial disassembly note

1. Remove the pin from the recliner dial installation

part with rag.

Side cover disassembly note

1. Remove the screws.
2. Disengage the clips.
3. Lift the side cover up in the direction of the arrow,

then unhook it from slide adjuster.

A6E7752W018

A6E7752W019

A6E7752W004
