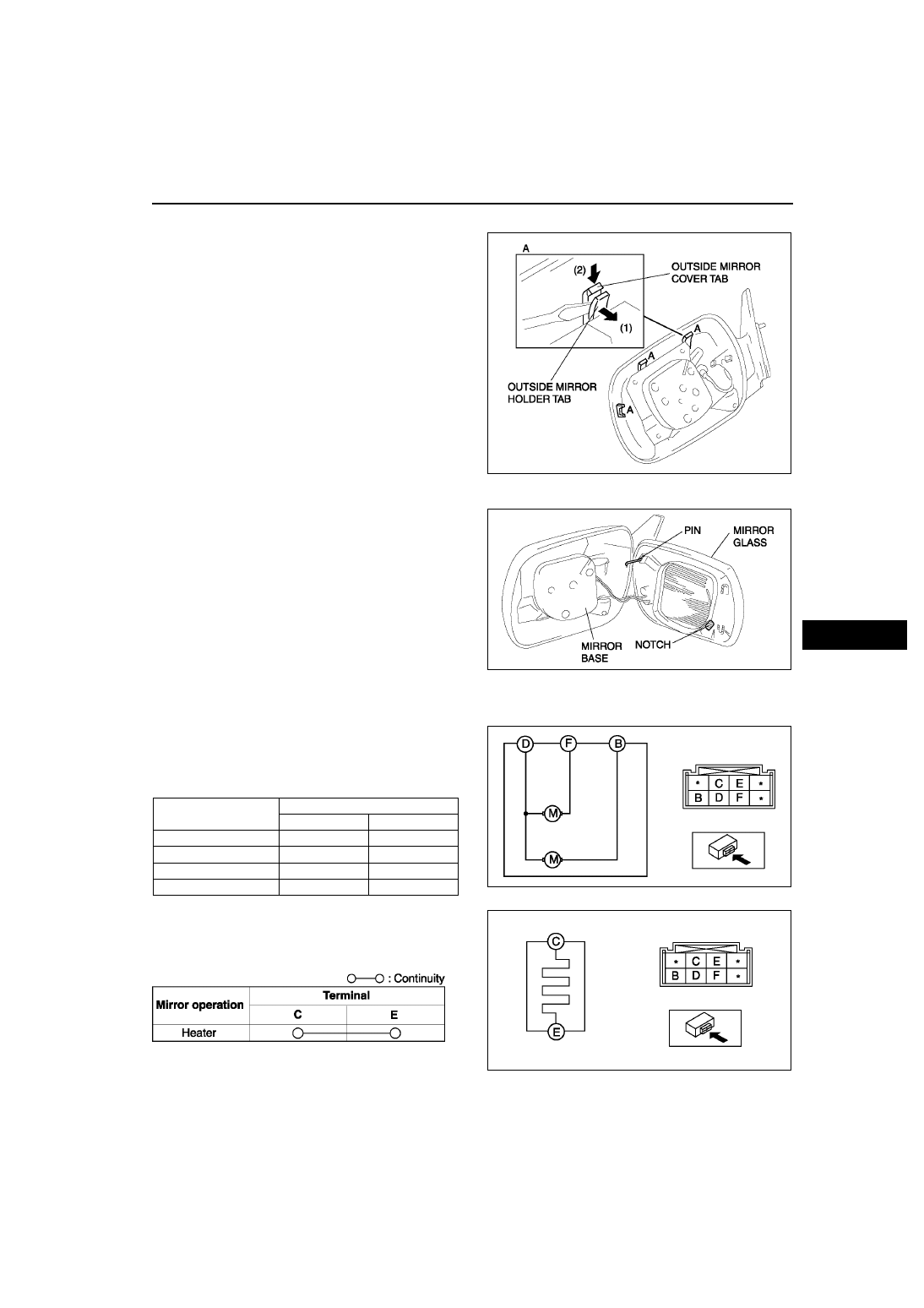

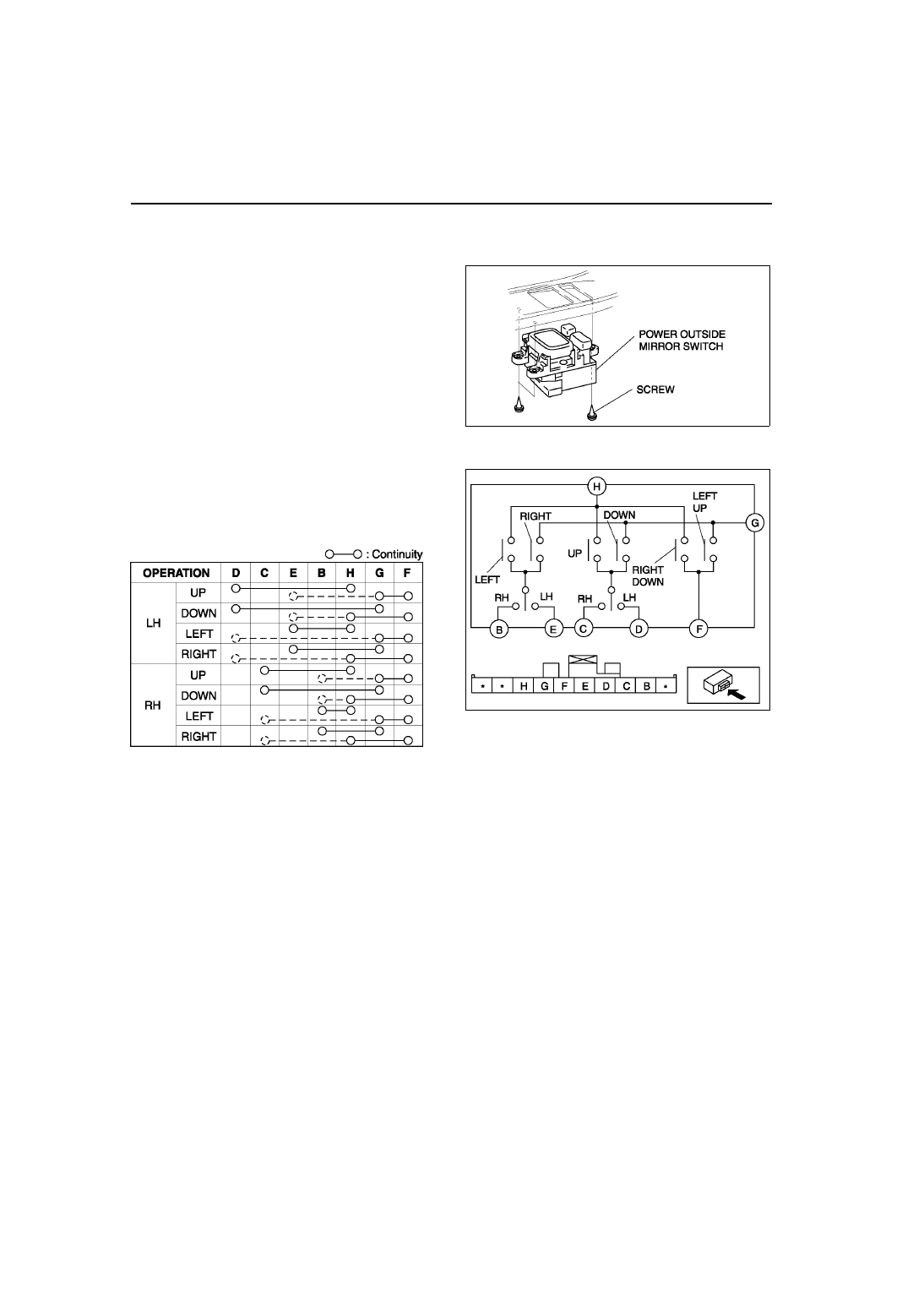

OUTSIDE MIRROR S–59 S Cover Disassembly Note 1. Pull off the mirror holder tab with a screwdriver and press the mirror cover tab downward. Outside Mirror Glass Assembly Note 1. Press the mirror into the base so that the pin does not dislodge. End Of Sie POWER OUTSIDE MIRROR INSPECTION A6E773269110W03 1. Disconnect the power outside mirror connector. outside mirror terminals and inspect the operation • If not as specified, replace the power outside mirror. 3. Inspect for continuity between the power outside mirror heater terminals. • If not as specified, replace the power outside mirror. End Of Sie A6E7732W004 A6E7732W005 Mirror operation Terminal B+ GND Up B D Down D B Left F D Right D F A6E7732W007 A6E7732W009 A6E7732W010 |
