FRONT AXLE

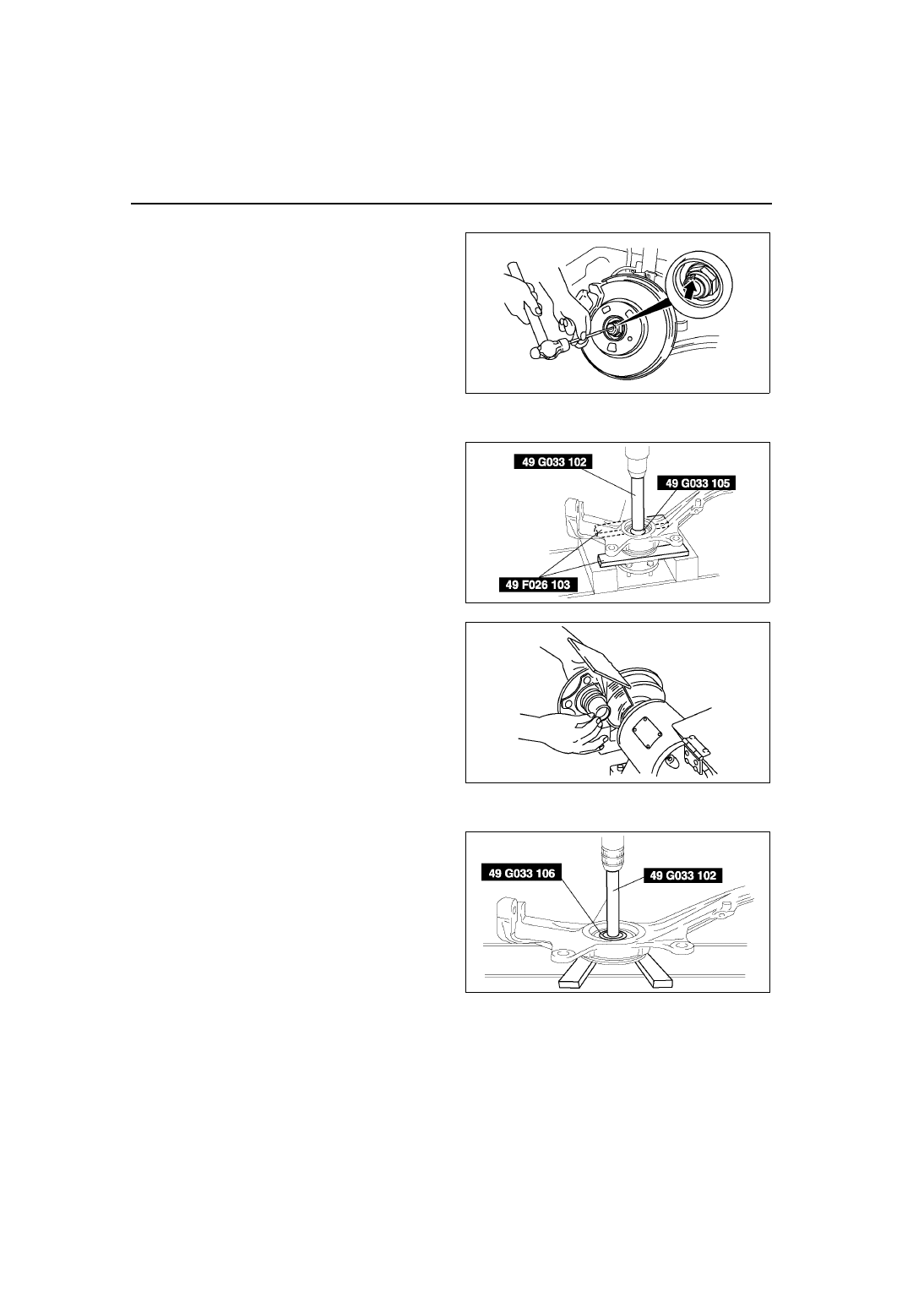

Locknut Removal Note

1. Knock the crimped portion of the locknut outward

using a small chisel and a hammer.

2. Lock the hub by applying the brakes.
3. Remove the locknut.

Wheel Hub Component Removal Note

1. Remove the wheel hub component using the

SSTs.

2. If the bearing inner race remains on the front

wheel hub component, grind a section of the
bearing inner race until approx. 0.5 mm {0.02 in}
remains. Then remove it using a chisel.

Wheel Bearing Removal Note

1. Remove the wheel bearing using the SSTs.

A6E6321W001

A6E0311W015

A6E6312W002

A6E0311W017

FRONT AXLE

M–7

M

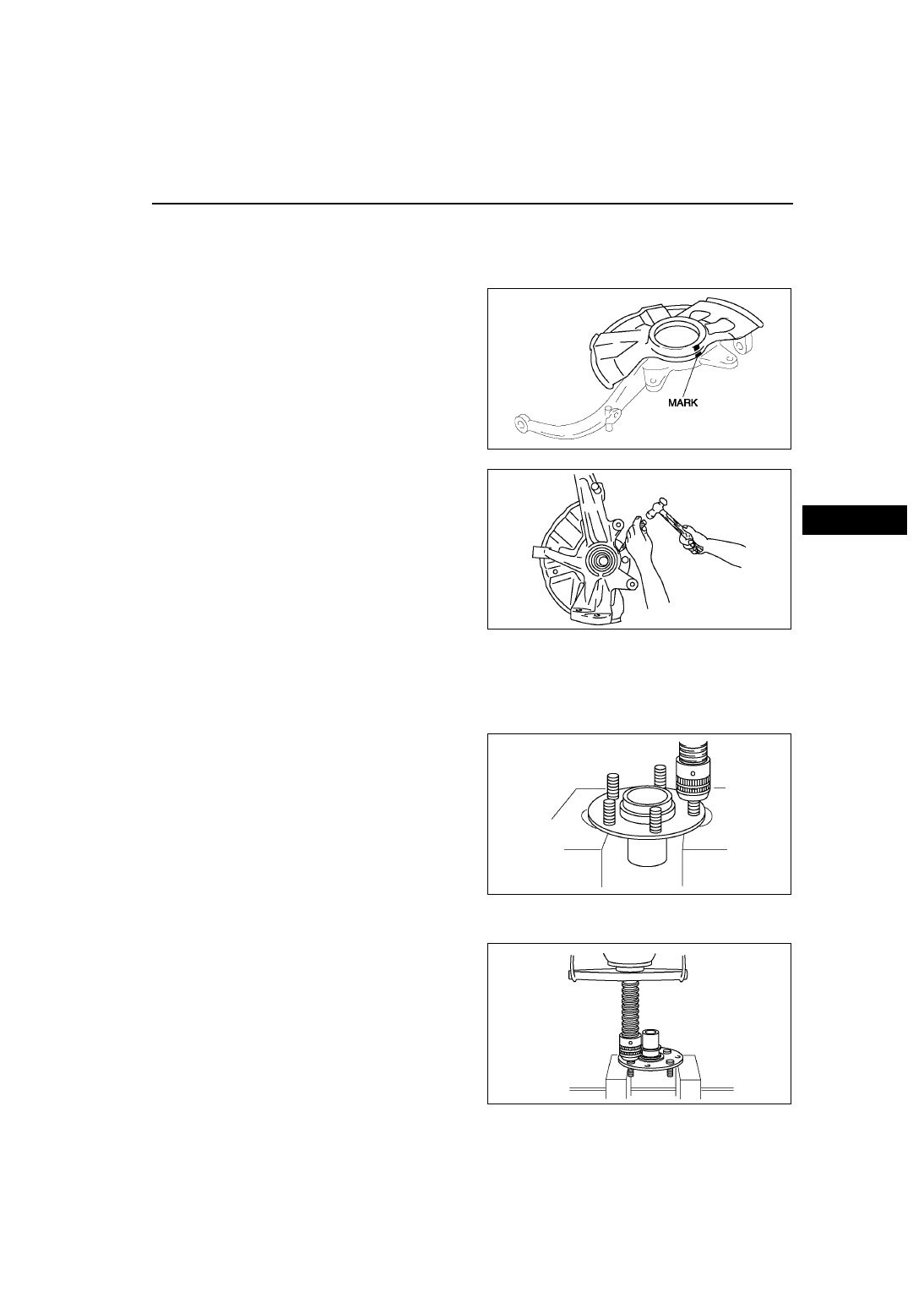

Dust Cover Removal Note

Note

• The dust cover does not need to be removed unless it is being replaced.

1. Mark the dust cover and steering knuckle for

proper installation.

2. Remove the dust cover using a chisel.

Hub Bolt Removal Note

Note

• The hub bolts do not need to be removed unless they are being replaced.

1. Remove the hub bolts using a press.

Hub Bolt Installation Note

1. Install the new hub bolts using a press.

A6E0311W018

A6E0311W019

A6E6312W003

A6E6312W004

M–8

FRONT AXLE

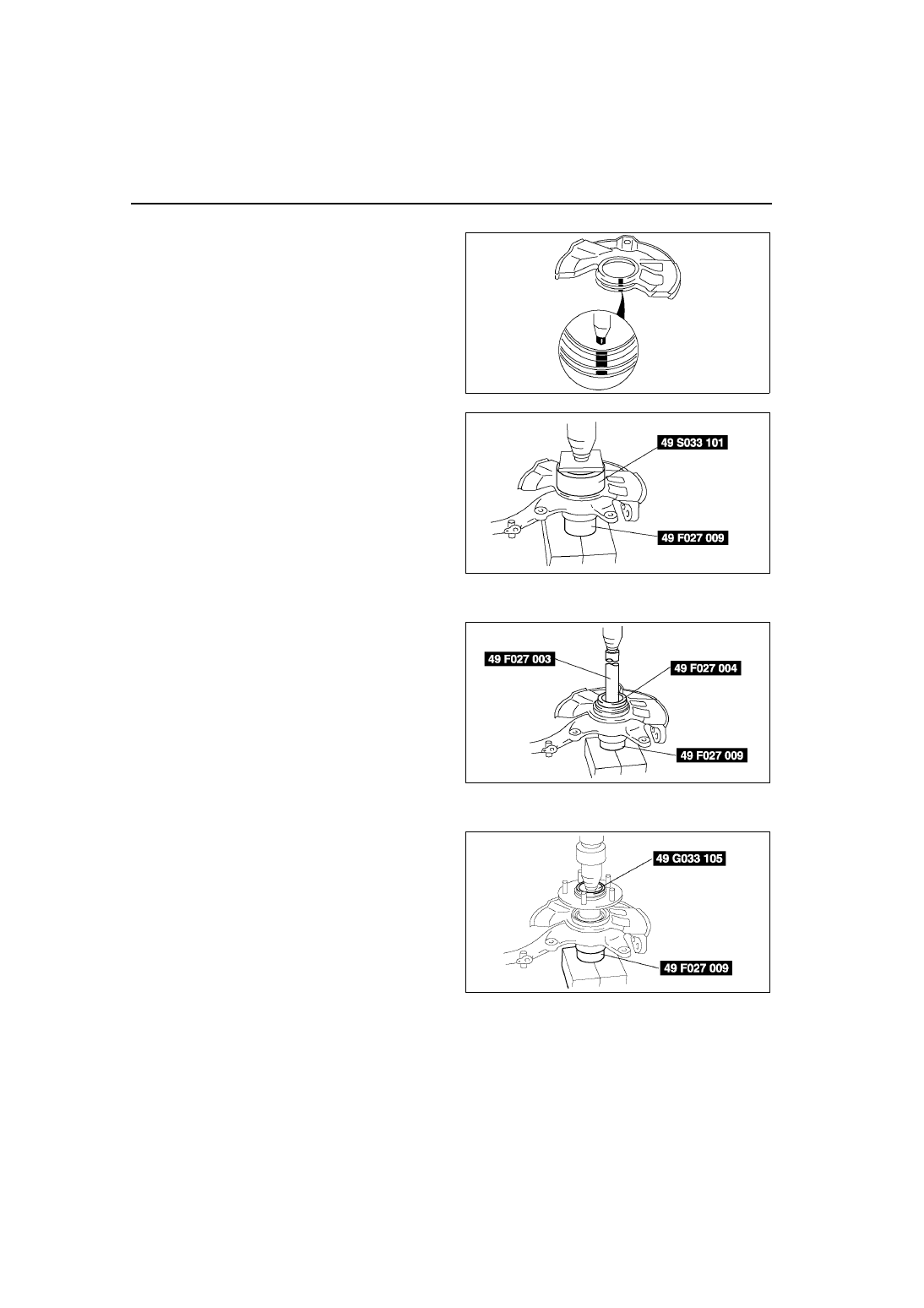

Dust Cover Installation Note

1. Mark the new dust cover in the same way as the

removed one.

2. Align the marks of the new dust cover and the

knuckle.

3. Install the new dust cover using the SSTs.

Wheel Bearing Installation Note

1. Install the new wheel bearing using the SSTs.

Wheel Hub Component Installation Note

1. Install the wheel hub component using the SSTs.

A6E0312W010

A6E0312W011

A6E0312W012

A6E0312W013

FRONT AXLE, REAR AXLE

M–9

M

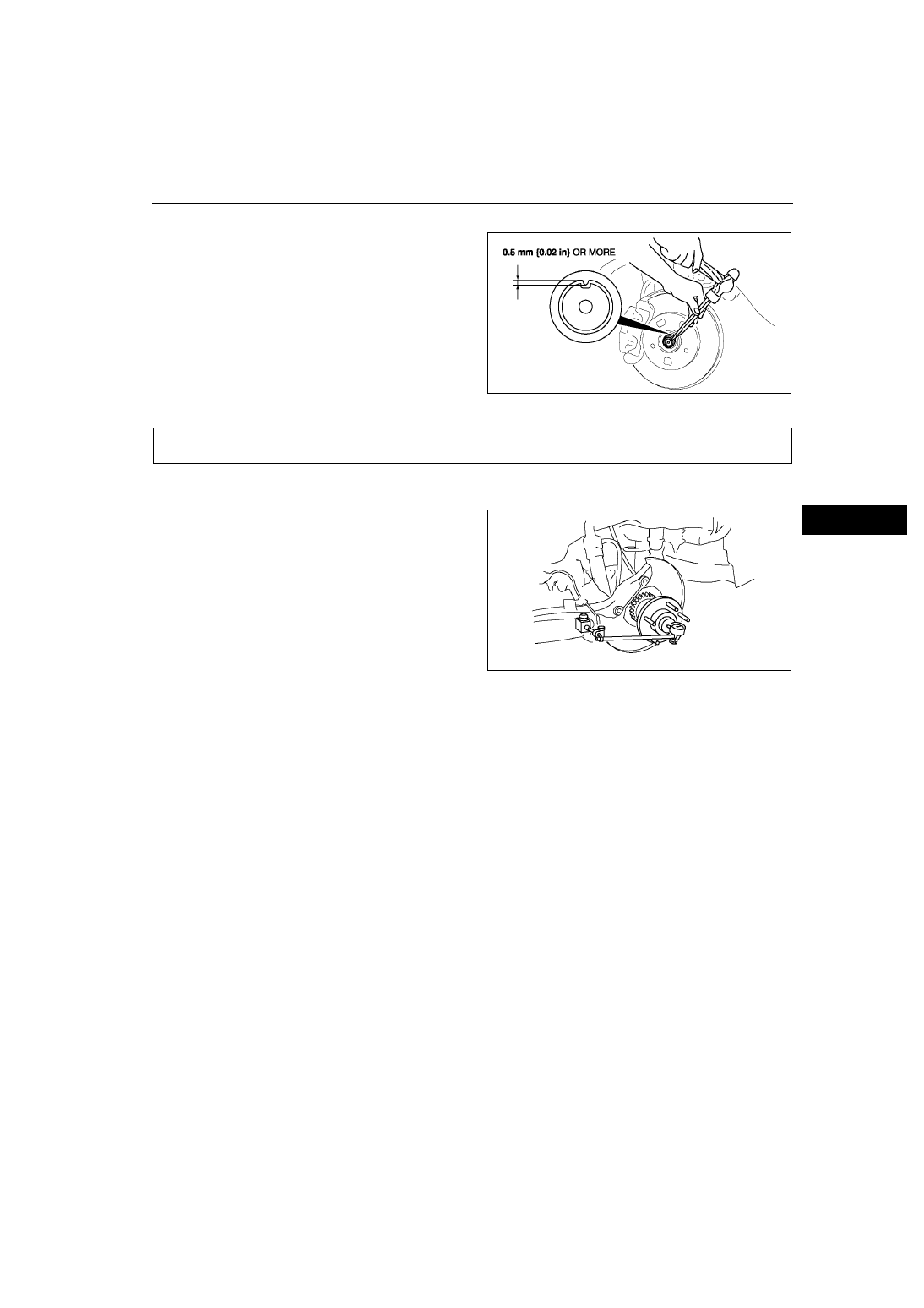

Locknut Installation Note

1. Install a new locknut and stake it as shown.

End Of Sie

WHEEL HUB, HUB SPINDLE PRE-INSPECTION

A6E631405000W01

Wheel Bearing Play Inspection

1. Position a dial indicator against the wheel hub.
2. Push and pull the wheel hub by hand in the axial

direction and measure the wheel bearing play.

Maximum wheel bearing play

0.05 mm {0.002 in}

3. If the bearing play exceeds the specification,

replace and tighten the locknut to the specified
torque and retest.

• Replace the wheel hub component as

necessary.

End Of Sie
