H–2

LOCATION INDEX

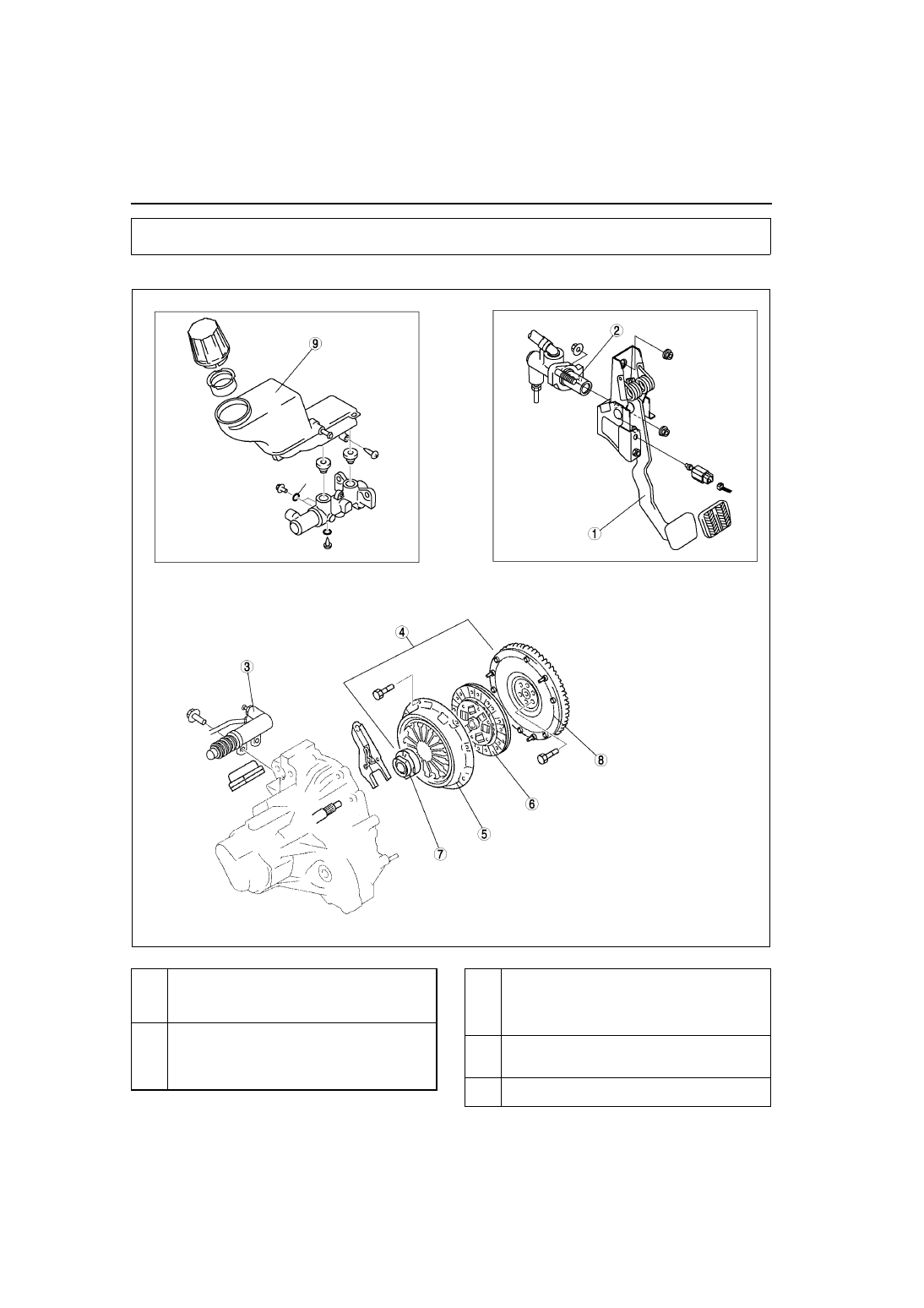

CLUTCH LOCATION INDEX

A6E490001036W01

.

LOCATION INDEX

A6E4900W001

1

Clutch pedal
(See

H–5 CLUTCH PEDAL ADJUSTMENT

)

(See

H–6 CLUTCH PEDAL REMOVAL/

INSTALLATION

)

2

Clutch master cylinder
(See

H–7 CLUTCH MASTER CYLINDER

REMOVAL/INSTALLATION

)

(See

H–8 CLUTCH MASTER CYLINDER

DISASSEMBLY/ASSEMBLY

)

3

Clutch release cylinder
(See

H–9 CLUTCH RELEASE CYLINDER

REMOVAL/INSTALLATION

)

(See

H–10 CLUTCH RELEASE CYLINDER

DISASSEMBLY/ASSEMBLY

)

4

Clutch unit
(See

H–11 CLUTCH UNIT REMOVAL/

INSTALLATION

)

5

Clutch cover
(See

H–13 CLUTCH COVER INSPECTION

)

LOCATION INDEX, GENERAL PROCEDURES

H–3

H

End Of Sie

PRECAUTION (CLUTCH)

A6E491016003W01

Clutch Pipe Removal/Installation

Note

• A common reservoir is used for the clutch and brake system fluid.

1. If clutch pipes have been disconnected any time during the procedure, add clutch fluid (brake fluid), bleed the

air, and inspect for leakage after the procedure has been completed.

2. Remove the clutch pipe using the SST (49 0259 770B). Install the clutch pipe using torque wrench SST

combination. (See

GI–16 TORQUE FORMULAS

.)

End Of Sie

6

Clutch  disc
(See

H–14 CLUTCH DISC INSPECTION

)

7

Clutch release collar
(See

H–14 CLUTCH RELEASE COLLAR

INSPECTION

)

8

Flywheel
(See

H–15 FLYWHEEL INSPECTION

)

9

Clutch fluid
(See

H–4 CLUTCH FLUID INSPECTION

)

(See

H–4 CLUTCH FLUID REPLACEMENT

)

GENERAL PROCEDURES

H–4

CLUTCH FLUID

CLUTCH FLUID INSPECTION

A6E491216010W01

Note

• A common reservoir is used for the clutch and brake system fluid.

• The fluid in the reservoir must be maintained between the MIN/MAX level during replacement.

End Of Sie

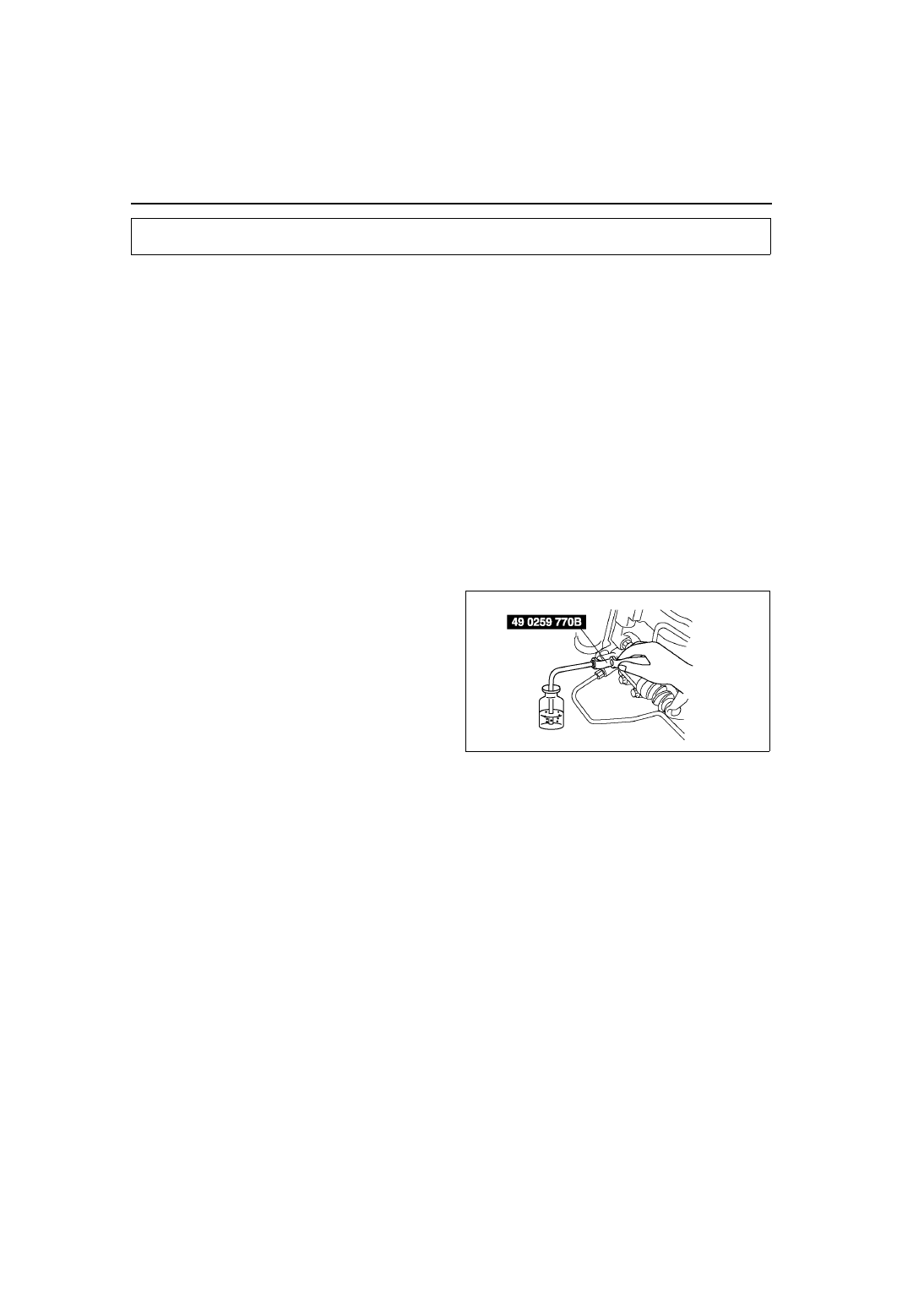

CLUTCH FLUID REPLACEMENT

A6E491216010W02

Caution

• Be careful not to spill clutch fluid on a painted surface. If this should happen, wash it off

immediately.

Note

• Do not mix different brands of clutch fluid.

• Do not reuse the clutch fluid that was drained out.

1. Remove the under cover.
2. Draw the fluid from the reservoir with a suction pump.
3. Remove the bleeder cap from the clutch release cylinder and attach a vinyl hose to the bleeder plug.
4. Place the other end of the vinyl hose into a container.
5. Slowly pump the clutch pedal several times.
6. With the clutch pedal depressed, loosen the bleeder screw using the SST to let fluid escape.
7. Tighten the bleeder screw using the SST to stop

the fluid.

8. Repeat Steps 4 and 5 until only clean fluid is

seen.

9. Tighten the bleeder screw.

Tightening torque

5.9—8.8 N·m {60—90 kgf·cm, 53—78 in·lbf}

10. Add fluid to the MAX mark.
11. Install the under cover.
12. Verify the correct clutch operation.

End Of Sie

CLUTCH FLUID

A6E4912W001

CLUTCH PEDAL

H–5

H

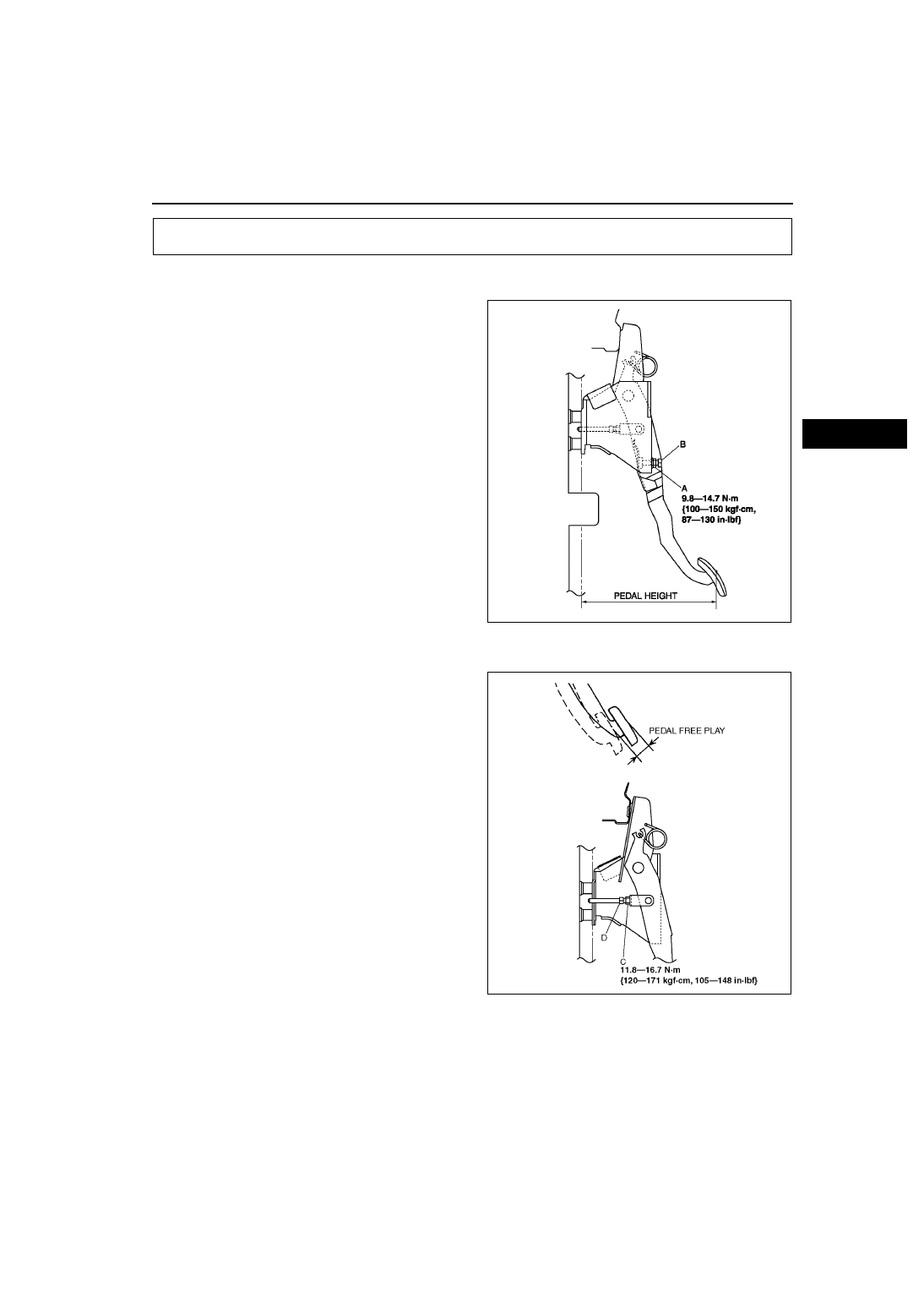

CLUTCH PEDAL ADJUSTMENT

A6E491441030W01

Clutch Pedal Height

1. Measure the distance from the upper surface of

the pedal pad to the carpet.

• If not as specified, adjust the pedal height by

turning adjustment bolt B and locknut A.

Pedal height(with carpet)

L.H.D.: 210—216 mm {8.27—8.50 in}
R.H.D.: 209—215 mm {8.23—8.46 in}

Clutch Pedal Free Play

1. Depress the clutch pedal by hand until clutch

resistance is felt, and measure the pedal free
play.

• If not as specified, adjust the pedal free play

by loosening locknut C and turning push rod
D as necessary.

Pedal free play

1.0—3.0 mm {0.04—0.11 in}

Push rod free play at clutch pedal

0.1—0.5 mm {0.004—0.02 in} (Reference

value)

Clutch Pedal Disengagement Point

1. Apply the parking brake and fix the front and rear of the wheels with the wheel chocks.
2. Start the engine at idle.
3. Without depressing the clutch pedal, move the

 shift lever slowly to the reverse position.

4. Hold the lever when the gear noise is heard.
5. Depress the clutch pedal slowly.

CLUTCH PEDAL

A6E4914W001

A6E4914W002
