S–10

POWER DOOR LOCK SYSTEM

End Of Sie

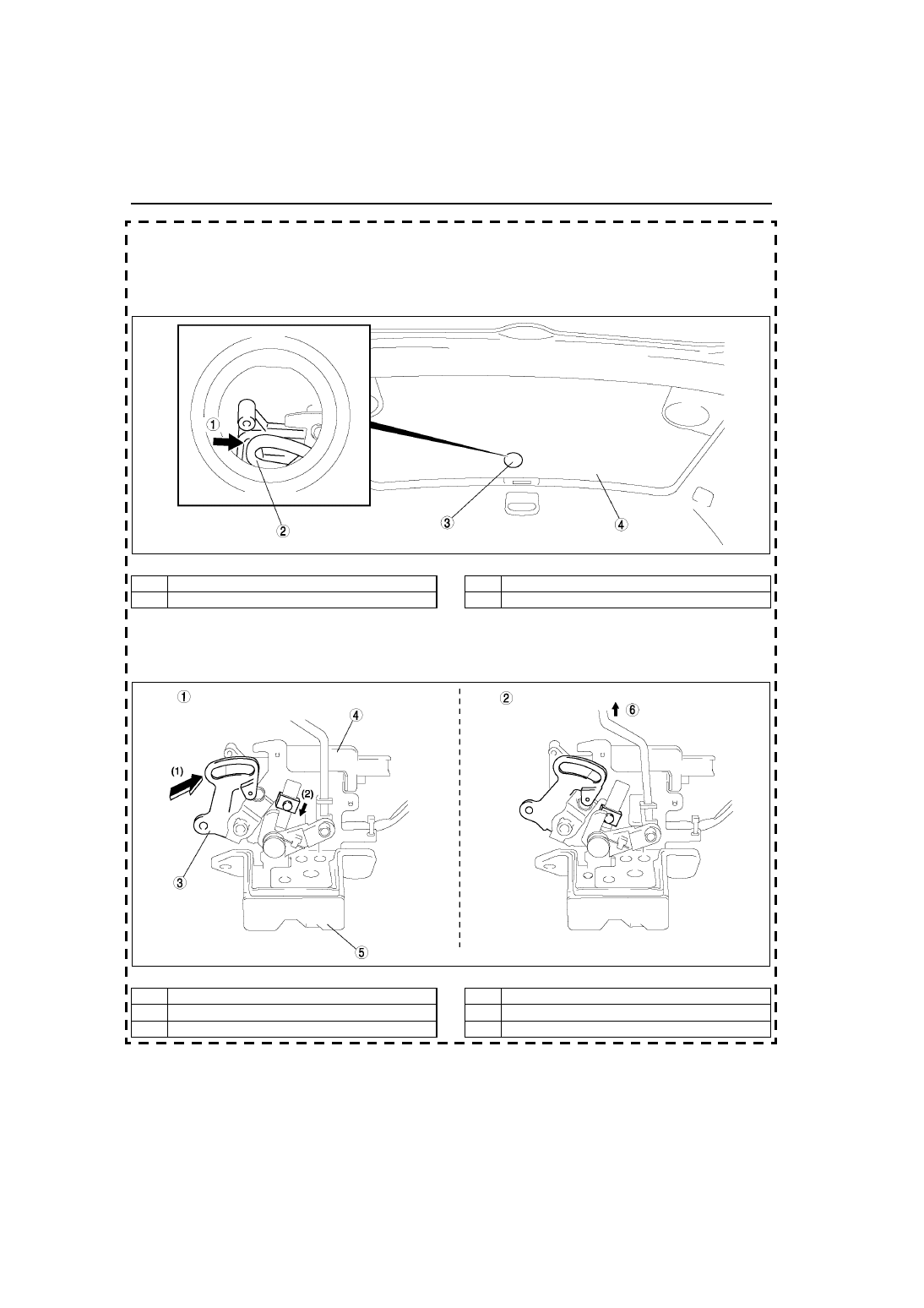

LIFTGATE LOCK ACTUATOR

A6A771862310T01

Outline

Models equipped with the keyless entry system do not have a liftgate key cylinder. If there are malfunctions in
the keyless entry system with the liftgate locked, the liftgate cannot be unlocked. Instead, the liftgate lock
actuator can be unlocked manually from a newly- adopted access hole on the liftgate lower trim.

.

Operation

The liftgate latch is switched from the lock to unlock position when the link plate is moved in the direction of
arrow (2) after the link plate is pressed in the direction of arrow (1) .

.

End Of Sie

A6A7718TS01

1

Press

2

Link plate

3

Access hole

4

Liftgate lower trim

A6A7718TS02

1

Lock

2

Unlock

3

Link plate

4

Liftgate lock actuator

5

Liftgate latch

6

Outer handle

OUTSIDE MIRROR

S–11

S

OUTLINE

A6E773269110T01

The function, structure and operation is the same as that of the current PREMACY (CP) model. (See
PREMACY Training Manual 3336-1*-99C.)

End Of Sie

STRUCTURAL VIEW

A6E773269110T02

End Of Sie

SYSTEM WIRING DIAGRAM

A6E773269110T03

.

End Of Sie

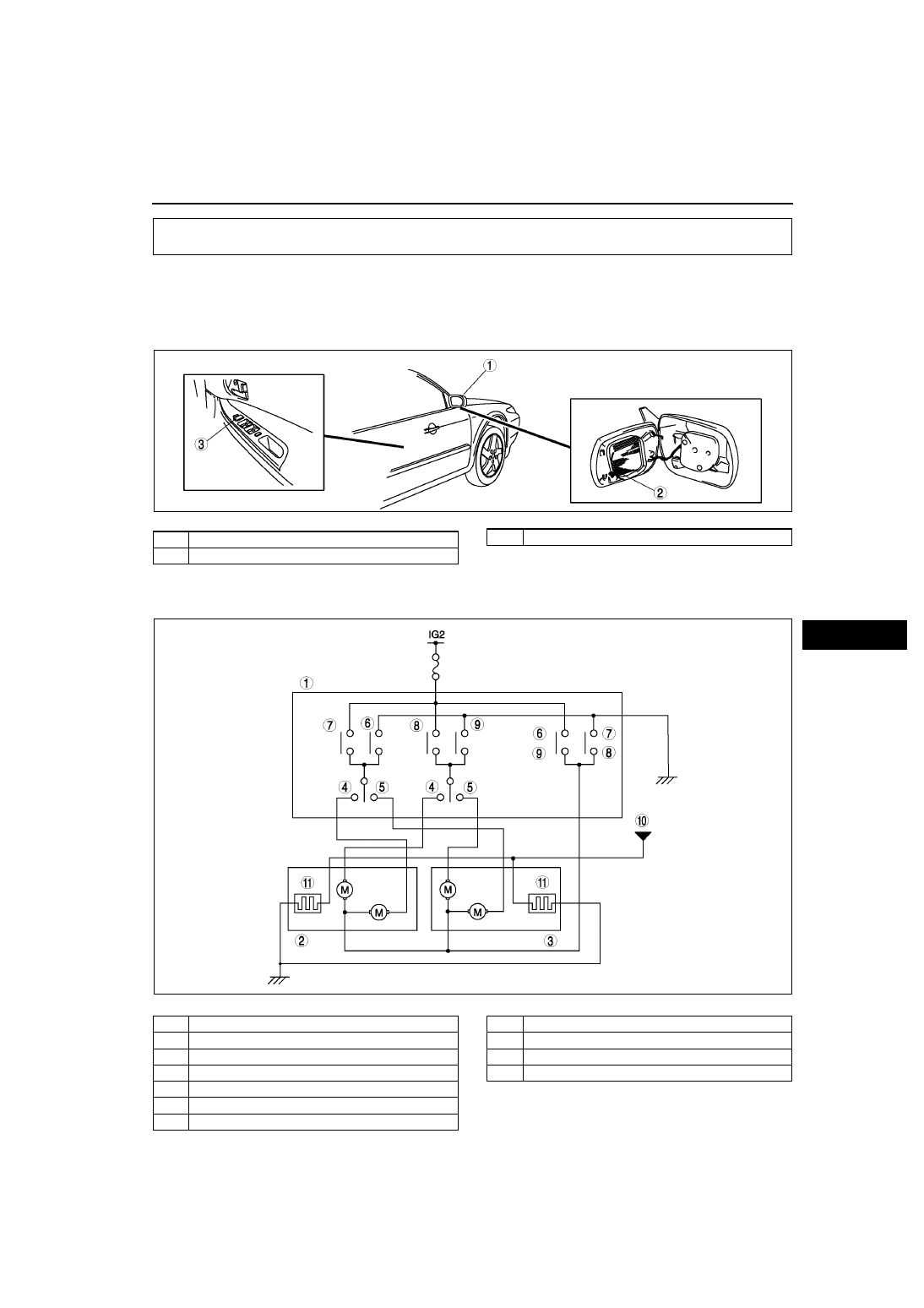

OUTSIDE MIRROR

A6E7732T001

1

Power outside mirror

2

Heated filament

3

Power outside mirror switch

A6E7732T002

1

Power outside mirror switch

2

Power outside mirror (left side)

3

Power outside mirror (right side)

4

Left side

5

Right  side

6

Right

7

Left

8

Up

9

Down

10

Rear defroster relay

11

Heated filament

S–12

REAR WINDOW DEFROSTER

OUTLINE

A6E773663000T01

The function, structure and operation is the same as that of the current PREMACY (CP) model.

End Of Sie

STRUCTURAL VIEW

A6E773663000T02

.

End Of Sie

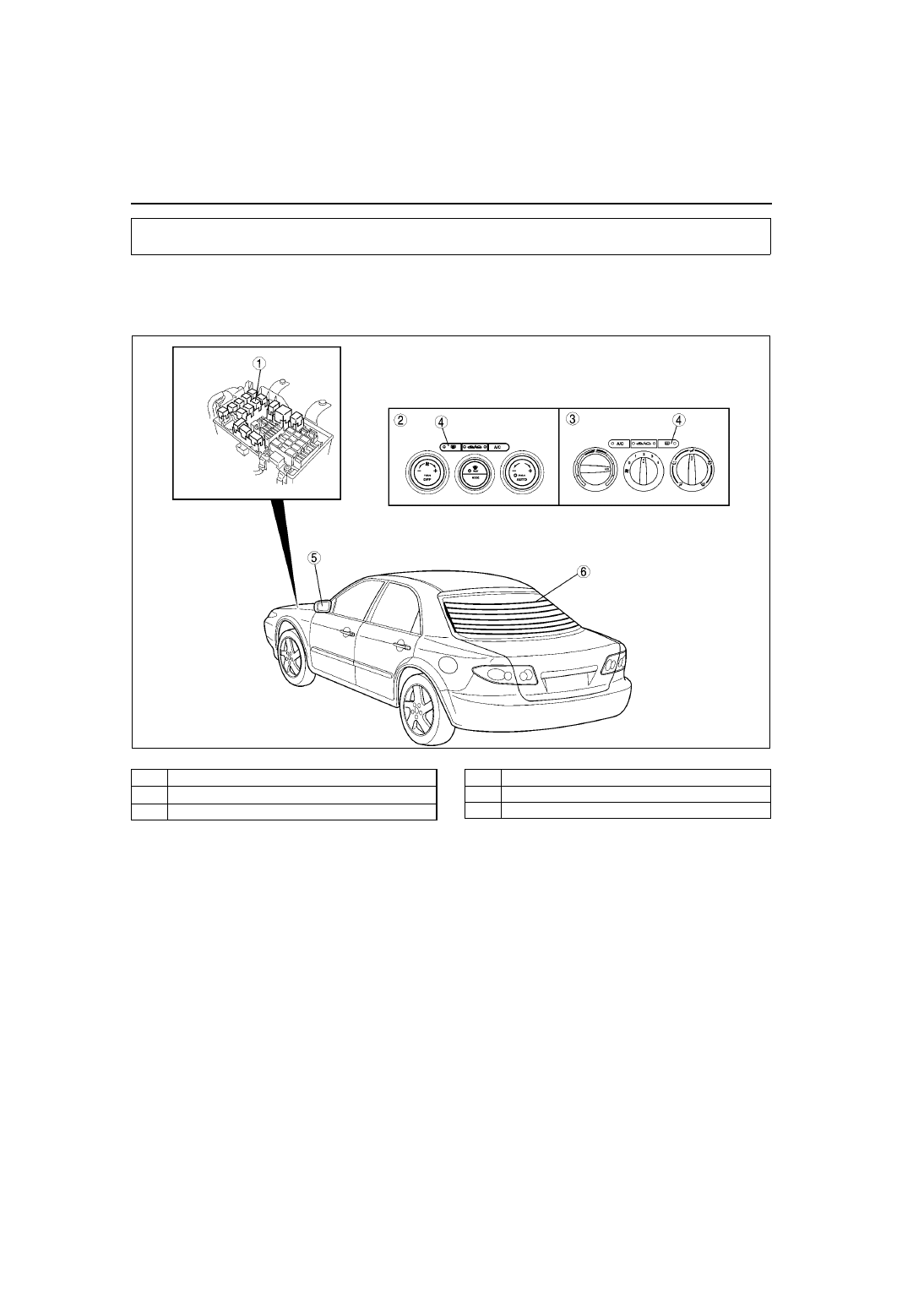

REAR WINDOW DEFROSTER

A6E7736T002

1

Rear window defroster relay

2

Climate control unit (full

-

auto air conditioner type)

3

Climate control unit (manual air conditioner type)

4

Rear window defroster switch

5

Heated outside mirror

6

Rear window defroster filament

REAR WINDOW DEFROSTER

S–13

S

SYSTEM WIRING DIAGRAM

A6E773663000T03

.

End Of Sie

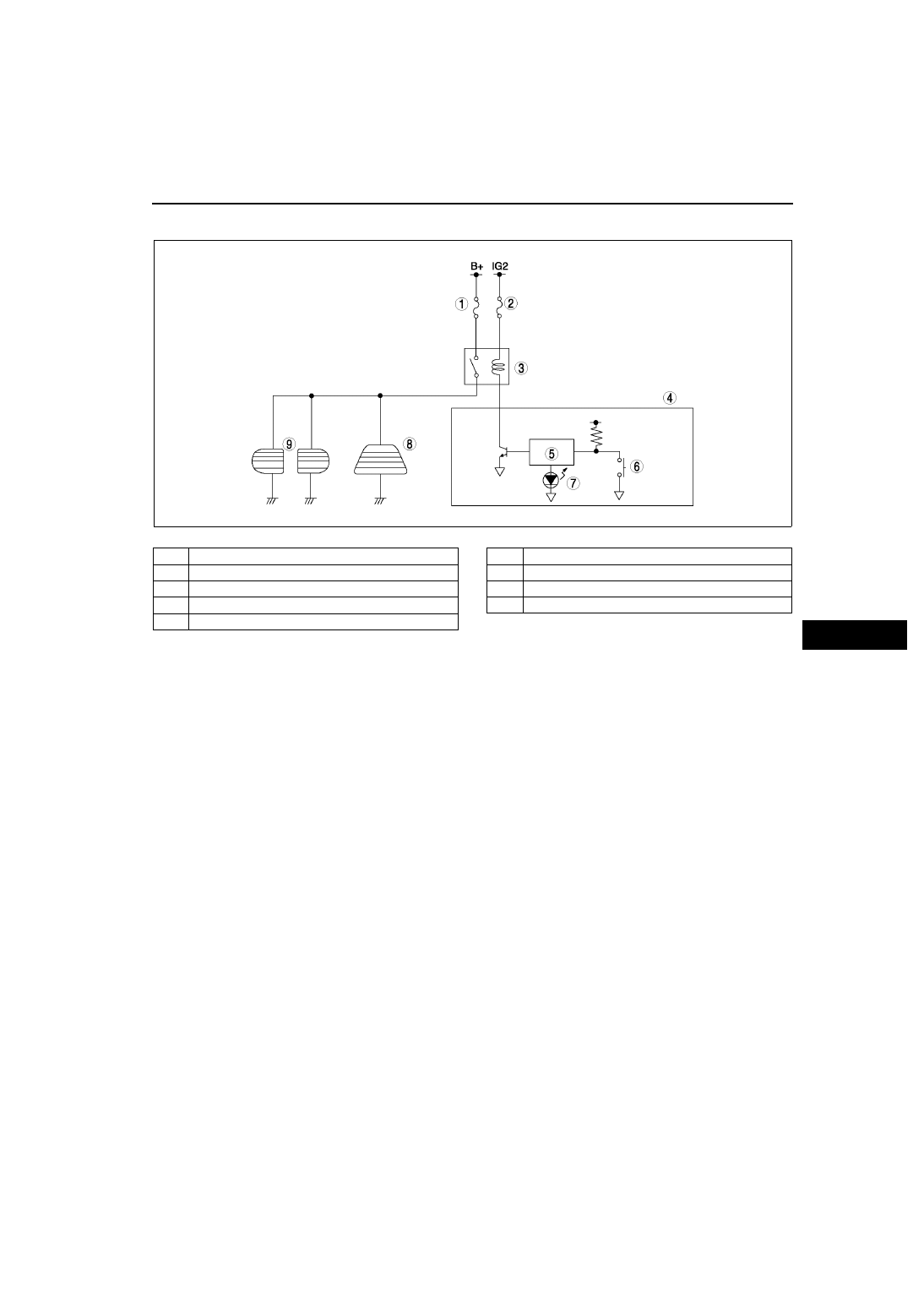

A6E7736T001

1

DEFOG 40 A fuse

2

METER IG 15 A fuse

3

Rear defroster relay

4

Climate control unit

5

Microcomputer

6

Rear defroster switch

7

Rear defroster indicator light

8

Rear window defroster

9

Heated outside mirror
