S–2

OUTLINE

ABBREVIATION

A6E770201086T01

End Of Sie

OUTLINE OF CONSTRUCTION

A6E770201086T02

•

The construction and operation of the body system is essentially carried over from that of the current
PREMACY (CP) model, except for the following features. (See PREMACY Training Manual 3336-1*-99C.)

End Of Sie

FEATURES

A6E770201086T03

Improved Safety

•

A steel bumper reinforcement has been adopted.

Improved Convenience

•

An easy fold-down function has been adopted for rear seat.

Improved Marketability

•

A lumber support has been adopted for driver’s side front seat.

Improved Serviceability

•

The keyless unit and the door lock timer unit have been integrated.

•

Power window system initial setting procedure has been simplified.

Consideration for Environment

•

Recycled materials are used in the door units and shroud panel.

End Of Sie

OUTLINE

B+

Battery positive voltage

IG

Ignition

L.H.D.

Left hand drive

M

Motor

P/W CM

Power window control module

SEC.

Section

4SD

4 door sedan

5HB

5 door hatchback

DOOR

S–3

S

OUTLINE

A6E771458010T01

•

A ripple-shaped side impact bar has been adopted to improve rigidity in case of a collision.

•

The inner construction of the door, including the power window regulator, inner handle, door speaker, harness
and others, have been integrated into a single door unit.

•

Due to the integrated door unit, weight reduction has been achieved for the whole door.

•

Waterproofing of the inner door unit parts is achieved due to sectional design.

•

Fiberglass reinforced plastics have been adopted for the door unit to improve the rigidity. Additionally, in order
to address environmental concerns, recycled materials are used in the unit.

End Of Sie

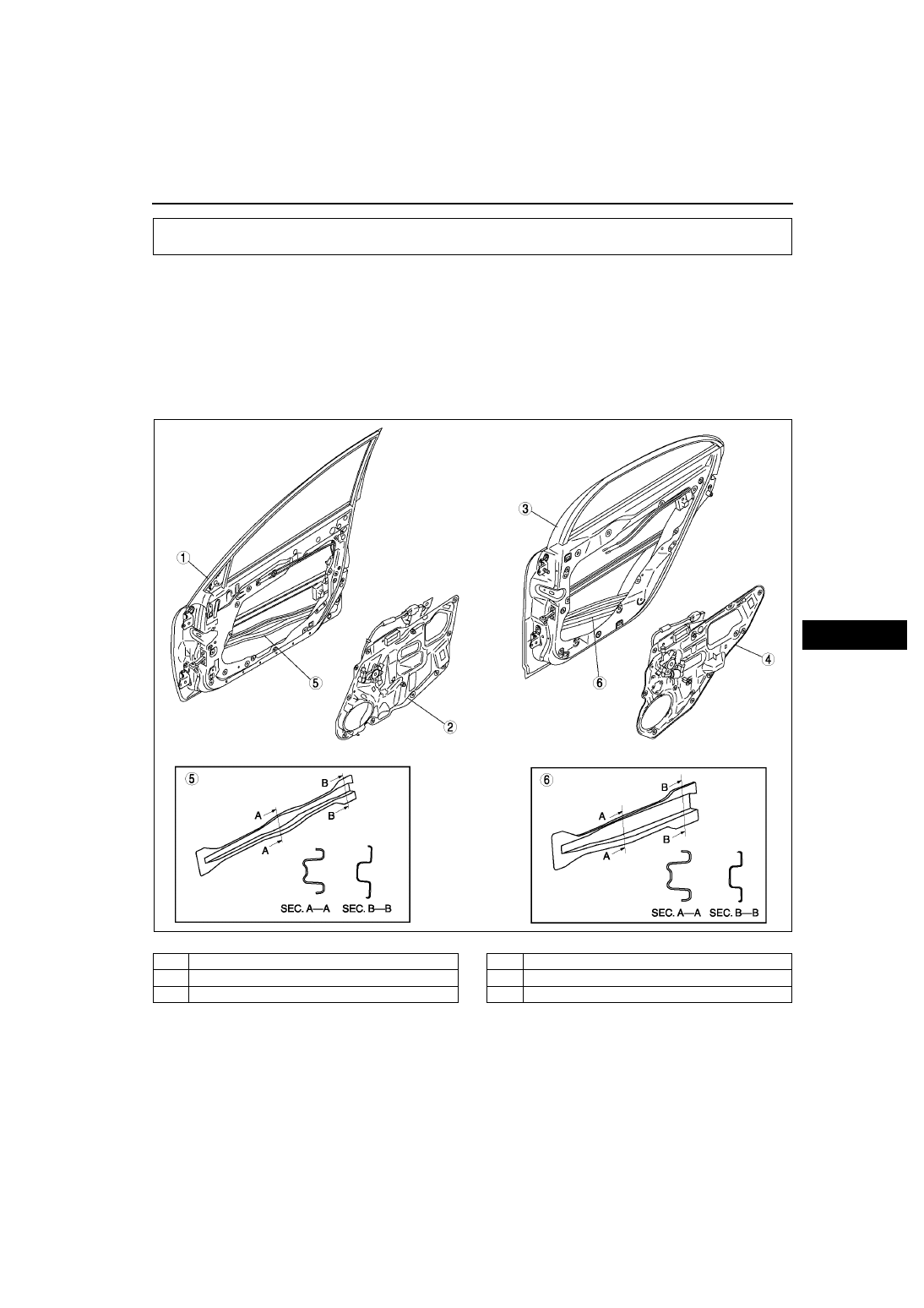

STRUCTURAL VIEW

A6E771458010T02

.

End Of Sie

DOOR

A6E7714T001

1

Front door

2

Front door unit

3

Rear door

4

Rear door unit

5

Front side impact bar

6

Rear side impact bar

S–4

POWER WINDOW SYSTEM

OUTLINE

A6E771658000T01

•

The function, structure and operation of power window system is essentially carried over from that of the
current PREMACY (CP) model, except for the following.
— The driver-side power window system, which previously operated on the basis of the limit switch and the

pulse signal, has been changed to a system that operates on the basis of two kinds of pulse signals.
Although the new system maintains the current functions, the system and the initial setting have been
simplified to increase serviceability.

×

: Available

End Of Sie

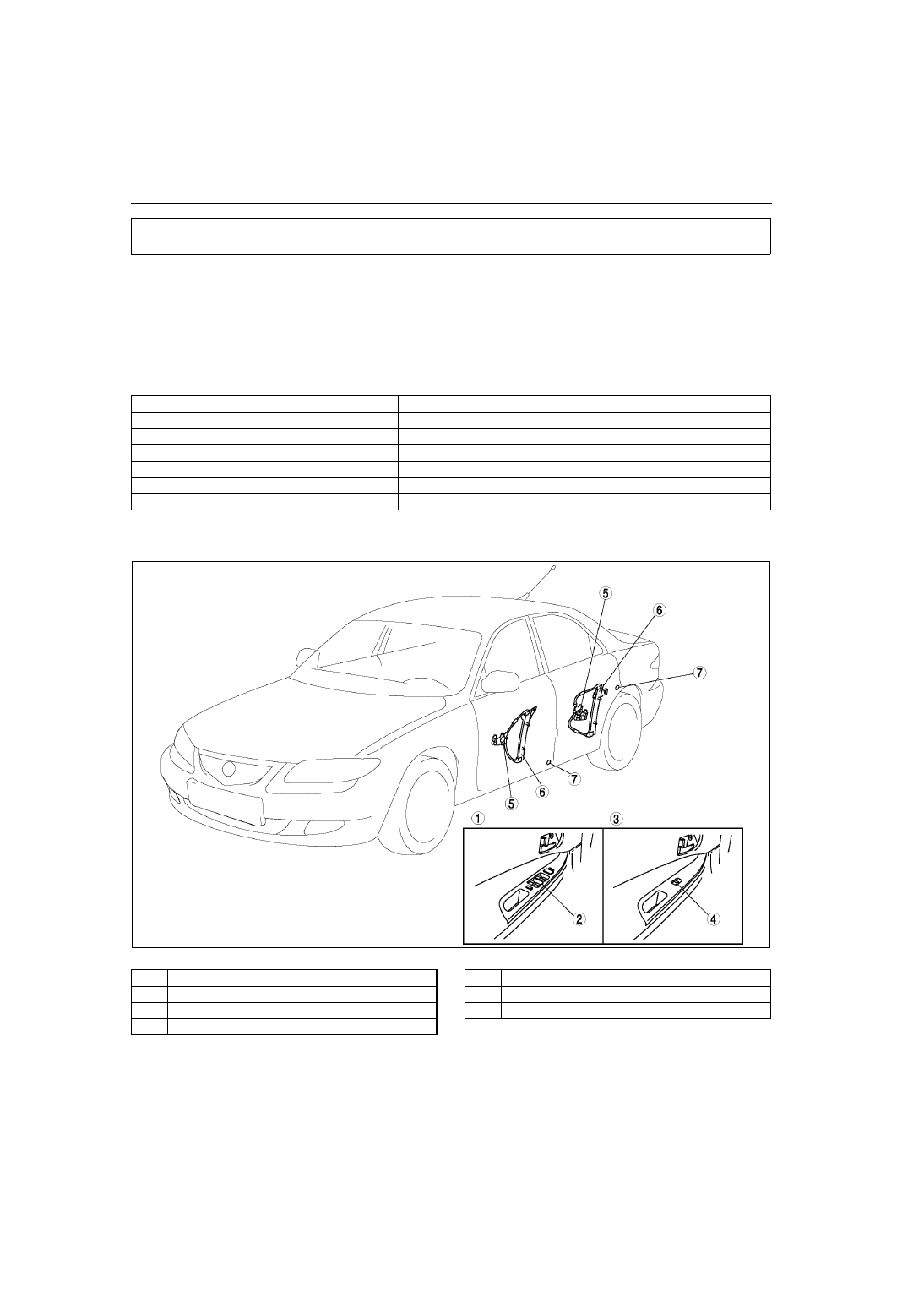

STRUCTURAL VIEW

A6E771658000T02

.

End Of Sie

POWER WINDOW SYSTEM

Function

Mazda6 (GG)

PREMACY (CP)

Manual up/down

×

×

Auto up/down (driver’s only)

×

×

Automatic window return function (driver’s only)

×

×

Two-step down function (driver’s only)

×

×

IG-OFF timer function

×

×

Fail-safe function

×

×

A6E7716T003

1

Driver’s side

2

Power window main switch

3

Except driver’s side

4

Power window subswitch

5

Power window motor

6

Power window regulator

7

Door switch

POWER WINDOW SYSTEM

S–5

S

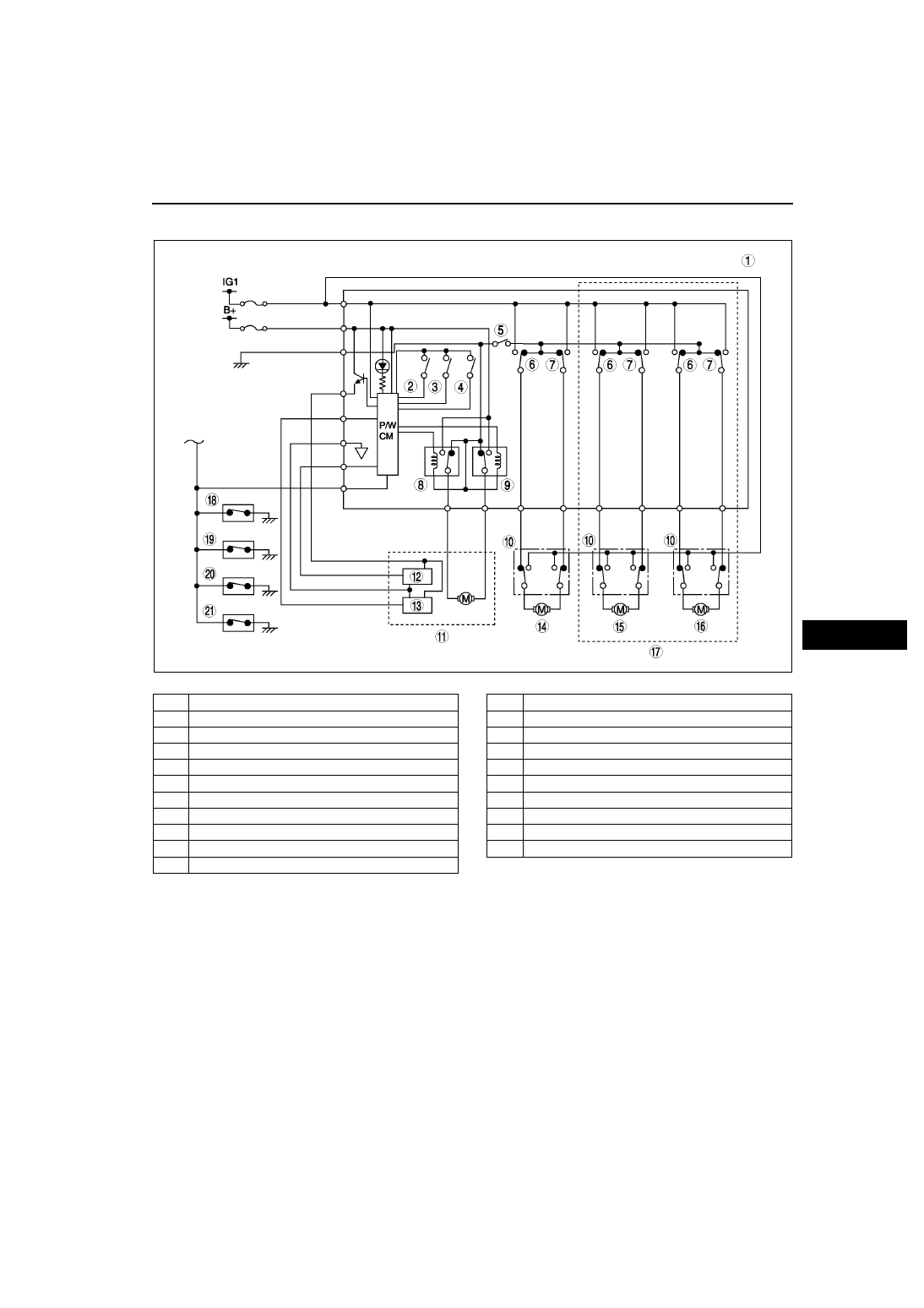

SYSTEM WIRING DIAGRAM

A6E771658000T03

.

End Of Sie

A6E7716T001

1

Power window main switch

2

Manual close

3

Manual open

4

Auto

5

Power-cut switch

6

Close

7

Open

8

Close relay

9

Open relay

10

Power window subswitch

11

Front power window motor (Driver’s side)

12

Hall effect switch No. 1

13

Hall effect switch No. 2

14

Front power window motor (Passenger’s side)

15

Rear power window motor (Right side)

16

Rear power window motor (Left side)

17

With rear power window system

18

Door switch (Driver’s side)

19

Door switch (Passenger’s side)

20

Door switch (Rear right side)

21

Door switch (Rear left side)
