DYNAMIC STABILITY CONTROL

P–11

P

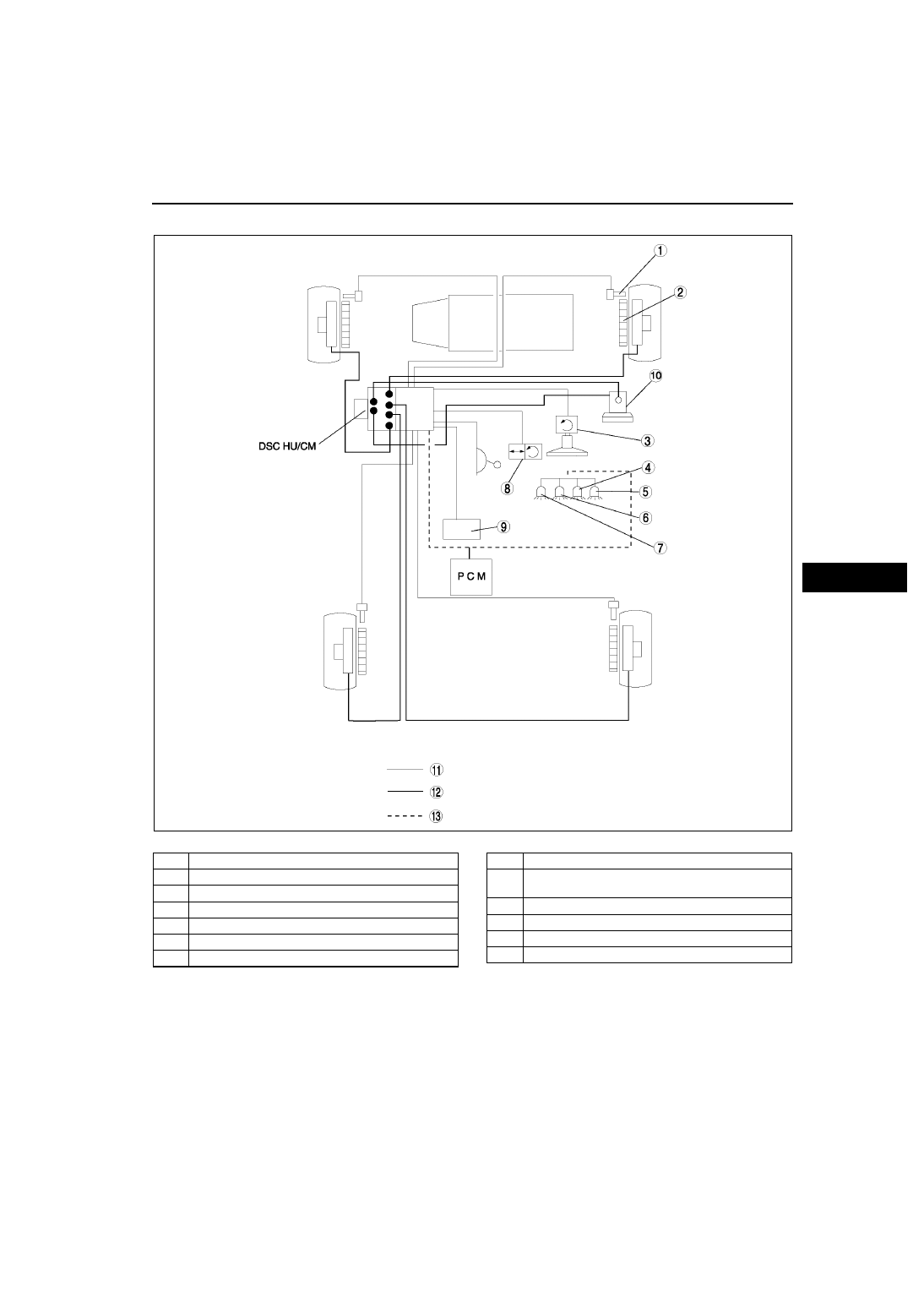

System Diagram

.

A6E6920T001

1

Wheel speed sensor

2

Sensor rotor

3

Steering angle sensor

4

DSC indicator light

5

DSC OFF light

6

BRAKE system warning light

7

ABS warning light

8

Combine sensor

9

Audio unit, Wiper and washer switch, Car-navigation
unit, Cruise actuator, and Auto leveling control unit

10

Master cylinder

11

Electric signal

12

Brake fluid

13

CAN line

P–12

DYNAMIC STABILITY CONTROL

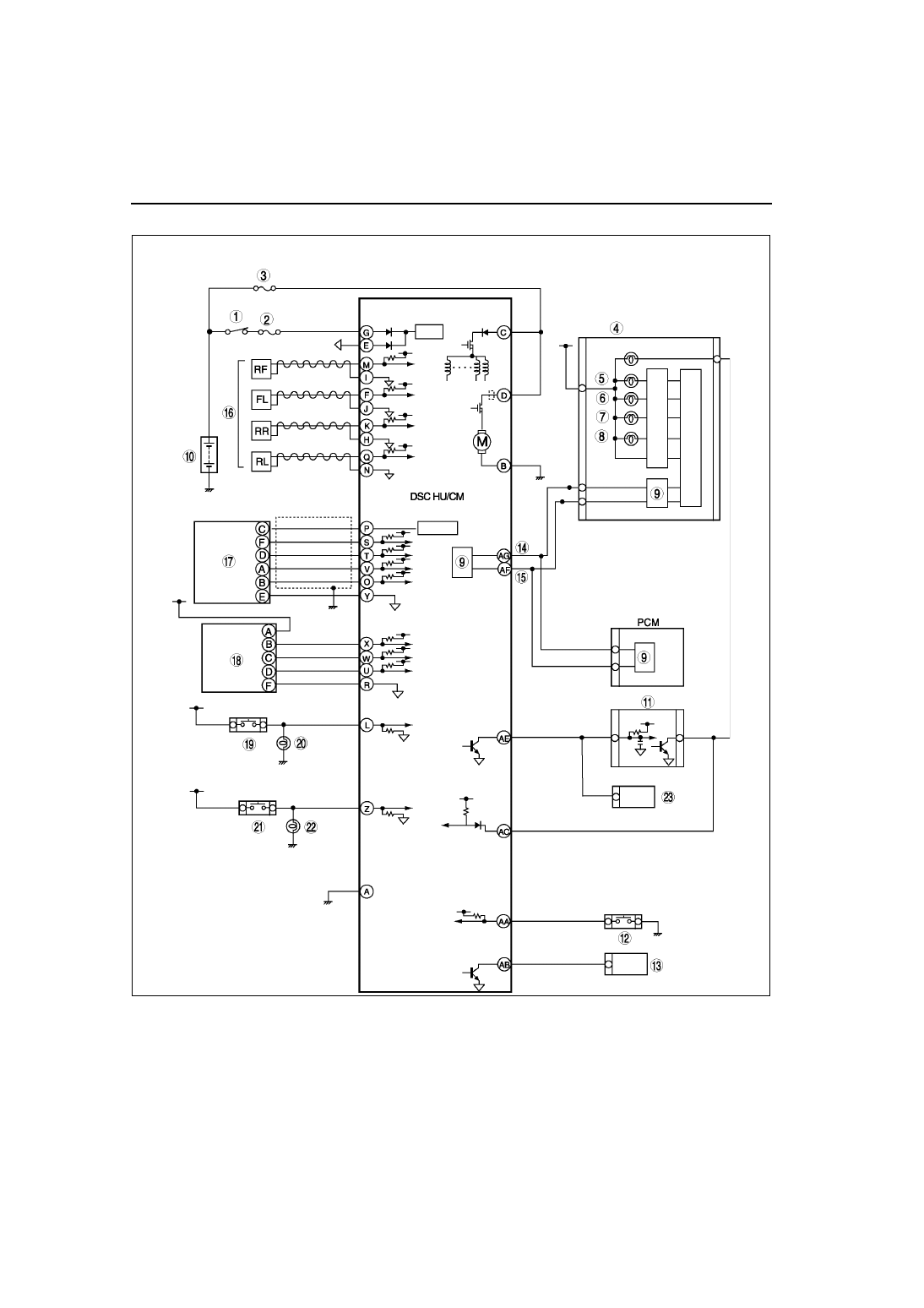

Wiring Diagram

.

A6E6920T005

DYNAMIC STABILITY CONTROL

P–13

P

End Of Sie

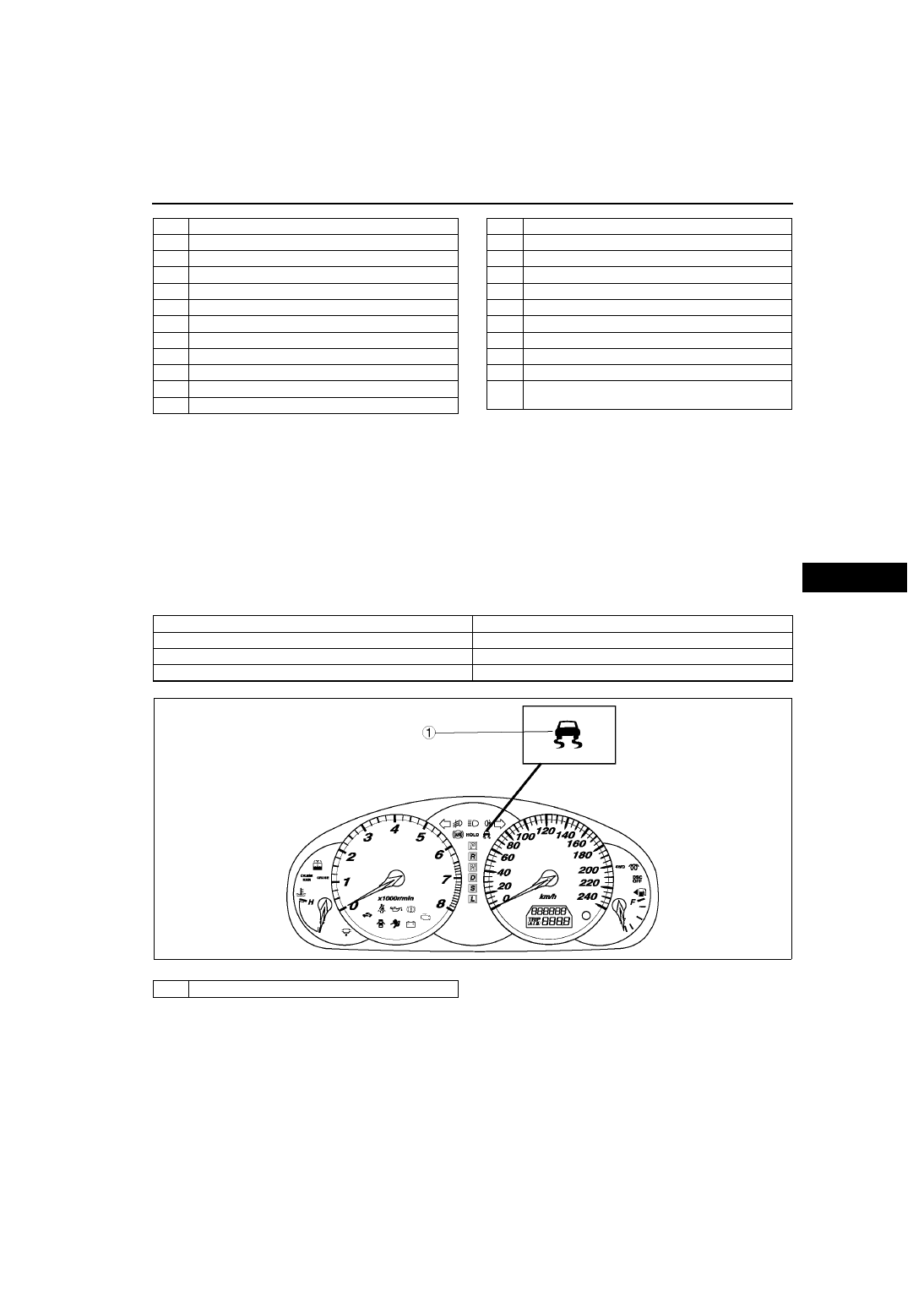

DSC INDICATOR LIGHT

A6E692067650T02

Function

•

The DSC indicator light is integrated in the instrument cluster and notifies the driver of DSC activation (vehicle
is in side slip situation) or TCS activation (drive-wheel slippage situation) when DSC has not been canceled by
pressing the DSC OFF switch.

Structure/Operation

•

When the DSC and CAN system is normal, the DSC indicator light illuminates for 2.4 seconds when the
ignition switch is at ON, and goes out, checking the light function. When the system is malfunctioning, the DSC
indicator light remains illuminated.

•

When DSC and TCS are operating, the DSC indicator light operates as follows:

DSC indicator light operation table

.

End Of Sie

1

IG switch

2

SUS 15A fuse

3

ABS 60 A fuse

4

Meter

5

ABS warning light

6

Brake system warning light

7

DSC OFF light

8

DSC indicator light

9

CAN  driver

10

Battery

11

Cruise actuator

12

DSC OFF switch

13

DLC-2

14

CAN-H

15

CAN-L

16

Wheel-speed sensor

17

Combine sensor

18

Steering angle sensor

19

Brake switch

20

Brake light

21

Back-up light switch (MTX only)

22

Back-up light

23

Audio unit, Wiper and washer switch,
Car-navegation unit, Auto leveling control unit

Item

DSC indicator light

TCS, DSC non-operation

Not illuminated

TCS operation

Flashes (0.5 s intervals)

DSC operation

Flashes (0.5 s intervals)

A6E6921T003

1

DSC indicator light

P–14

DYNAMIC STABILITY CONTROL

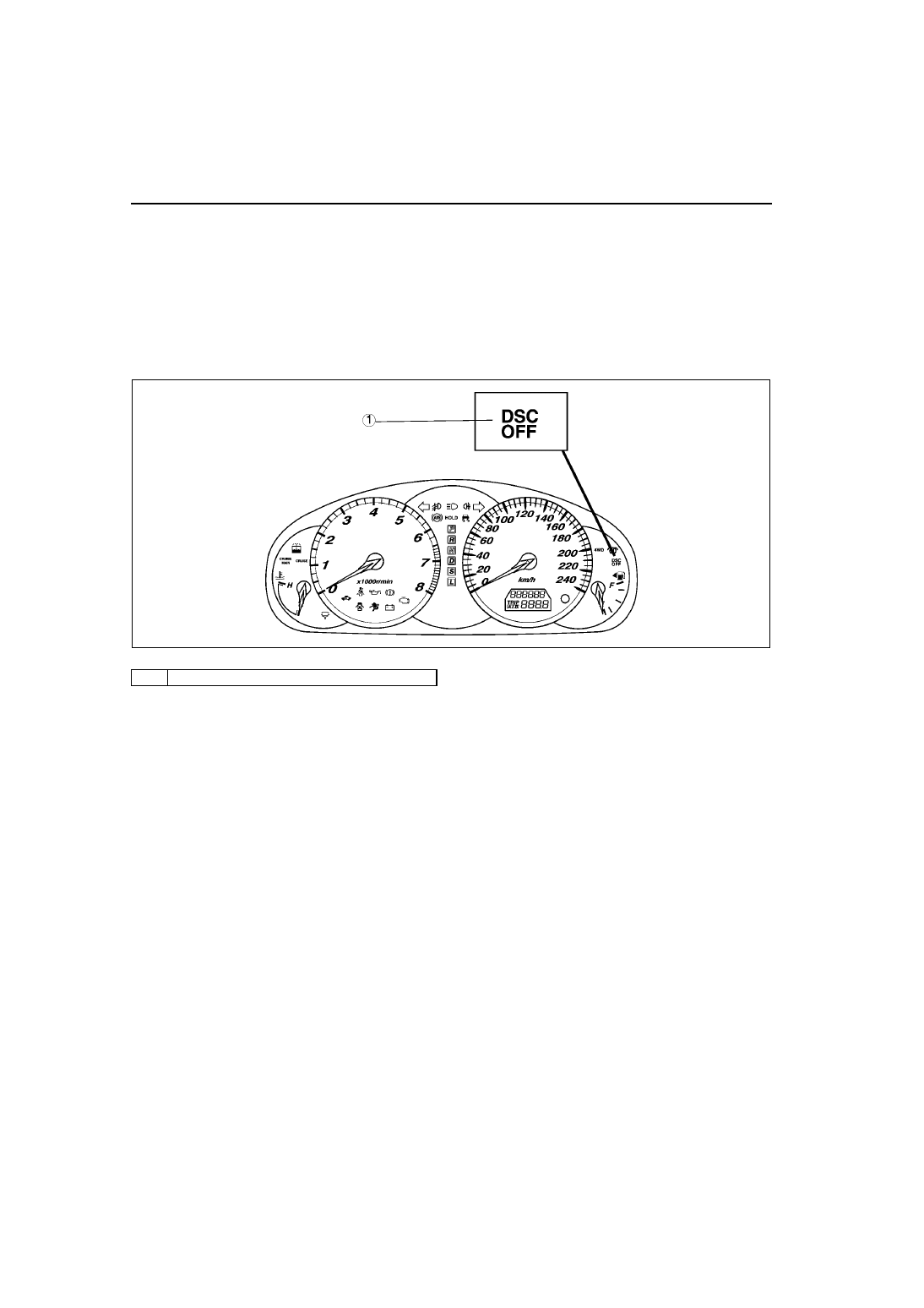

DSC OFF SWITCH, DSC OFF LIGHT

A6E692067650T15

Function

•

The DSC OFF switch is installed in the instrument panel and cancels the DSC activation by pressing the DSC
OFF switch.

•

The DSC OFF light is integrated in the instrument cluster and notifies the driver of DSC activation is cancelled
by pressing the DSC OFF switch.

Structure/Operation

•

When the DSC and CAN system is normal, the DSC indicator light illuminates for 2.4 seconds when the
ignition switch is at ON, and goes out, checking the light function. When the system is malfunctioning, the DSC
OFF indicator light remains illuminated.

.

End Of Sie

A6E6921T040

1

DSC  OFF  light
