Mazda 6. Manual - part 25





F–36

CONTROL SYSTEM

Operation Conditions

The PCM turns the VTCS solenoid valve ON to close the VTCS shutter valve in the intake manifold when all of
the following conditions are met:
— Engine speed: below 3,750 rpm
— Throttle opening angle is below as followings:

Below 1,500 rpm: CTP
Between 2,000 rpm and 3,000 rpm26—29%
Above 2,500 rpm
: WOT

— ECT below 63

°

C [145

°

F]

The PCM turns the VTCS solenoid valve OFF for maintaining the startability and stability during the engine
cranking and for 0.2 second after engine started.

End Of Sie

VARIABLE VALVE TIMING CONTROL

A6E394018881T11

Outline

The variable valve timing control of the Mazda6 (GG) is essentially carried over from the current MX-5 (NB)
except execution condition for the cleaning mode and maximum cam retard mode to match the vehicle
characteristics.

Execution condition
Cleaning mode

When all of the following conditions are met.
— Decrease the engine speed with CTP
— Engine speed: between 2,250 rpm and 3,500 rpm
— ECT: above 80

°

C [176

°

F]

Maximum cam retard mode

When any of the following conditions are met.
— Cranking
— Engine speed: below 970 rpm
— ECT: below 18

°

C [64

°

F]

— Target valve timing: 0
— Torque reduction is activating by TCS

End Of Sie

FUEL INJECTION CONTROL

A6E394018881T12

Outline

There are two types of injection timing control: “synchronized injection” and “non-synchronized injection.”

BARO and rear oxygen sensor feedback correction has been added.

Injection Timing
Synchronized injection

PCM determines fuel injection timing and amount synchronized with the crank angle, and based on the
following signals during the intake/exhaust stroke of each cylinder.
— CKP, MAF, ECT, IAT

Non-synchronized injection

PCM determines fuel injection timing and amount based on the following signals (not synchronized with the
crankangle).
— TP, MAF, ECT, IAT

Correction
BARO correction

Purpose: to maintain the engine stability

Conditions: at all time

Action: lower BARO, larger correction

Rear HO2S feedback correction

Purpose: to control air/fuel ratio close to increase the performance of the catalytic converter

Conditions: at feedback zone

Action: Rear HO2S output voltage

End Of Sie

A/C CUT-OFF CONTROL

A6E394018881T13

Outline

The A/C cut-off control of the Mazda6 (GG) is essentially carried over from the current MPV (LW) FS engine
model except for operation condition.

CONTROL SYSTEM

F–37

F

Operation Conditions

While A/C is operating, the PCM cuts off the power supply to the A/C relay as shown below.

End Of Sie

ELECTRIC FAN CONTROL

A6E394018881T14

Operation
L8, LF (Intensely hot area) and L3 engine models

ON: Energized

OFF: De-energized

A/C cut-off condition

A/C cut-off time

Purpose

During cranking

For approx. 4.0 s

Startability improvement

Throttle valve is open more than 50%

For approx. 5.0 s

Acceleration performance
improvement

ECT is above 113

°

C {235

°

F}

Alternates between on and off for 10 seconds
until ECT falls to 107

°

C {225

°

F}

Engine reliability improvement

ECT is above 118

°

C {244

°

F}

Until engine ECT falls below 113

°

C {235

°

F}

Condition

PCM terminal 4L

PCM terminal 4B

PCM terminal 4F

Operation condition

Cooling fan
motor No. 1

Cooling fan
motor No. 2

Stopped

Stopped

OFF

OFF

OFF

A/C: OFF
ECT: below 100

°

C [176

°

F]

Low speed

Low speed

ON

ON

OFF

A/C: OFF
ECT: 100—108

°

C [212—226

°

F]

High speed

High speed

ON

ON

ON

A/C: OFF
ECT: above 108

°

C [226

°

F]

Low speed

Low speed

ON

ON

OFF

A/C: ON (middle switch OFF)
ECT: below 108

°

C [226

°

F]

High speed

Middle speed

ON

OFF

ON

A/C: ON (middle switch ON)
ECT: below 108

°

C [226

°

F]

High speed

High speed

ON

ON

ON

A/C: ON
ECT: above 108

°

C [226

°

F]

F–38

CONTROL SYSTEM

.

L8, LF (General area) engine models

.

The PCM energized the cooling fan relay No. 1
and No. 2 (with A/C system) except all of
following condition are met.
— ECT: below 100

°

C [176

°

F]

— A/C: OFF (with A/C system)

End Of Sie

CONTROLLER AREA NETWORK (CAN)

A6E394018881T15

PCM transmit/received the information in the CAN. For detail information of the CAN, see the “MULTIPLEX
COMMUNICATION SYSTEM.” (See

T–5 OUTLINE

.)

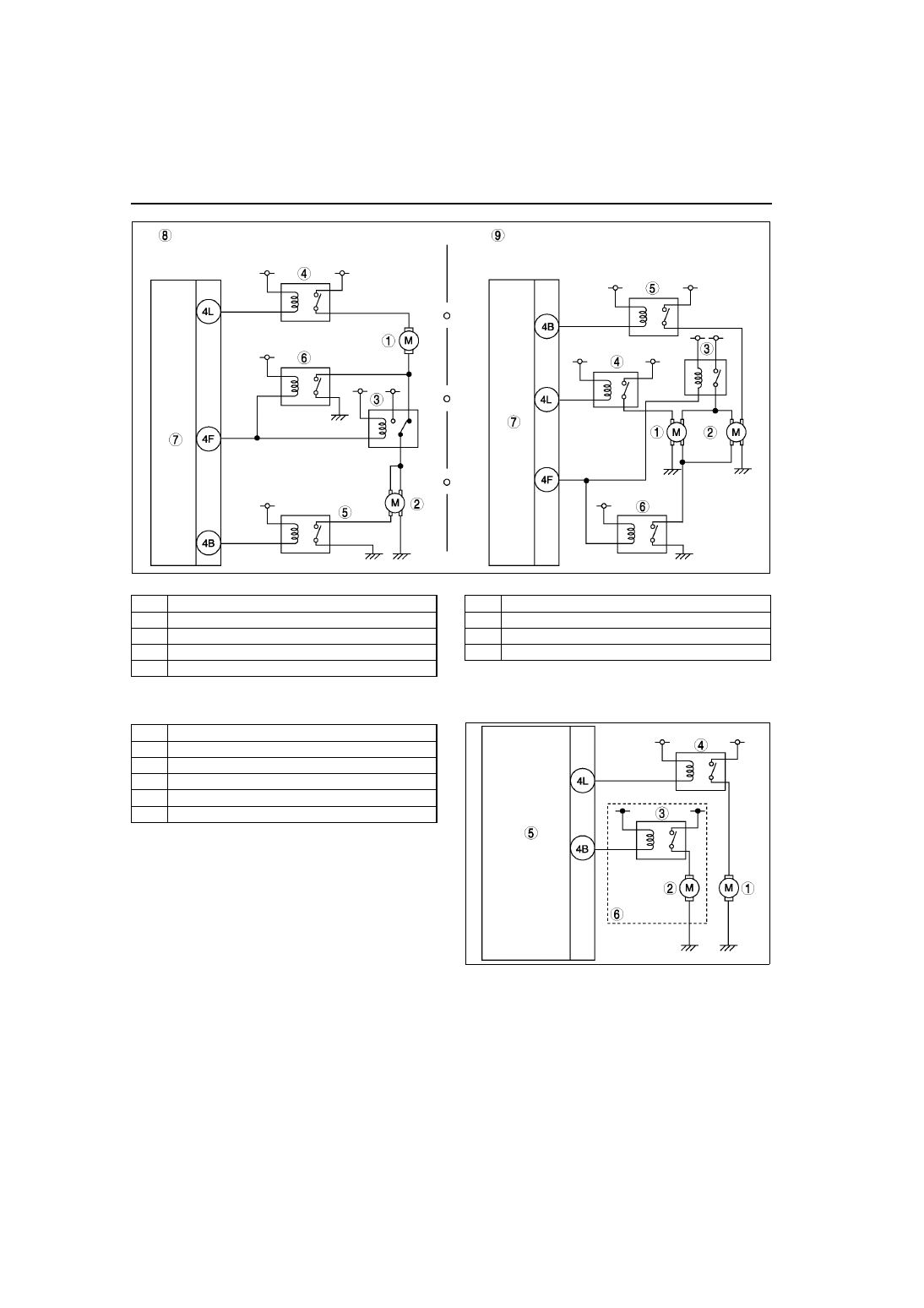

A6E3940T220

1

Cooling fan motor No. 1

2

Cooling fan motor No. 2

3

Cooling fan relay No. 1

4

Cooling fan relay No. 2

5

Cooling fan relay No. 3

6

Cooling fan relay No. 4

7

PCM

8

L3 engine models

9

LF, L8 engine models (Intensely hot area)

1

Cooling fan motor No. 1

2

Cooling fan motor No. 2

3

Cooling fan relay No. 1

4

Cooling fan relay No. 2

5

PCM

6

With A/C system

A6E3940T221

CONTROL SYSTEM

F–39

F

Transmit Information

Torque reduction inhibit

Engine speed

Vehicle Speed

TP

ECT

Travelled distance

Fuel injection amount

MIL condition

Generator warning light conditions

Engine displacement

Number of cylinders

Air induction type

Fuel type and delivery

Country

Transmission/axle type

Tire circumference (front/rear)

Desired gear/change lever position

HOLD switch conditions

Received Information

Wheel Speed from ABS HU/CM, ABS/TCS HU/CM, or DSC HU/CM
— Front Left
— Front right
— Rear left
— rear right

Travelled distance from ABS HU/CM, ABS/TCS HU/CM, or DSC HU/CM

Brake system status from ABS HU/CM, ABS/TCS HU/CM, or DSC HU/CM

Torque reduction request from ABS/TCS HU/CM, or DSC HU/CM

Brake system configuration from ABS HU/CM, ABS/TCS HU/CM, or DSC HU/CM

End Of Sie
