F–28

CONTROL SYSTEM

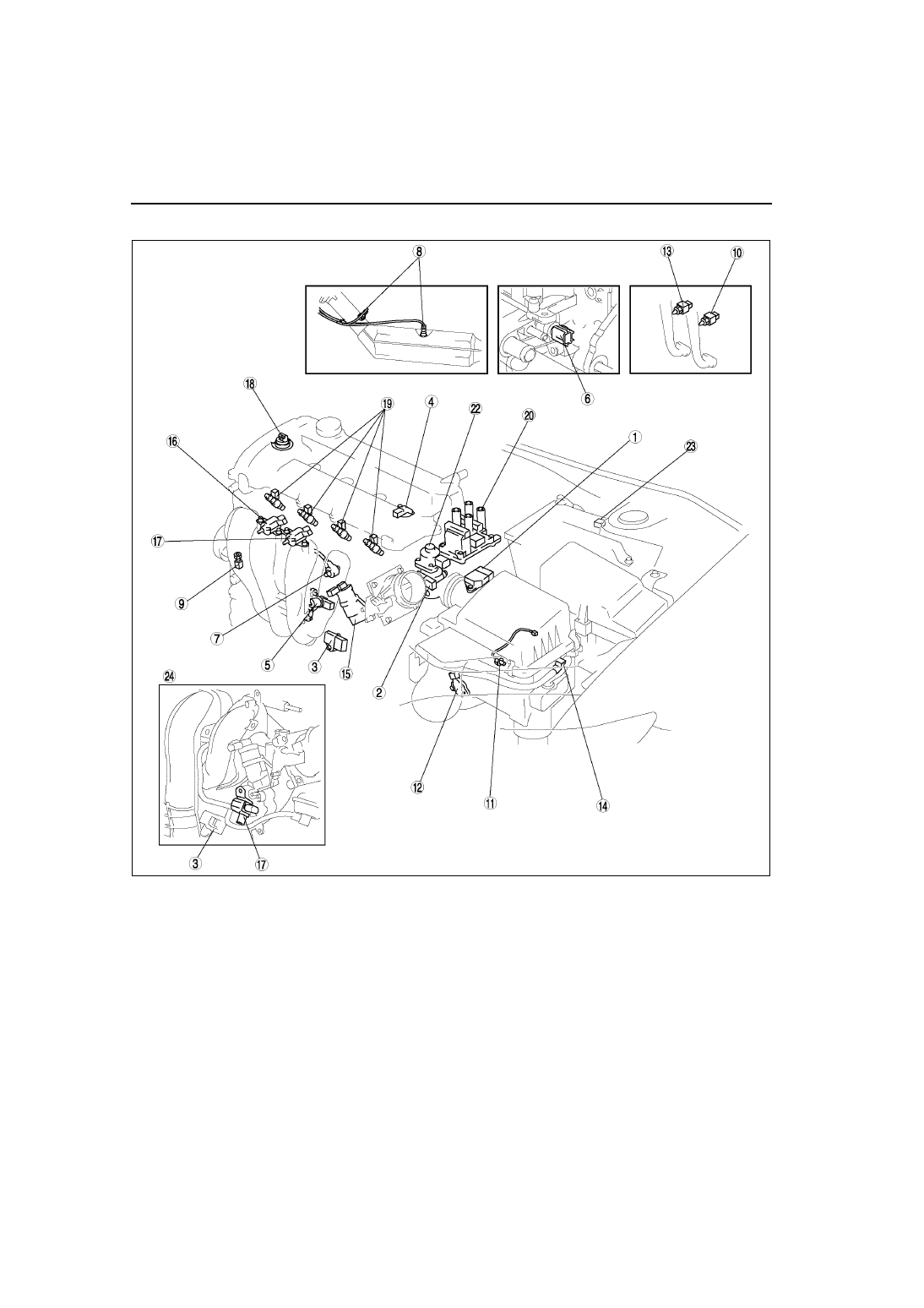

STRUCTURAL VIEW

A6E394018881T02

A6E3940T000

CONTROL SYSTEM

F–29

F

.

End Of Sie

1

MAF/IAT sensor

2

TP sensor

3

MAP sensor

4

CMP  sensor

5

CKP sensor

6

ECT  sensor

7

Knock sensor

8

HO2S (front, rear)

9

P/S pressure switch

10

Clutch switch

11

Neutral switch

12

TR switch

13

Brake switch

14

VAD control solenoid valve

15

IAC valve

16

VIC solenoid valve

17

VTCS solenoid valve

18

OCV

19

Fuel injector

20

Ignition coil

21

Purge valve

22

EGR valve

23

BARO sensor

24

LF and L8 engine models

F–30

CONTROL SYSTEM

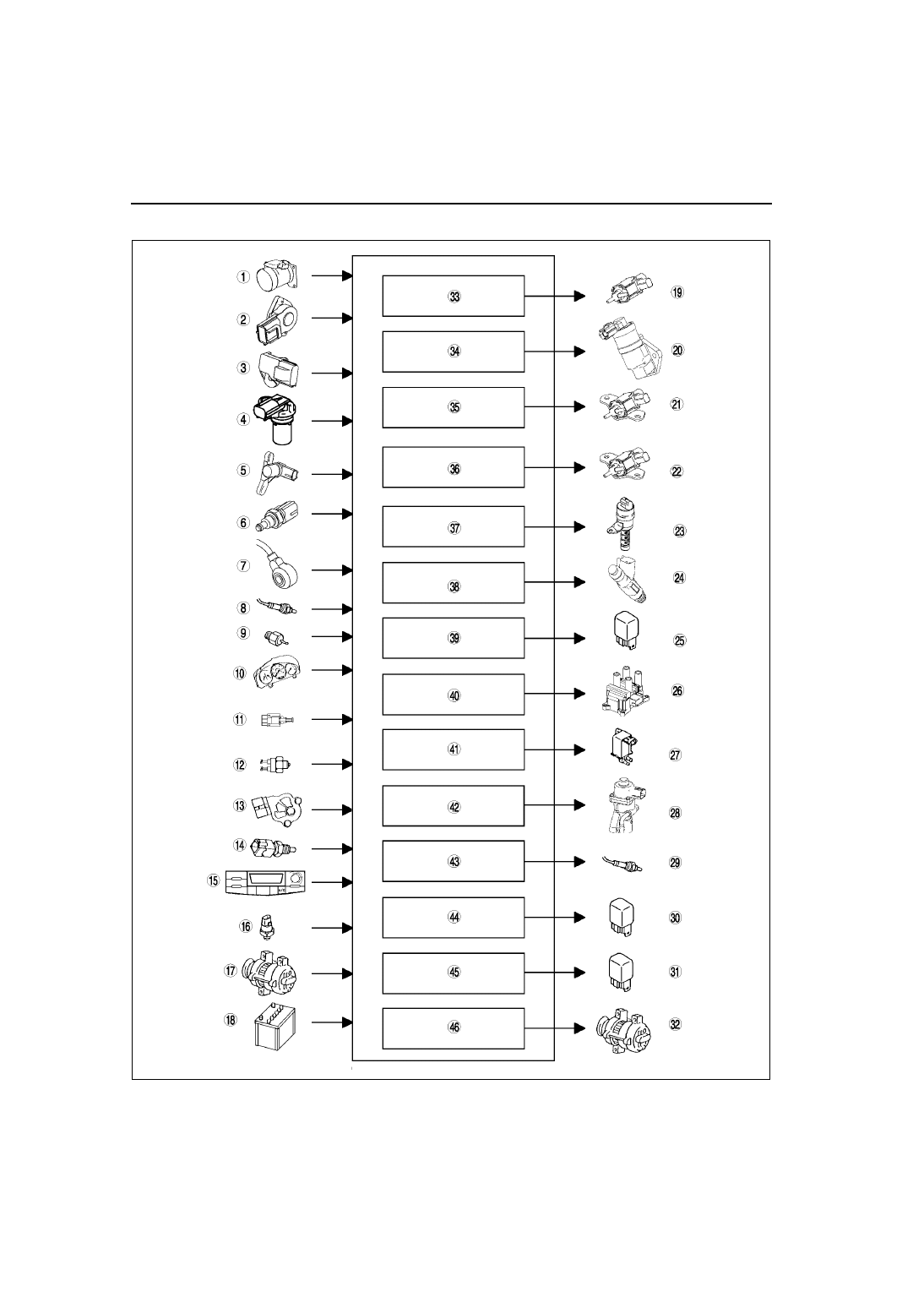

BLOCK DIAGRAM

A6E394018881T03

.

A6E3940T001

CONTROL SYSTEM

F–31

F

End Of Sie

1

MAF/IAT sensor

2

TP sensor

3

MAP sensor

4

CMP  sensor

5

CKP sensor

6

ECT  sensor

7

Knock sensor

8

HO2S (front, rear)

9

P/S pressure switch

10

Vehicle speedometer sensor

11

Clutch switch

12

Neutral switch

13

TR switch

14

Brake switch

15

A/C switch

16

Refrigerant pressure switch

17

Generator (terminal P: generation voltage)

18

Battery

19

VAD control solenoid valve

20

IAC valve

21

VIC solenoid valve

22

VTCS solenoid valve

23

OCV

24

Fuel injector

25

Fuel pump relay

26

Ignition coil

27

Purge valve

28

EGR valve

29

Oxygen sensor heater (front, rear)

30

A/C relay

31

Cooling fan relay

32

Generator (terminal D: field coil)

33

VAD control

34

IAC

35

VIC

36

VTCS

37

Variable valve timing control

38

Fuel injection control

39

Fuel pump control

40

Electronic spark advance (ESA) control

41

Purge control

42

EGR control

43

Oxygen sensor heater control

44

A/C cut-off control

45

Electrical fan control

46

Generator control
