Mazda MX-5 Miata (1997+). Manual - part 88

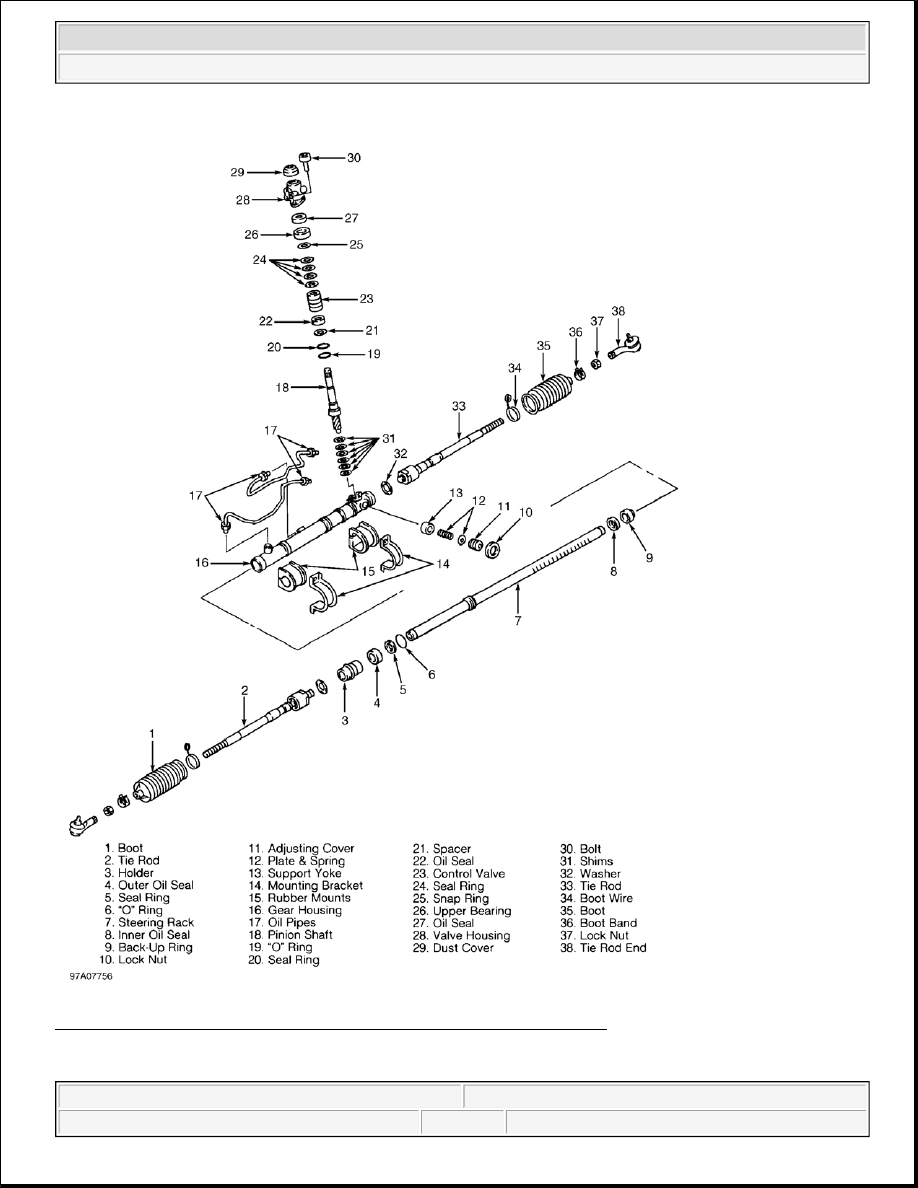

Fig. 7: Exploded View Of Rack & Pinion Steering Gear (1995 Miata)
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata

STEERING SYSTEM - POWER RACK & PINION 1997 STEERING Mazda Power Rack & Pinion

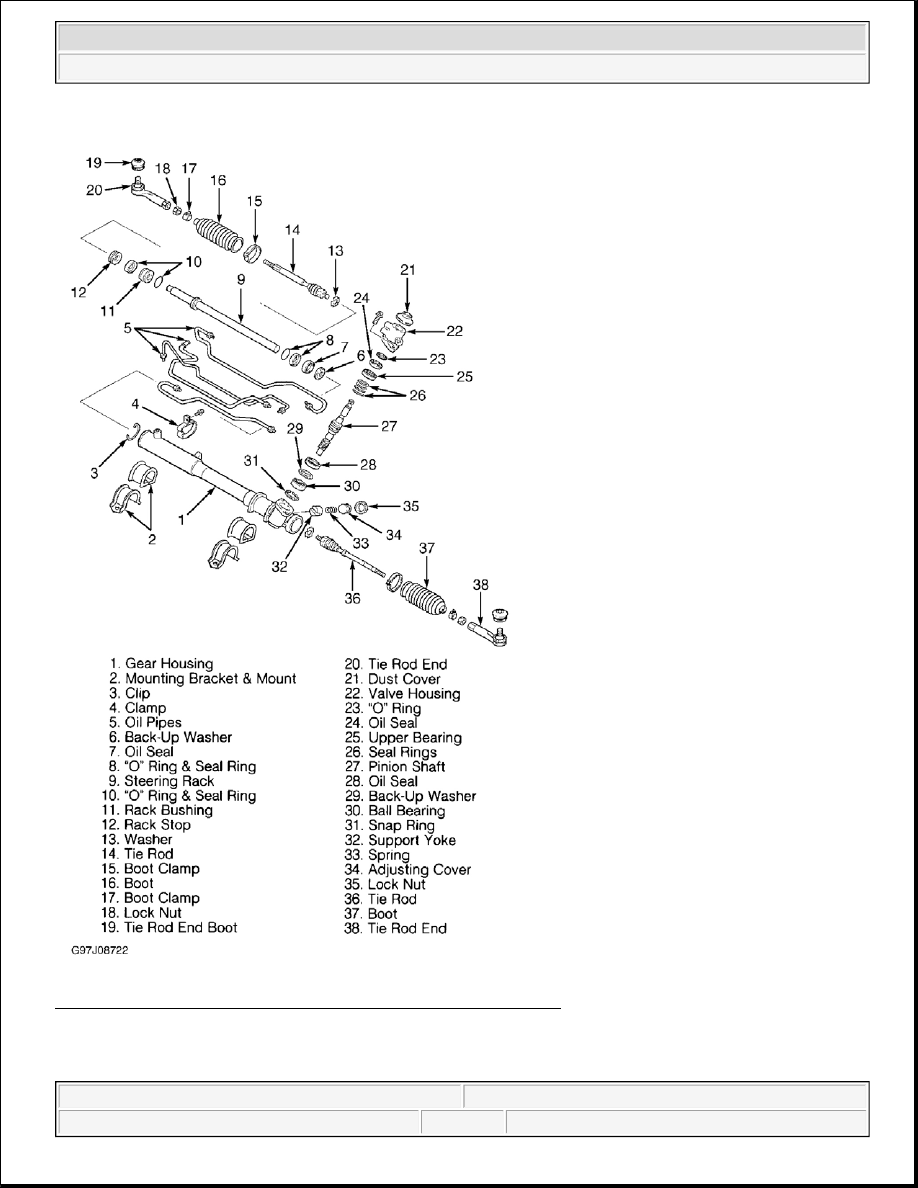

Fig. 8: Exploded View Of Rack & Pinion Steering Gear (1996-97 Miata)
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata

STEERING SYSTEM - POWER RACK & PINION 1997 STEERING Mazda Power Rack & Pinion

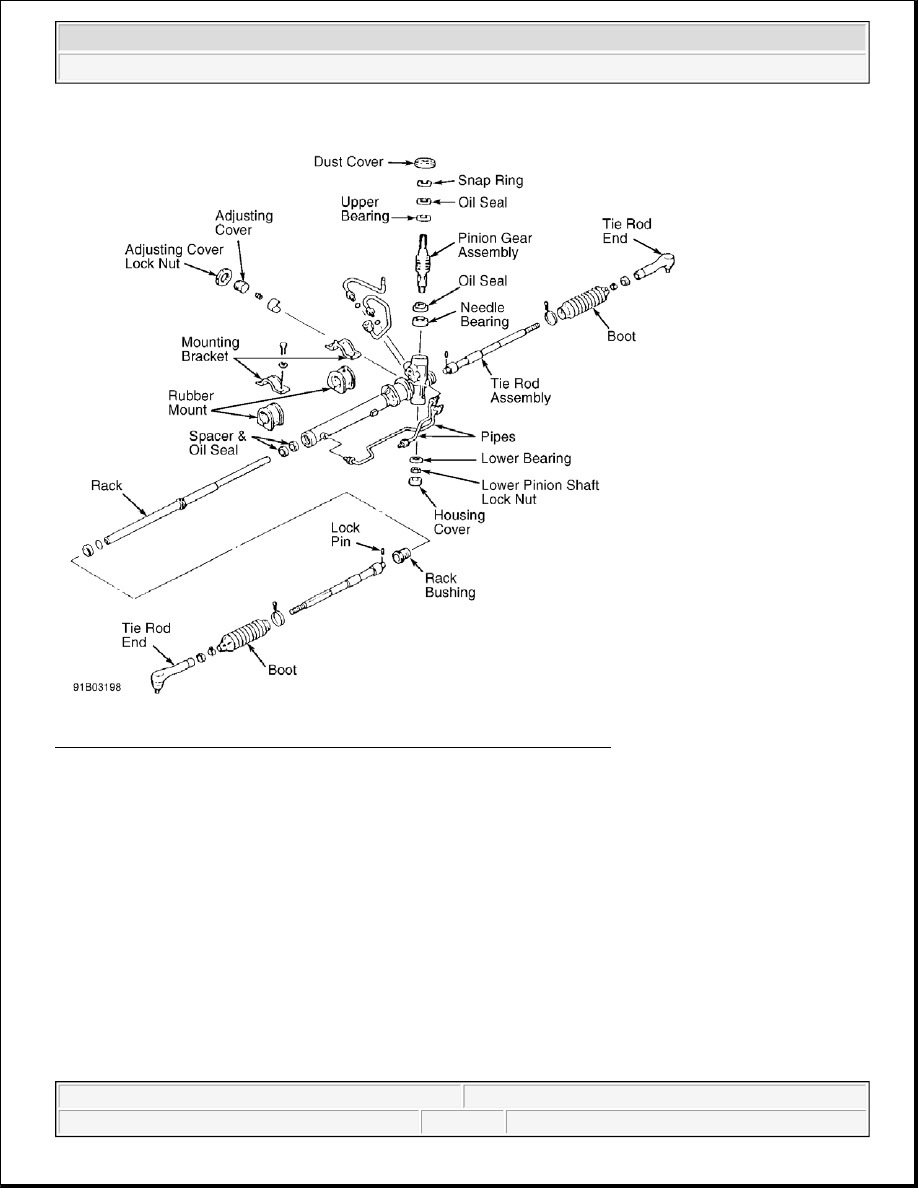

Fig. 9: Exploded View Of Rack & Pinion Steering Gear (Millenia)
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata

STEERING SYSTEM - POWER RACK & PINION 1997 STEERING Mazda Power Rack & Pinion

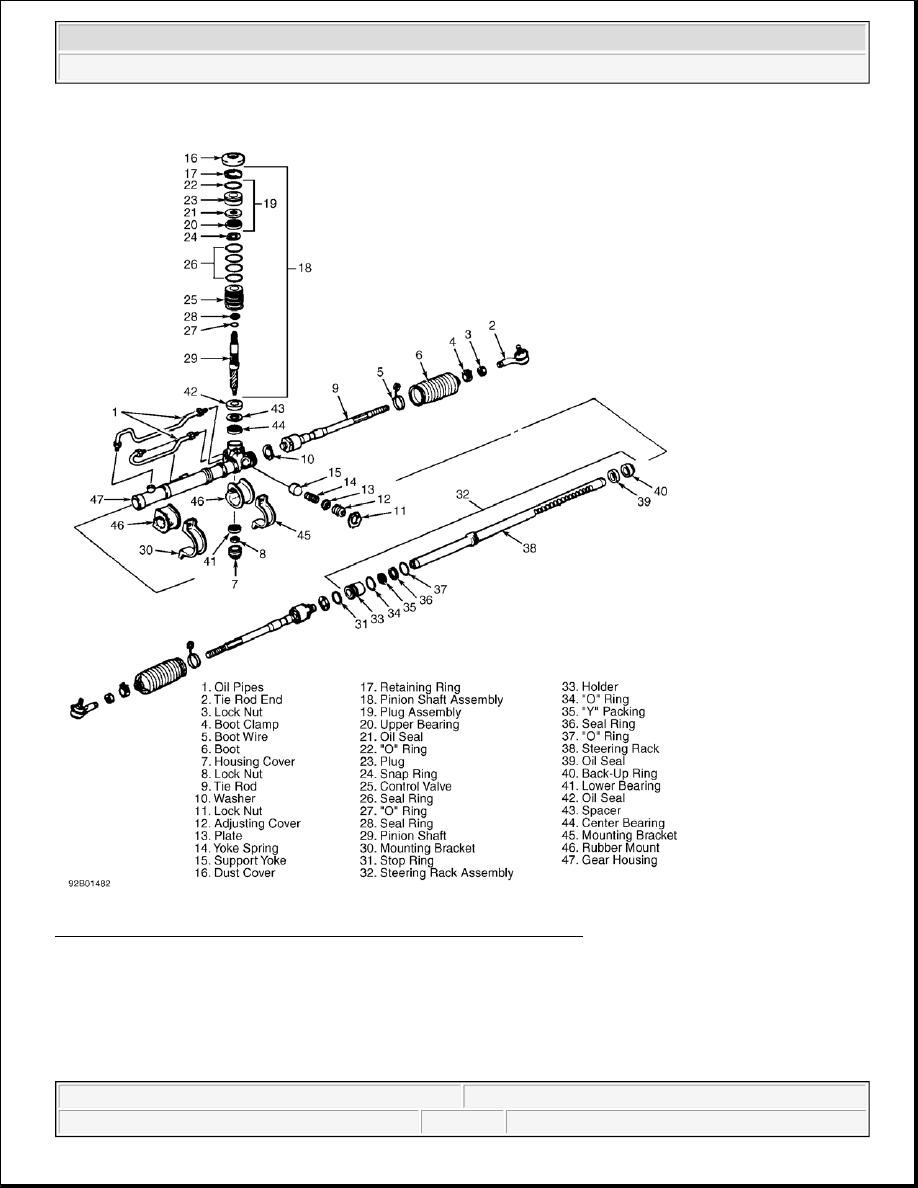

Fig. 10: Exploded View Of Rack & Pinion Steering Gear (1995-96 MPV)
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata

STEERING SYSTEM - POWER RACK & PINION 1997 STEERING Mazda Power Rack & Pinion
