frame mounting bolts. Remove steering gear and linkage from vehicle. On MPV, remove steering gear
bracket-to-frame mounting bolts. Remove steering gear and linkage with steering bracket from vehicle.
Remove 4 steering gear-to-bracket bolts and separate gear from bracket.

4. On all models, to install, reverse removal procedure. Tighten bolts to specification. See TORQUE

SPECIFICATIONS table. On MPV, tighten steering gear-to-bracket bolts in sequence: left front, right
front, left rear, right rear. On all models, fill and bleed power steering system. Check and adjust front
wheel alignment. See SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT.

Removal & Installation (Millenia)

1. Disconnect negative battery cable. Support engine using Engine Support (49-G017-5A0 ). Raise and

support front of vehicle. Remove front wheel assemblies. Remove cotter pins and castle nuts from tie rod
ends.

2. Using Puller Set (49-T028-3A0 ), separate tie rod ends from steering knuckles. Remove transverse

member bolts and remove transverse member. See Fig. 6 Disconnect pressure and return line connections
from steering gear. Remove intermediate shaft pinch bolt.

3. Reference mark lower steering column-to-intermediate shaft. Remove engine mount member. Remove

No. 1 engine mount bolts. Remove upper lateral link bolt and separate upper lateral link from
crossmember. Remove lower control arm-to-crossmember mounting bolt and gusset. Separate lower
control arm from crossmember.

4. Remove stabilizer link-to-lower control arm nut. Separate stabilizer link from lower control arm. Using a

jack, support front suspension crossmember. Remove crossmember retaining nuts. Carefully lower
crossmember. Disconnect stabilizer link from stabilizer bar. Remove stabilizer bar brackets, bushings and
stabilizer bar. Remove steering gear mounting nuts. Remove steering gear assembly.

5. To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS

table. Tighten steering gear mounting nuts in sequence: right front, left rear, right rear, left front. Fill and
bleed power steering system. Check and adjust front wheel alignment. See SPECIFICATIONS &
PROCEDURES article in WHEEL ALIGNMENT.



1997 Mazda MX-5 Miata

STEERING SYSTEM - POWER RACK & PINION 1997 STEERING Mazda Power Rack & Pinion

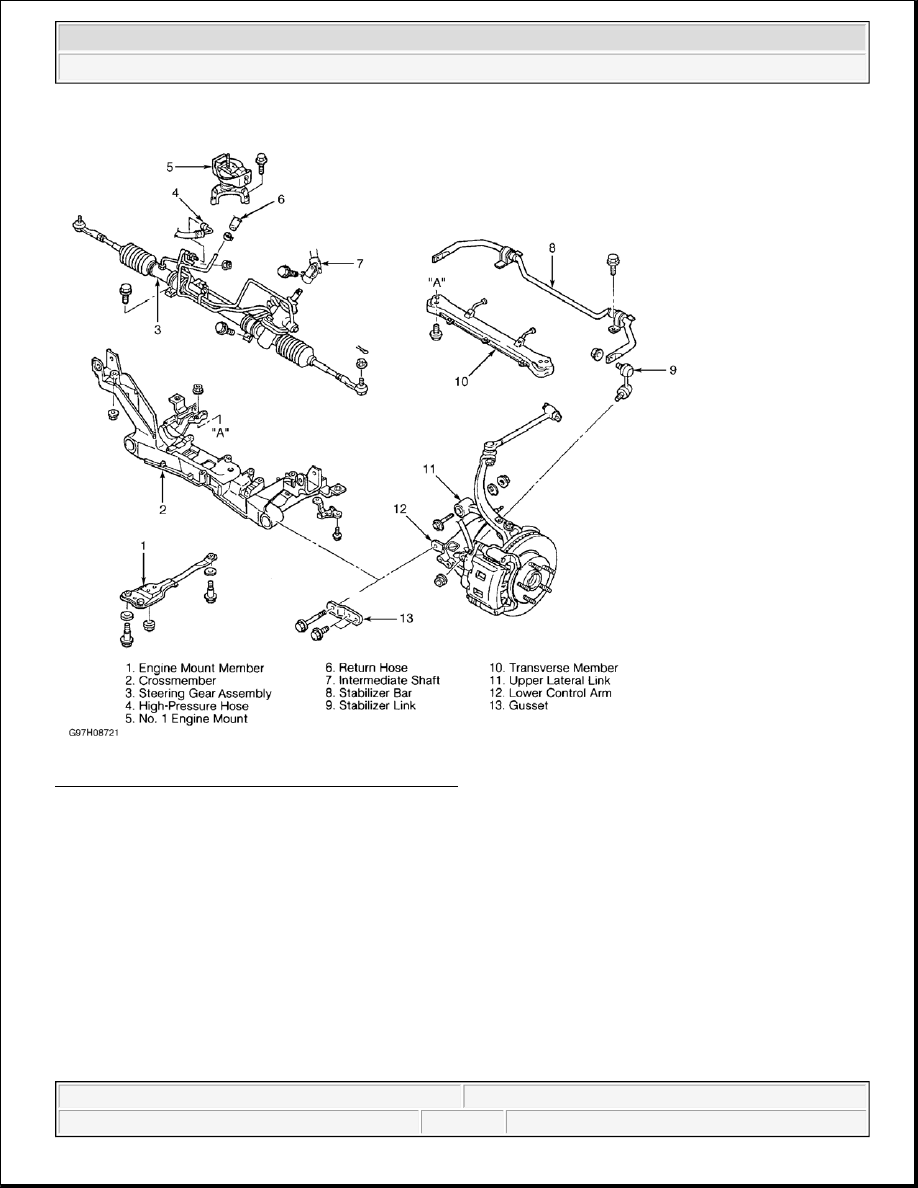

Fig. 6: Removing Steering Gear Assembly (Millenia)
Courtesy of MAZDA MOTORS CORP.

Removal & Installation (MX-3 & Protege)

1. Disconnect negative battery cable. Raise and support front of vehicle. Remove front wheel assemblies.

Remove engine undercover. Remove cotter pins and castle nuts from tie rod ends.

2. Using Puller Set (49-T028-3A0 ), separate tie rod ends from steering knuckles. On MX-3 DOHC, remove

support bracket bolt, nut and rubber insulator. Remove steering gear insulator bolts and remove insulator.
On all models, remove intermediate shaft dust cover.

3. Mark steering column intermediate shaft-to-steering column gear pinion for installation reference.

Remove steering column intermediate shaft-to-steering gear pinion shaft bolt. Disconnect pressure and
return line connections from steering gear.

4. On M/T, remove mounting nuts and bolts from extension bar and control rod. Remove extension rod and

control rod. On all models, remove steering gear mounting nuts. Remove steering gear and linkage from



1997 Mazda MX-5 Miata

STEERING SYSTEM - POWER RACK & PINION 1997 STEERING Mazda Power Rack & Pinion



vehicle through passenger side wheelwell.

5. To install, reverse removal procedure. Tighten bolts and nuts to specification. See TORQUE

SPECIFICATIONS table. Tighten steering gear mounting nuts in sequence: left rear, right rear, left
front, right front. Fill and bleed power steering system. Check and adjust front wheel alignment. See
SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT.

Removal & Installation (MX-6 & 626)

1. Disconnect negative battery cable. Raise and support front of vehicle. Remove front wheel assemblies.

Remove cotter pins and castle nuts from tie rod ends.

2. Using Puller Set (49-T028-3A0 ), separate tie rod ends from steering knuckles. On 2.5L engines, remove

transverse member bolts and remove transverse crossmember. Remove front exhaust pipe and catalytic
converter assembly nuts and remove assembly.

3. On all models, support engine using Engine Support (49-G017-5A0 ), and remove engine mount. Mark

steering column intermediate shaft-to-steering column gear pinion for installation reference. Remove
steering column intermediate shaft-to-steering gear pinion shaft bolt.

4. Disconnect pressure and return line connections from steering gear. Remove steering gear mounting nuts.

Remove steering gear and linkage from vehicle through passenger's side wheelwell.

5. To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS

table. Tighten steering gear mounting nuts in sequence: left front, right front, right rear, left rear. Fill and
bleed power steering system. Check and adjust front wheel alignment. See SPECIFICATIONS &
PROCEDURES article in WHEEL ALIGNMENT.

Removal & Installation (RX7)

1. Disconnect negative battery cable. Raise and support front of vehicle. Remove front wheel assemblies.

Remove engine undercover. Remove cotter pins and castle nuts from tie rod ends. Using Puller Set (49-
T028-3A0 ), separate tie rod ends from steering knuckles.

2. Remove stabilizer bar-to-frame bolts and brackets. Disconnect pressure and return line connections from

steering gear. Mark steering column intermediate shaft-to-steering column gear pinion for installation
reference.

3. Remove steering column intermediate shaft-to-steering gear pinion shaft bolt. Remove steering gear

mounting bolts. Support crossmember with jack and remove crossmember nuts and bolts. Slowly lower
jack and remove steering gear and linkage from vehicle.

4. To install, reverse removal procedure. Tighten bolts and nuts to specification. See TORQUE

SPECIFICATIONS table. Tighten steering gear mounting bolts in sequence: left rear, right rear, left
front, right front. Fill and bleed power steering system. Check and adjust front wheel alignment. See
SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT.

Removal & Installation (929)

1. Disconnect negative battery cable. Raise and support front of vehicle. Remove front wheel assemblies.

Remove engine undercover. Remove cotter pins and castle nuts from tie rod ends. Using Puller Set (49-
T028-3A0 ), separate tie rod ends from steering knuckles.

2. Disconnect pressure and return line connections from steering gear. Mark steering column intermediate



1997 Mazda MX-5 Miata

STEERING SYSTEM - POWER RACK & PINION 1997 STEERING Mazda Power Rack & Pinion



shaft-to-steering column gear pinion for installation reference. Remove steering column intermediate
shaft-to-steering gear pinion shaft bolt. Remove steering gear mounting nuts. Remove steering gear and
linkage from vehicle.

3. To install, reverse removal procedure. Tighten bolts and nuts to specification. See TORQUE

SPECIFICATIONS table. Tighten steering gear mounting nuts in sequence: left rear, left front, right
front, right rear. Fill and bleed power steering system. Check and adjust front wheel alignment. See
SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT.

POWER STEERING PUMP

Removal & Installation

1. Remove drive belt. On Millenia, MPV, MX-6, RX7, 626 and 929, remove pulley lock nut and remove

pulley from pump. On all models, disconnect power steering pressure switch electrical connector (if
equipped).

2. Place reference marks on steering pump and pressure line fitting for reassembly. Disconnect pressure and

return line connections from steering pump. Remove pump-to-bracket bolts and nuts. Remove pump from
vehicle.

3. To install, reverse removal procedure. Tighten bolts and nuts to specification. See TORQUE

SPECIFICATIONS table. Adjust belt tension. See POWER STEERING PUMP BELT under
ADJUSTMENTS. Bleed air from system. Inspect system for leaks.

OVERHAUL

STEERING GEAR

Disassembly & Reassembly

1. Remove steering gear assembly. See STEERING GEAR under REMOVAL & INSTALLATION. As an

aid to disassembly and reassembly, use illustrations. See Fig. 7 -16 . For reassembly reference, keep
components in order of disassembly. Replace worn or damaged components as necessary.

2. On 1996-97 Miata, after installing valve housing, check clearance between gear housing and valve

housing. See PINION SHAFT & VALVE HOUSING ASSEMBLY under ADJUSTMENT. Adjust
clearance as necessary. On all models, after steering rack reassembly, but before installing tie rods, check
pinion preload. See PINION PRELOAD under ADJUSTMENTS.

NOTE:

Use a suitable container or rags to collect fluid when disconnecting pressure
and return lines.
