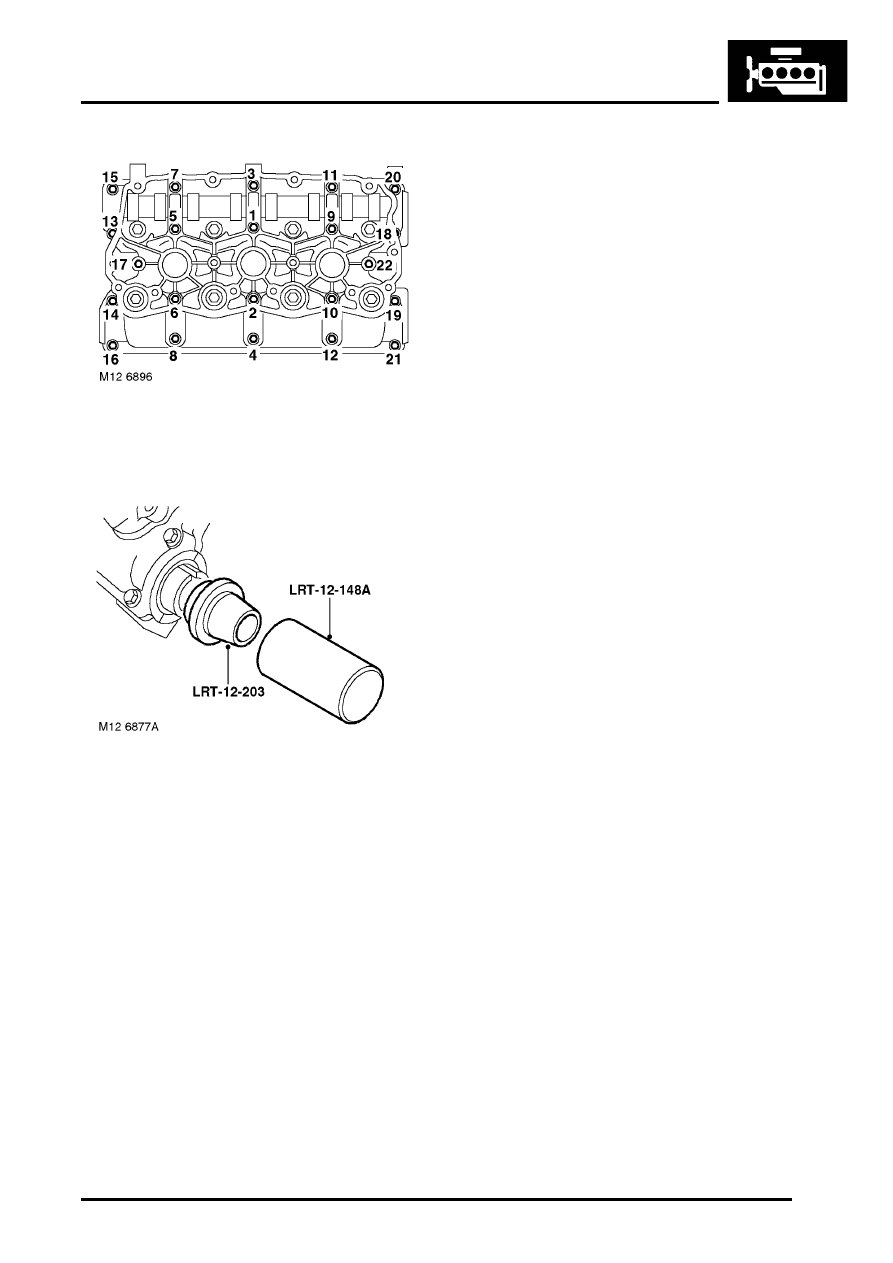

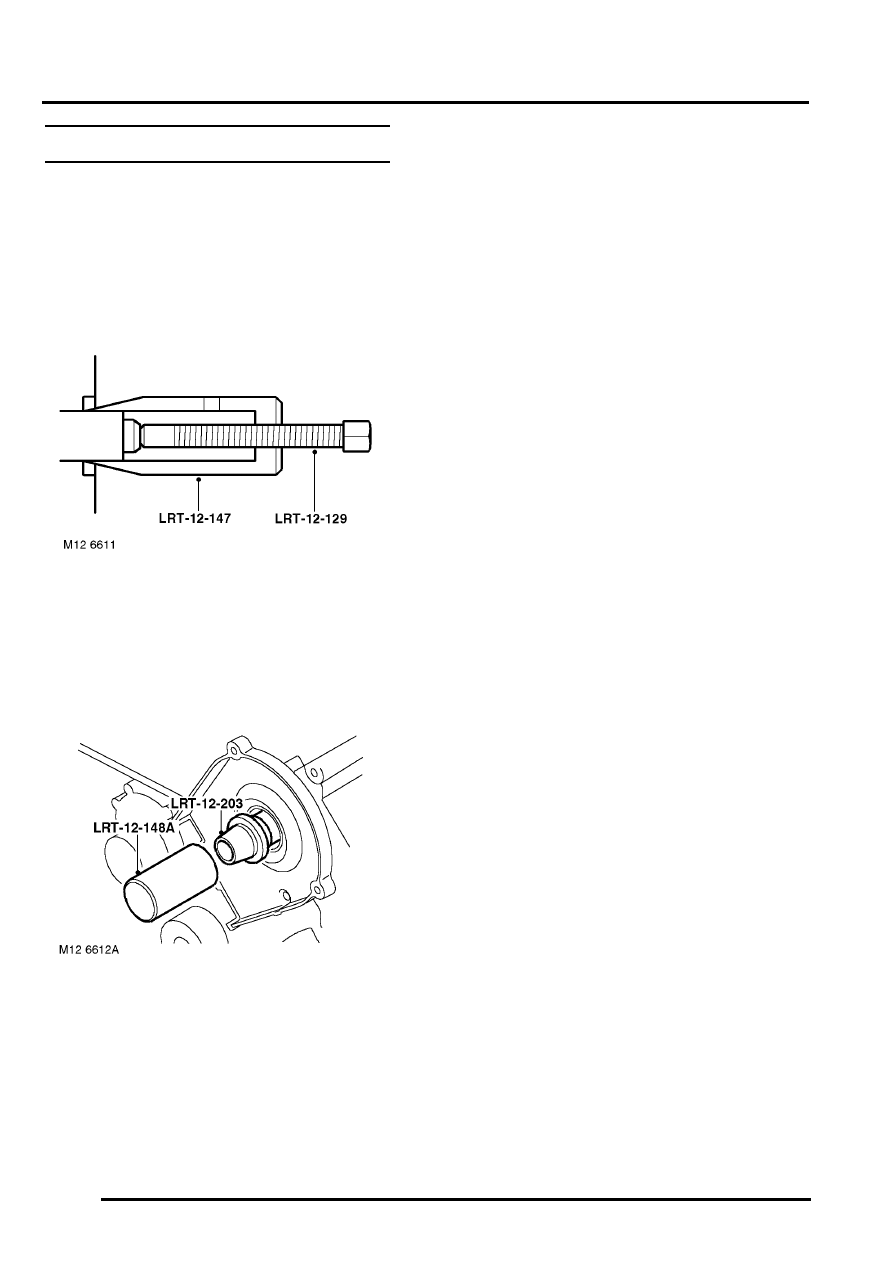

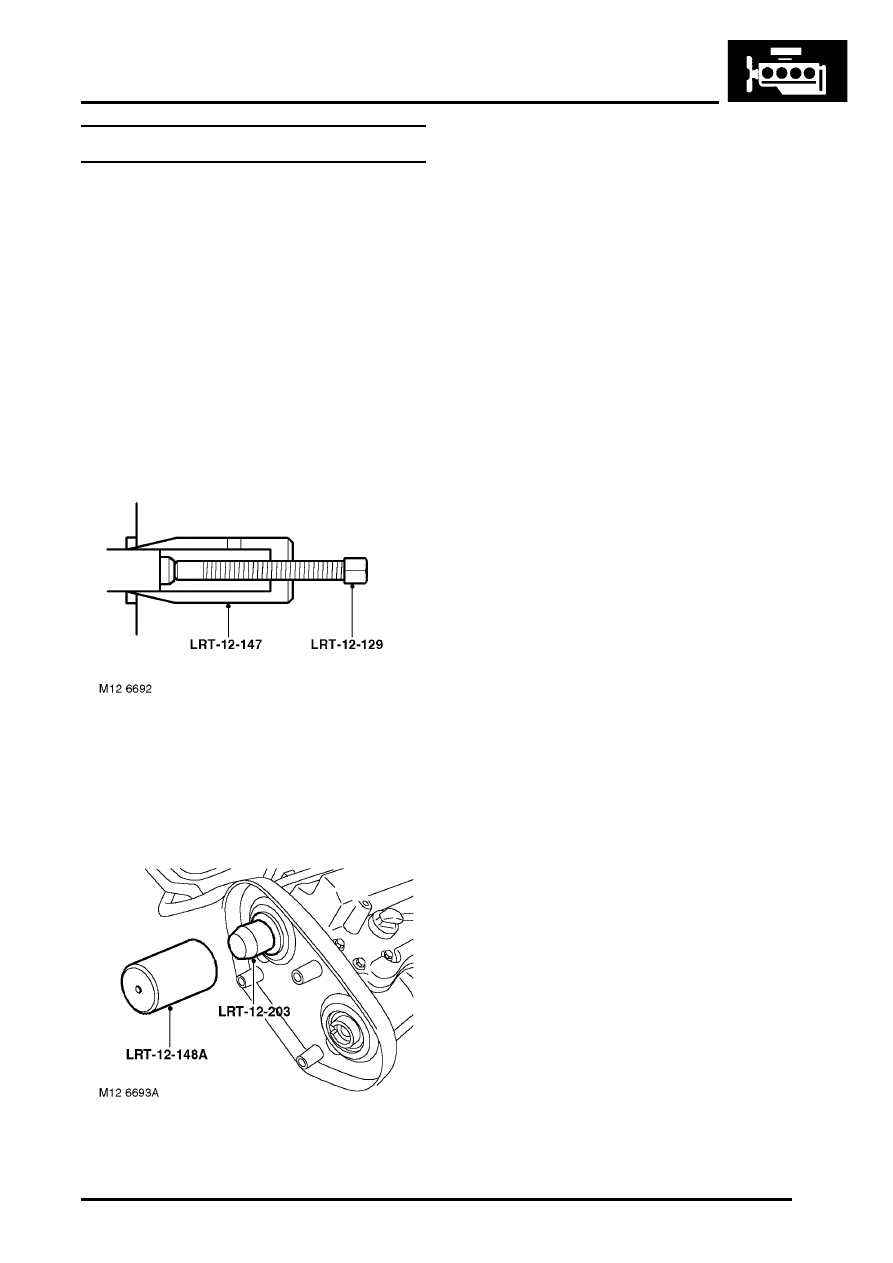

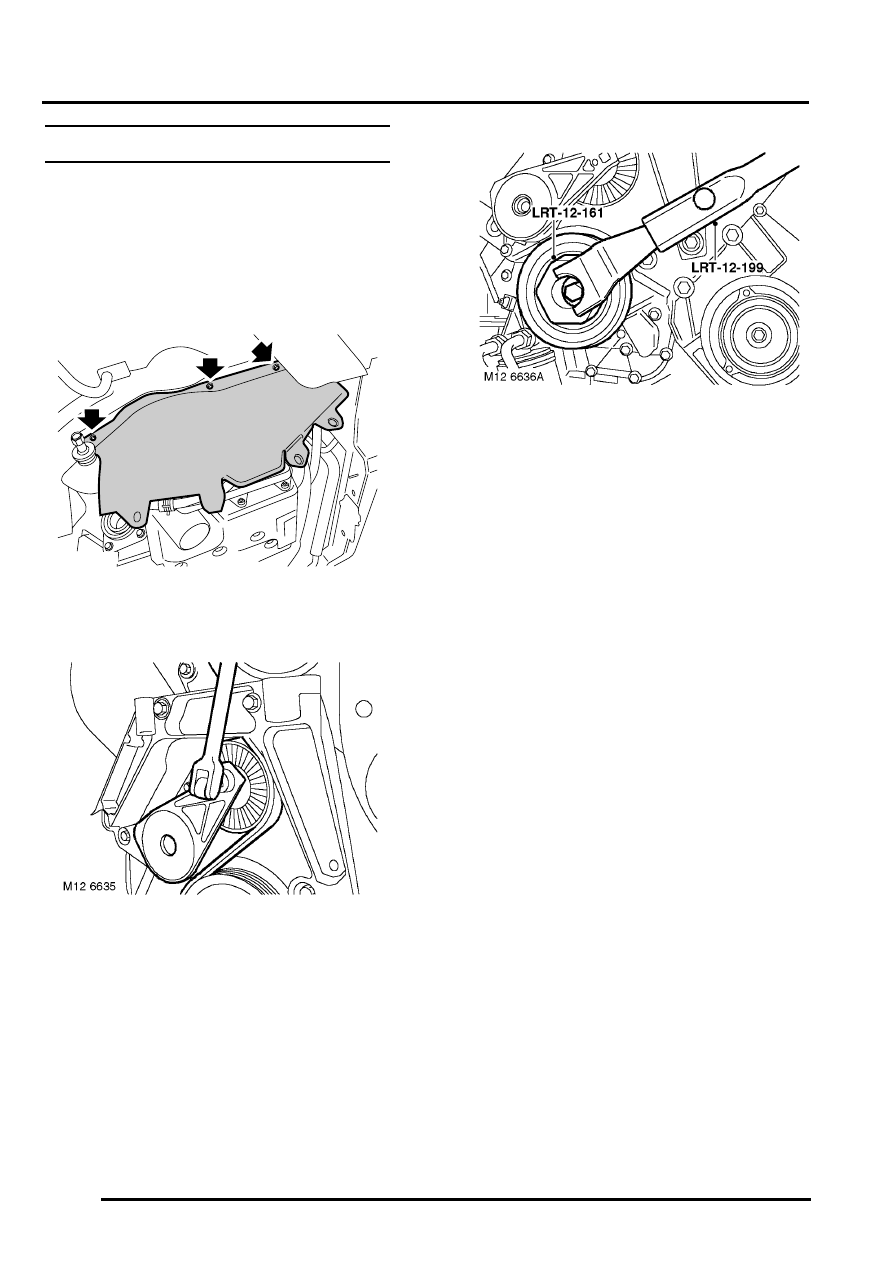

ENGINE - K SERIES KV6 REPAIRS 12-3-7 6. Position camshaft carrier, fit and progressively tighten bolts in the sequence shown to 10 Nm 7. Noting that the front camshaft oil seals are black in colour and the rear oil seals are red, fit CAUTION: Oil seals must be fitted dry. Do 8. Clean camshaft timing cover backplate bolts and apply Loctite 242 to first 3 threads. 9. Fit camshaft cover backplates fit and tighten bolts to 9 Nm (7 lbf.ft). 10. Fit RH camshaft cover gasket. ENGINE - K SERIES KV6, REPAIRS, 11. Fit camshaft timing belt. ENGINE - K SERIES KV6, REPAIRS, 12. Fit RH rear camshaft timing belt. ENGINE - K SERIES KV6, REPAIRS, Camshaft rear timing belt - RH cylinder 13. Top-up engine oil. 14. Connect battery earth lead. |
