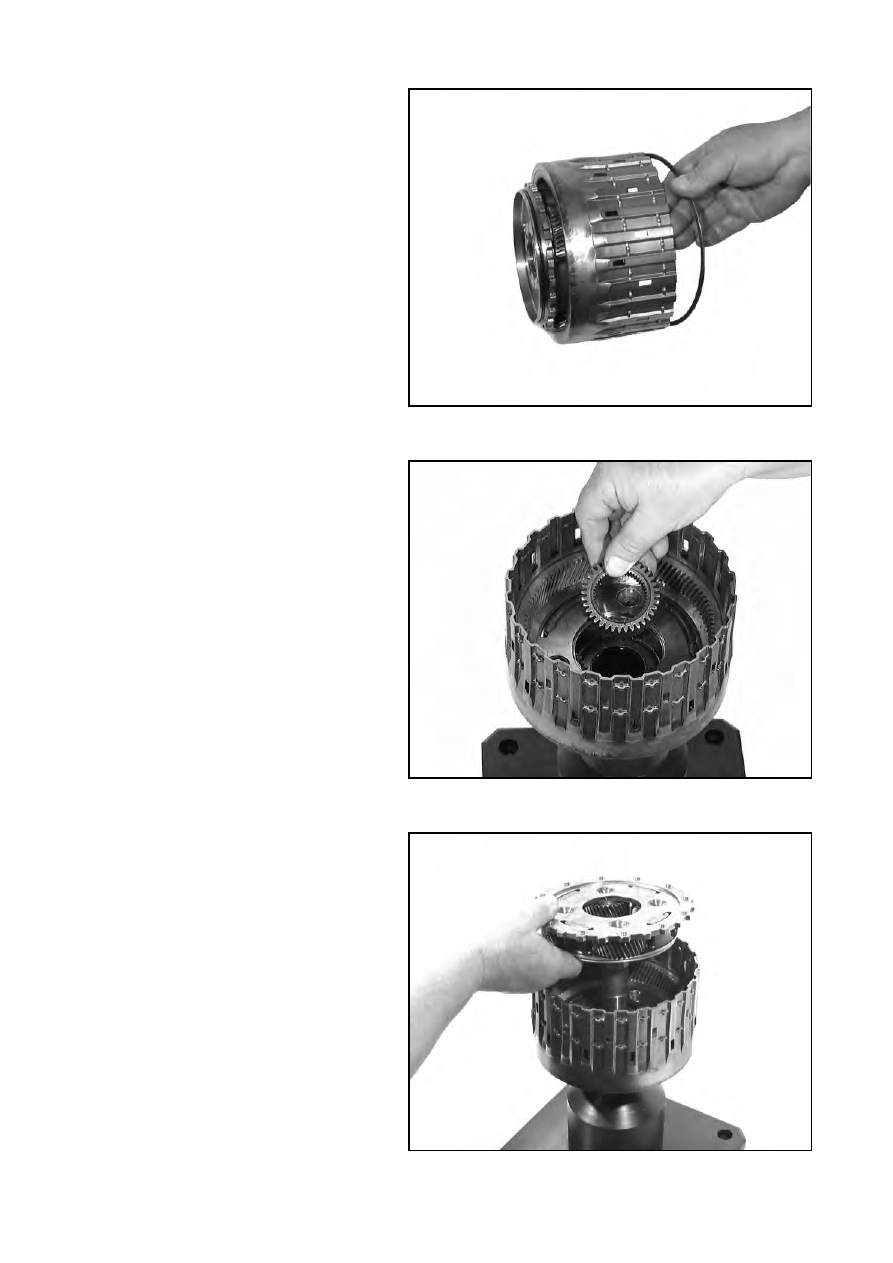

Insert the complete unit into ring gear I
32.140 and snap it in with snap ring
32.150.
Put the ring gear on a suitable support to
accomplish this task.

Insert sun wheel I 32.190 with the notch
on the toothtip looking downwards.
(Towards the output side to optimize the
meshing sound.)
Insert axial needle roller bearing 32.210.

Insert planet carrier II 32.110 into ring
gear I.
Put it onto the support fixture for tower I
5x46 000 916 to make assembly easier.

3.3/2

97100

97228

97104

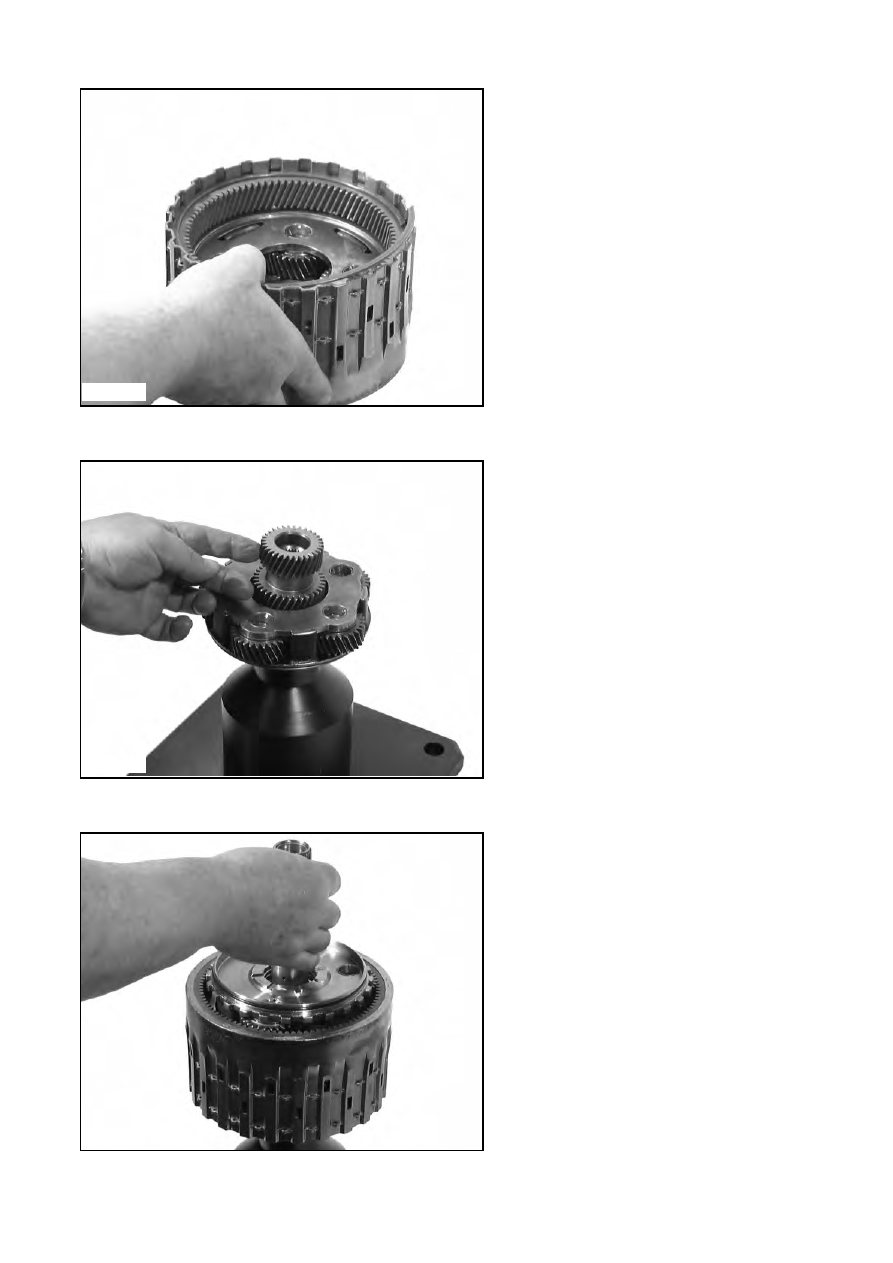

Insert ring gear III 32.240 with the outer
engaging gears towards the top and
secure it with snap ring 32.250. To put
the snap ring in position, lift ring gear I
slightly.

Take planetary drive (I and II with ring
gear III) off the device.
Put planet carrier III 42.010 onto the
device and insert sun wheel 32.360.

Turn the planetary drive as you put it on
the planet carrier.

3.3/3

97105

97106

97107

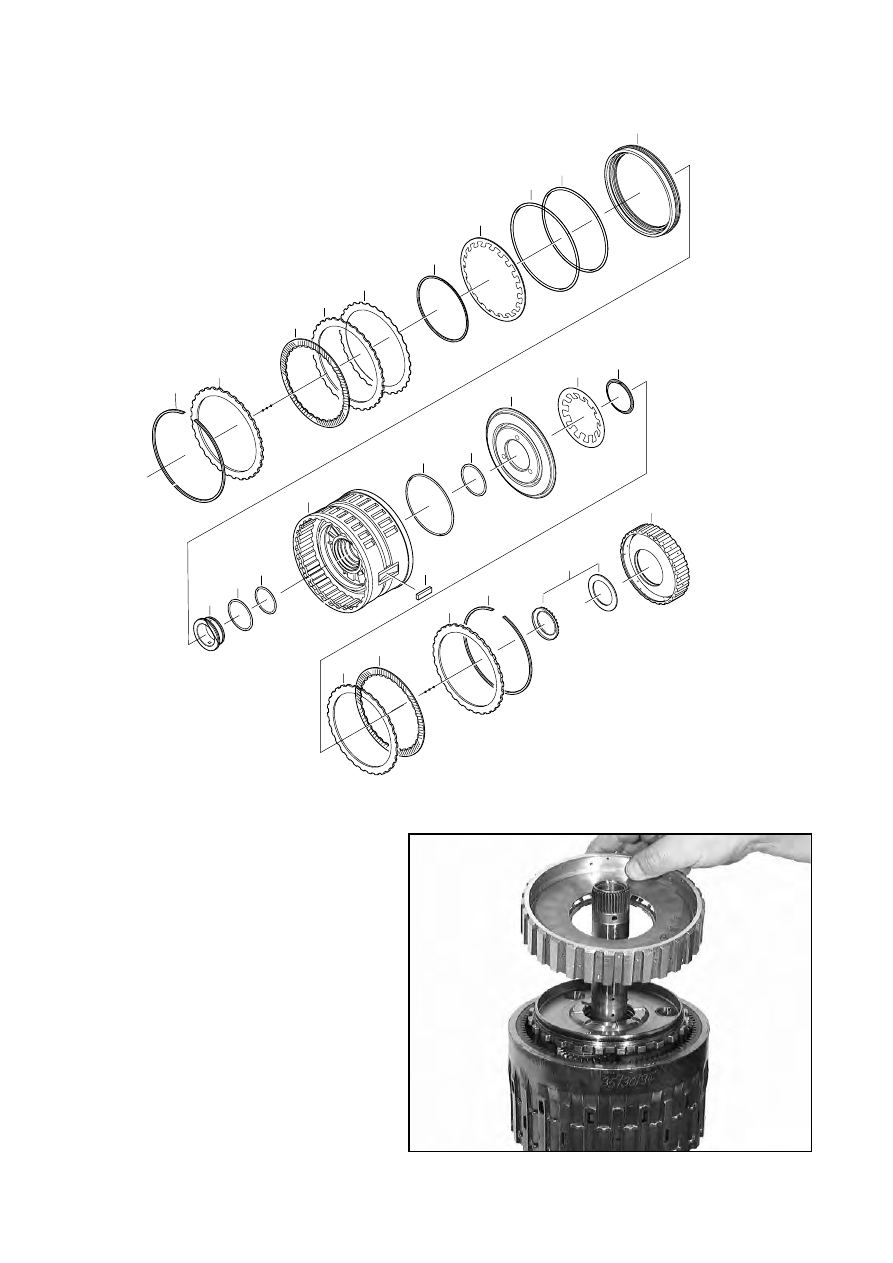

Press disc carrier E 32.330 on to the
planetary drive.

3.3.2

Brakes (E and D)

3.3/4

97229

32.330

32.340

/110

/120

73.010/150

73.010/154

73.010/110

73.010/220

73.010/140

73.010/190

73.010/180

73.010/170

73.010/160

73.010/152

73.010/200

73.010/210

74.010

74.020

74.014

74.012

74.030

74.050

74.060

74.070

74.090

74.130

74.150

74.140

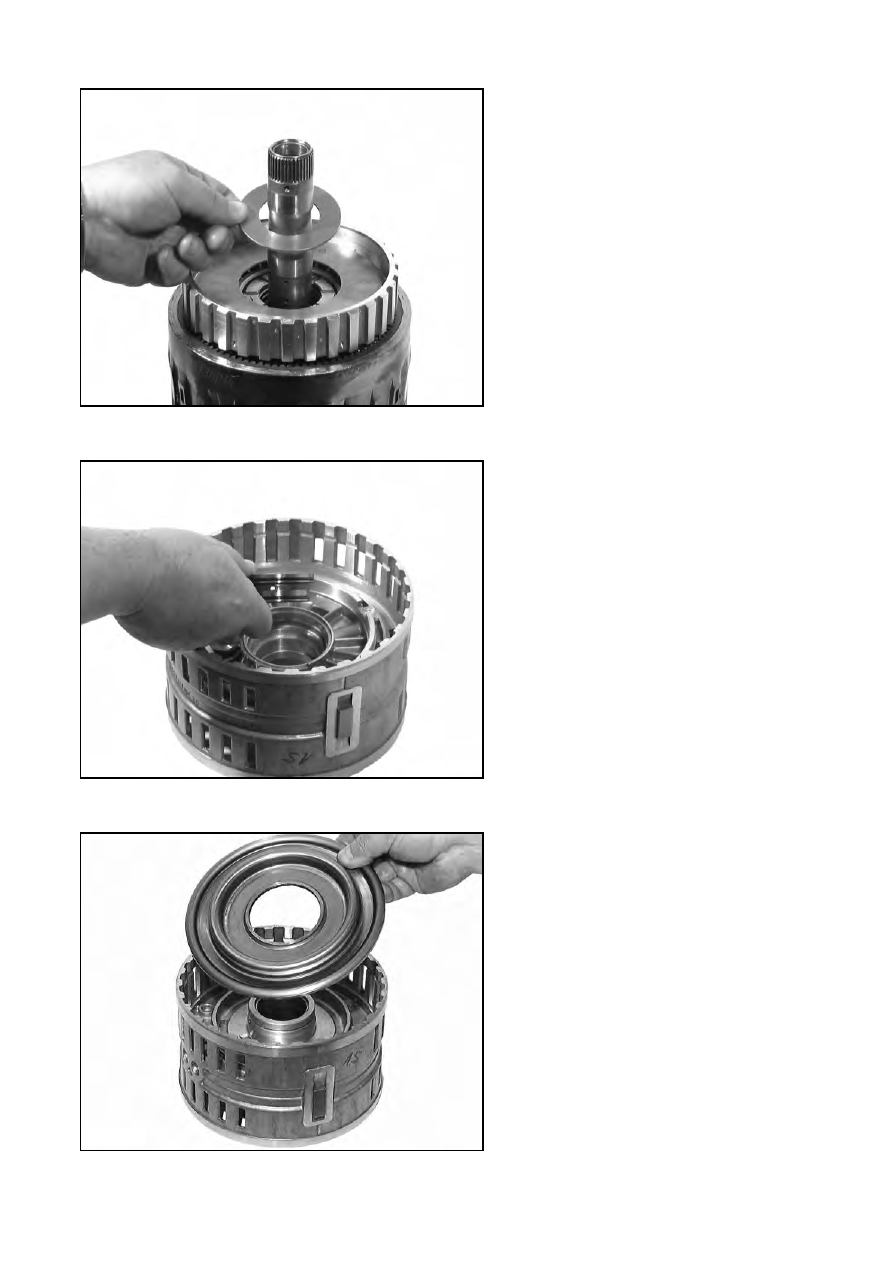

Assemble axial washer 32.340/110.

Complete cylinder DE 73.010/110.
First put on two O-rings (74.010/140,
74.010/150) to the bushing 74.010/130
and press it into cylinder DE.
Drive two shaft keys 73.010/140 onto the
center of cylinder DE using the plastic
hammer.

Turn cylinder DE over.
Put new O-ring 74.012 on piston E 74.010
and O-ring 74.014 on the cylinder E.
Press piston E into cylinder DE.

3.3/5

97109

97110
