Accessory Drive Belt Installation

119

Notes

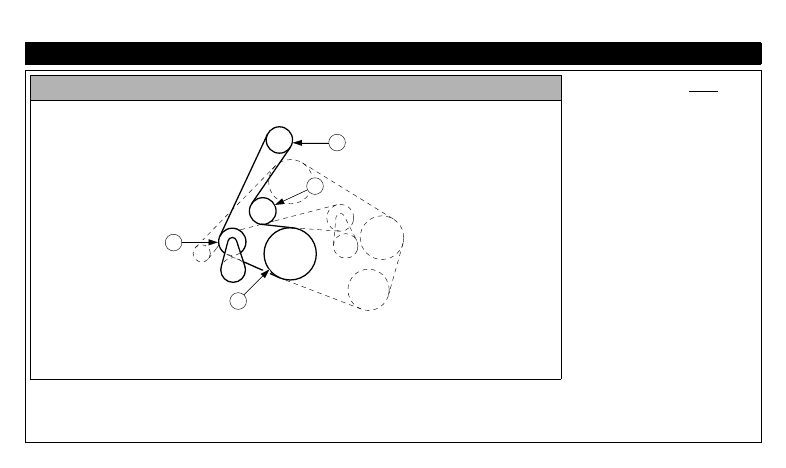

V8 Supercharged (XJ and XK, also S-TYPE 2002.5 MY onwards)

A

=

Supercharger

B

=

Idler

C

=

Crankshaft  Pulley

D

=

Tensioner

J.303.1566

D

A

B

C

Accessory Drive Belt Installation

120

Notes

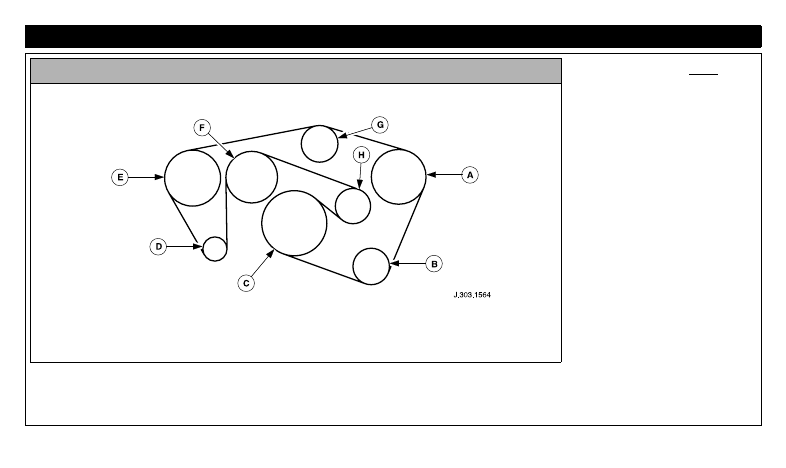

V6 (S-TYPE and XJ)

A

=

Power  Steering  Pump

B

=

Air Conditioning Compressor

C

=

Crankshaft  Pulley

D

=

Generator

E

=

Idler  Pulley

F

=

Water  Pump

G

=

Idler  Pulley

H

=

Tensioner

Accessory Drive Belt Installation

121

Notes

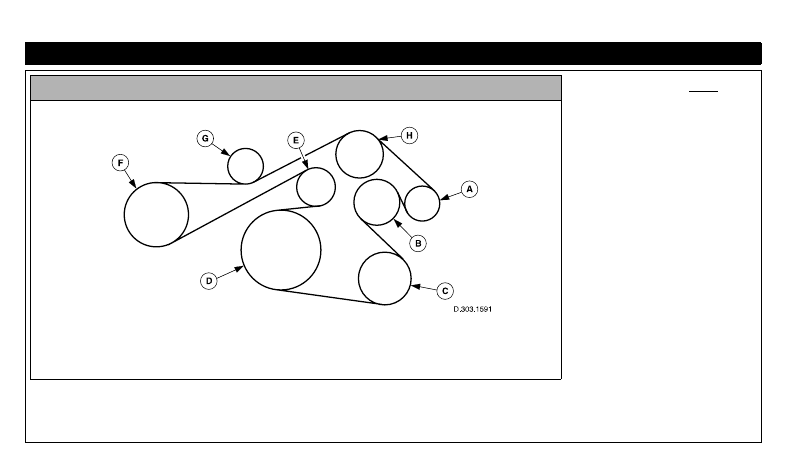

V6 (X-TYPE)

A

=

Generator

B

=

Idler  Pulley

C

=

Air Conditioning Compressor

D

=

Crankshaft  Pulley

E

=

Tensioner

F

=

Power Steering Pump

G

=

Idler  Pulley

H

=

Idler  Pulley

Accessory Drive Belt Installation

122

Notes

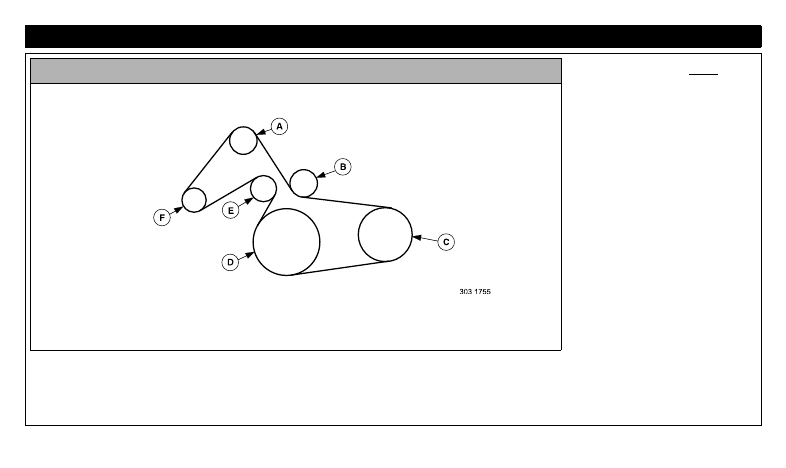

2.0 Liter Diesel (X-TYPE)

A

=

Idler  pulley

B

=

Idler  pulley

C

=

Compressor pulley

D

=

Crankshaft pulley

E

=

Tensioner pulley

F

=

Generator pulley
