Accessory Drive - Water Pump Belt2.0L NA V6 - AJV6/2.5L NA V6 - AJV6/3.0L NA V6 -
AJ27

Removal and Installation

Removal

1. Remove the battery tray. For additional information, refer to Section

414-01 Battery, Mounting and Cables

.

2. Remove the water pump belt.

1. De-tension the water pump belt.

2. Remove the water pump belt.

Installation

1. To install, reverse the removal procedure.

Published: 11-May-2011

Accessory Drive - Water Pump Belt Tensioner2.0L NA V6 - AJV6/2.5L NA V6 -
AJV6/3.0L NA V6 - AJ27

Removal and Installation

Removal

1. Remove the water pump belt. For additional information, refer to the

W ater Pump Belt

.

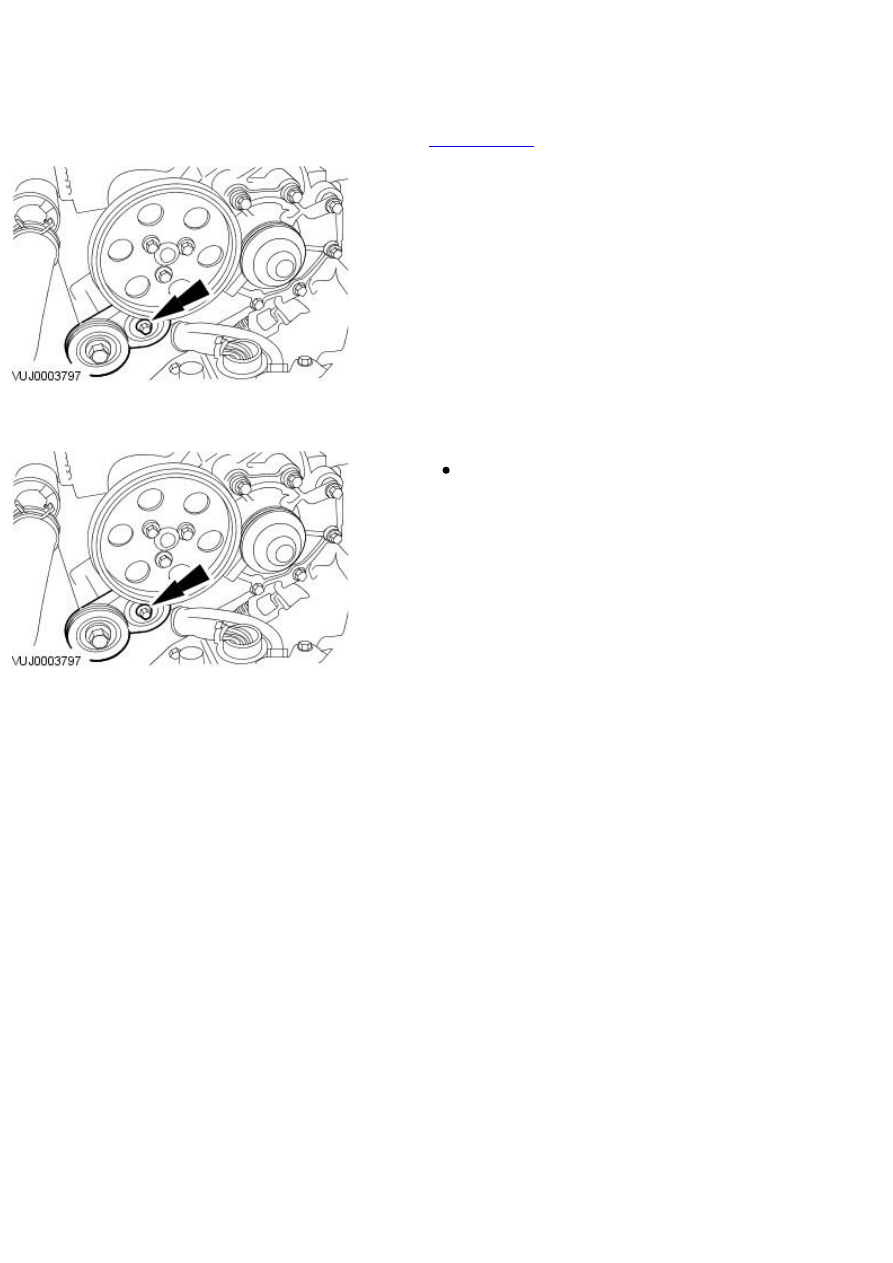

2. Remove the water pump belt tensioner.

Installation

1. To install, reverse the removal procedure.

Tighten to 10 Nm.

Published: 11-May-2011

Starting System -

Torque Specifications

Description

Nm lb-ft lb-in

Starter motor retaining bolts - vehicles with 2.0L, 2.5L or 3.0L engines

35 26

-

Starter motor cable retaining nut - vehicles with 2.0L, 2.5L or 3.0L engines

12 9

-

Solenoid cable retaining nut - vehicles with 2.0L, 2.5L or 3.0L engines

6

-

53

Starter motor retaining bolts - vehicles with 2.0L and 2.2L diesel engine

25 18

-

Starter motor electrical connector retaining nut - vehicles with 2.0L and 2.2L diesel engine

12 9

-

Starter motor solenoid electrical connector retaining nut - vehicles with 2.0L and 2.2L diesel engine

6

-

53

Vacuum solenoid valves and vacuum reservoir mount bracket securing bolts - vehicles with 2.0L and 2.2L diesel engine

23 17

-

Published: 11-May-2011

Starting System - Starting System

Description and Operation

The function of the starting system is to crank the engine fast enough to allow the engine to start. Heavy cables, connectors and switches
are used in the system because of the large currents required.

The starting system consists of a pre-engaged type starter motor, battery, remote control switch (ignition switch) and relay. The operation
of the starter relay is controlled by the engine control module (ECM).

To protect the starter motor from damage, the ECM prevents the starter from being engaged when the engine is running. This is done by the
ECM inhibiting the starter relay operation.

Vehicles equipped with automatic transmission have a transmission range sensor attached to the circuit which prevents operation of the
starter motor unless NEUTRAL or PARK are selected.

USA market vehicles equipped with manual transmission have a clutch pedal start inhibit switch which prevents operation of the starter
motor unless the clutch pedal is operated.

The ECM will only operate the starter relay providing the following conditions are met:

The ignition switch has been in the start position for a predetermined time
The security response between the ECM and the instrument cluster (IC) has passed
The engine is not running
The transmission range switch is in the NEUTRAL or PARK position (vehicles fitted with automatic transmission)
The clutch pedal is operated (USA vehicles fitted with manual transmission)

The starter relay remains energized until one of the following occur:

The maximum cranking time is exceeded
The ECM detects an engine running signal
The ignition switch is no longer in the start position
The transmission range switch is no longer in the NEUTRAL or PARK position (vehicles fitted with automatic transmission)
The clutch pedal is released (USA vehicles fitted with manual transmission)
The set engine speed is reached (vehicles with 2.0L engine)
The vehicle is cranked for 30 seconds and the engine has failed to start

With the ignition switch in the start position, providing the ECM start conditions are met, the starter relay is energized and the engagement
lever moves the pinion into mesh with the engine ring gear teeth. The electrical contacts within the solenoid complete the high power circuit
and the starter motor operates to turn the engine.

The sequence of operation is as follows:

Ignition switch in the start position
Starter relay activated by the ECM
Voltage provided to the starter motor solenoid
Starter solenoid engages the drive pinion to the ring gear
Starter solenoid switches the battery current to the starter motor
The starter remains engaged until the ECM start conditions are no longer met

Vehicles with 2.0L, 2.5L or 3.0L engines
