Audio unit overview

This speaker configuration allows the
reproduction of audio in stereo,
3-channel or Dolby Pro Logic II Surround
Sound.

The audio system can be controlled from
the switches on the touch-screen
console, the touch-screen buttons and
from the multi-function controls on the
left-hand side of the steering wheel. See
AUDIO CONTROL (page 273).

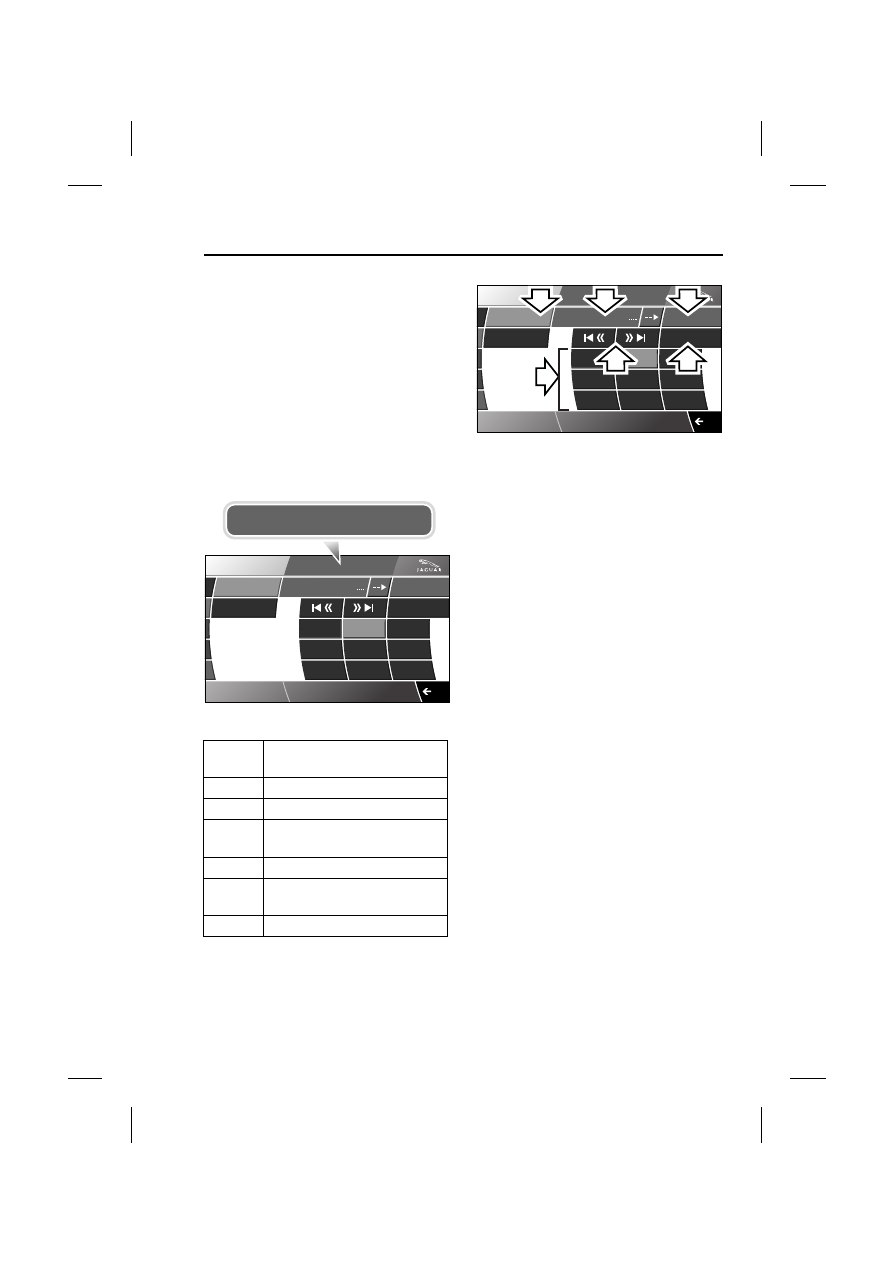

Radio system display panel (in
AM-FM mode)

1. AM/FM band switching.

2. Radio text sent by radio station.

3. Settings.

4. Autostore.

5. Seek up and Seek down.

6. Preset memorised radio stations.

PTY

Priority Programme Type

selected.

Alternative Frequency.

REG

Regionalisation.

DPL II,

3CH

Surround mode - Dolby Pro

Logic II or 3CH.

FM2

Frequency channel selected.

89.1

Frequency of selected

station.

WCBS

Radio station selected.

AM / FM

Settings

A u d i o

PTY

3CH

770

WABC

Text sent by station

WABC

WFAN

WXRP

WNYC

WPLJ

WQXR

WHTZ

WHUD

Autostore

WCBS

12 : 26 pm

E93910

PTY

3CH

770

WABC

AM / FM

Settings

A u d i o

PTY

3CH

770

WABC

Text sent by station

WABC

WFAN

WXRP

WNYC

WPLJ

WQXR

WHTZ

WHUD

Autostore

WCBS

12 : 26 pm

E93911

Audio unit overview

272

Touch-screen audio flow chart

AM/FM

Settings

Sound

Base

Treble

Balance
Fade

Option

AM/FM

Settings

Sound

Base

Treble

Balance
Fade

Option

PTY

(choose from itemised list)

E93912

CD text

FM text

273

Audio unit operation

ON/OFF CONTROL

To operate the audio system the ignition
system must be ON (engine
START/STOP button pressed). When the
engine is stopped, for the audio system
to remain active, the START/STOP
button must be pressed again without
pressing the brake pedal.

The audio system can be turned ON in
two ways:

Pressing the audio ON/OFF and Volume
control knob on the touch-screen
console, or

Pressing the Audio touch-screen button
on the main Home touch-screen.

The touch-screen displays the current
audio settings.

AUDIO CONTROL

Depending on the specification of the
audio system fitted to your vehicle, there
are a number of audio control settings
available from the Audio or Settings
displays.

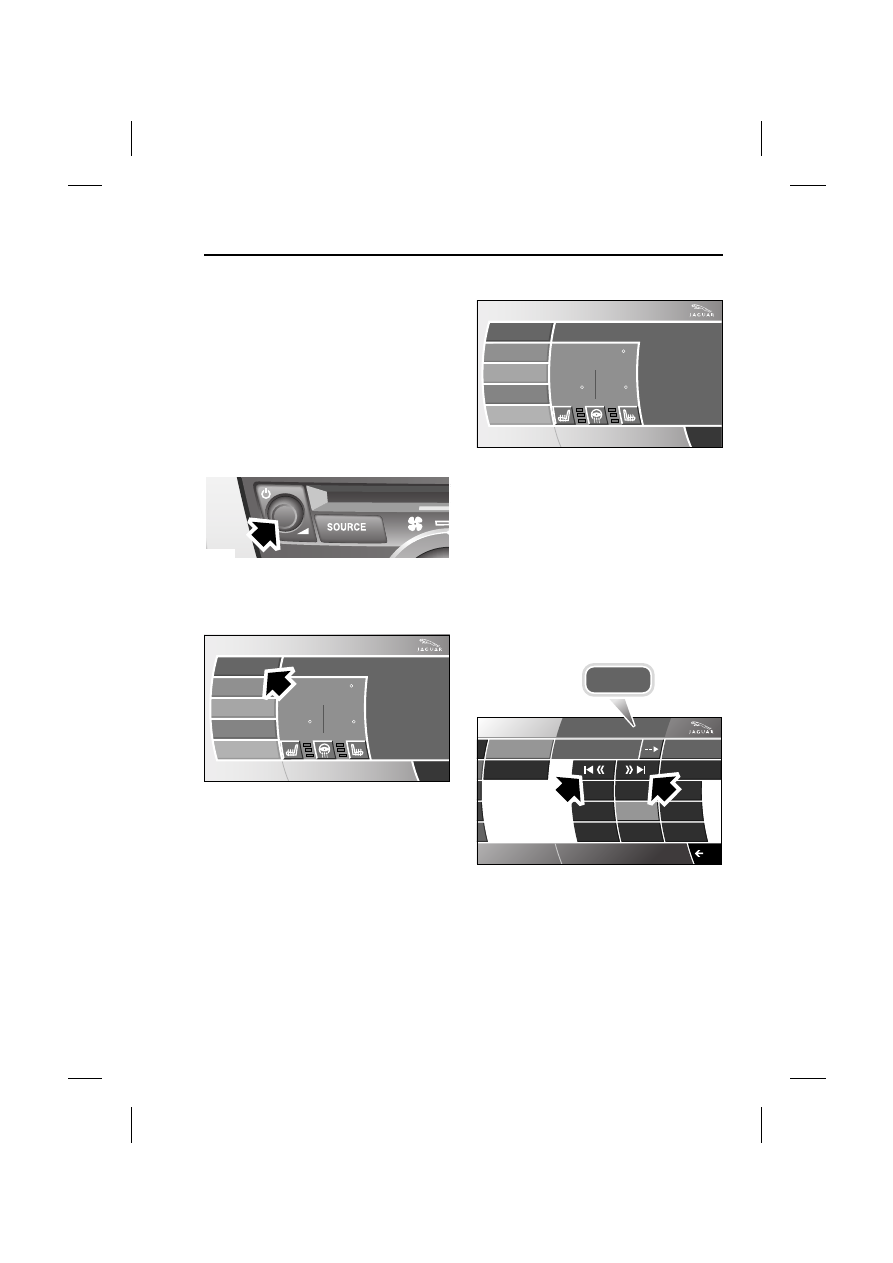

Audio - Seek tuning

The seek down or seek up buttons on
the touch-screen console and the
touch-screen carry out the same
function.

E92326

Home

Audio

Climate

Phone

Navigation

Vehicle

External

Left

Right

Valet

AUDIO OFF

12 : 26 pm

E93913

Home

Audio

Climate

Phone

Navigation

Vehicle

External

Left

Right

Valet

Radio
90.7

FM1

KALX

12 : 26 pm

E93914

Settings

A u d i o

AM / FM

Autostore

PTY

3CH

97.5

Seek

WABC

WFAN

WXRP

WNYC

WPLJ

WQXR

WHTZ

WHUD

WCBS

12 : 26 pm

E93918

Seek

Audio unit operation

274

Short press: In AM or FM mode,
pressing and releasing the seek down
(left-hand) or seek up (right-hand)
buttons will activate the radio tuning
through the frequency range, up or down,
to the next available station.

The touch-screen will display Seek on
the upper display until a station has been
found, and will then display the station
name, where available.

Long press: In AM or FM mode, for as
long as the button is being pressed the
frequencies will be scanned either up or
down.

The touch-screen will display Manual on
the upper display for a short time. While
this is displayed, a short press of the
buttons will also allow the frequencies to
be scanned.

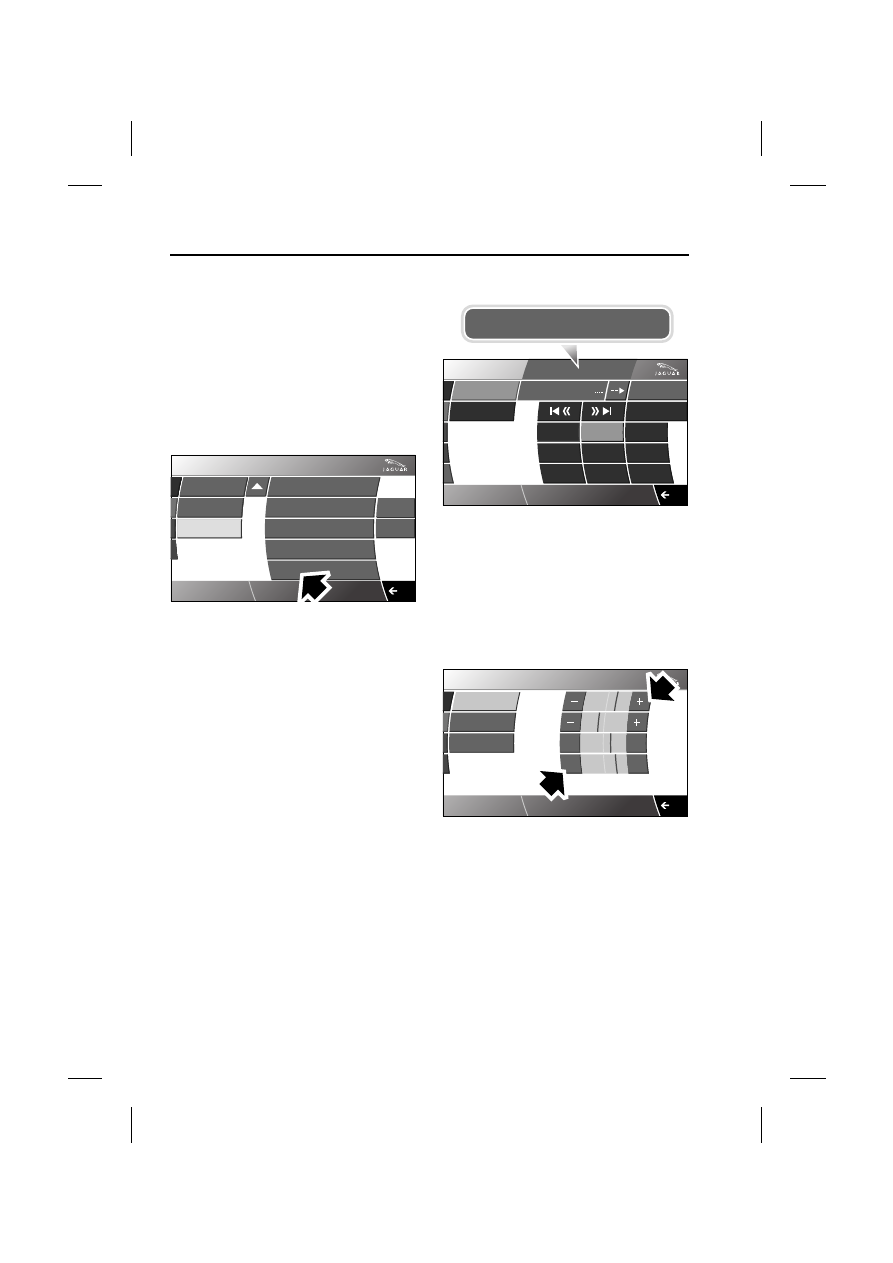

Settings - Sound

Selecting Settings from the audio main
display screen, defaults to Sound and
makes available various audio system
setting facilities.

Bass and treble

When Settings has been selected, the
display defaults to Sound settings.

Bass and treble levels are increased or
decreased by pressing the (+) or (-)
buttons.

Balance and fade

Balance - left to right.

Fade - rear to front.

A u d i o

Sound

Options

PTY

S e t t i n g s

Sound

Options

PTY

Alert

Personality

Public

College

Weather

Clear all

PTY

Search

12 : 26 pm

E93919

AM / FM

Settings

A u d i o

PTY

3CH

770

WABC

Text sent by station

WABC

WFAN

WXRP

WNYC

WPLJ

WQXR

WHTZ

WHUD

Autostore

WCBS

12 : 26 pm

E93920

PTY

3CH

770

WABC

A u d i o

Sound

Options

PTY

Treble

Bass

Balance

Fade

S e t t i n g s

12 : 26 pm

E93921
