267

Technical specifications

WEIGHTS
V8 4.2 litre normally aspirated engines

Note: Loads greater than 28 kg (62 lb) may be carried in the luggage compartment
provided the maximum technically permissible axle weights shown on the vehicle
identification plate are not exceeded and the tyres are inflated to the normal pressures
given on the label fixed to the end of the left-hand door.

V8 4.2 litre supercharged engine

Coupe

Convertible

Curb weight (no options fitted)

1665

3671

1705

3759

Front axle curb weight

887

1956

888

1958

Rear axle curb weight

778

1715

817

1801

Gross Vehicle Weight (GVW)

2035

4486

2075

4575

Gross front axle weight

1015

2238

1020

2249

gross rear axle weight

1090

2403

1125

2480

Maximum recommended luggage compartment
load with passenger and driver

Coupe

Convertible

Curb weight (no options fitted)

1730

3814

1780

3924

Front axle curb weight

935

2061

943

2079

Rear axle curb weight

795

1753

837

1845

Gross Vehicle Weight (GVW)

2080

4586

2120

4647

Gross front axle weight

1050

2315

1050

2315

gross rear axle weight

1095

2414

1130

2491

Maximum recommended luggage compartment
load with passenger and driver

268

Technical specifications

DIMENSIONS

Item

Description

Inches

Overall width, mirrors extended

2070

81.5

Overall width, mirrors folded

1892

74.5

Overall width, mirrors folded, rear arch extensions
fitted

1912

75.3

Track - Front (maximum)

1560

61.0

Overall height at GVW (nominal) - Coupe

1287

50.6

Overall height at GVW (nominal) - Convertible

1294

51.0

Minimum ground clearance (at GVW)

100

4.0

Track - rear (maximum)

1608

63.3

Wheelbase

2752

108

Overall length

4791

187.0

Turning circle (kerb to kerb)

10.97 m

37.4 ft

7
8

3
2

6
1

E91982

269

Audio introduction

RADIO RECEPTION

Your radio receives signals whilst on the
move, and may experience widely
differing reception characteristics.
Because of this, some interference is to
be expected from time to time during a
journey.

FM transmitters can only broadcast over
a limited range, and good clear signals
will only be received in the immediate
area of the transmitter. When travelling,
occasionally it may be necessary to
re-tune the radio to offset the effects of
moving from one transmitter area to
another.

While RDS automatic re-tuning helps to
reduce the effects of signal changes,
some manual re-tuning may still be
required, especially for local stations, in
areas of weak reception.

The broadcast range for good stereo
reception is within approximately 48 - 64
km (30 - 40 miles) of the transmitter.

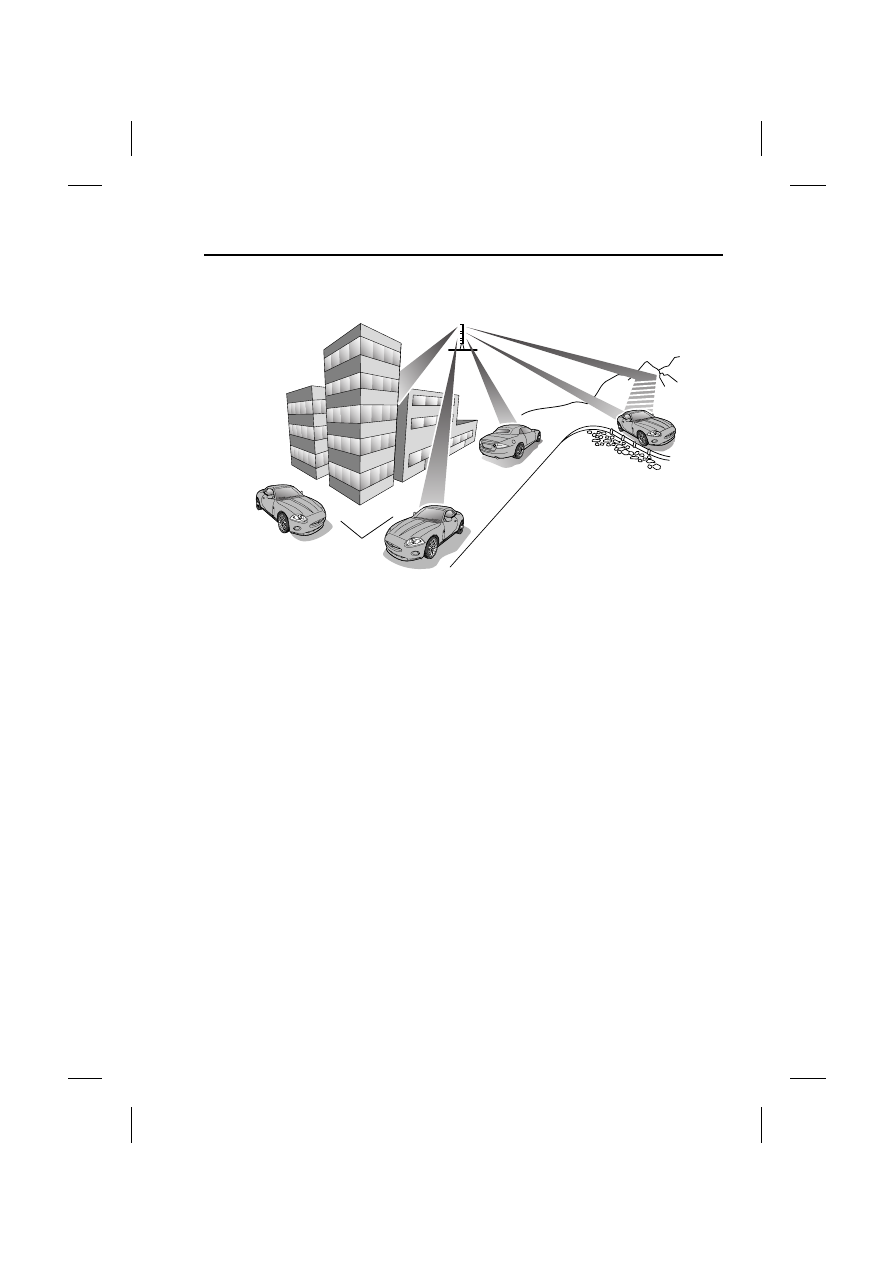

FM Signals travel in a straight line, so
large obstacles, such as tall buildings,
can shield the car from the signal causing
distortion or loss of reception, known as
dead spots.

Distortion can also occur if FM signals
received directly from the transmitter, mix
with signals deflected by obstructions
such as mountains, hills, and tall
buildings. This is known as multi-path
distortion.

Note: Although distortion, interference
and lack of signal clarity are sometimes
attributed to a fault in the radio, this is
rarely the case.

E92305

Audio unit overview

270

Audio unit overview

AUDIO UNIT OVERVIEW

The Audio Unit is located in the
touch-screen console, and is controlled
by touch-screen buttons 1 or hard
buttons 2 - 8.

1. Touch-screen: See

PERSONALISED SETTINGS
(page 122).

2. Load: Press to load CD. See

LOADING COMPACT DISCS
(page 282).

3. Eject: Press to eject CD. See

EJECTING COMPACT DISCS
(page 283).

4. Seek up: Press arrow to seek radio

frequency range up or to change CD
track up.

5. Seek down: Press arrow to seek

radio frequency range down or to
change CD track down.

6. Source: Press to change radio band

or to change the source media
between radio or CD.

7. Audio system ON/OFF and volume:

Press the control knob to switch the
system ON/OFF. Volume control:
Turn the control knob to increase or
decrease volume. Any volume setting
made whilst in audio, phone,
navigation or voice activation mode,
will be memorised for that system.

8. CD load and eject slot.

The sound system is available in two
versions:

The Jaguar Sound System comprises a
radio and in-dash 6 compact disc (CD)
player and door mounted speakers and
additional speakers in rear quarters.

The Jaguar Premium Surround Sound
System comprises a radio and in-dash 6
compact disc (CD) player, with upgraded
speakers mounted in the doors and rear
quarters, plus an additional speaker
mounted in the fascia and a sub-woofer
mounted in the passenger foot well under
the carpet.

WABC

WFAN

WXRK

WNYC

WPLJ

WQXR

WHTZ

WHUD

WCBS

Settings

A u d i o

12 : 26 pm

Autostore

AM / FM

PTY

3CH

770

WABC

Text sent by station

E93909
