JAC Pick-Up. Manual - part 5

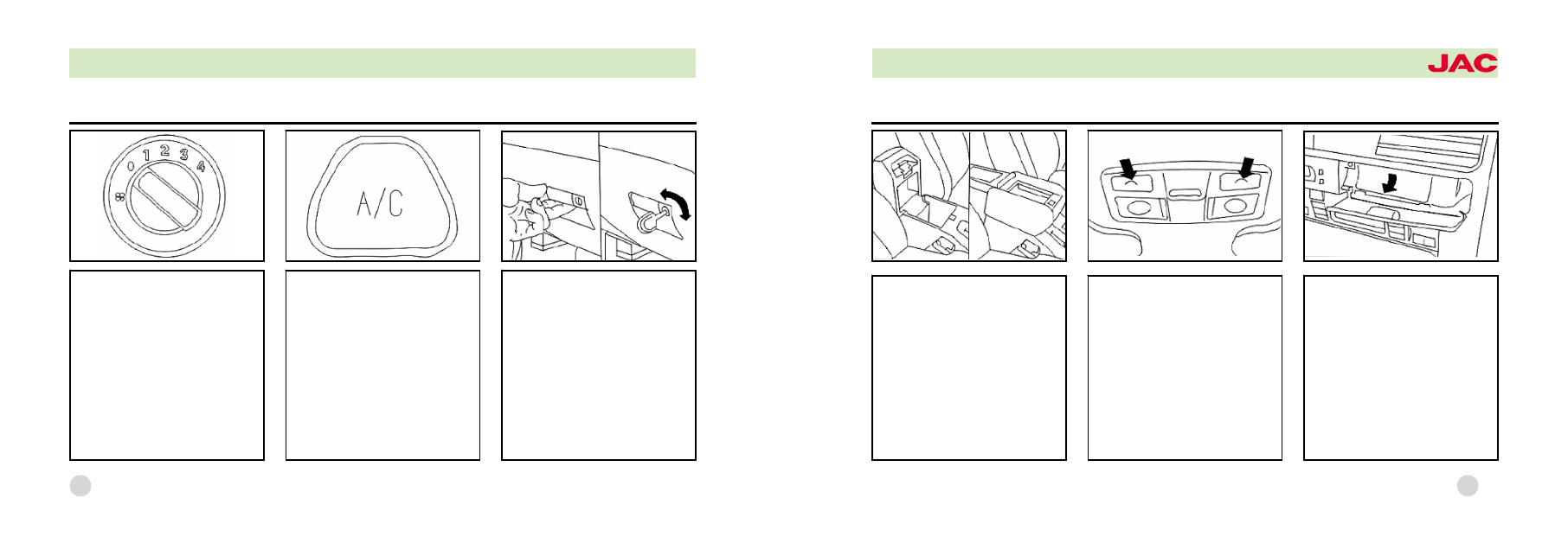

Air Conditioner

Fan Switch

0 - Power off.
1 - Low-speed.
2 - Low/Middle Speed
3 - Middle/High Speed
4 - High speed

A/C Switching Button

Operate this button to run the
compressor when the fan switch is
turned to position 1, where the in-
built LED will illuminate. Press it a鄄
gain to disengage the compressor.
Refrigerant
Note R134a refrigerant is re鄄
quired for this air conditioning
system where necessary.

Containers

Glove Compartment

Pulling out the handle can open
the glove compartment.
The ignition key can lock and un鄄
lock the glove compartment.

1 -32

OWNER爷S MANUAL

pick-up

Utility Box

The utility box consists of two
storing spaces.

Interior Lighting

Map Light

Hit the switch to turn on the map
light and improve interior lighting
at night.

Coin Box

Receiving pocket money.

1 -33

Switch

Van Lock

To lock/unlock the van as shown.

Hood Release Rod

To open the hood, you have to
pull the release rod located on
the left of the instrument panel to
unlock the unit and activate the
spring -loaded stay -on rod,
thereby opening and keeping the
hood at a certain angle, where

the engagement between the
end of the stay-on rod and the
hood is full engaged. To close
the hood, you have to retract
the stay-on rod into its clamp鄄
ing case to lay down the hood
and lock it at specified location.

1 -35

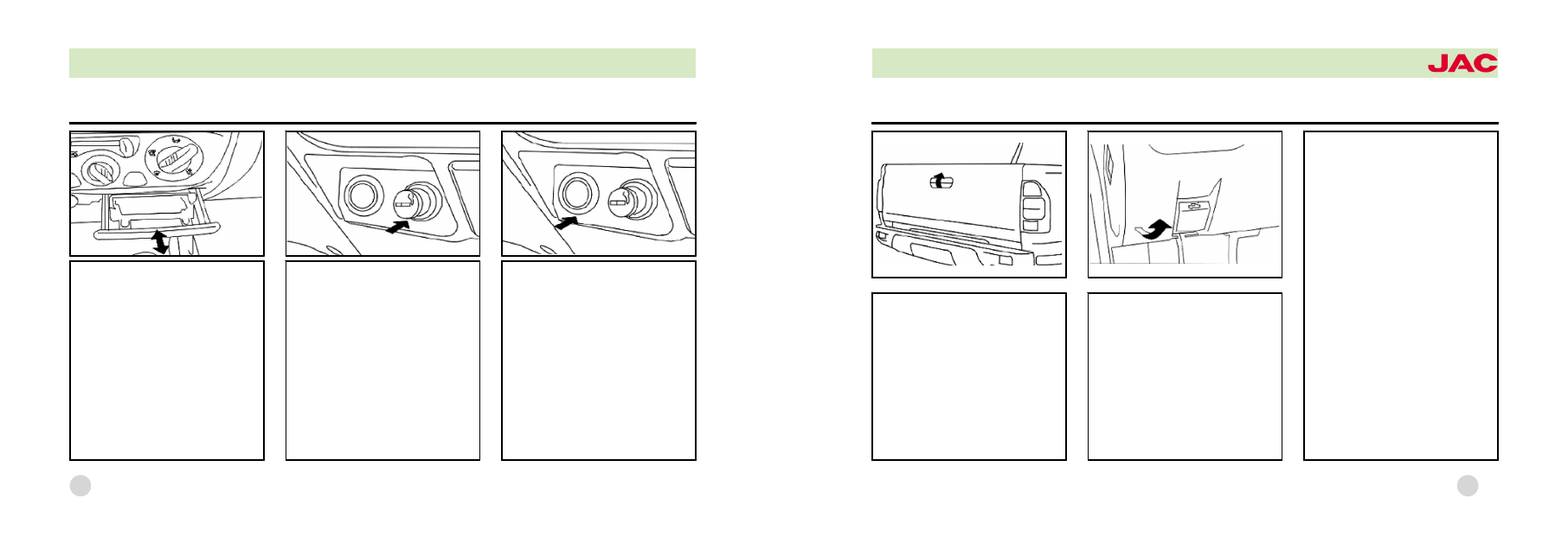

Ashtray

Make sure to push the ashtray
back after smoking. This can
avoid possible fire risk due to
an

unextinguished

cigarette

butt.
You can use the ashtray to
smoke by simply pulling it out.
Press the ashtray down and pull
it out further in case of cleaning.

Cigarette Lighter

To use the cigarette lighter, press
the resistance-wire plug and it can
eject automatically when ready. It in鄄
dicates some failure present if the
lighter fails to eject within 18 sec鄄
onds. In this case you must pull it
back to its original position manually.
* The socket for the cigarette
lighter can not be used for other
purposes so as to avoid nay pos鄄
sible circuit failures.

On-Board Charger

On-board Charger

You can charge your appliances
with dedicated charging unit for
ease of your trip.

1 -34

OWNER爷S MANUAL

pick-up

Problems

Causes and Solutions

No Power

Examine for any blown power fuses and replace them
where applicable.

Faulty LCD Display and In鄄
operative Buttons

Press RES Button.

Unable to Receive Stations.

Examine and ensure the antenna or its cable has been
properly fitted.

Poor

Receiving

Perfor鄄

mance

(1) The antenna has not extended to its full length and ex鄄
amine whether the antenna is broken or fully extended. If
broken, please replace it.
(2) Poor radio signal
(3) Poor antenna grounding. Examine whether the antenna
has been properly grounded.

Poor Vibration Resistance

Laser head is dusty and requires a cleaning.

Unable to insert a disk

A disk has already been loaded.

"STOO" Stereo Indicator
Flashes.

(1) Accurately tuned radio frequency.
(2) Poor radio signal (MONO mode is recommended)

CD Player

Features:
CD/CD-R/CD-RW Compliant
FM/AM Receive
RCA Audio Output
Automatic Storage for up to 30
Radio Stations
Strong Vibration -free Electronic
System
4 伊45 W High -power Speaker
Output
DC12V Power Supply

Brief Troubleshooting Guide

Note: Please contact your professional service provider if these instructions fail
and no unauthorized repairs are allowed.

1 -37

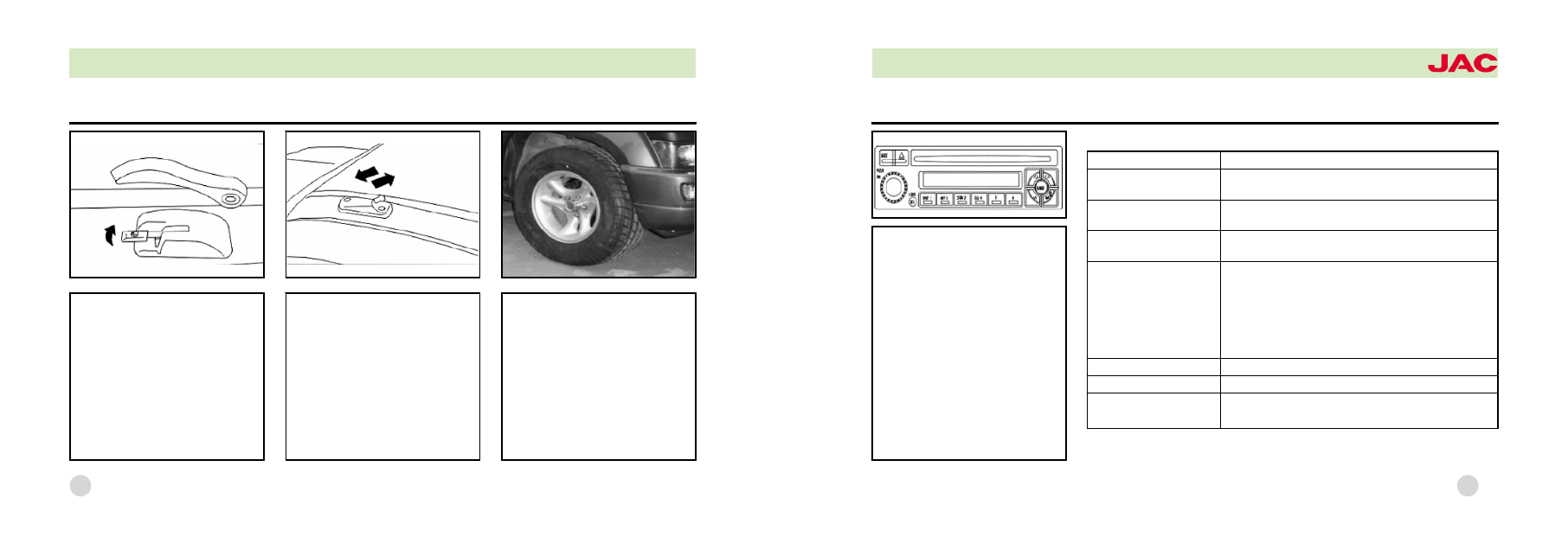

Fuel Filler Cap

Fuel Filler Cap Release
Handle

Lift the oil filler cap release han鄄
dle at the side of the driver's
seat to open the filler cap, and
allowing oil filling without step鄄
ping off your car.

Antenna

A telescopic antenna has better
receiving effect.

Aluminum Hub

Aluminum hubs are provided.

1 -36

OWNER爷S MANUAL

pick-up

First 1500KM and After

Good break-in at the initial stage
will benefit fuel consumption, ex鄄
tend your vehicle's service life and
reduce the environmental pollution.
Break-in:
At the initial driving stage, the
engine will experience more wear
than any other moving parts. The
effect mainly depends on the first
1500KM.

First 1000KM

From experience:
1. Avoid full throttle operation
2 Do not exceed 3/4 of top en鄄
gine speed
3. Avoid high-speed operation.
4. Avoid operation with a trailer
as much as possible.

Caution:

New tires are also subject to "bre-
ak -in" as no optimal adhesion is
available at the beginning.
You have to pay attention to this
case for the first 100km.
New brake disks must go through
"break-in".
An optimal fiction effect can not be
attained until the first 200km has
passed. Slightly-degraded braking
can be compensated with more
braking effort, in a similar way to
newly-fitted disks.

From 1000KM to 1500 KM

You can gradually increase your
speed until it reaches the maxi鄄
mum vehicle speed or the maxi鄄
mum allowed engine speed.

In case of a cold start, run your
engine at high speed under no
circumstances either in the neural
position or any engaged position.
All speed related requirements
applies to a warm engine.
Avoid unnecessary high -speed
operation - an early selection of
high-speed gear will benefit fuel
consumption, noise reduction and
environmental protection.
Do not run your engine at exces鄄
sively low speed. Shift to low -
speed gear in case of non -
smooth engine running.

After Break-in

The maximum engine speed shall
be restricted before the pointer
reaches the red area on your
tachometer (if fitted).

2 -01

Dear User:

This manual covers JAC pick-ups listed in following table, where figures and notes are only applicable to the specified
model.

NAME

MODEL

JAC Pick-up

HFC1027K1R

JAC Pick-up

HFC1027E1R

ENGINE

HFC4DA1-1 Diesel

HFC4GA3 Petrol (*)

GEARBOX

END MARKER

LC5T80

Have a Nice Drive!
