Place the inside bearing’s outside ring (3) and use beater
99374093 (2) and handle (1) 99370007 to make setting.

Use general tools to remove the stud bolts (1) from the brake
disc (2).
Check that the supporting plane of the stud bolt heads is not
burred.

Lubricate the inside bearing with oil SAE W
140/MDA and place it on the wheel hub.

Set the sealing ring.

Reattach the wheel hub.

Check the wheel hub end play.

Check the rolling torque.

520625

Replacement of wheel stud bolts

Place the stud bolts accurately putting on their heads
a load not higher than 2300 kg.

Once the operation is completed, check the lack of
clearance between the disc plane and the area under
the stud bolt head and verify that the orthogonality
error is not higher than 0.3 mm.

Wheel hub reattachment

60875

60876

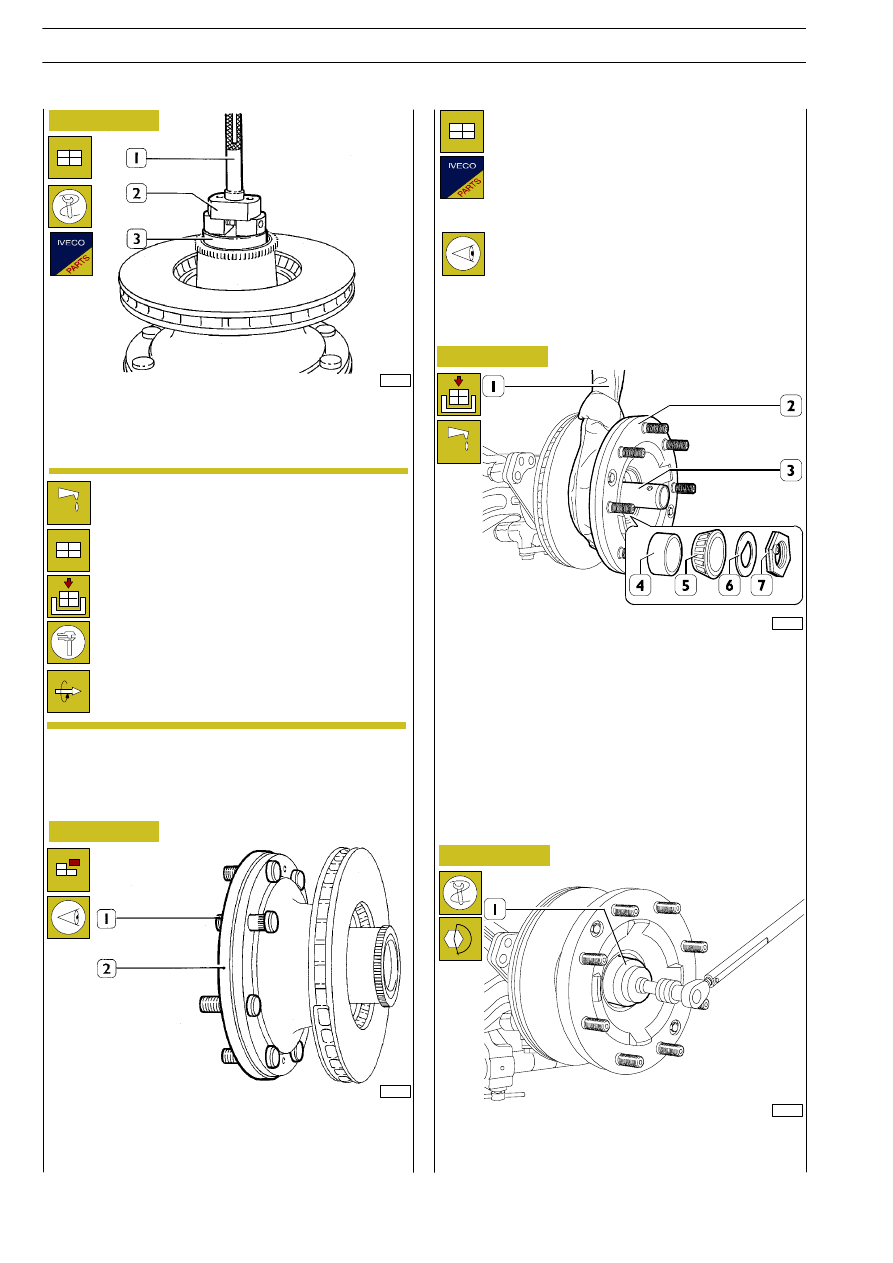

Screw tool 99370712 (3) on the steering knuckle pin and lu-
bricate its outside surface using oil TUTELA W 140/M-DA.
Secure the wheel hub (2) with a rope (1) and support it with
a lifter. Lock carefully the wheel hub (2) on the steering
knuckle pin in order not to damage the sealing ring (3,
Figure 35).
Mount spacer (4) and tapered-roller bearing inner race (5).
Release tool 99370712 (3).
Force-fit washer (6) and screw down retaining ring (7).

Tighten ring (7, Figure 40) to the specified torque by means
of wrench 99355038 (1).

Figure 38

Figure 39

Figure 40

Figure 41

URO

ARGO

ECTOR

12-26 t

FRONT AXLE 5845

Base - February 2003

32999

32998

77202

77203

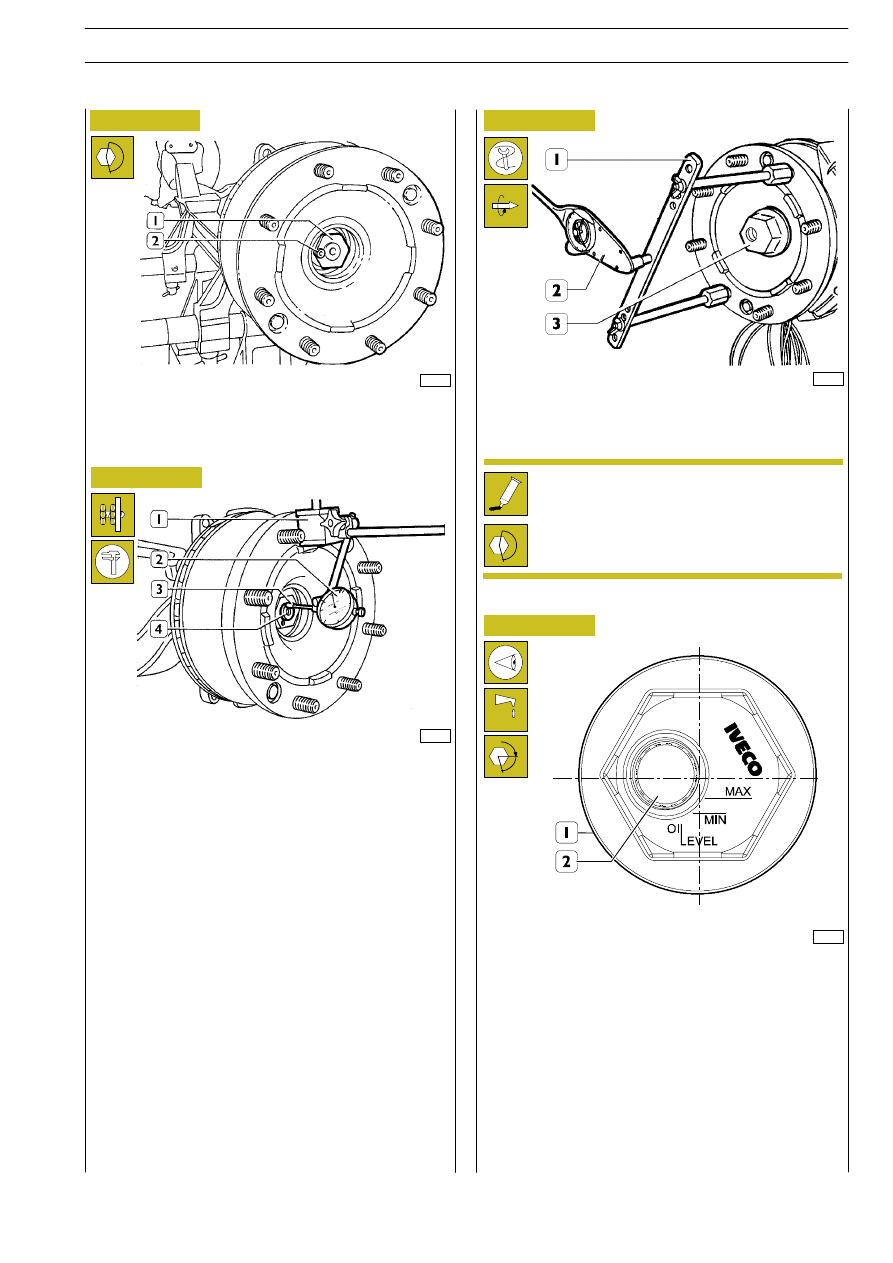

Secure retaining ring (1) screw (2) to the specified torque.

Check wheel hub end play

Hit the wheel hub in axial direction with a mallet and rotate
it in both directions in order to release the bearings’ rolls.
Set the magnetic base (1) fitted with a gauge (2) on the wheel
hub.
Place the gauge pointer (3) perpendicular to the steering
knuckle shank (4).
Set the gauge to zero with a preload corresponding to 1.5
÷ 2 mm.
Move the wheel hub in axial direction by means of a lever and
detect the end play which must be 0.16 mm (maximum
value).
If the detected value does not correspond to the prescribed
one, replace the bearing unit and make a new survey.

Apply tool (1) 99395026 on wheel hub stud bolts and use
torque meter 99389819 (2) to check whether the wheel hub
rolling torque is at the set value.

Rotate the wheel hub until when hub cover (1) is positioned
as shown in the figure. Restore the prescribed quantity of oil
into the hub cover (1) through filling hole (2). Tighten the
plug on the hub cover (1) to the set torque.

Deposit a sealing bead (Loctite type 574) exclusively
on the hub cover ledge surface and protect the
threaded part.

Figure 42

Figure 43

Figure 44

Figure 45

Tighten to torque the hub cover (3).

URO

ARGO

ECTOR

12-26 t

FRONT AXLE 5845

Base - February 2003

60878

60880

60879

33007

Reattach the brake callipers (1) to the flange (3) and lock the
screws (2) according to the prescribed torque. Set braking
gaskets following the procedure described in chapter “Wheel
hub overhaul” Rear axle section.

520635

Cross tie rod detachment and
reattachment

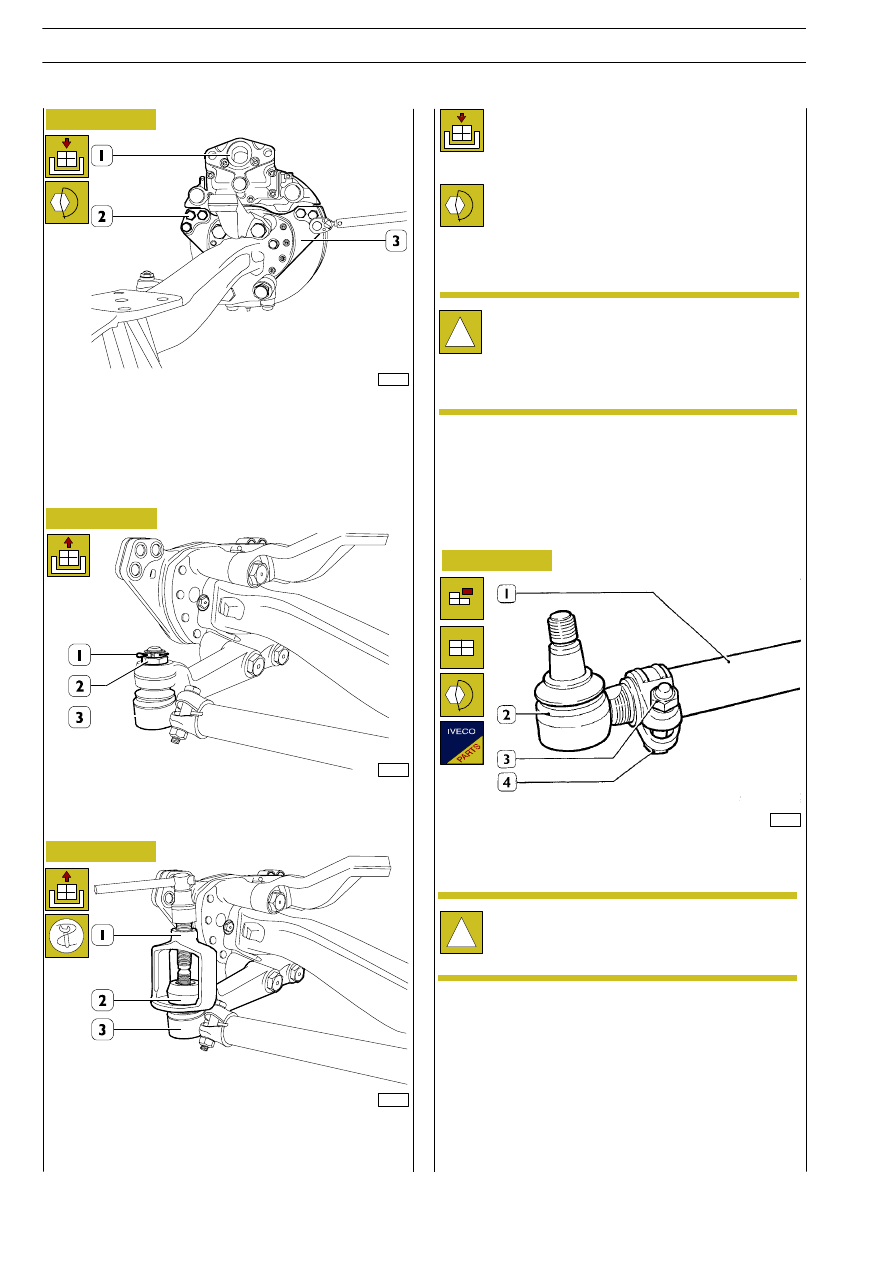

Straighten and take off the split pin (1).
Unlock the nut (2) and release it partially in order to prevent
the tie rod (3) from falling when it is removed.

Use extractor (1) 99347068 to unlock the articulated pin (3)
from the lever (2). Repeat the same operations on the oppo-
site side, release the nut (2, Figure 47) completely and re-
move the cross tie rod.

To reattach reverse the detachment operation
order.

Block the screw (4), release the nut (3) and unscrew the ar-
ticulated pin (2) from the cross tie rod (1).

Clamp the castellated lock nuts of the articulated
pins according to the prescribed torque.

Check that the nut grooves match with the cross
holes on the articulated pins. If it is not possible to
introduce the split pins, gradually raise the nut
tightening torque until the split pins are completely
put in place (angle lower than 60

°).

520636

Replacement of cross tie rod
articulated pins

Write down the number of turns needed to release
every articulated pin in order to screw the new ones
making the same number of turns.

Screw the articulated pin (2) in the tie rod (1). The nut (3)
must be clamped according to the prescribed torque, after
making toe-in adjustment as described in the “Wheel set up”
chapter.

Figure 46

Figure 47

Figure 48

Figure 49

URO

ARGO

ECTOR

12-26 t

FRONT AXLE 5845

Base - February 2003

60881

60883

60882

60884

60885

60886

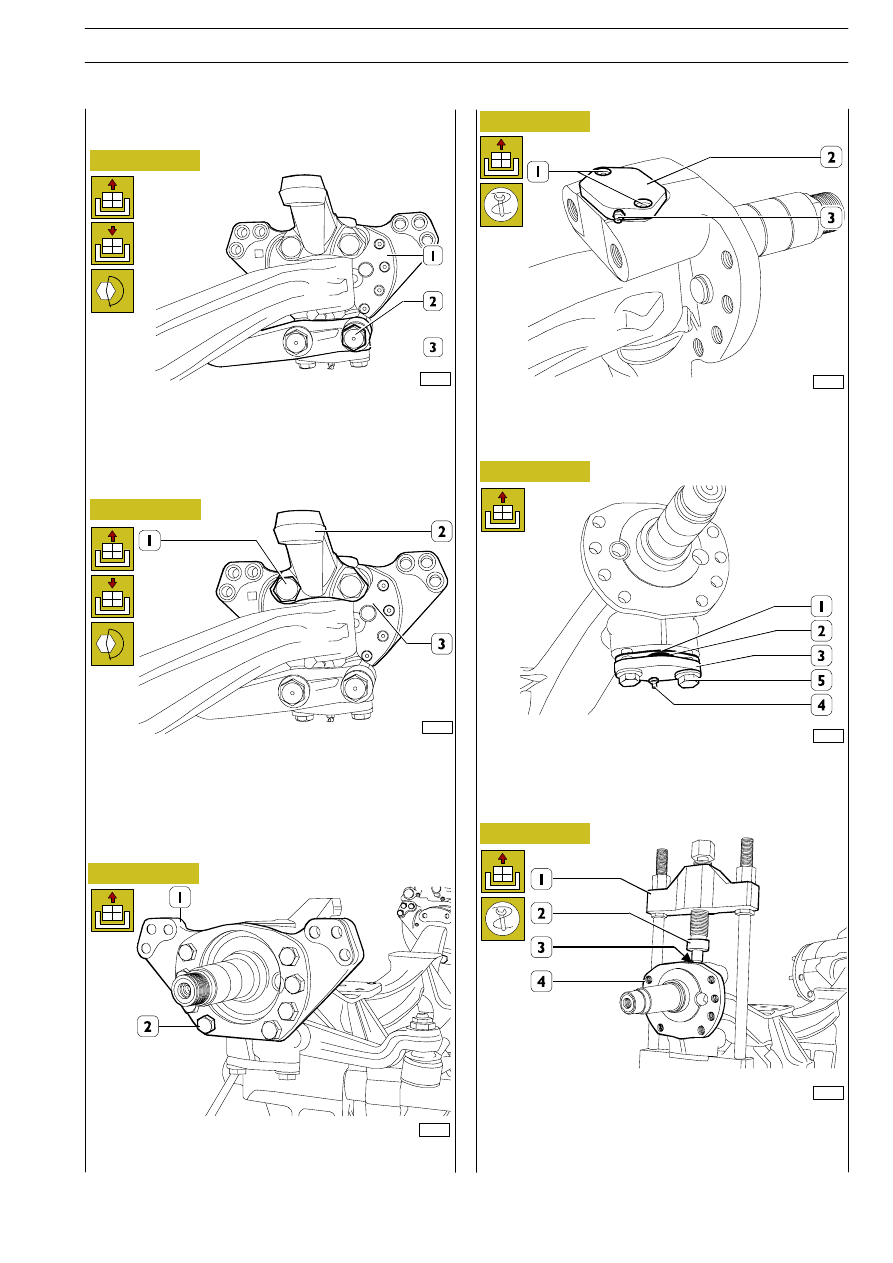

Loose the screws (2) and remove the lever (3) from the ar-
ticulated pin (1). To make reattachment reverse the oper-
ation order and clamp the lock screws (2) according to the
prescribed torque.

520632

Longitudinal tie rod lever
detachment and reattachment

Release the screws (2) and remove the brake callipers sup-
port (1) from the axle.

Loose the screws (1) and remove the upper cover (2) to-
gether with the lubricator (3).

Release the screws (5) and remove the cover (3) together
with the thrust block (2), the adjusting plate (1) and the lubri-
cator (4).

Use tool 99347047 (1) and element (2) to unfasten the
steering knuckle (4) articulated pin (3). Remove the tool, take
off the pin (3) and remove the articulated joint (4) from the
axle.

520631

Cross tie rod lever detachment and
reattachment

Figure 50

Figure 51

Figure 52

Figure 53

Figure 54

Figure 55

Loose the screws (1) and remove the lever (2) from the ar-
ticulated pin (3). To make reattachment reverse the oper-
ation order and clamp the lock screws (1) according to the
prescribed torque.

520611

Steering knuckle pin detachment
and reattachment

Detachment

URO

ARGO

ECTOR

12-26 t
