Figure 3
Figure 4
Figure 5
Figure 6

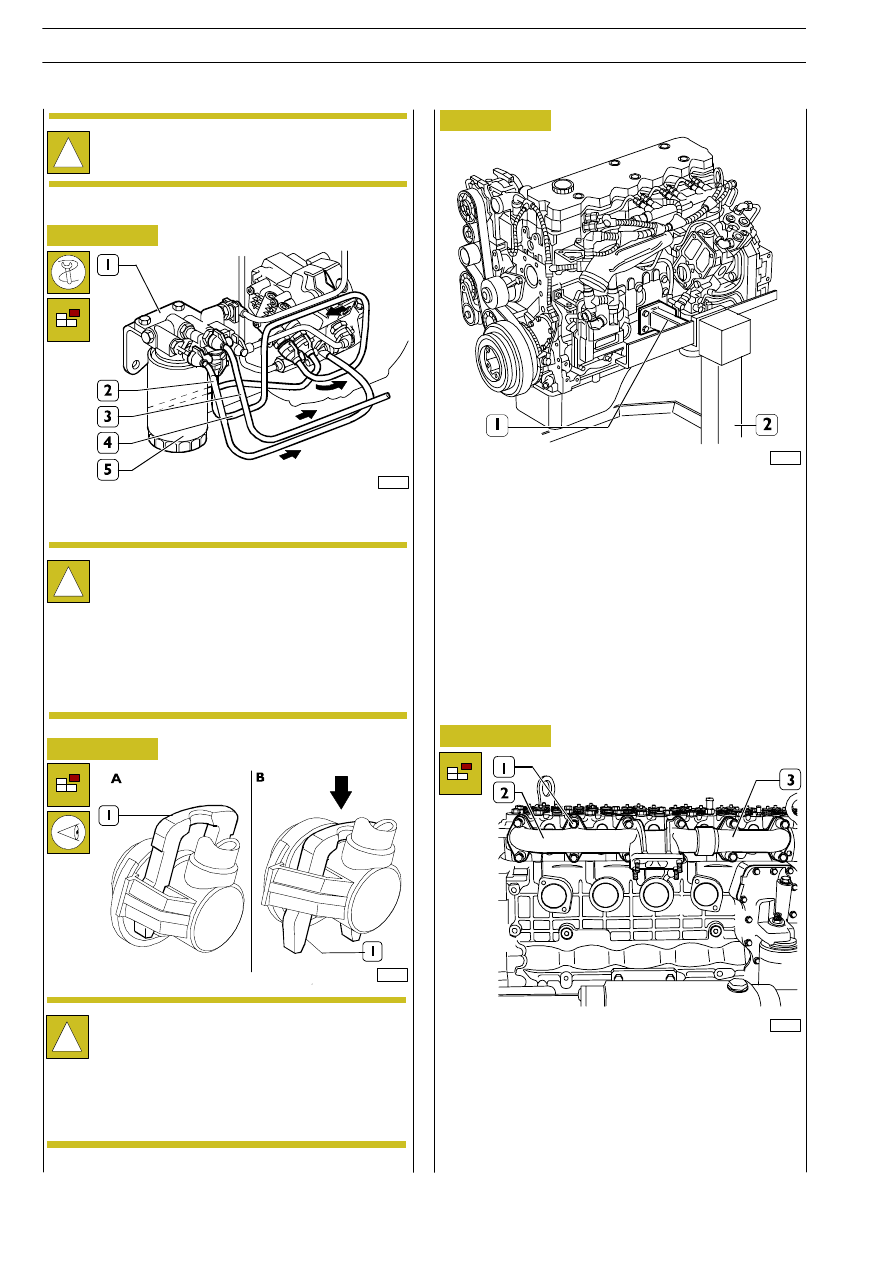

Apply to engine block brackets 99341009 securing engine to
overhaul stand 99322205.
Assemble brackets 99341009 (1) to engine block and secure
them to overhaul stand 99322225 (2).
Proceed then to overhaul the engine complying, unless
otherwise stated, with what is described for four-cylinder
engine F4AE0481.
Remove fastening screws (1) and disconnect exhaust
manifold into two sections (2-3) with related gaskets.
!
In order to disconnect low-pressure fuel pipings (2
— 3 — 4. Figure 3) from related connection fittings, it
is necessary to press clip (1) as shown in figure B.
After having disconnected the piping, take back clip
(1) to its locking position, figure A, to avoid possible
distortions of the clip.
!

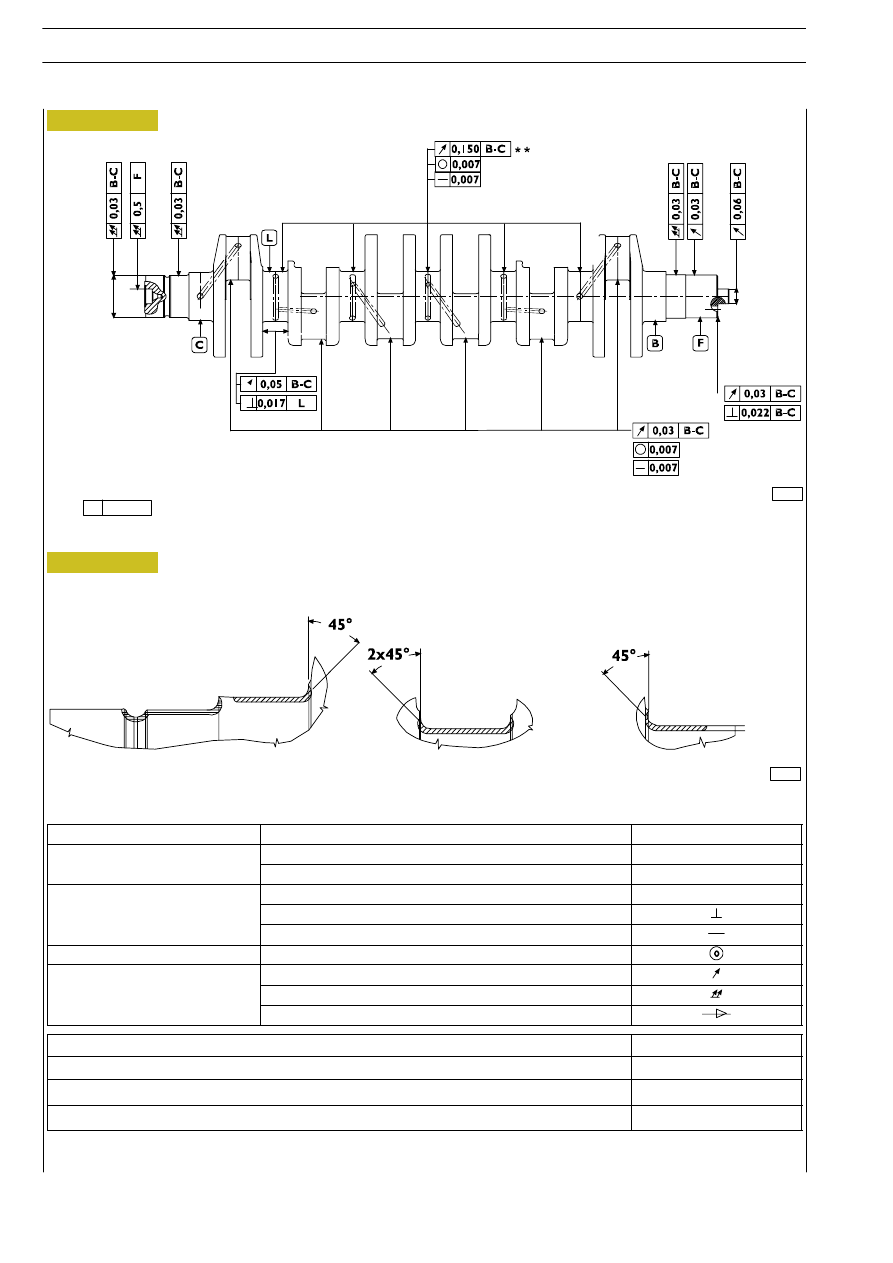

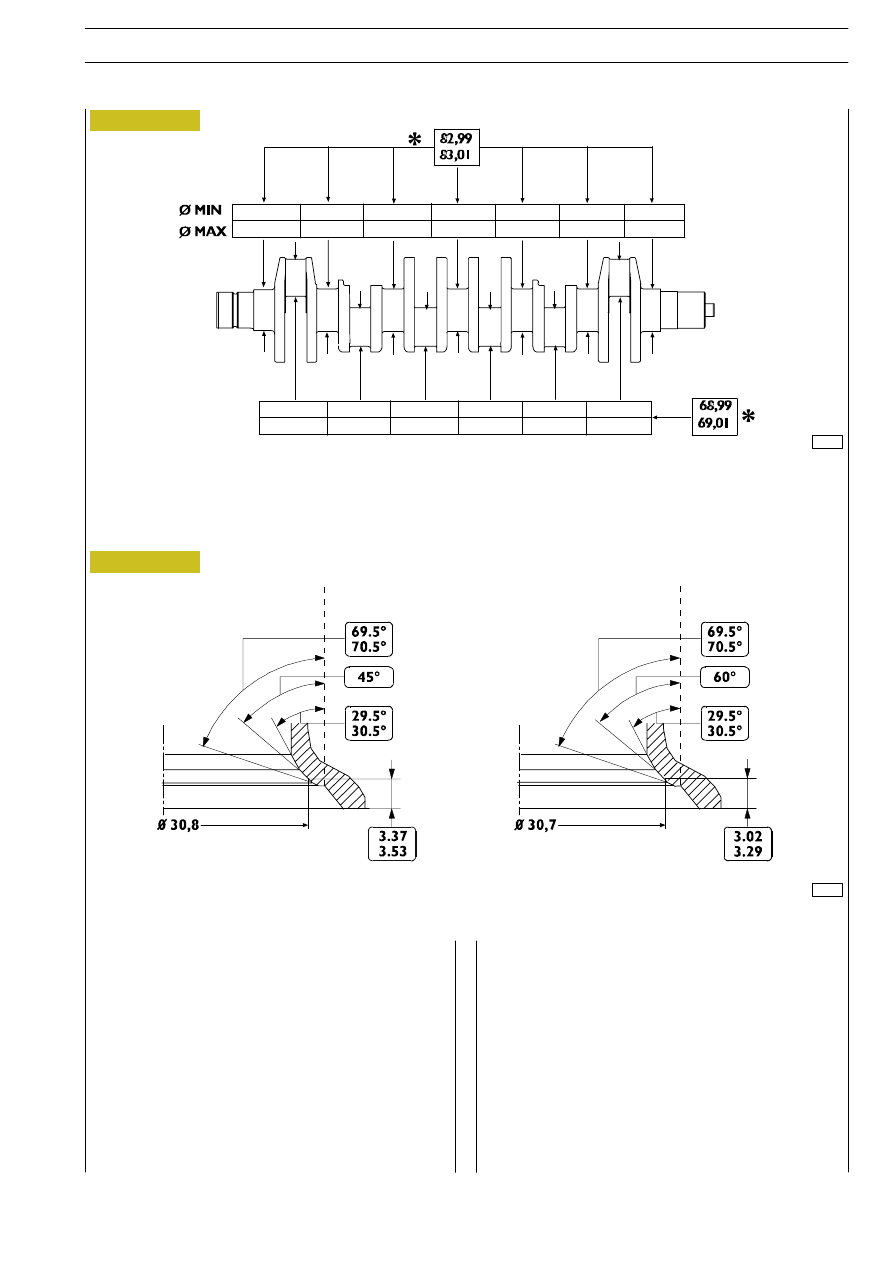

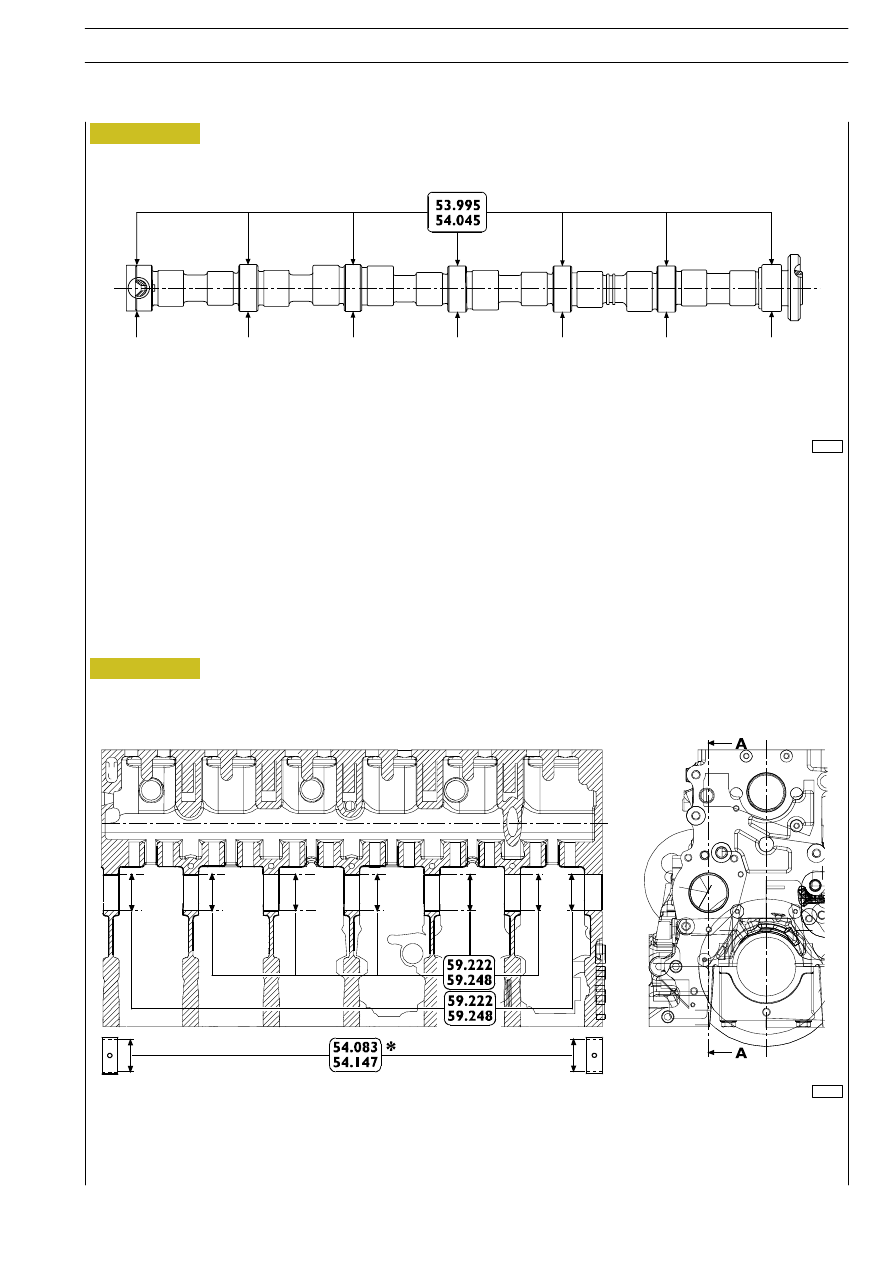

It is different from engine F4AE0481 overhaul as
regards what is stated below.
‘
540110
Engine removal at the bench
!
In order to apply a bracket to left engine side, it is
necessary to:
- with tool 99360076, disassemble fuel filter (5)
from support (1);
- disconnect low-pressure fuel pipings (2-3-4)
from support (1);
- detach support bearing bracket (1) from block.
