Iveco EuroCargo (12 to 26 t). Manual - part 21





70336

70337

70338

70339

70133

Figure 152

Figure 153

Figure 154

Figure 155

Figure 156

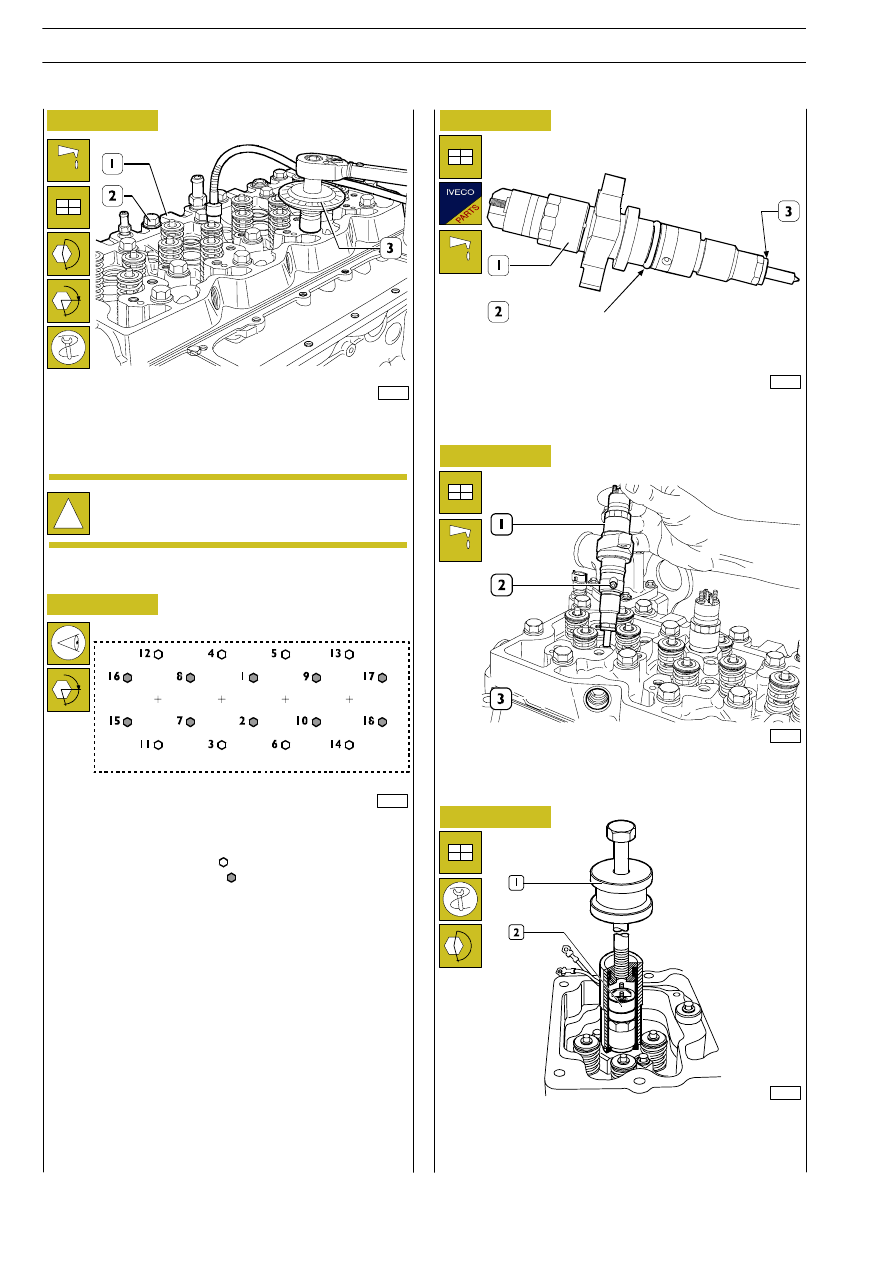

Refit the cylinder head (1), tighten the screws (2) in three
successive stages according to the sequence and procedure
shown in the following figure.

Cylinder head fastening screw tightening sequence:

- 1

st

stage pre-tightening, with dynamometric wrench:

• Screw 12x1.75x130 ( ) 35

± 5 Nm

• Screw 12x1.75 x 150 ( ) 55

± 5 Nm

- 2

nd

stage, tightening to 90

° ± 5° angle

- 3

rd

stage, tightening to 90

° ± 5° angle

A = front side

Fit a new sealing ring (2) lubricated with vaseline and a new
sealing washer (3) on injector (1).

Fit injectors (1) on the cylinder head seats, directed so that
the fuel inlet hole (2) is facing the fuel manifold seat (3) side.

Use tool 99342101 (1) to fit the injector (2) into its seat.

Screw injector fastening screws without tightening them.

!

Use tool 99395216 (3) to tighten to angle.

α

α

s

A

E

URO

C

ARGO

T

ECTOR

12-26 t

74

ENGINE F4 AE 0481

Base - February 2003

Rocker control rods shall not be distorted; the ball seats in
touch with the rocker adjusting screw and with tappets
(arrows) shall not show seizing or wear; otherwise replace
them. Intake and exhaust valve control rods are identical and
are therefore interchangeable.

70341

70342

32655

70343

70344

Figure 157

Figure 158

Figure 159

Figure 160

Figure 161

Fit a new sealing ring (3) lubricated with vaseline on the fuel
manifold (2) and fit it into the cylinder head seat so that the
positioning ball (5) is coinciding with the relevant housing (4).

Screw the fastening nuts (2, Figure 158) without locking
them.

Use the dynamometric wrench to tighten gradually and
alternately the injector fastening screws (1) to 8.5

± 0.8 Nm

torque.

Tighten the fuel manifold (3) fastening nuts (2) to 50 Nm
torque.

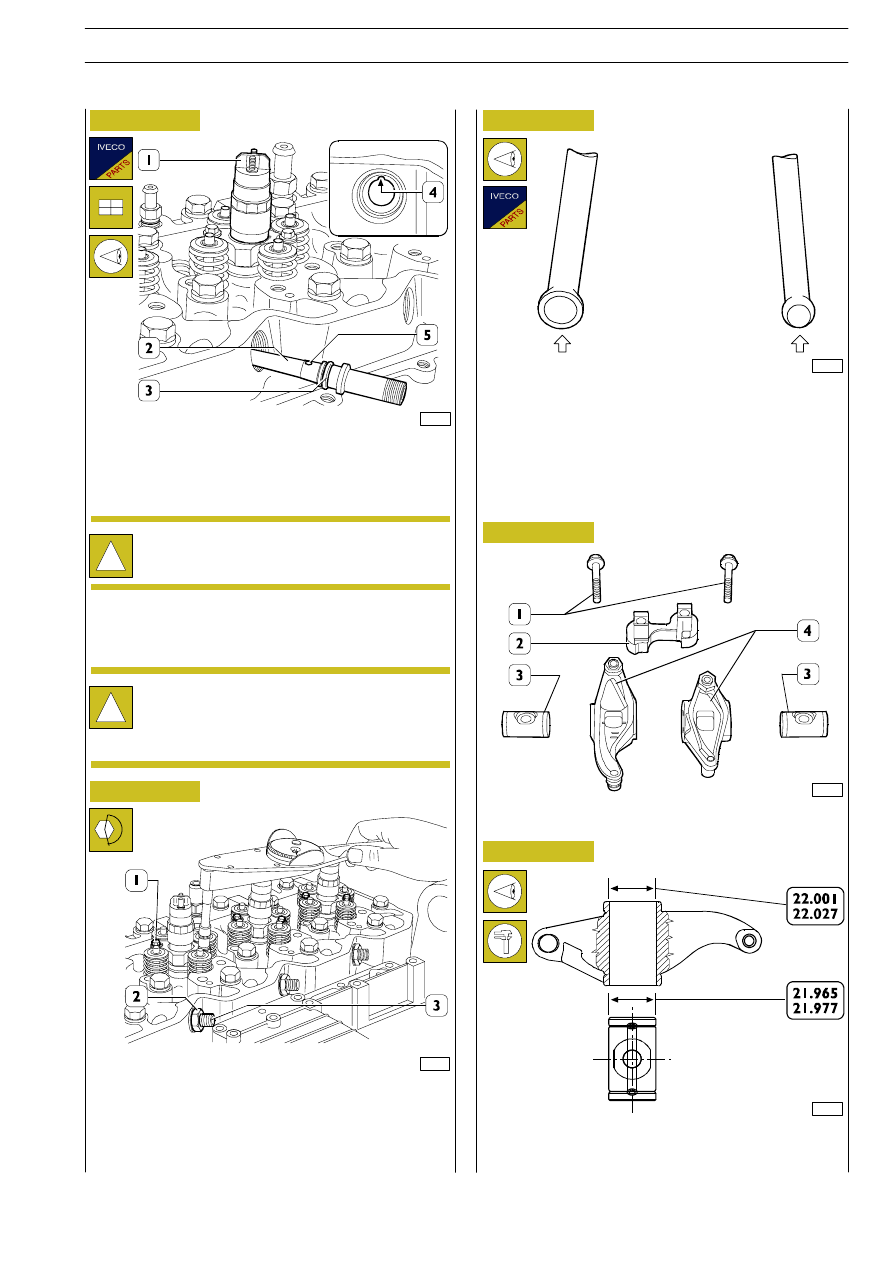

ROCKER ASSEMBLY COMPONENTS:

1. Screws - 2. Bracket - 3. Shafts - 4. Rockers.

!

During this operation, the injector (1) shall be
moved so that the manifold (2) is properly inserted
into the fuel inlet hole (2, Figure 155).

501230

Rocker assembly

SHAFT-ROCKER MAIN DATA

Check that shaft/rocker coupling surfaces are not showing
excessive wear or damages.

!

Removed fuel manifolds (2) shall not be reused but
replaced with new ones.

E

URO

C

ARGO

T

ECTOR

12-26 t

ENGINE F4 AE 0481

75

Base - February 2003

RODS

70345

70346

70520

Figure 162

Figure 163

Figure 164

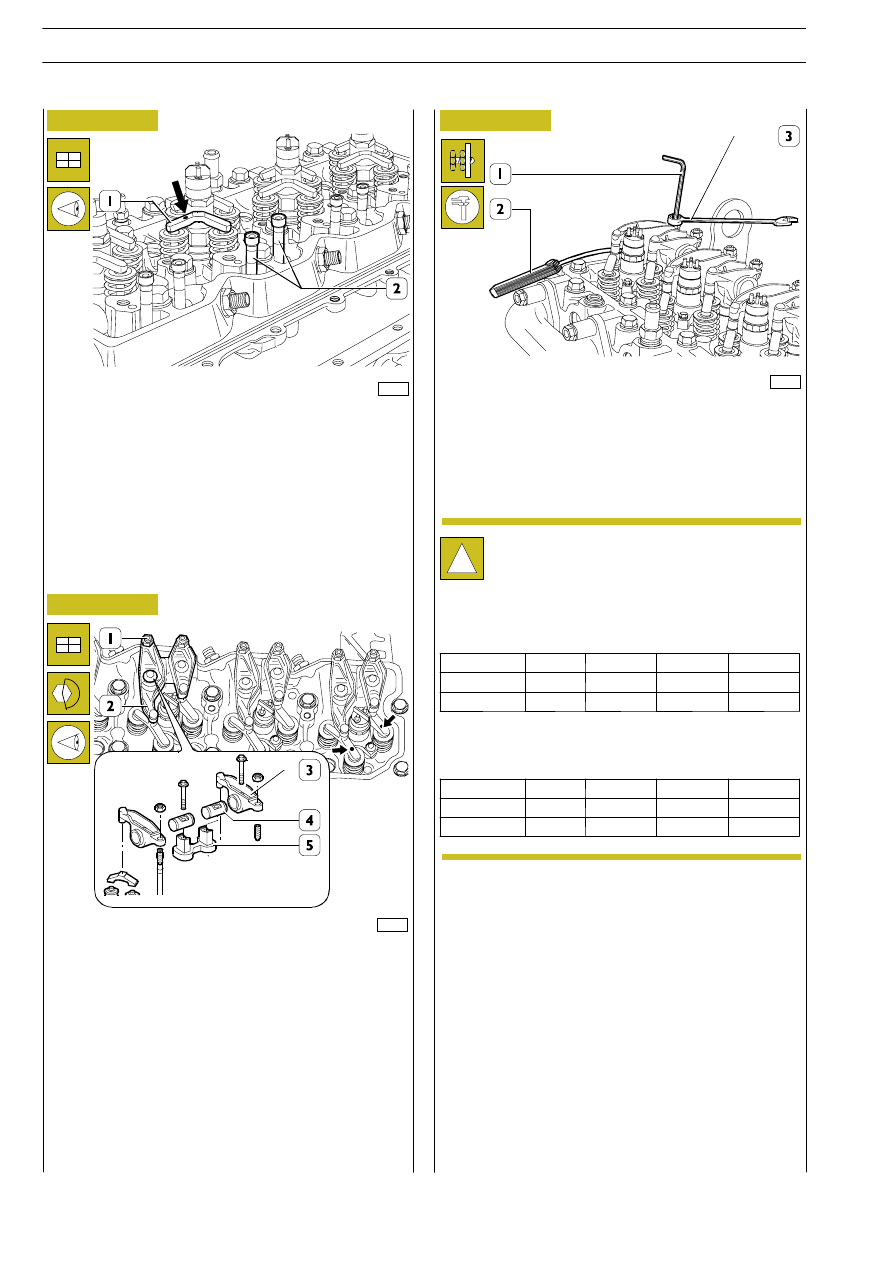

Fit the rods (2).

Position jumpers (1) on valves with marks (

→) facing the

exhaust manifold.

Check that tappet adjusters (1) are loosen to prevent their
balking on the rods (2, Figure 162) when refitting the rocker
assembly.

Then refit the rocker assembly consisting of: bracket (5),
rockers (3), shafts (4) and secure them to the cylinder head
by tightening the fastening screws (2) to 36 Nm torque.

Adjust clearance between rockers and valves using setscrew
wrench (1), box wrench (3) and feeler gauge (2).
Working clearance shall be as follows:
-

intake valves 0.25

± 0.05 mm

-

exhaust valves 0.51

± 0.05 mm

!

To carry out rocker-valve clearance adjustment
more quickly, proceed as follows:
rotate the output shaft, balance the valves of cylinder
No. 1 and adjust the valves marked with an asterisk
in the tables below:

Rotate the output shaft, balance the valves of
cylinder No. 4 and adjust the valves marked with an
asterisk in the table below:

E

URO

C

ARGO

T

ECTOR

12-26 t

76

ENGINE F4 AE 0481

Base - February 2003

cylinder No.

1

2

3

4

intake

-

-

*

*

exhaust

-

*

-

*

cylinder No.

1

2

3

4

intake

*

*

-

-

exhaust

*

-

*

-

70347

Figure 165

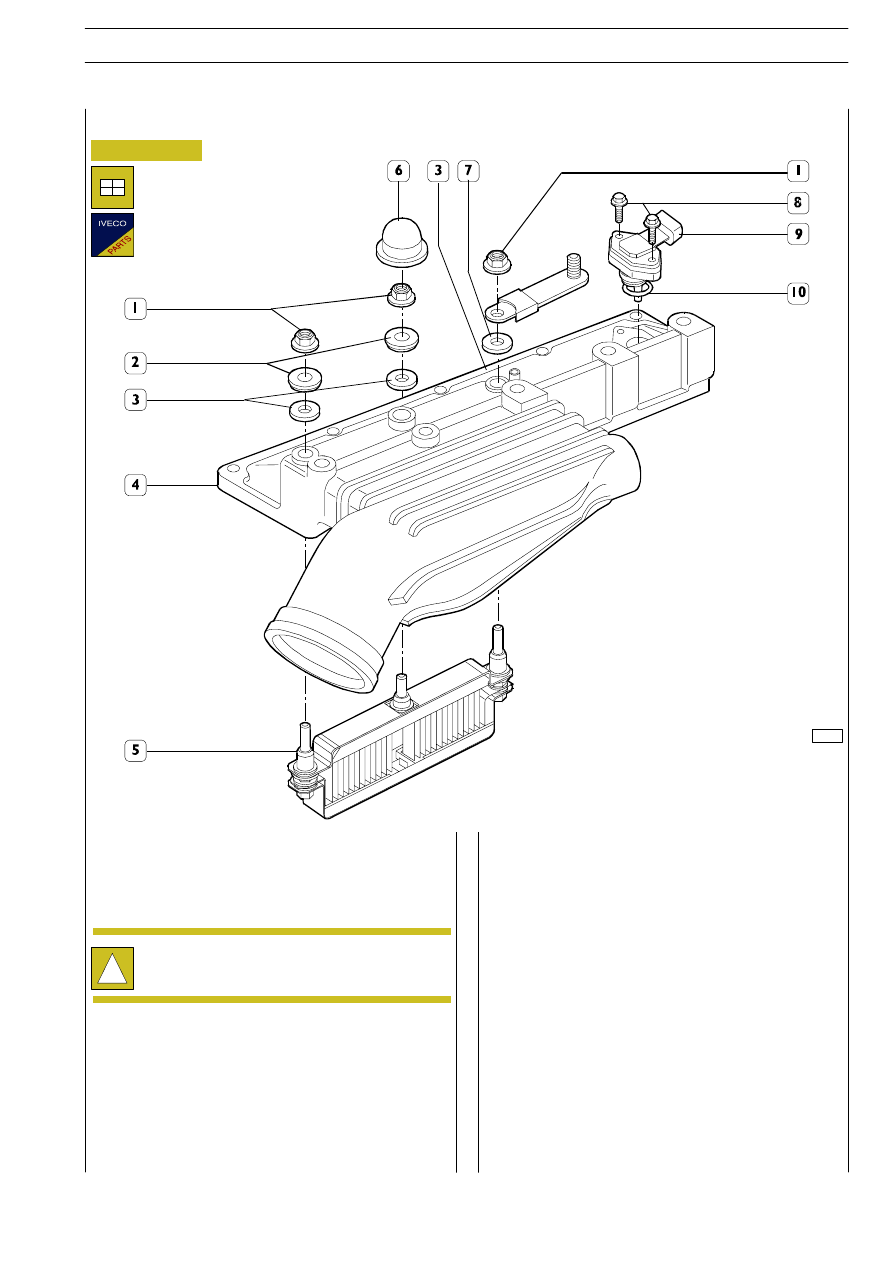

The intake manifold (4) houses the air heater (5) for cold
starting. In case of failure it shall be replaced by removing the
cap (6), the nuts (1), the sealing washers (2) and the washers
(3). Fit the new heater (5) following the removal operations
in reverse order.

Apply a new sealing ring (10) to the air temperature/pressure
sensor and fit it on the intake manifold (4), tighten the screws
(8) to the specified torque.

!

The sealing washers (2) shall be replaced with new
ones.
The nuts (1) shall be tightened to the specified torque.

Intake manifold

E

URO

C

ARGO

T

ECTOR

12-26 t

ENGINE F4 AE 0481

77

Base - February 2003
