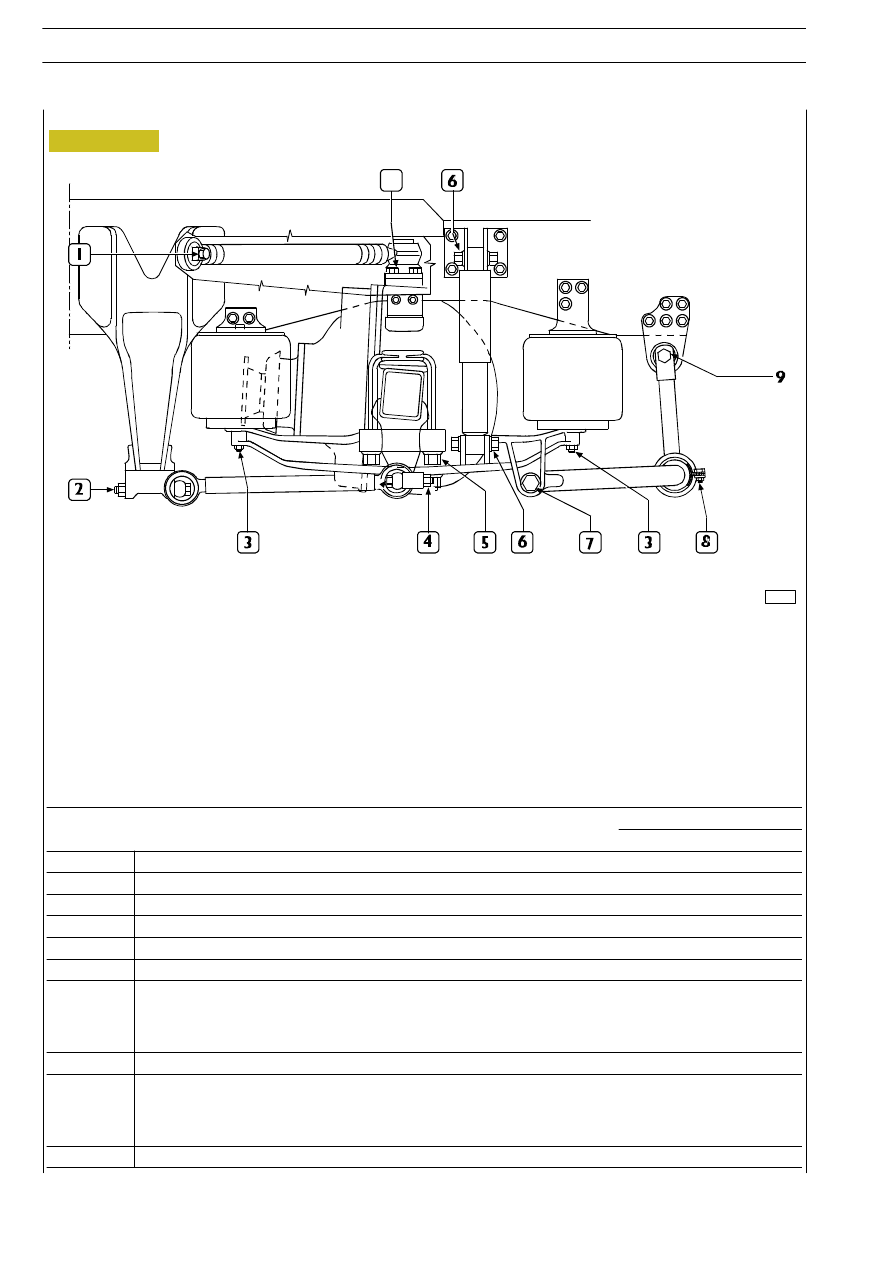

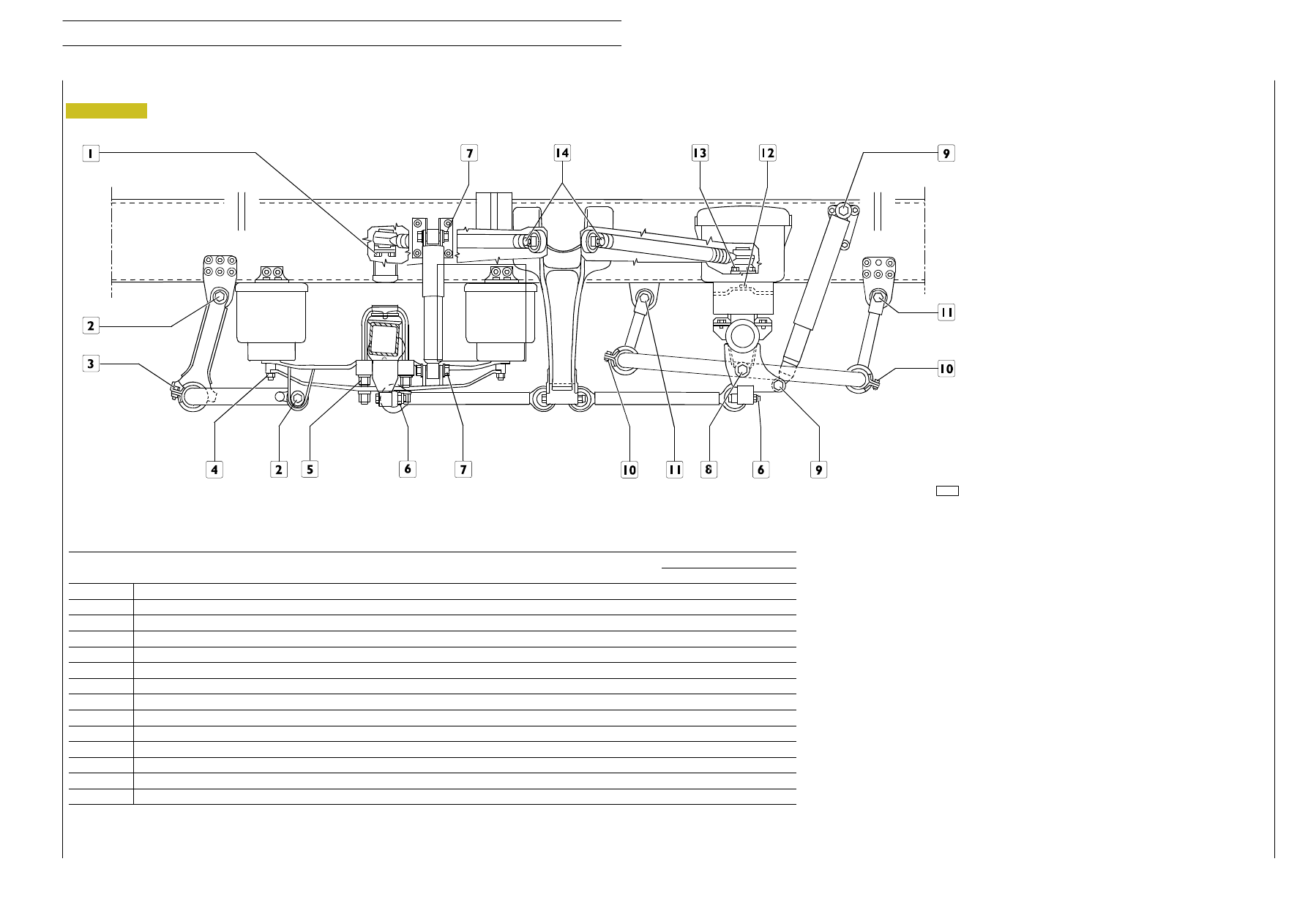

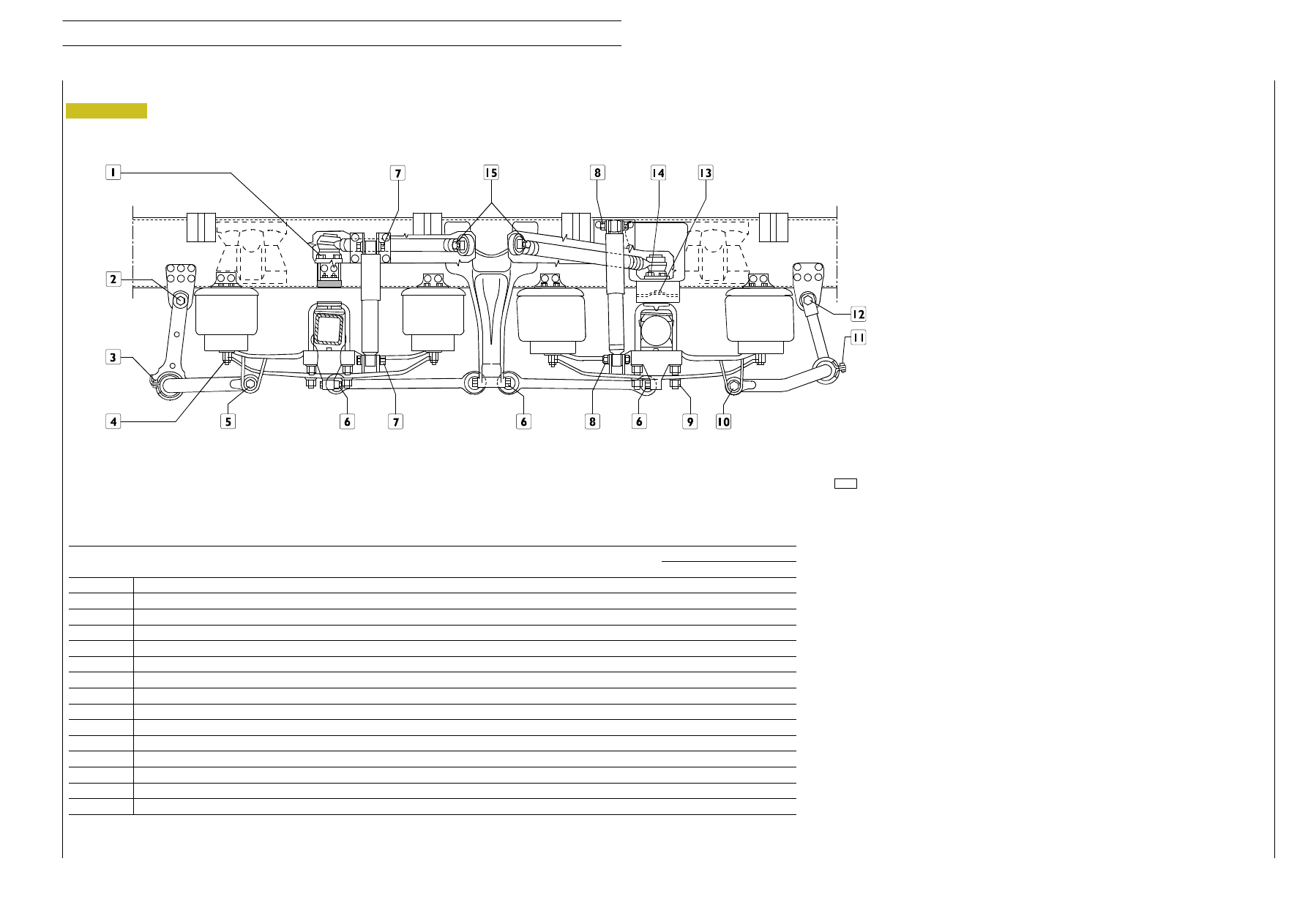

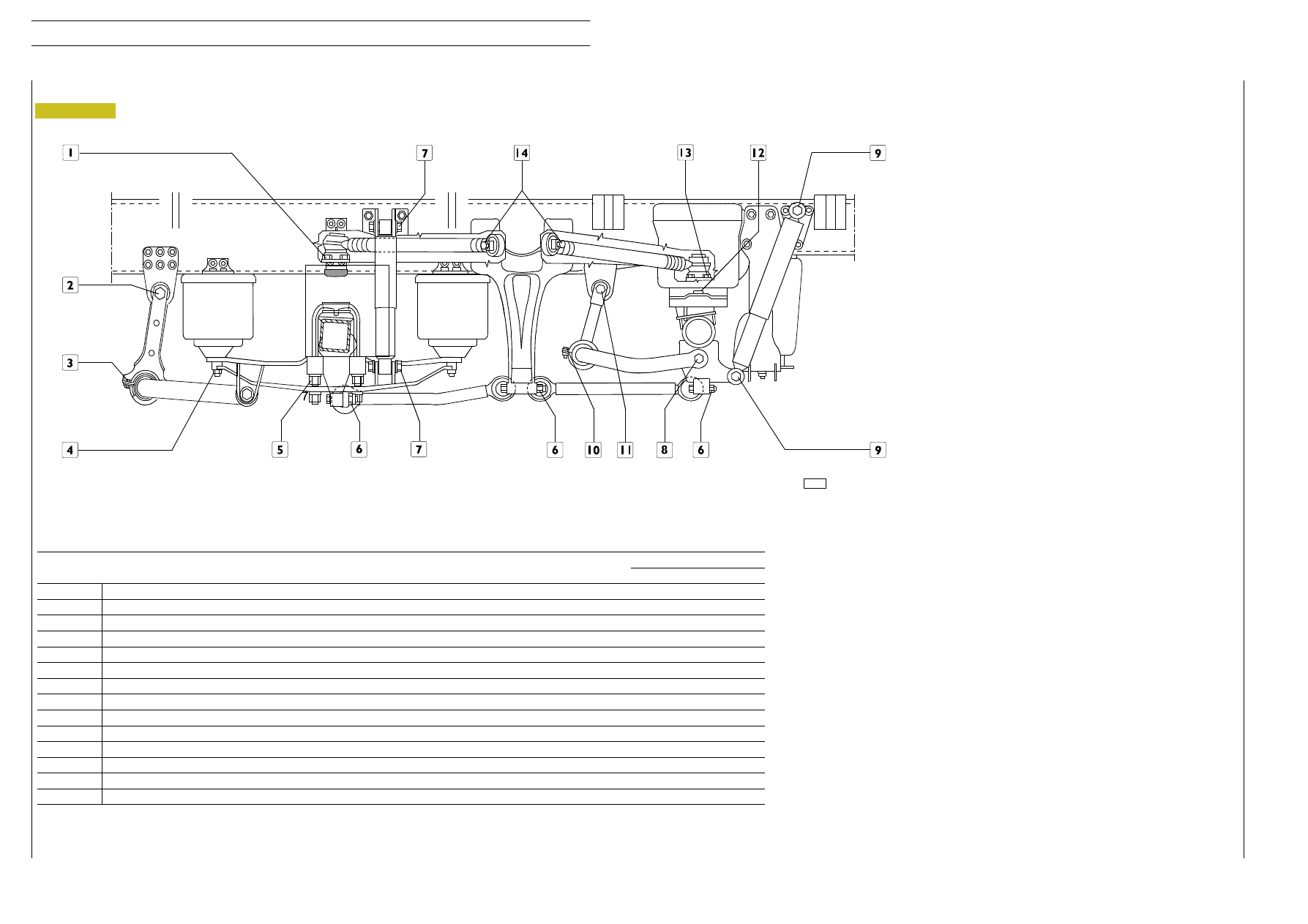

Figure 59
10
60
SUSPENSIONS
S
TRALIS
AT/AD
Base - January 2003
PART
TORQUE
Nm
kgm
1
M18 x 1.5 screw fixing triangular arm to bracket
385 to 320
38.5 to 32
2
M18 x 1.5 nut for bolt fixing longitudinal rod to bracket
460 to 375
46 to 37.5
3
Nut fixing air springs to the mounting
101 to 83
10.1 to 8.3
4
M18 x 1.5 nut for screw fixing longitudinal rod
460 to 375
46 to 37.5
5
M24 x 2 nut with collar for brackets fixing rear axle to rear mounting
900 to 750
90 to 75
6
M20 nut for screw fixing top and bottom shock absorber
250 to 210
25 to 21
7
M20 nut for pin fixing stabilizer bar to mounting:
- 16750725
- 16984735
- 8161193
480 to 395
685 to 560
777 to 636
48 to 39,5
68,5 to 56
77,7 to 63,6
8
M12 nut for bolt fixing stabilizer bar to link rod
200 to 165
20 to 16.5
9
M20 nut for pin fixing link rod to mounting:
- 16750725
- 16984735
- 8161193
480 to 395
685 to 560
777 to 636
48 to 39,5
685 to 56
77,7 to 63,6
10
M16 x 1.5 screw fixing triangular arm to rear axle housing
320 to 260
32 to 26
