84601

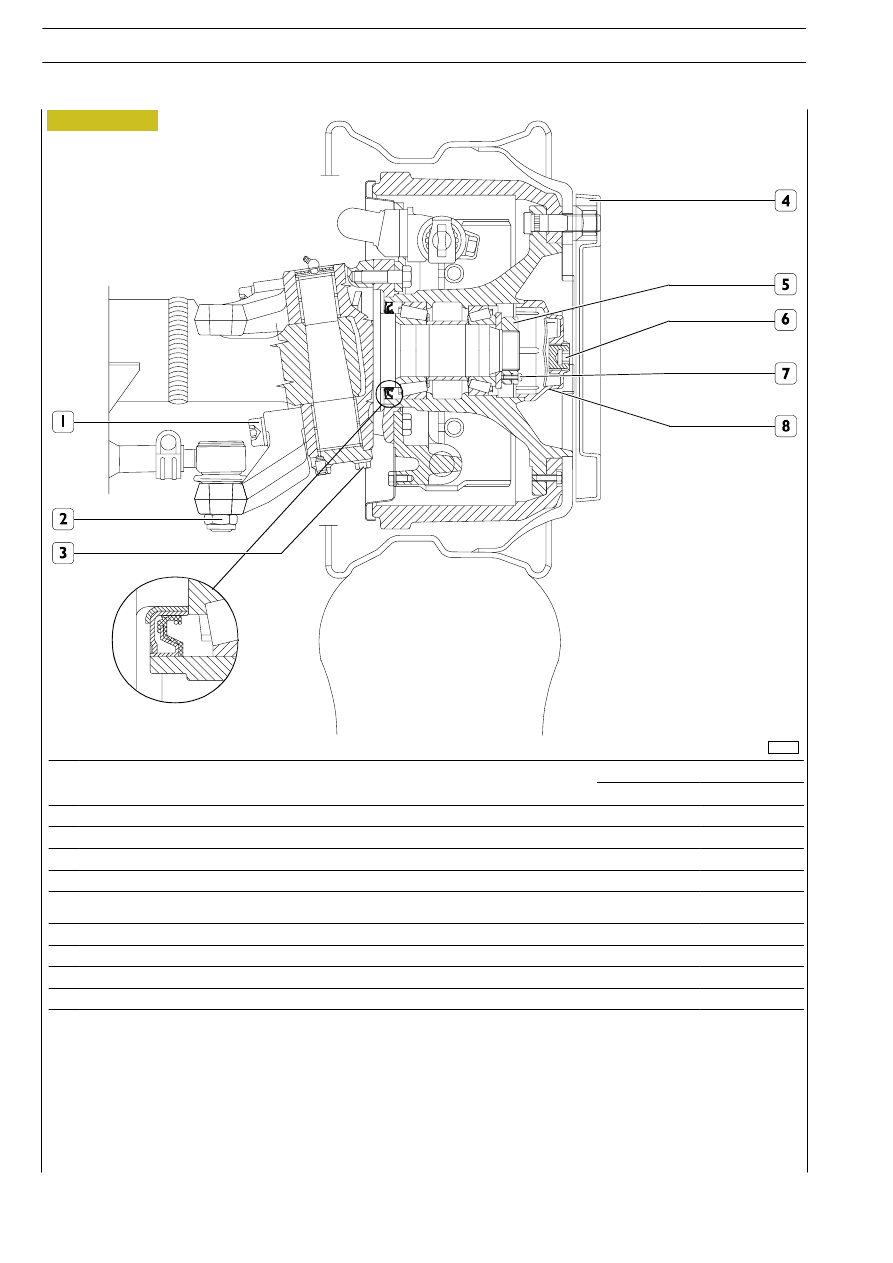

Figure 2
S
TRALIS
AT/AD
106
STEERING REAR ADDED AXLE 57080/T1 (N 8072)
Base - January 2003
PART
TORQUE
Nm
(kgm)
Flanged screw for attachment of track rod arm to stub axle
1325
± 75
(135
± 7.6)
1
Flanged screw for attachment of drag link arm to stub axle
1325
± 75
(135
± 7.6)
2
Castellated nut for ball joint pin
300 *
30 *
3
Hexagonal head flanged screw for attachment of the lower thrust bearing cap to stub axle
117
± 6
(11.7
± 0.6)
4
Wheel securing nut
600
+50
-20
(
60
)
+5
-2
5
Wheel bearing securing ring nut
515.5
± 24.5
(51.5
± 2.4)
6
Plug for wheel hub cover
57.5
± 2.5
7
Hexagonal socket head screw for locking the wheel bearing adjustment ring nut
27.5
± 2.5
(2.7
± 0.2)
8
Wheel hub cap
•
1330
± 10
(13
± 1)
*
Minimum torque — peak torque, tighten to the first cut coinciding with the hole for the split pin
• Apply Loctite 574 on the wheel hub/cover contact surface
