proceed as described in point ”1”;

C. after eliminating the end float further tighten the two

adjustment lock rings (4, Figure 74) to obtain a retraction
of the caps (2) of 0.15 to 0.33 mm, which corresponds
to the sum of the readings on the dial gauges (1).

Figure 73

3.

further tighten the two adjustment lock rings (4, Figure 74)
to obtain a retraction of the caps (2, Figure 74), measured
on Axis X or on axis Y as described in point ”2” of: 0.15
to 0.33 mm which corresponds to a preload on the bear-
ings of 1.7 to 3.9 Nm (0.17 to 0.39 kgm).

60636

ADJUSTING THE CAP GAP

Adjusting and checking retraction of the caps can be done
with two methods:

1

st

METHOD

1.

Use wrench 99355025 (3, Figure 74) to tighten the
adjustment lock rings (4) of the bearings until eliminating
the pinion-crown wheel clearance and end float. At the
same time check that the crown wheel does not force
on the pinion;

2.

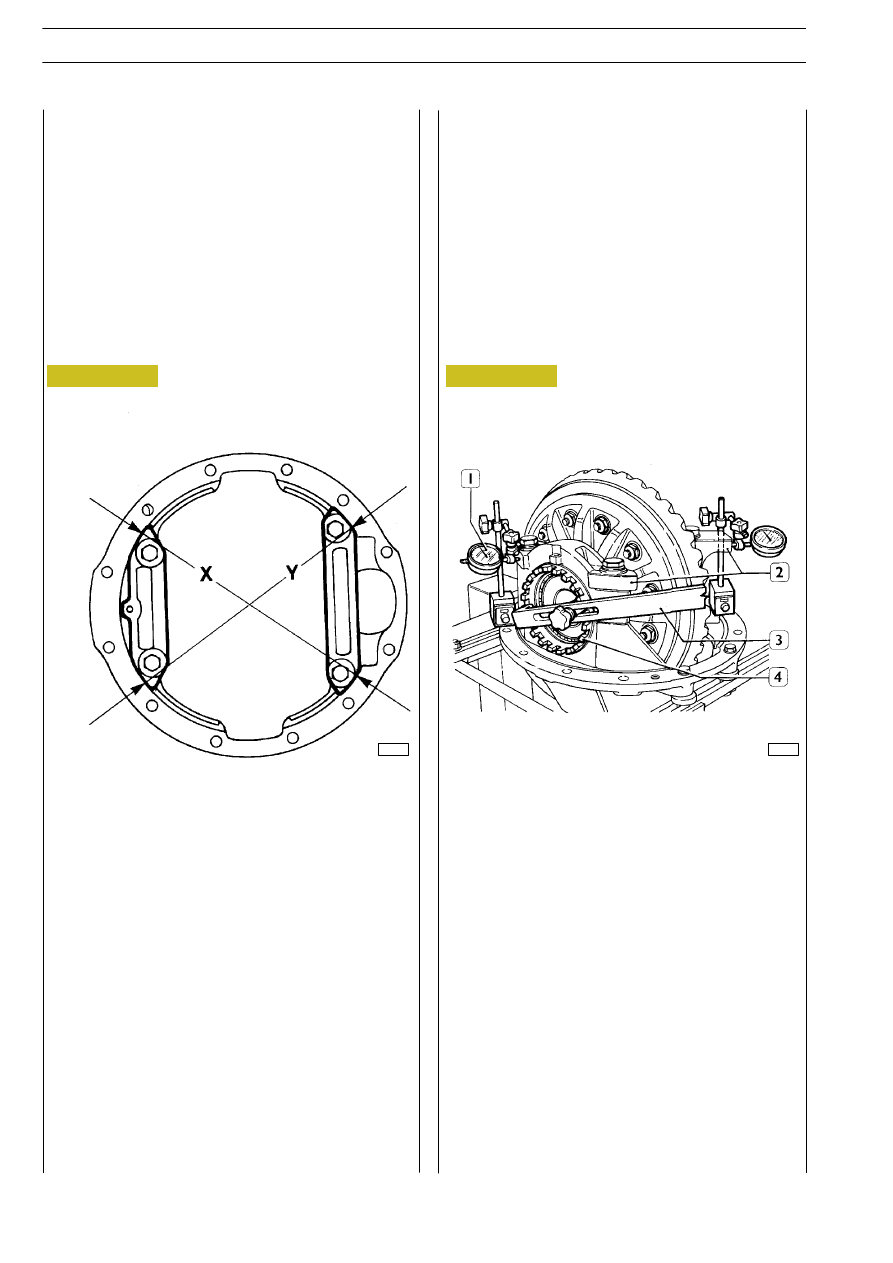

using a suitable micrometer positioned diagonally and
centrally in points (X-Y-arrows, Figure 73);
measure and note the distance of the caps;

2

nd

METHOD

A. Diagonally and centrally on the outer machined seats of

both caps (2, Figure 74) position two dial gauges (1) with
magnetic base as shown in Figure 74;

Figure 74

60635

34

REAR AXLE MS 13-175

S

TRALIS

AT/AD

Base - January 2003

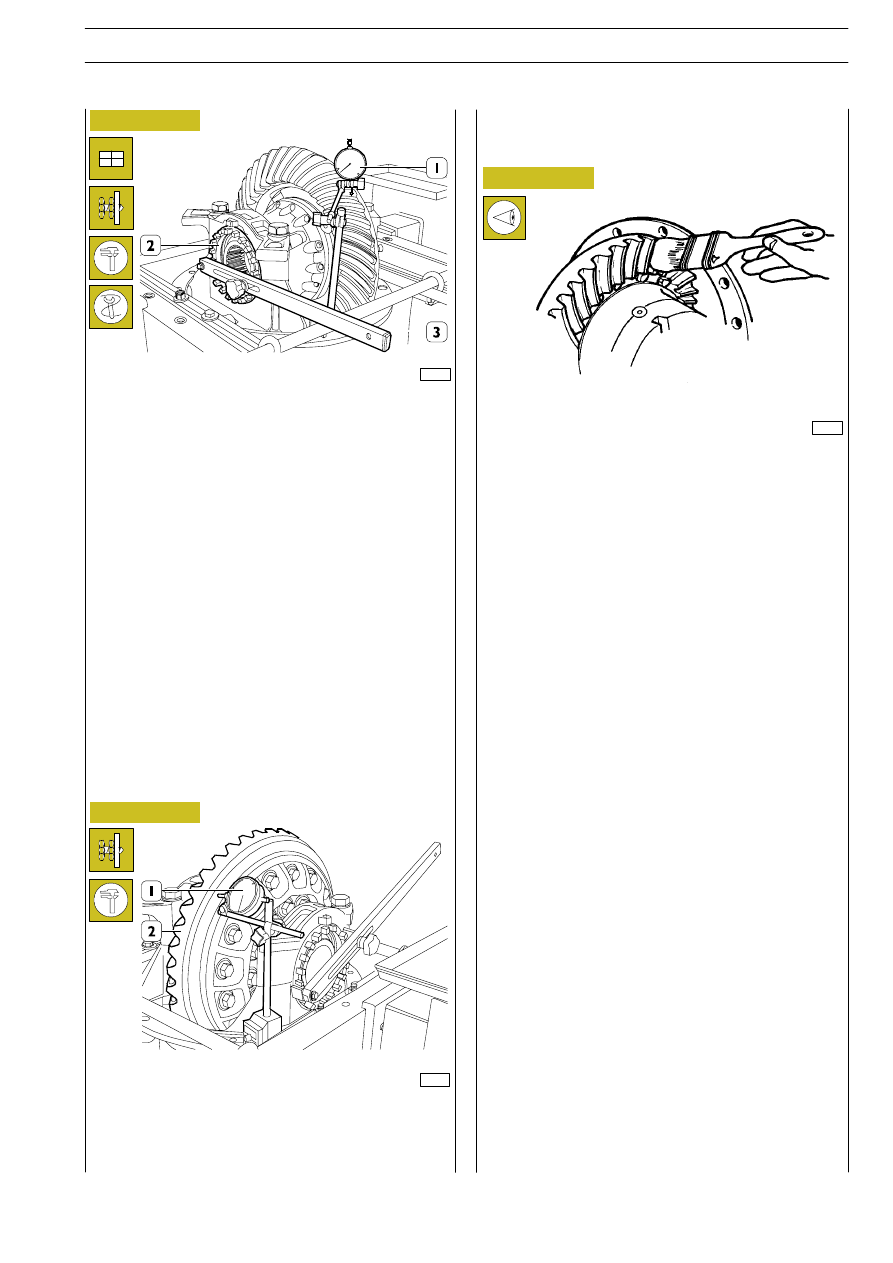

Adjust the axial clearance between the teeth of the pinion
- crown wheel unit which must be 0.26 to 0.50 mm
proceeding as follows:

- stop the bevel pinion from turning using tool 99370317;

- position the magnetic-based dial gauge (1) as illustrated;

- using wrench 99355025 (3) slacken the adjustment lock

ring on the crown wheel side and tighten, to the same
extent, the adjustment lock ring (2) of the opposite side.
The purpose of this is to leave the previously-adjusted
cap retraction unchanged;

- proceed as described until obtaining the specified

clearance.

The clearance should be checked on 4 points the same
distance apart.

49248

49246

19451

Figure 75

Figure 76

Figure 77

Apply a light layer of Prussian blue on the crown wheel.
Turn the pinion and measure the impression of the contact
of the pinion teeth on the crown wheel teeth.
The following figures show possible contacts and how to
correct any errors.

Use a magnetic-based dial gauge (1) to check that the crown
wheel (2) does not have any upper wobble above 0.20 mm.
If it does, disassemble the differential unit and find the cause.

Refit and repeat the adjustment operations described
previously.

REAR AXLE MS 13-175

35

S

TRALIS

AT/AD

19453

19454

Figure 78

Figure 79

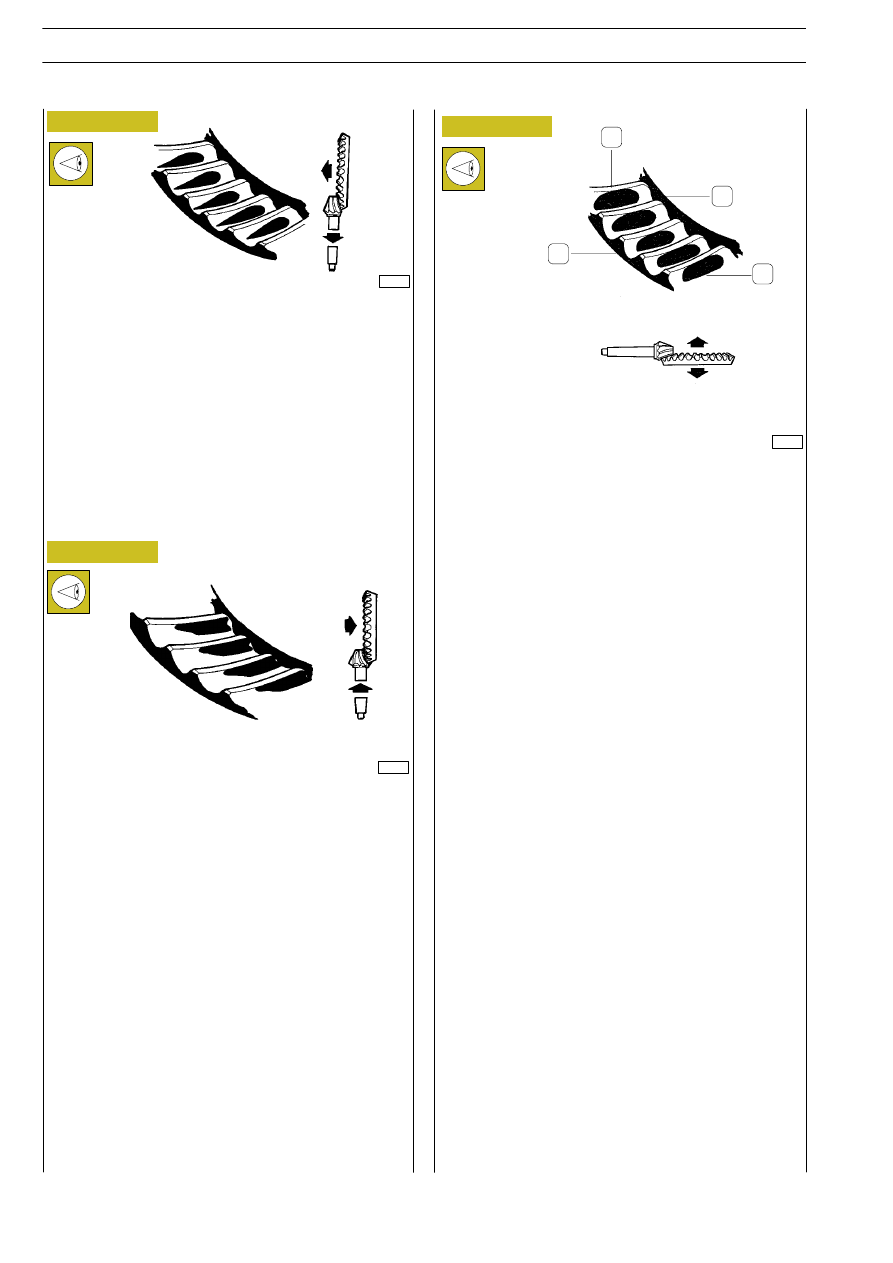

Contacts too much towards the crown wheel teeth top land

Conditions A-B. Indicates that the pinion is fastened to much
towards the outside and therefore needs further adjustment.
To adjust the exact position of the pinion, remove shims
under the pinion support to obtain the exact contact.

Condition A. After removing the shims, take the clearance
towards maximum.

Condition B. Measure the clearance and restore it after
removing shims.

Clearance reduction

Clearance increase

1.

Release, concave side of tooth

2.

Top land

3.

Pulling, convex side of tooth

4.

Heel

PULLING. Central tending towards the top land on the tooth
face and central on the tooth profile.

RELEASE. Central tending to the heel on the tooth face and
central on the tooth profile.

Indicates that the pinion is fastened correctly.

The contact position can be further changed by changing the
pinion-crown wheel clearance.

Condition E. Lower the clearance.

Condition F. Increase the clearance.

19452

Contacts too much on crown wheel teeth bottom land

Conditions C-D. Indicates that the pinion is fastened too
deeply and needs further adjustment.
To adjust the exact position of the pinion shims should be
added under the pinion support to obtain the exact contact.

Condition C. Measure the clearance and restore it after
adding shims.

Condition D. After adding shims, take the clearance towards
minimum.

Figure 80

THEROETICAL CONTACT AREA

1

2

3

4

36

REAR AXLE MS 13-175

S

TRALIS

AT/AD

Base - January 2003

Figure 81

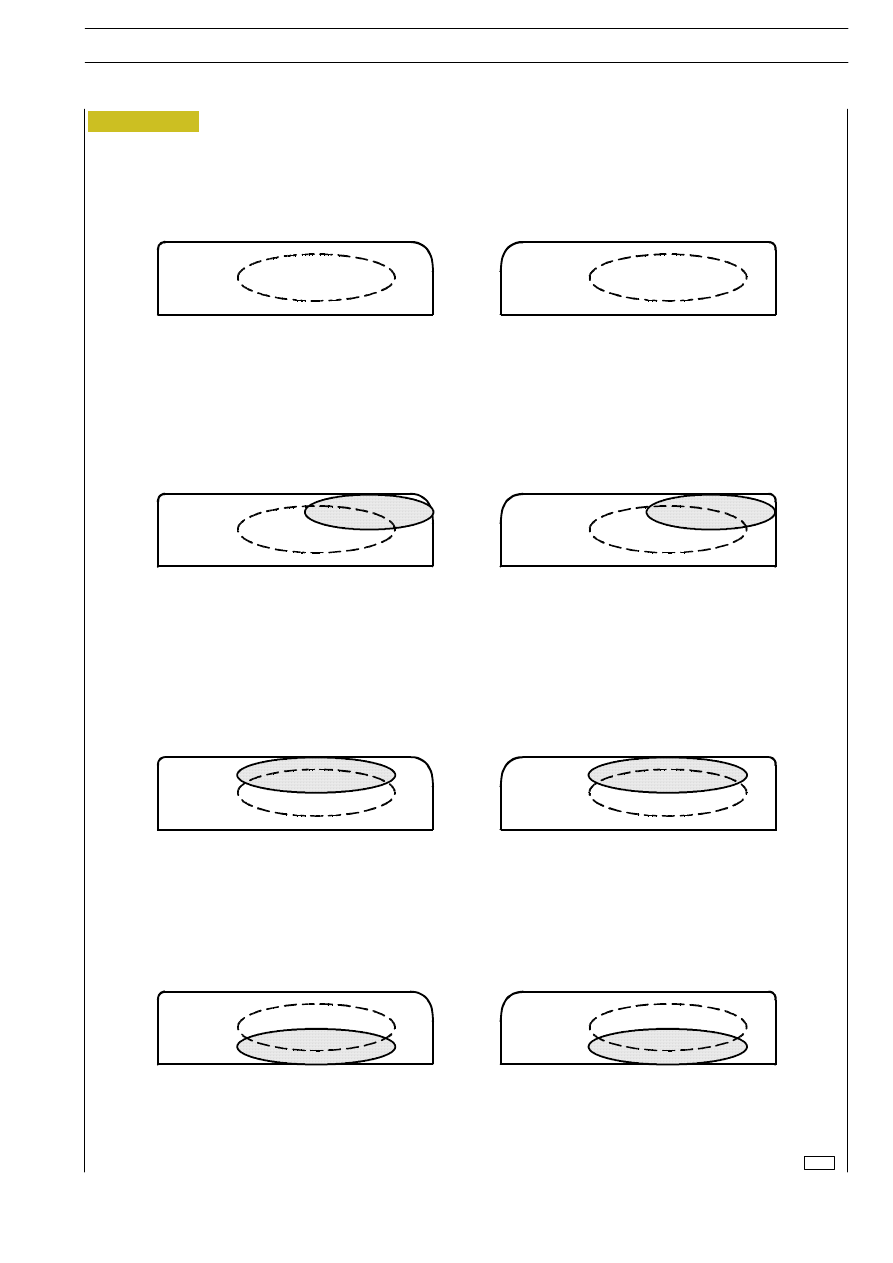

THEORETICAL CONTACTS

60676

PULLING

(CONVEX SIDE OF RING GEAR)

TIP

RELEASE

(CONCAVE SIDE OF RING GEAR)

TIP

HEEL

TOP

LAND

HEEL

HEEL

TOP

LAND

HEEL

HEEL

TOP

LAND

HEEL

HEEL

TOP

LAND

HEEL

BOTTOM LAND

BOTTOM LAND

BOTTOM LAND

BOTTOM LAND

BOTTOM LAND

BOTTOM LAND

BOTTOM LAND

BOTTOM LAND

- PULLING

:

CENTRAL TENDING TOWARDS THE TOP LAND ON THE TOOTH FACE
AND CENTRAL ON THE TOOTH PROFILE

- RELEASE

:

CENTRAL TENDING TOWARDS THE HEEL ON THE TOOTH FACE
AND CENTRAL ON THE TOOTH PROFILE

CONDITION “A”

PULLING

TIP

RELEASE

TIP

- PULLING RELEASE

:

CONTACTS TOO MUCH AT TIP

- PULLING

:

CONTACT TOO MUCH AT TOP LAND

- RELEASE

:

CONTACT TOO MUCH AT HEEL

- CORRECTIVE ACTION

:

REMOVE SHIMS AND INCREASE CLEARANCE TO MAXIMUM

CONDITION “B”

TIP

TIP

- PULLING - RELEASE

:

CONTACTS TOO MUCH AT TIP

- CORRECTIVE ACTION

:

MEASURE THE CLEARANCE AND RESTORE THE CLEARANCE

CONDITION “C”

TIP

TIP

- PULLING - RELEASE

:

CONTACTS TOO MUCH ON BOTTOM LAND

- CORRECTIVE ACTION

:

MEASURE THE CLEARANCE, ADD SHIMS AND RESTORE CLEARANCE

REAR AXLE MS 13-175

37

S

TRALIS

AT/AD

CORRECTING THE CROWN WHEEL AND PINION CONTACTS (AFTER ASSEMBLY)
