Spread IVECO 1905685 (LOCTITE 14780) sealant onto the
flange contact surfaces of the drive shaft — wheel hub and
insert the drive shaft into the axle housing. Screw down the
screws (2) fixing the drive shaft (3) to the wheel hub (1) and
tighten them with the torque wrench (4) to the required
torque. Remove the tool 99370317 (5).

72759

72760

49213A

72761

84405

Figure 25

Figure 26

Figure 27

Figure 28

Figure 29

Figure 30

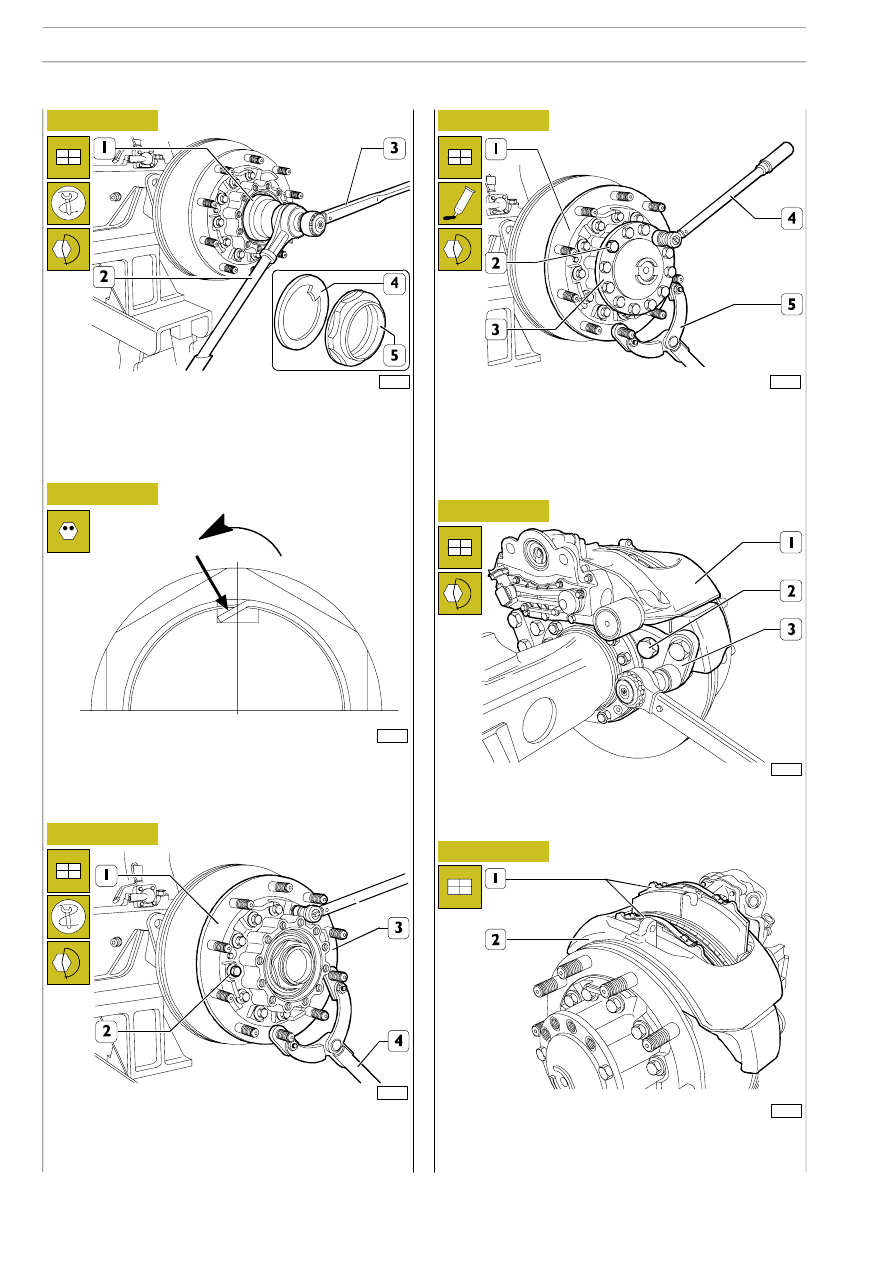

Position the retaining ring (4) so as to insert the tab into the
groove of the sleeve, then screw on the ring nut (5). Using
the wrench 99355180 (1), multiplier 99389816 (2) and the
torque wrench (3), tighten the ring nut (5) to the required
torque.

After tightening, using an appropriate tool, notch and bend
the ring nut as shown in the figure so it cannot be unscrewed.
The arrow shows the direction of unscrewing the ring nut.

Lock rotation of the wheel hub (3) with the tool 99370317
(4) and tighten the screws (2) fixing the brake disc (1) to the
wheel hub to the required torque.

Position the brake calliper (1) on the flange (3) and tighten
the fixing screws (2) to the required torque.

Mount the brake linings (1) in the brake calliper (2).

72742

REAR AXLE MS 13-175

TRALIS

AT/AD

Base - January 2003

72740

Figure 31

Figure 32

Provisionally mount the plug (1) for the brake lining wear
adjustment screw.

Figure 33

Mount the brake lining retaining plate (1).
Mount the pin (2), washer (3) and secure them with the split
pin (4).

84404

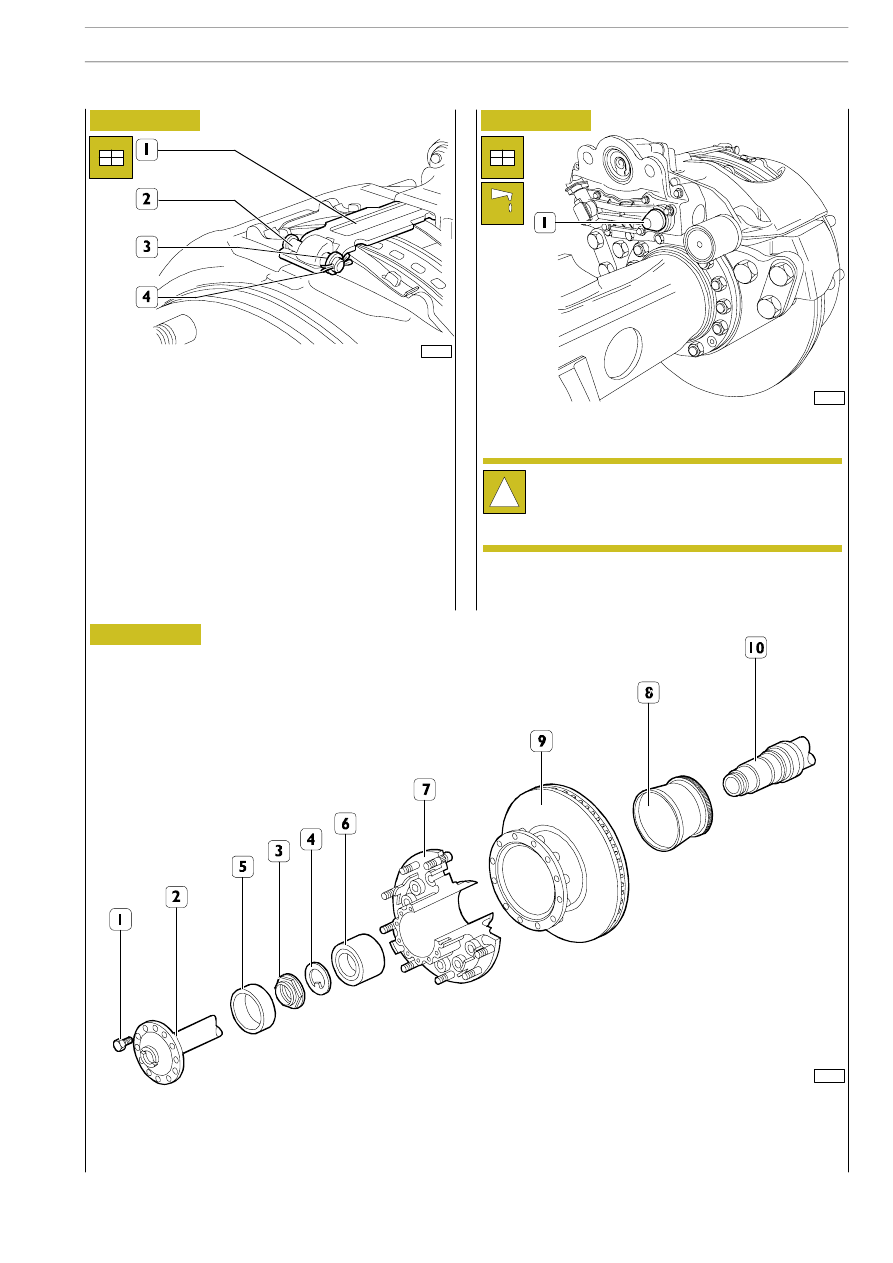

WHEEL HUB COMPONENT PARTS

1. Screw — 2. Drive shaft — 3. Ring nut — 4. Retaining ring — 5. Spacer ring — 6. Bearing —

7. Wheel hub — 8. Phonic wheel — 9. Brake disc — 10. Axle sleeve

On completing assembly, fill the axle housing with the
required quantity and grade of lubricating oil.

After refitting the rear axle on the vehicle, check the
efficiency of the brake lining wear recovery device,
as described in the relevant section and replace the
plug (1) with a new one.

72764

REAR AXLE MS 13-175

TRALIS

AT/AD

Tightening sequence diagram (differential case to axle housing)
(1 — 2 — 3 — 4 — Nuts)
(10 — 9 — 14 — 5 — 7 — 11 — 13 — 6 — 8 — 12 — Screws)

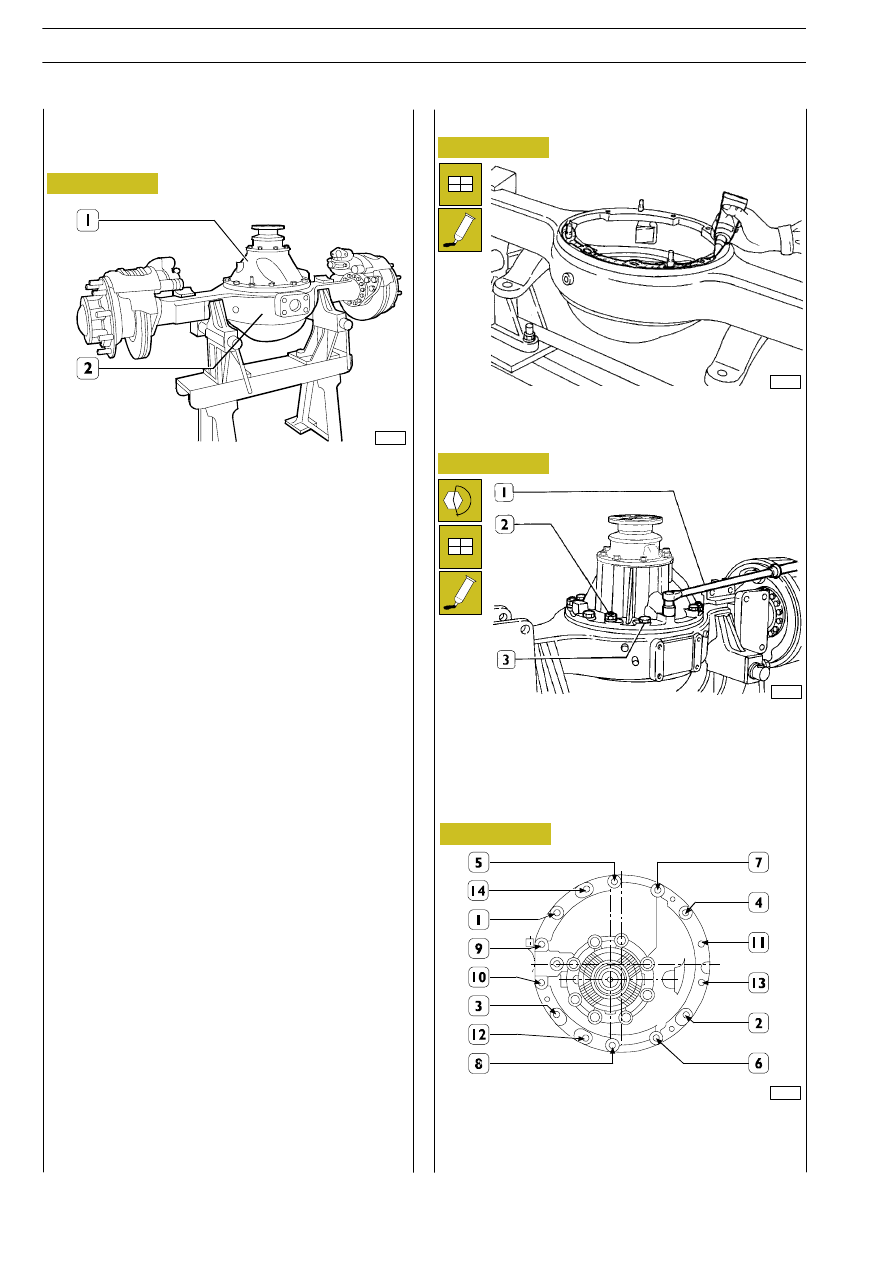

Insert the differential into the axle housing, screw down the
nuts (2) and screws (3) together with the safety washers and
tighten them, with a torque wrench (1), to the required
torque and in the sequence shown in Figure 37.
Mount the drive shafts as described on page 23.
Pour the required amount of oil into the axle housing.

Spread the contact surface of the axle housing with IVECO
1905685 (LOCTITE 14780) sealant, after cleaning the
contact surface.

Refitting

Removal

Extract the drive shafts as described on page 21, unscrew the
screws and nuts fixing the differential case (1); screw three
screws, which in this case act as extractors, into the threaded
holes and extract the differential from the axle housing (2).

526210

REMOVING AND REFITTING
THE DIFFERENTIAL
(with axle on stand 99322215)

72739

34827

49219

49220

Figure 34

Figure 35

Figure 36

Figure 37

REAR AXLE MS 13-175

TRALIS

AT/AD

Base - January 2003

49221

49223

49222

49224

49225

Figure 38

Figure 39

Figure 40

Figure 41

Figure 42

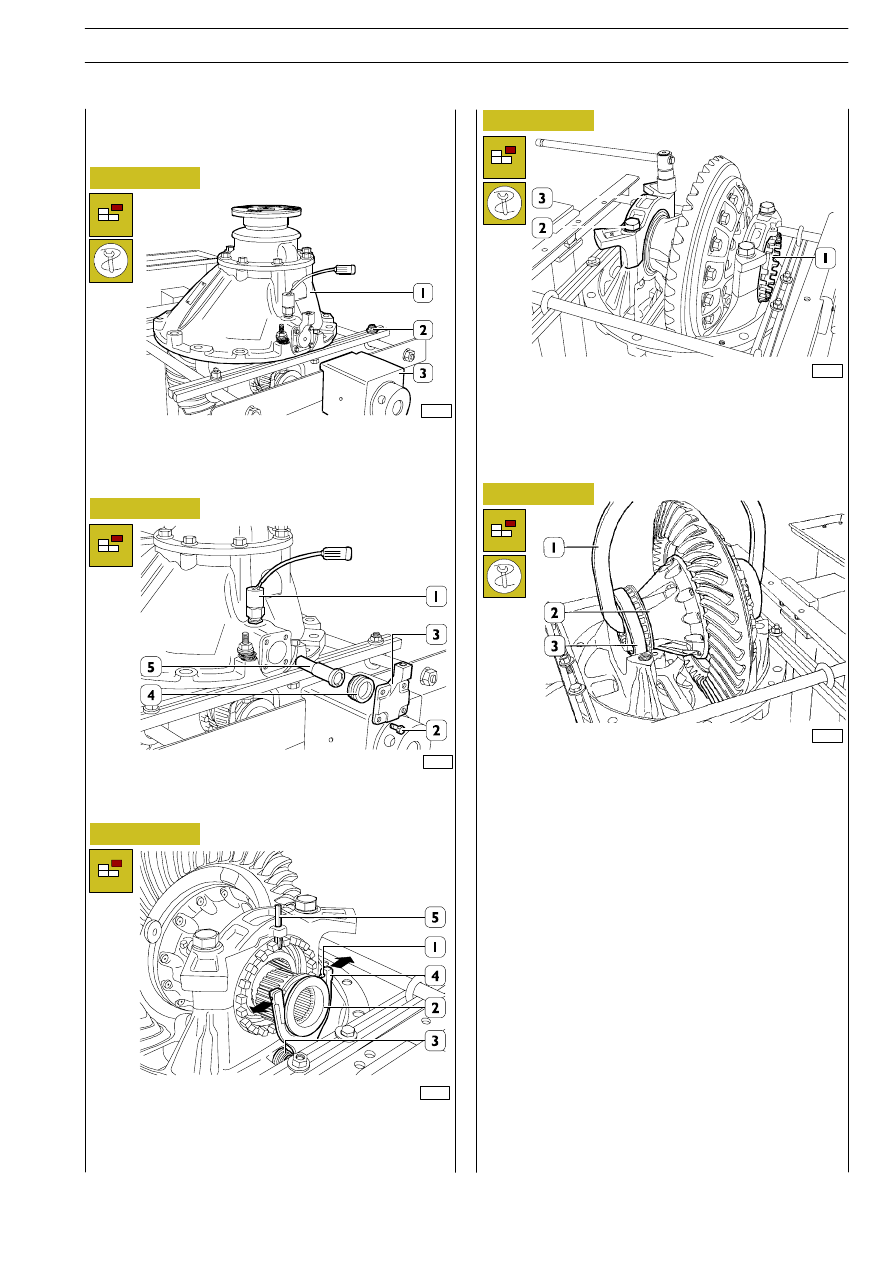

Remove the differential (1) as described in Figure 34.
Secure it to the stand 99322205 (3) with the mount
99322225 (2).

Unscrew the transmitter (1); unscrew the screws (2) and
remove the parts 3 — 4 — 5.

Push the split pins (1

→) outwards and extract the sliding

sleeve (2).
Take out the spring (3), fork (4) and split pin (5).

Unscrew the ring nut (1) for adjusting the bearing. Using an
appropriate wrench, unscrew and remove the screws (2)
with their washers; repeat this process on the opposite side.
Remove the supporting bearing caps (3).

Using the hook 99370509 (1) extract the gearing housing (2)
together with the ring bevel gear and outer rings (3).

526210

REPAIRING THE DIFFERENTIAL

Removing the differential

REAR AXLE MS 13-175

TRALIS

AT/AD
