Iveco Daily. Manual - part 380

84

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Base - May 2004

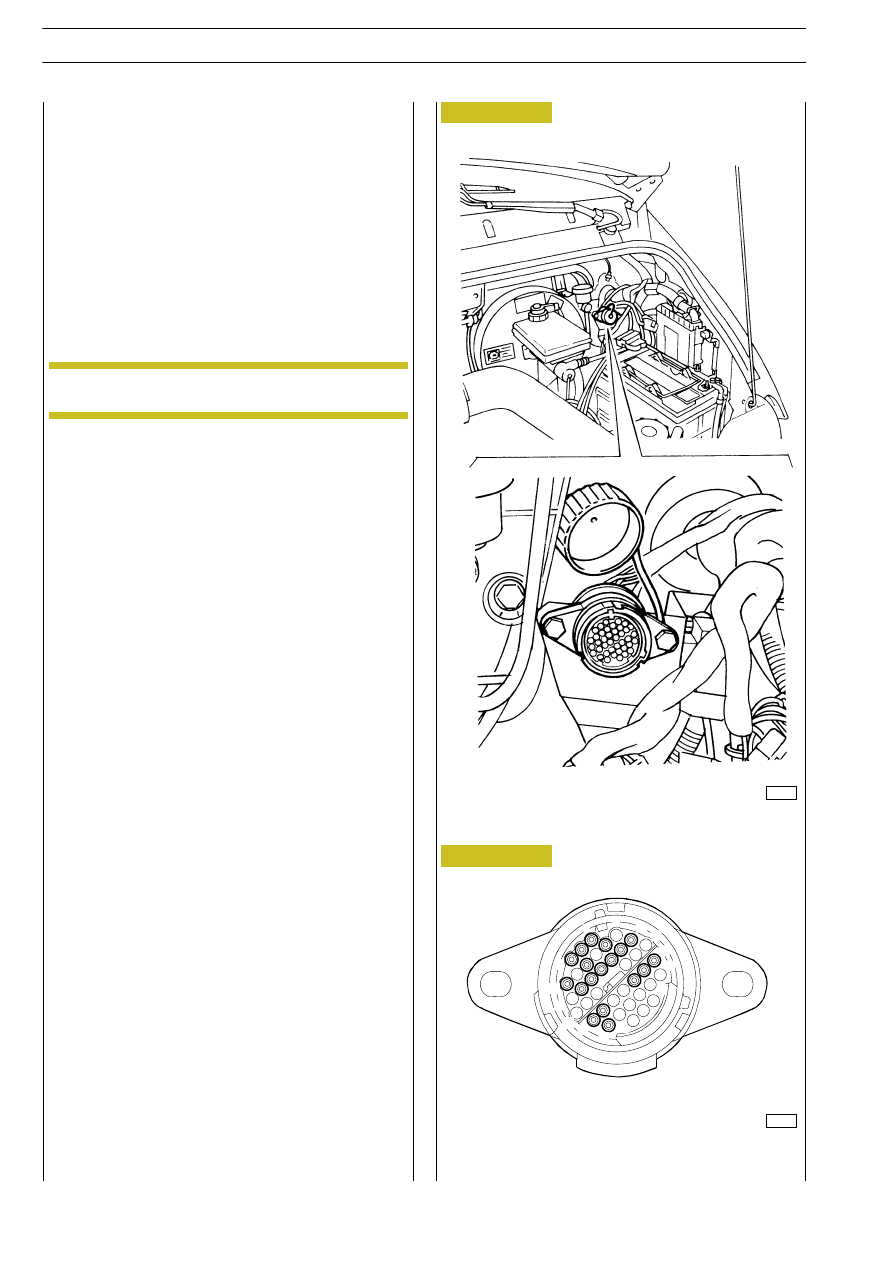

Near the positive terminal of the battery there is a diagnostic

connector. It is fastened by 2 screws to a special bracket fitted

on  the  body  and  access  to  it  is  gained  by  unscrewing  the

protective cap; suitably connected to the diagnostic system

(IWT, MODUS), it allows quick identification of the cause of

faults in the various electronic devices.
The diagnosis connector on F1 engine vehicles is located on

the conveyor unit lower party on the passenger side.
The table on the following page shows the correspondence

between the various electronic systems and the connector

pins referring to them.

9

22

29

35

38

36

30

23

17

10

4

1

3

16

38-PIN DIAGNOSTIC CONNECTOR

DENTIFICATION OF THE PINS OF THE 38-PIN

DIAGNOSTIC CONNECTOR

The connector shown is seen from the pin side.

NOTE

Figure 86

Figure 87

8620

8621

ELECTRIC/ELECTRONIC SYSTEM

85

D

AILY

System

Pin

Function

EDC/EGR/Methane

1

2

L

K

ABS/EBD/ABD

3

4

L

K

Air Bag/Retarder

6

K

Tachometer (connector A cell 2 instrument cluster)

8

K

Supply +15/A services

11

Input

Immobilizer/Central door locking/Alarm

12

K

Climate control system

13

14

L

K

Self-levelling  suspension

15

16

L

K

Engine timing signal (connector B pin 28 EDC control unit)

Engine timing earth (battery -)

23

24

-

Screening

Supply +30

27

Battery +V

Engine rpm

28

RPM

Vehicle speed

29

-

Earth

30

-

- With EDC16: pins 1/23 are not connected.
- Can Line pin 21/22.
The unused pins are not indicated.

86

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Base - May 2004

52

Figure 88

8631

ELECTRIC/ELECTRONIC SYSTEM

87

D

AILY

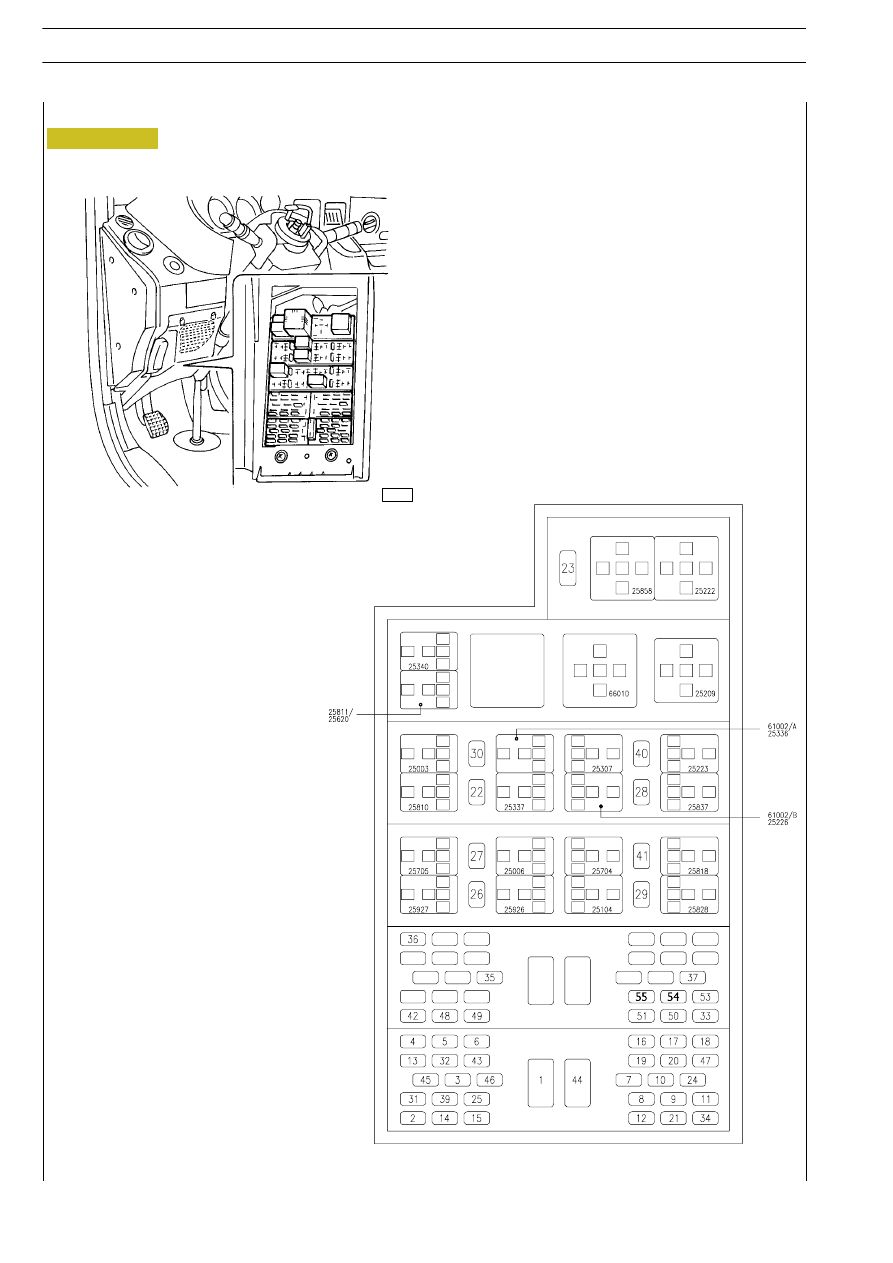

Identification of fuses

N

F

N

Functions

N.

Functions

N.

Functions

1.

Additional  heater

30

2.

Immobilizer/Warming/EDC

5

3.

-

-

4.

Instrument cluster (+30)

5

5.

Instrument cluster (+15)

5

6.

Stalk unit (rear fog guard, flasher)

5

7.

Stalk unit (low beams)

10

8.

Stalk unit (high beams)

15

9.

Stalk unit (side lights)

15

10.

Windscreen wiper

15

11.

Stalk unit (direction indicators/hazard warning lights)

15

12.

Stalk unit (horns)

15

13.

Reversing light

5

14.

Side light, clearance, no. plate light

5

15.

Side light cluster lighting

5

16.

Left low beam headlamp

10

17.

Right low beam headlamp

10

18.

Left high beam headlamp

10

19.

Right high beam headlamp/headlamp aming

10

20.

Interior lighting/radio/cigar lighter

10

20.

Interior lighting/radio

10

21.

Electric windscreen defrosting unit

30

21.

Cigar lighter

15

22.

Heated fuel filter

15

23.

EDC electronic control unit

25

24.

EDC

10

25.

Stop lights

5

26.

13-pin current socket

15

27.

13-pin current socket

15

28.

13-pin current socket

10

29.

38-pin diagnostic connector

5

30.

Fog lamps

10

31.

Climate control, additional heater, engine cooling

5

31.

Compressor, timer, engine fan

10

32.

Climate control

5

33.

Additional heater

20

34.

Headlamp washer

20

35.

Rear differential lock

5

36.

ABS, EBD, ABD failure warning light

5

37.

ABS

5

39.

Heated mirrors

10

39.

Heated mirrors, heated rear-screen, heated windscreen

15

40.

Power windows

30

40.

Power windows (left)

20

41.

Heated rear-screen, heated windscreen

10/

20

42.

Self-levelling suspensions

5

43.

Air bag failure warning light

5

44.

Self-levelling suspensions (Wabco)

40

45.

Air-bag

5

46.

-

-

46.

Power windows (right)

20

47.

Electric fuel pump

10

48.

Door locking/alarm

30

49.

Door locking/alarm

5

50.

Rear differential lock

30

51.

Total power takeoff

10

52.

Front differential lock (4x4)

30

53.

Self-levelling suspensions Techniek)

30

54.

Electric hatch (van and 6+1)

15

55.

Rototranslating door
