Figure 48

74012

48

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Base - May 2004

ELECTRIC/ELECTRONIC SYSTEM

49

D

AILY

Component

code

Description

C12

Cab-hood harness to dome lamp harness connector

C15

Dome lamp connectors to slide door bridle

C16

Dome lamp connectors to electrical lock contacts

37001

Front clearance lamp

39022

Interior door lamp with adjustable spot

39026

Side door lighting dome lamp

42102

Parking brake on indicator switch

53509

Interior lighting switch

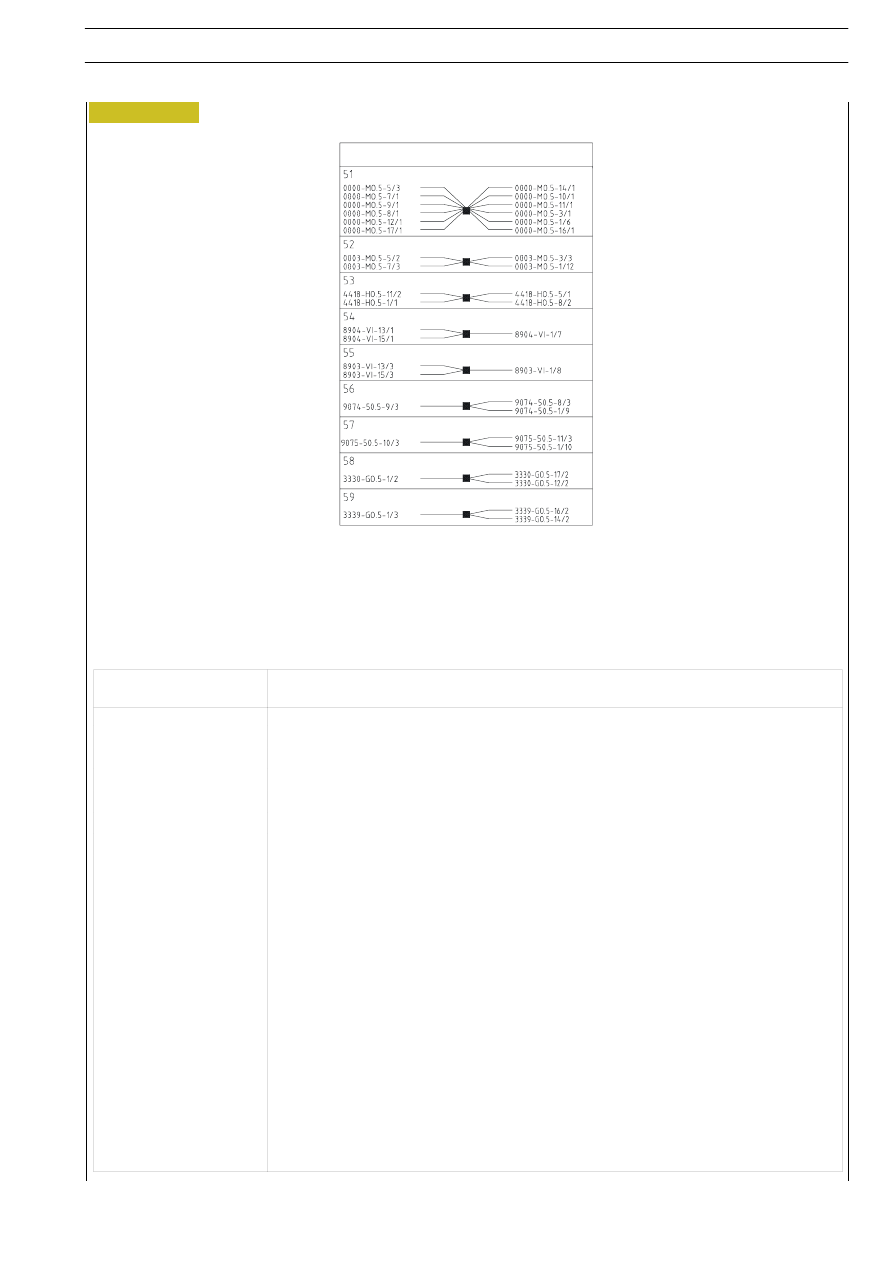

WELDING 1/2

Figure 49

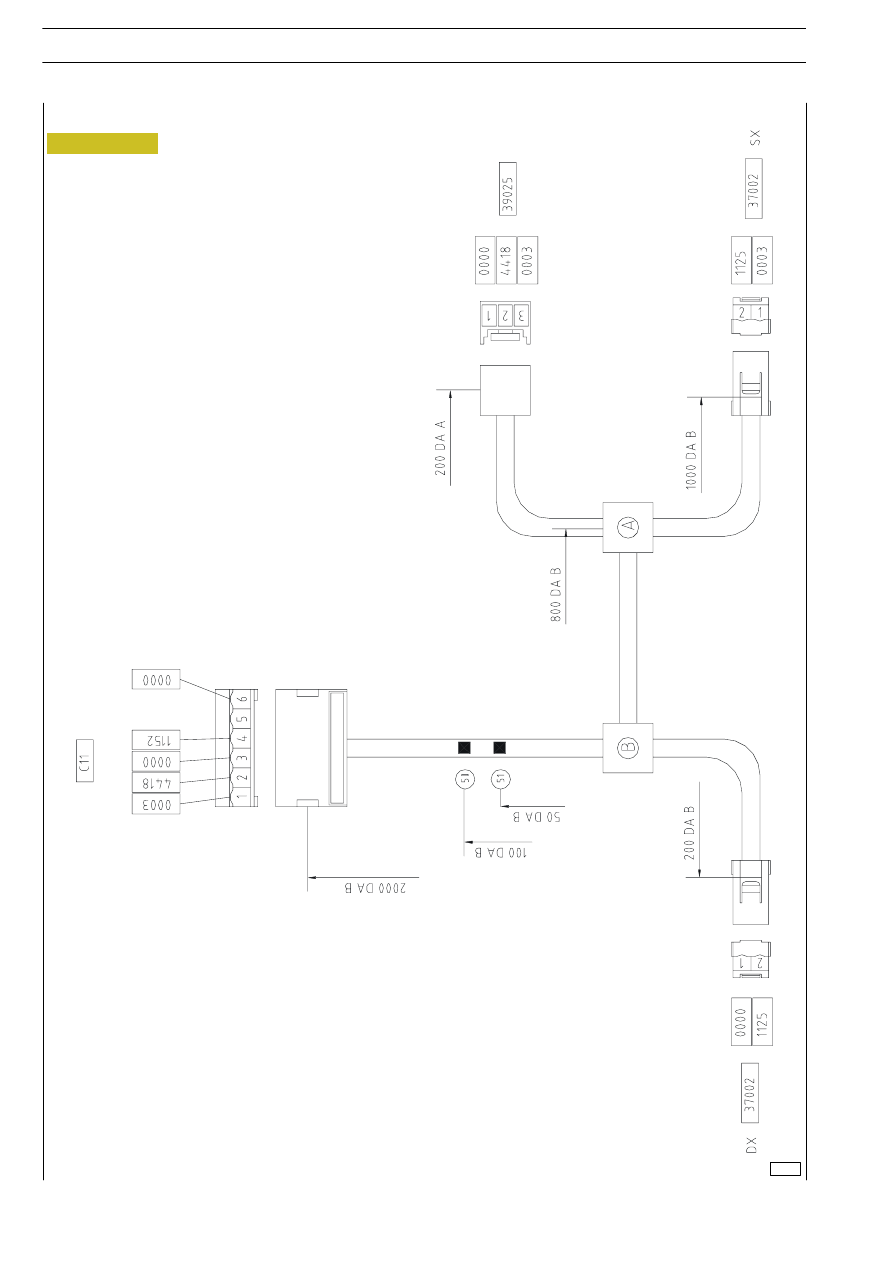

CHASSIS

 HARNESS CONNECTOR TO REAR DOME LAMP HARNESS

Figure 50

74013

50

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Base - May 2004

ELECTRIC/ELECTRONIC SYSTEM

51

D

AILY

Component

code

Description

37002

Rear clearance lamp

39025

Liftgate lighting dome lamp

C11

Chassis harness connector to rear dome lamp harness

WELDING 2/2

Figure 51

74014
