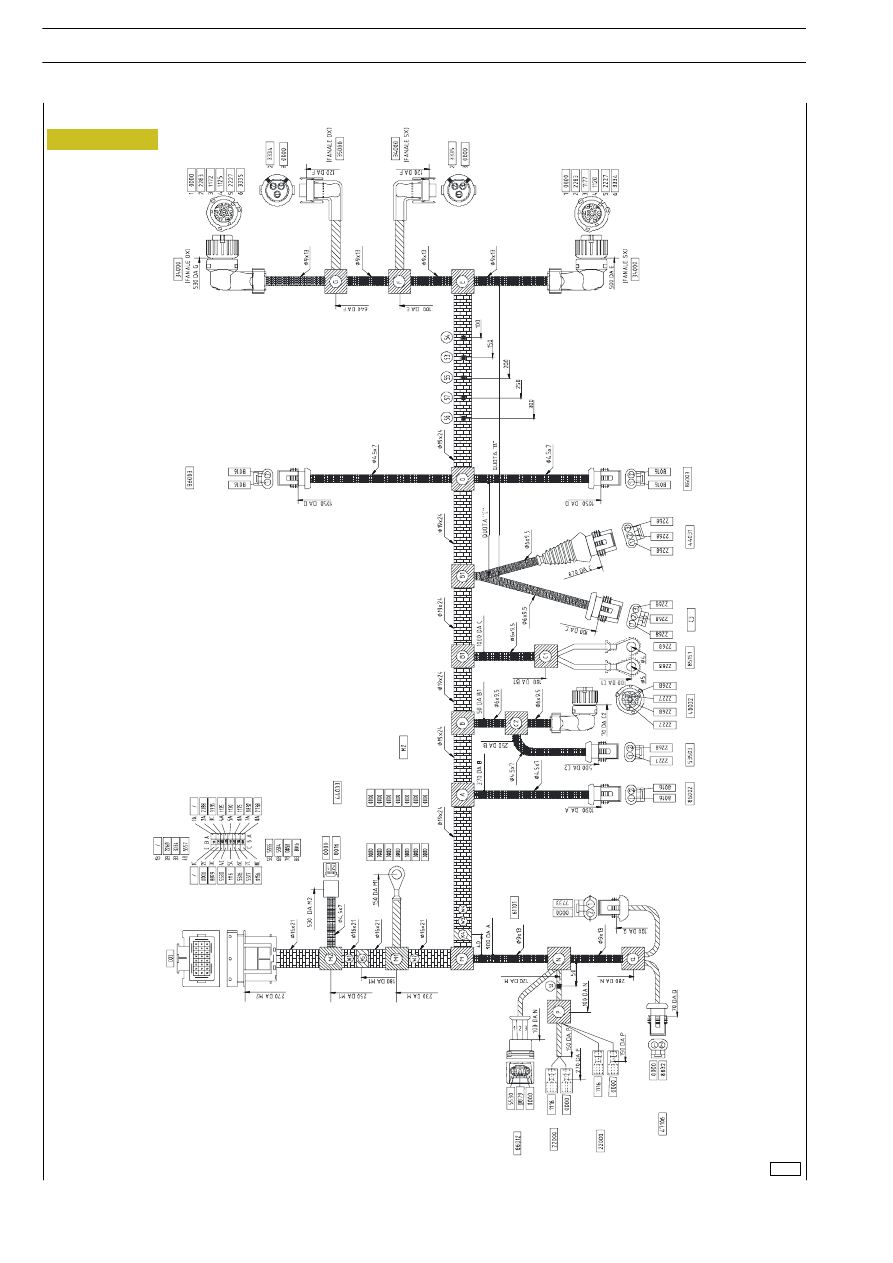

Figure 42

74017

40

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Base - May 2004

ELECTRIC/ELECTRONIC SYSTEM

41

D

AILY

Component

code

Description

22000

Horn

34000

Multifunctional  rear floodlight

35000

License plate light

40032

Transmitter for tachometer and tachograph

42351

Air filter clogged sensor

44031

Fuel oil level indicator transmitter with contact for min. level indicator

44033

Brake fluid low indicator control

47106

Diesel olio heating switch

53503

Backup light switch

61101

Diesel oil preheating resistor

85151

EDC injection pump

86002

Front wheel pad wear indicator sensors

86003

Rear wheel pad wear indicator sensors

86012

Water-in-fuel-filter indicator sensor

C2-C4

Chassis harness connector to cab/hood cables

C3

Chassis harness connector to side clearance lights

M2

Ground

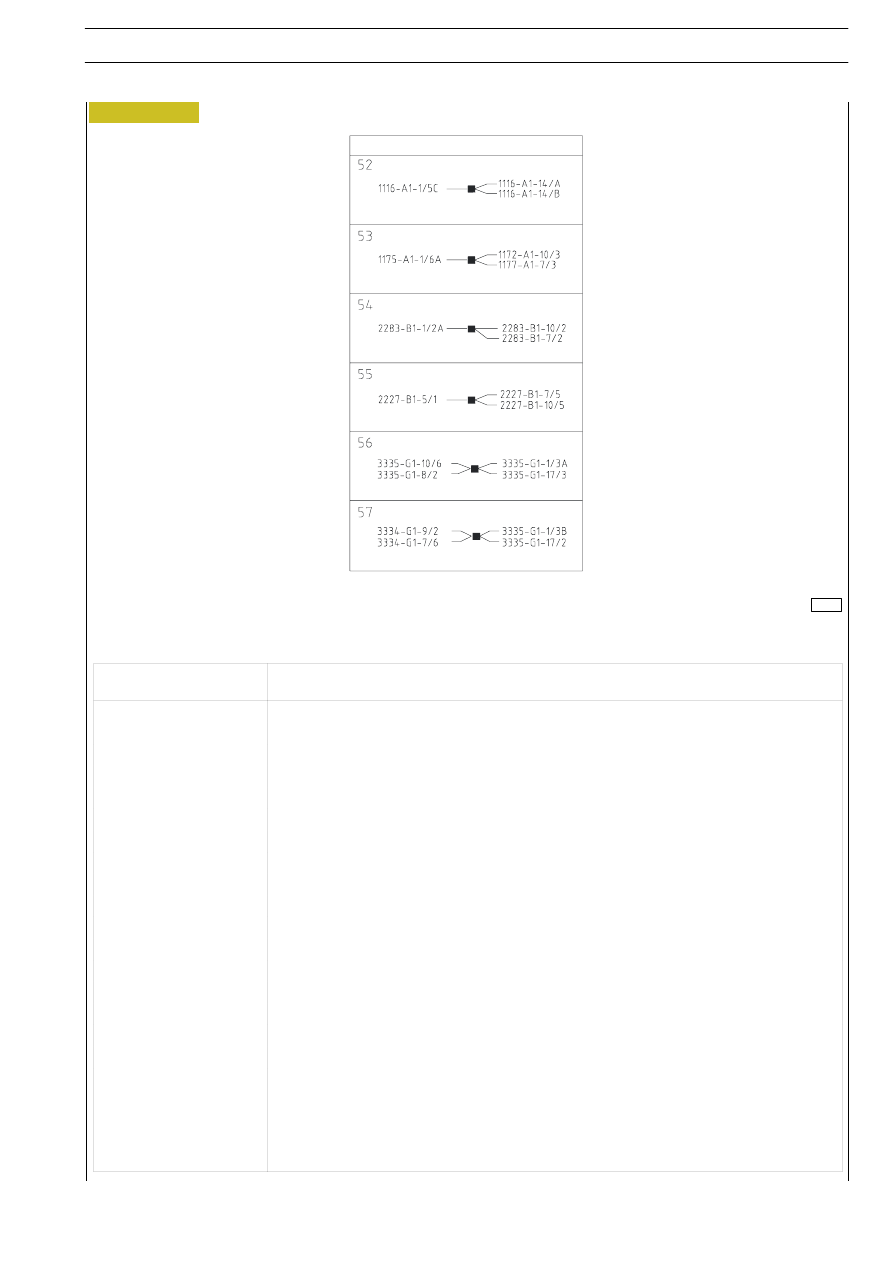

WELDING

Figure 43

74018

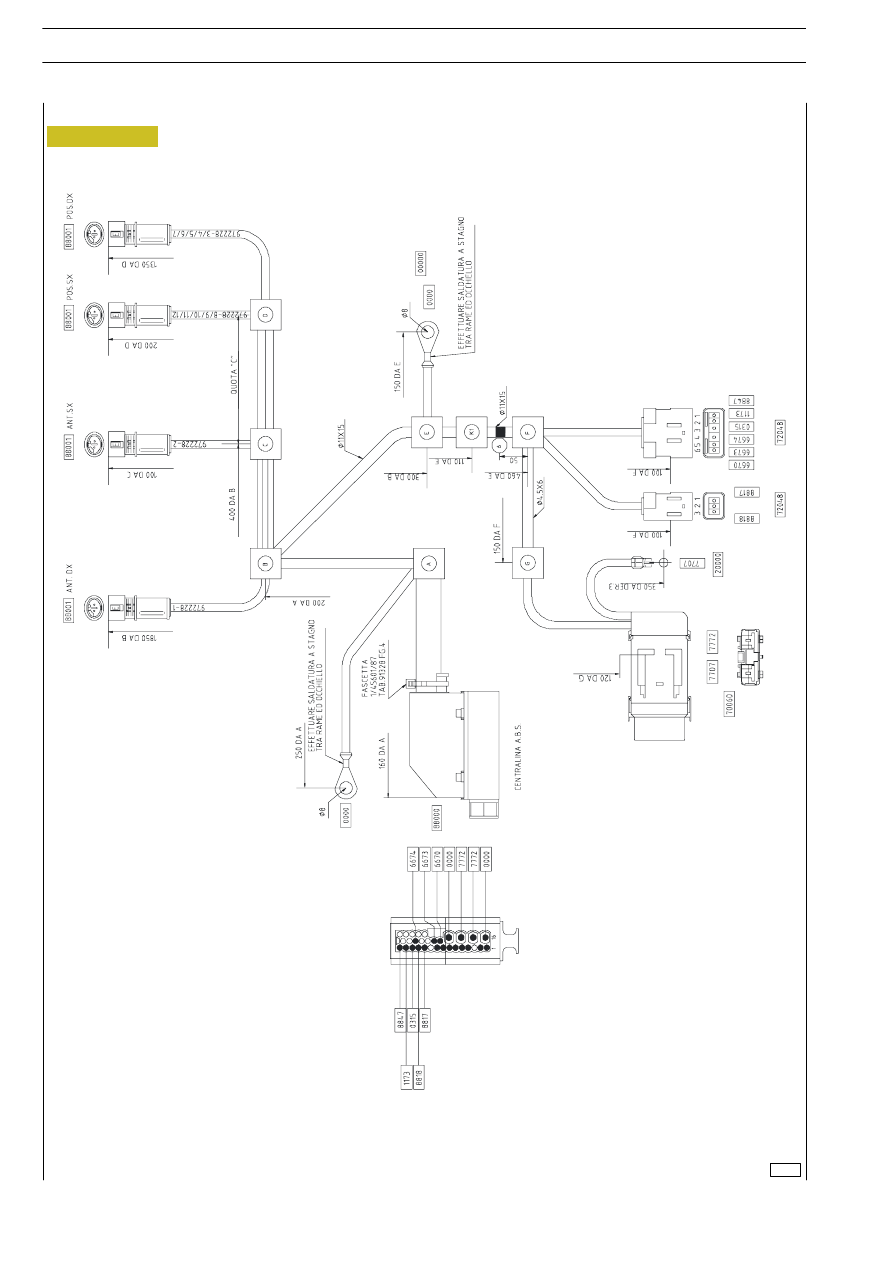

Figure 44

74015

42

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Base - May 2004

ELECTRIC/ELECTRONIC SYSTEM

43

D

AILY

Component

code

Description

20000

Starter battery

70060

40A one-way fuse holder

72048

Cab-hood harness to ABS harness connector

88000

ABS electronic control unit

88001

ABS sensor

WELDING

Figure 45

74016
