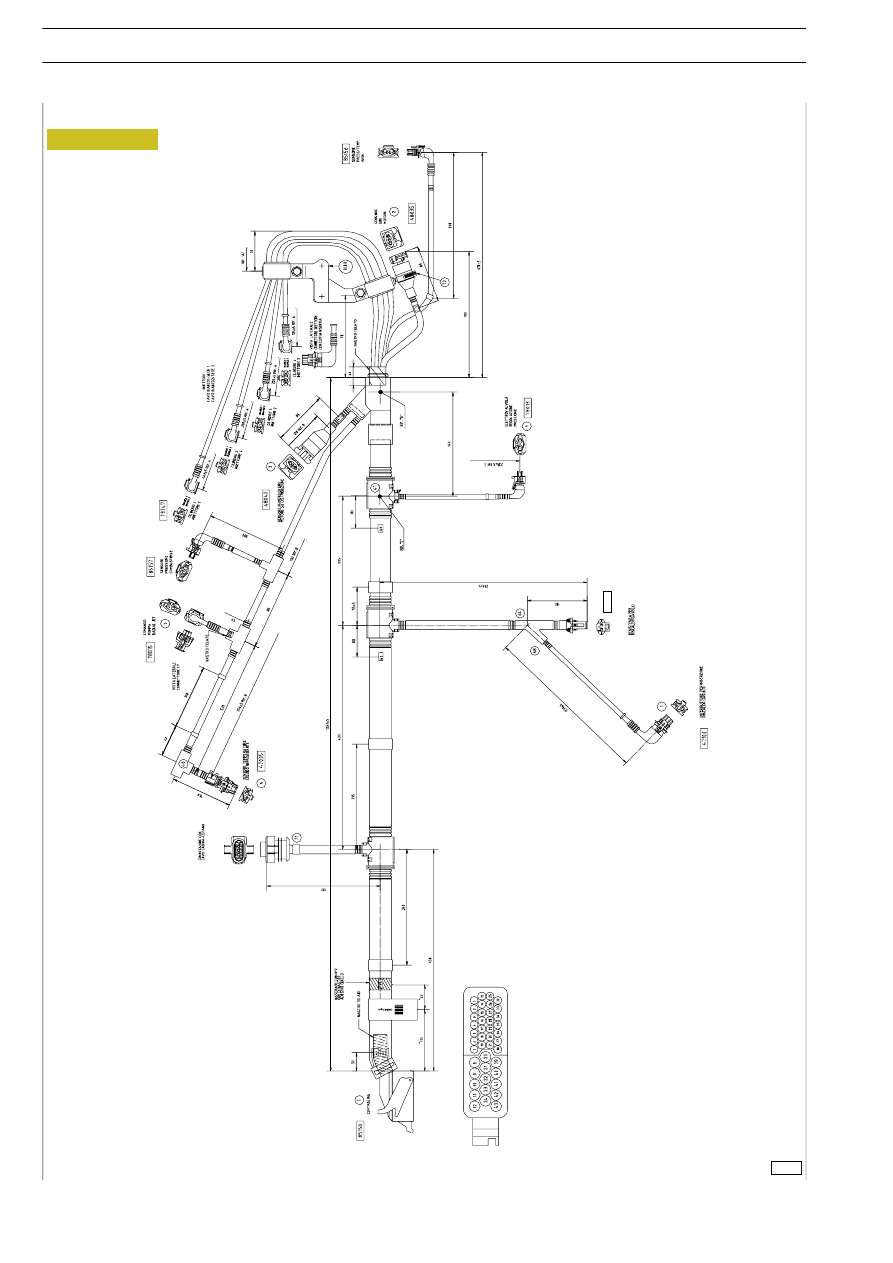

Figure 38

74008

32

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Base - May 2004

ELECTRIC/ELECTRONIC SYSTEM

33

D

AILY

Component code

Description

00000

Ground

03000

Self-rectifying alternator with integrated voltage regulator

08000

Starter motor

12012

A/C compressor

20000

Starter battery

42550

Engine oil low pressure indicator switch

44044

Low engine oil level indicator control

47030

Transmitter for engine water temperature thermometer

72030

Engine service harness connector to cab/hood harness

78000

Solenoid valve for fuel tank connection to atmosphere

85022

Electromagnetic coupling for engine cooling

I

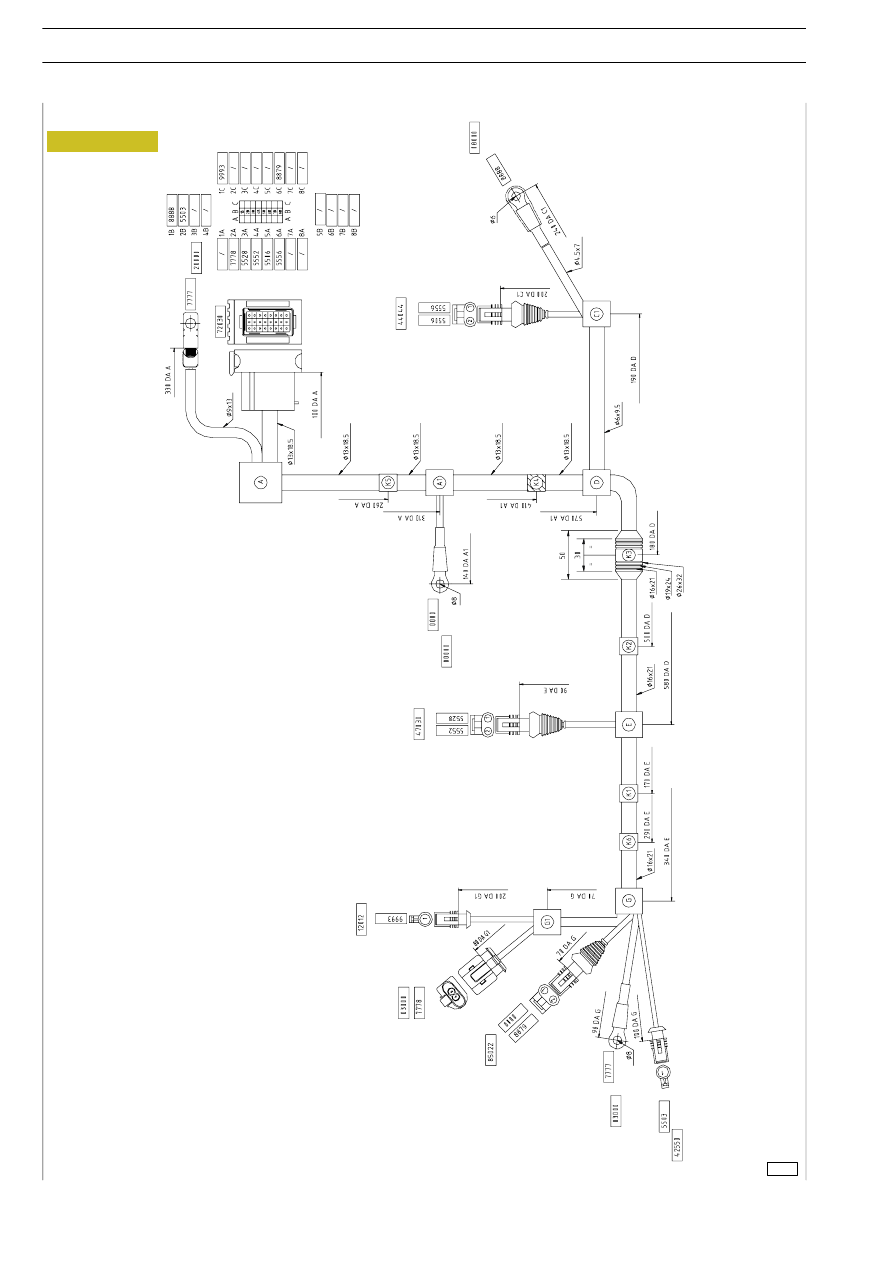

Figure 39

74010

34

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Base - May 2004

ELECTRIC/ELECTRONIC SYSTEM

35

D

AILY

Component code

Description

85150

EDC center

I

Connection to hood cab cable

47035

Coolant temperature sensor

78015

Radialjet pump control electro valve

85157

Fuel pressure sensor

78247

Electrical injection electro valve

48042

rpm sensor on distributor

48035

Engine rpm sensor

78013

Pressure adjustment electro valve

47106

Fuel heat on switch

85156

EDC blower air pressure sensor

61101

Fuel heat resistor
