Iveco Daily. Manual - part 256





Figure 9

Figure 10

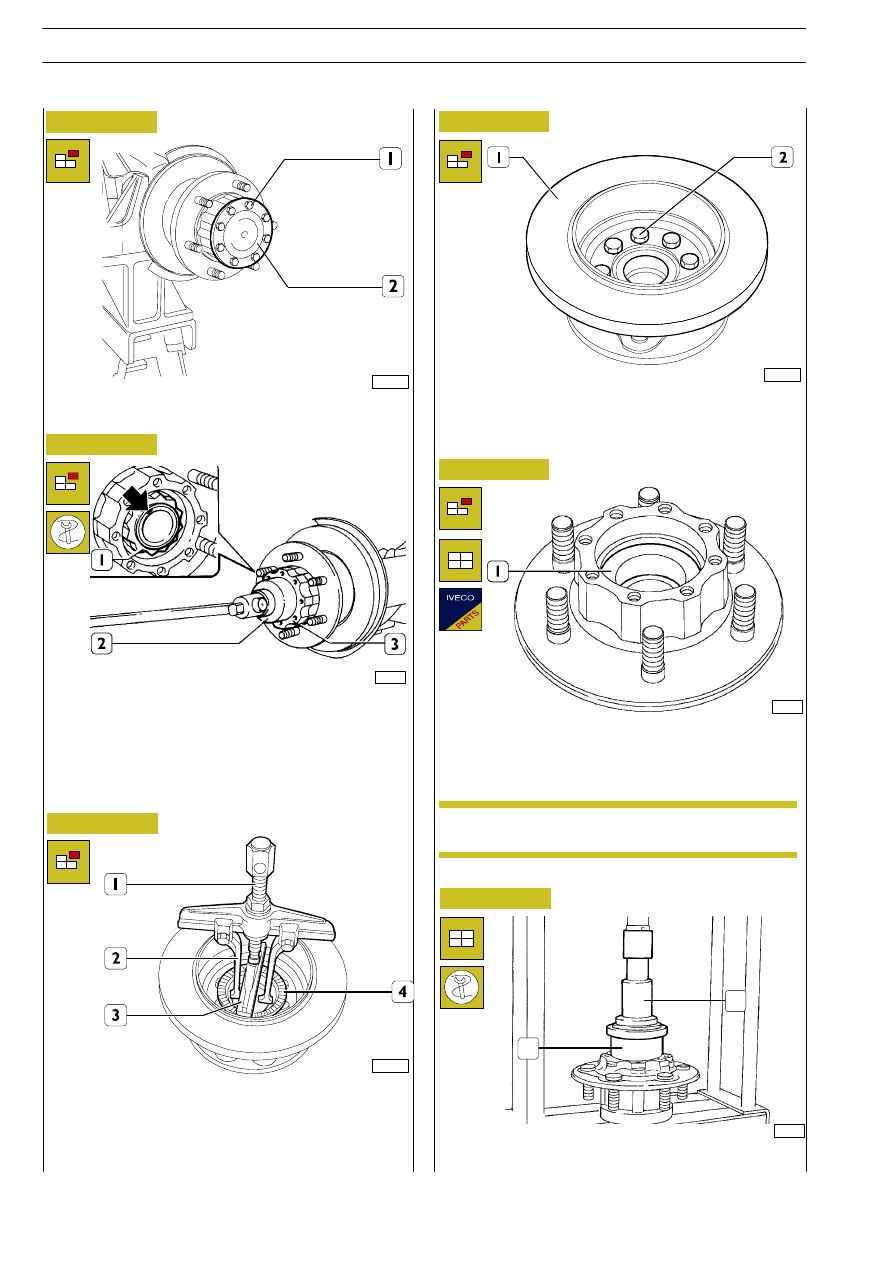

Take out the screws (1) and remove the drive shaft (2).

Lift up the notch (

⇒) of the ring nut (1). Using the wrench

99355087 (2) remove the ring nut (1), take out the washer
and extract the wheel hubs (3).

525031

Replacing the wheel hub bearing

Figure 11

In case of a hub equipped with phonic wheel (4), remove the
latter by means of extractor made up of rear axle 99341003
(1), brackets 99341010 (2), and reaction axle 99341005 (3).
Otherwise, remove the bearing guard ring.

101967

101968

44613

44616

Figure 12

Figure 13

Take out the screws (2) and remove the brake disc (1) from
the wheel hub. Check the brake disc as described under the
Brakes heading.

The bearing (1) is removed from the wheel hub with the aid
of an ordinary punch.

Bearing (1) driving load is 2100

÷ 5000 kg.

NOTE

101969

Figure 14

45164

The new bearing should be mounted in the wheel hub with
a press and tool 99370498.

1

2

104

REAR AXLES 450310

D

AILY

Revi - February 2005

44618

Figure 15

Figure 16

Figure 17

Figure 18

Figure 19

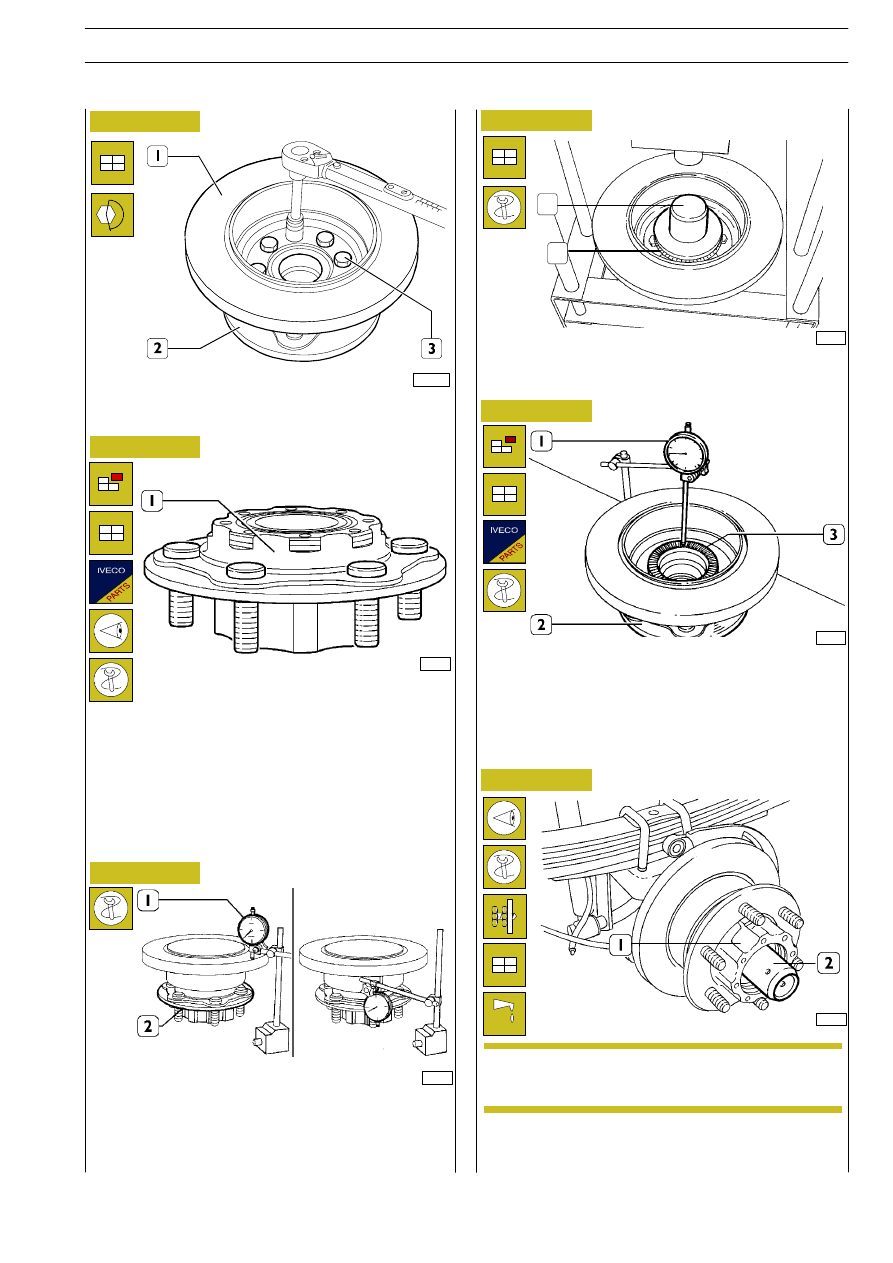

Mount the brake disc (1) on the wheel hub (2) and tighten
the fixing screws (3) to the required torque.

If it is necessary to replace the pins of the wheel hub (1),
before mounting the new ones, check that the mating surface
of the pin head is free from burrs, dross and blisters.

The pins should be driven in by applying a load on their head
no greater than 2000 kg.

After driving them home, check that the pins are perfectly in
touch with the hub: maximum orthogonal tolerance 0.2 mm.

Figure 20

44619

Stand the bearing of the wheel hub (2) on a special mounting
that permits rotation. With a magnetic dial gauge (1) check
the off-centring of the brake disc on both sides.

Off-centring must not exceed 0.1 mm.

The phonic wheel (2) should be mounted in the hub with the
punch 99370498 (1), checking after assembly that the
”phonic” wheel rests perfectly in its seat in the hub.

45165

1

2

44620

Check the orthogonality of the phonic wheel (2), proceeding
as follows:
Position the feeler of the magnetic dial gauge (1) on the
phonic wheel.
Making the wheel hub (3) turn, check that the maximum
error of orthogonality of the phonic wheel (2) is no greater
than 0.1 mm.

44621

Mount the inserter 99370497 (2) on the sleeve.
Lubricate the sleeve with TUTELA W140/M-DA oil and key
the wheel hub (1).

Check and, if necessary, adjust the clearance
between the parking brake drum and shoes as
described in the Brakes section.

NOTE

101970

REAR AXLES 450310

105

D

AILY

Revi - February 2005

Figure 21

Figure 22

Figure 23

Figure 24

Figure 25

Figure 26

44622

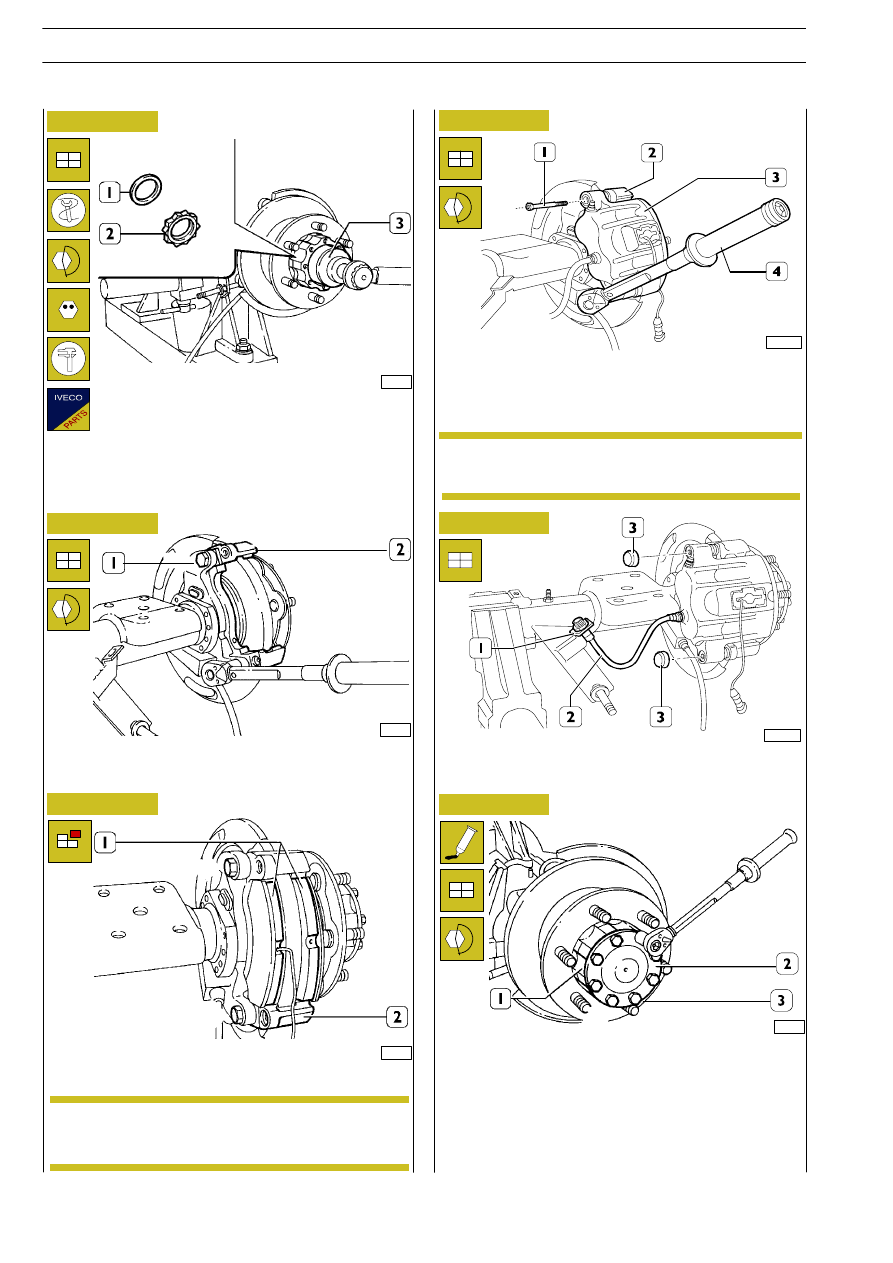

Mount the washer (1) and a new ring nut (2). Using the
wrench 99355087 (3), tighten the ring nut (2) to the required
torque.
Notch the fixing ring nut (2) on the milling of the axle housing
arm.

44623

Mount the support (2) and tighten the fixing screws (1) to
the required torque.

44611

Mount the brake linings (1).

The brake lining with the wear indicator must be
mounted from the piston side of the brake caliper.

Fit brake caliper (3) to support (2), then use torque wrench (4)
to tighten fastening screws (1) to the torque of 32 to 36 Nm.
Having to move the brake caliper piston back, keep to the
instructions given in the BRAKES section.

Mount only new screws (1, Figure 24).
Every time they are removed, they must be
replaced.

NOTE

NOTE

Fit new protection caps (3).
Connect the pipe (2) to the support bracket (1).

Apply IVECO 1905685 sealant on the contact surfaces of the
drive shaft (2) with the wheel hub (1).
Mount the drive shaft (2) in the sleeve.
Tighten the screws (3) securing the drive shaft (2) to the hub
(1) to the required torque.
After the assembling operation has been completed, fill the
rear axle case with TUTELA W90/M - DA oil to the
prescribed amount and grade.

44626

101971

102962

106

REAR AXLES 450310

D

AILY

Revi - February 2005

51815

Figure 27

Figure 28

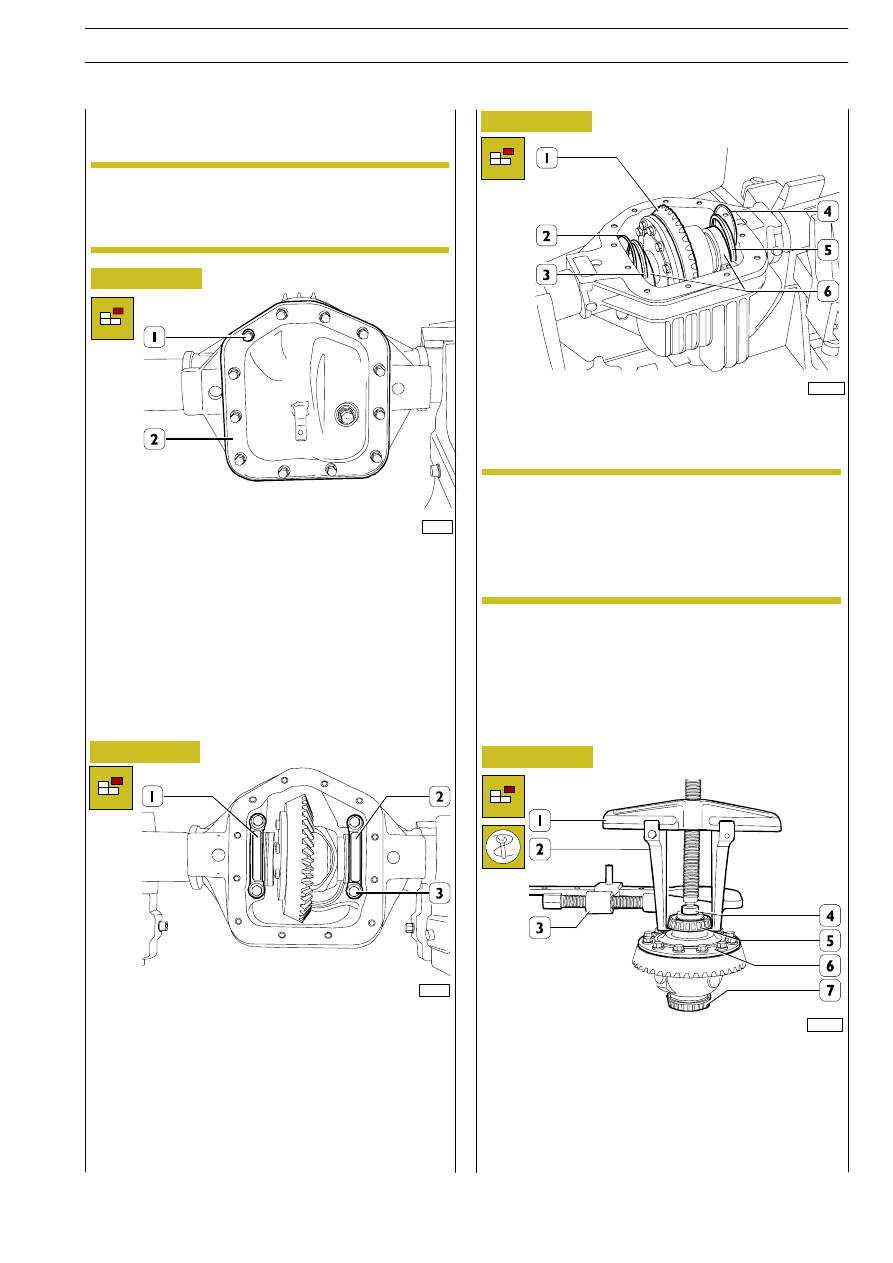

Unscrew the screws (1) with their lock washers and spring
washers (if any) and take off the gearing inspection cover (2)
with its gasket (if present).

Mark the position of the caps (1 and 2), take out the screws
(3) and remove them.

526210

REPAIRING THE DIFFERENTIAL

Disassembling the differential unit

Figure 29

Extract the differential unit (1) from the axle housing.

Before repairing the differential it is necessary to
drain off the oil and dismantle the drive shafts, as
described under the heading of overhauling the
wheel hub (operation 525030).

NOTE

Note the assembly position of the adjustment rings
(2-4) of the spacers (3-5) and of the external rings
(6) of the tapered roller bearings to position them
for assembly in the same position.
In case of re-utilization, do not reverse the
assembling position of tapered-roller bearing
external rings (6).

NOTE

51816

101972

Figure 30

Use tool 99341003 (1), brackets 99341009 (2), clamp
99341015 (3) and reaction block 99345057 (4) to remove
taper roller bearing inner rings (5 - 7) from gear housing (6).

Gear housing removal

101973

REAR AXLES 450310

107

D

AILY

Revi - February 2005
