10

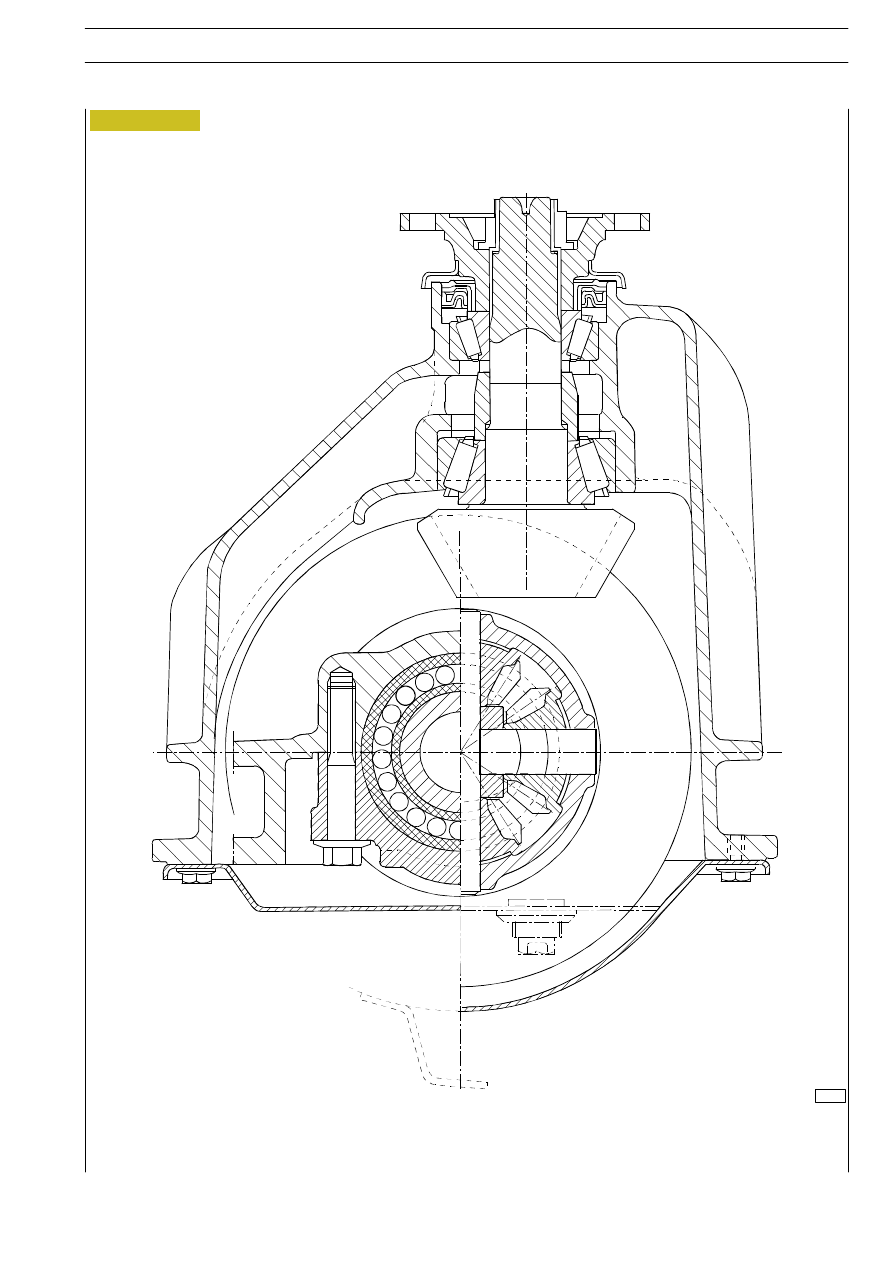

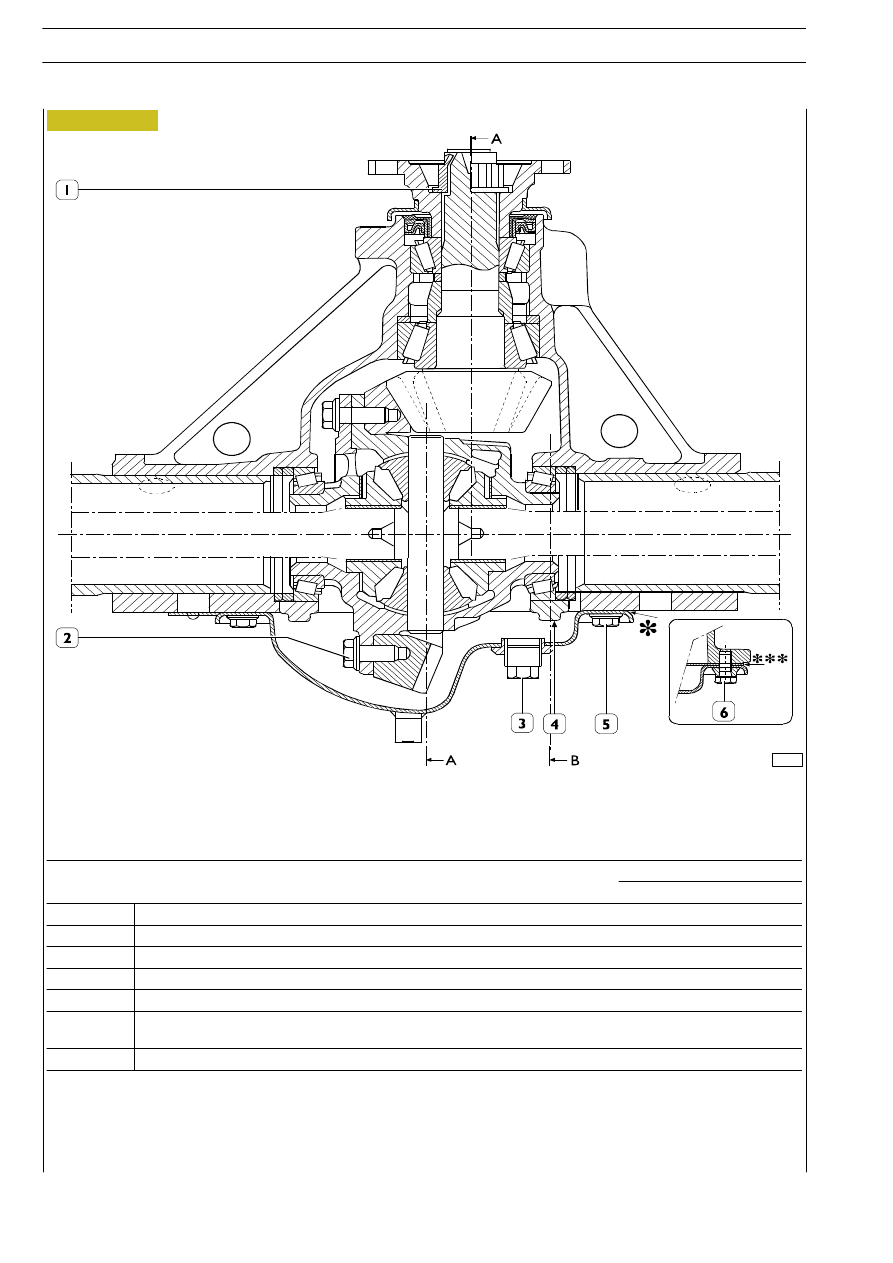

REAR AXLE 450210
D
AILY
Base - May 2004

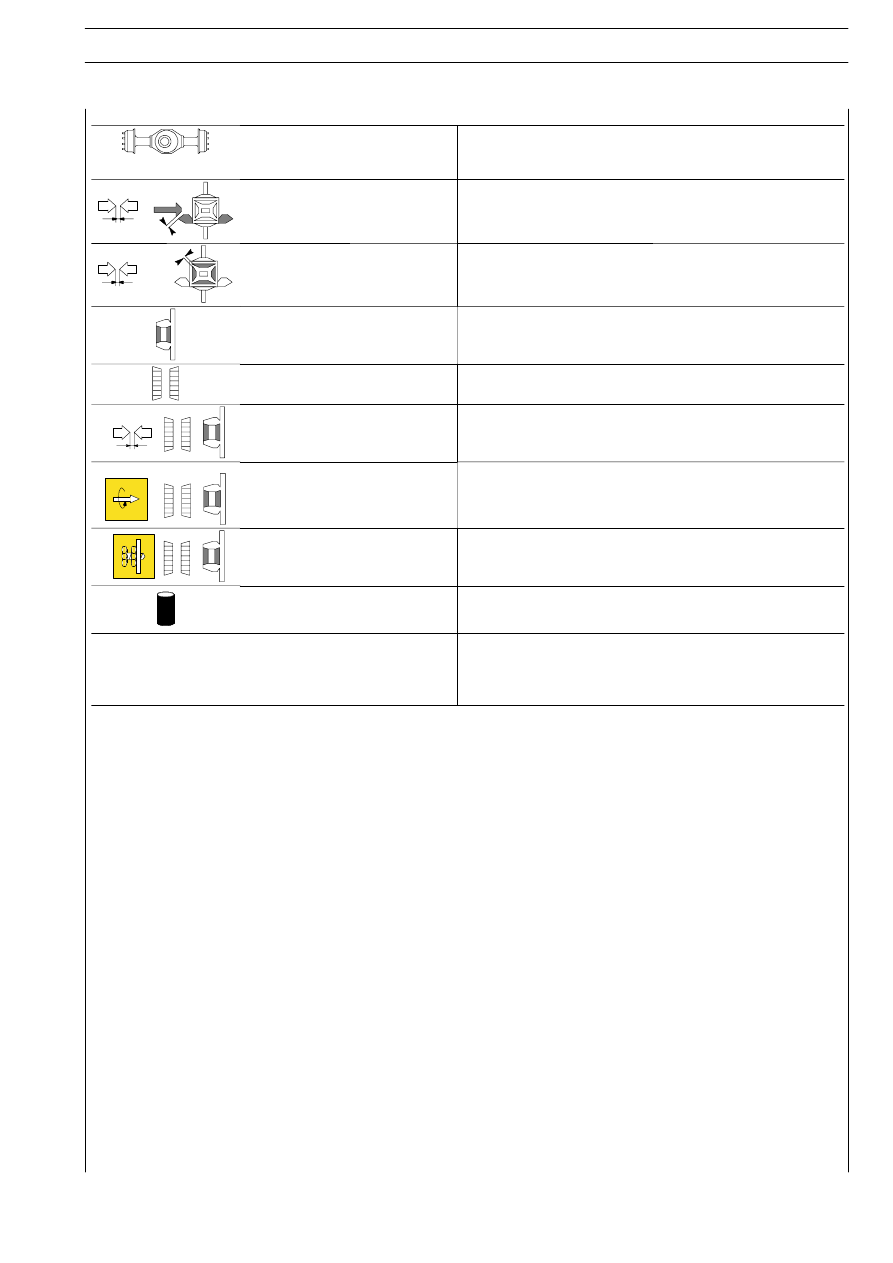

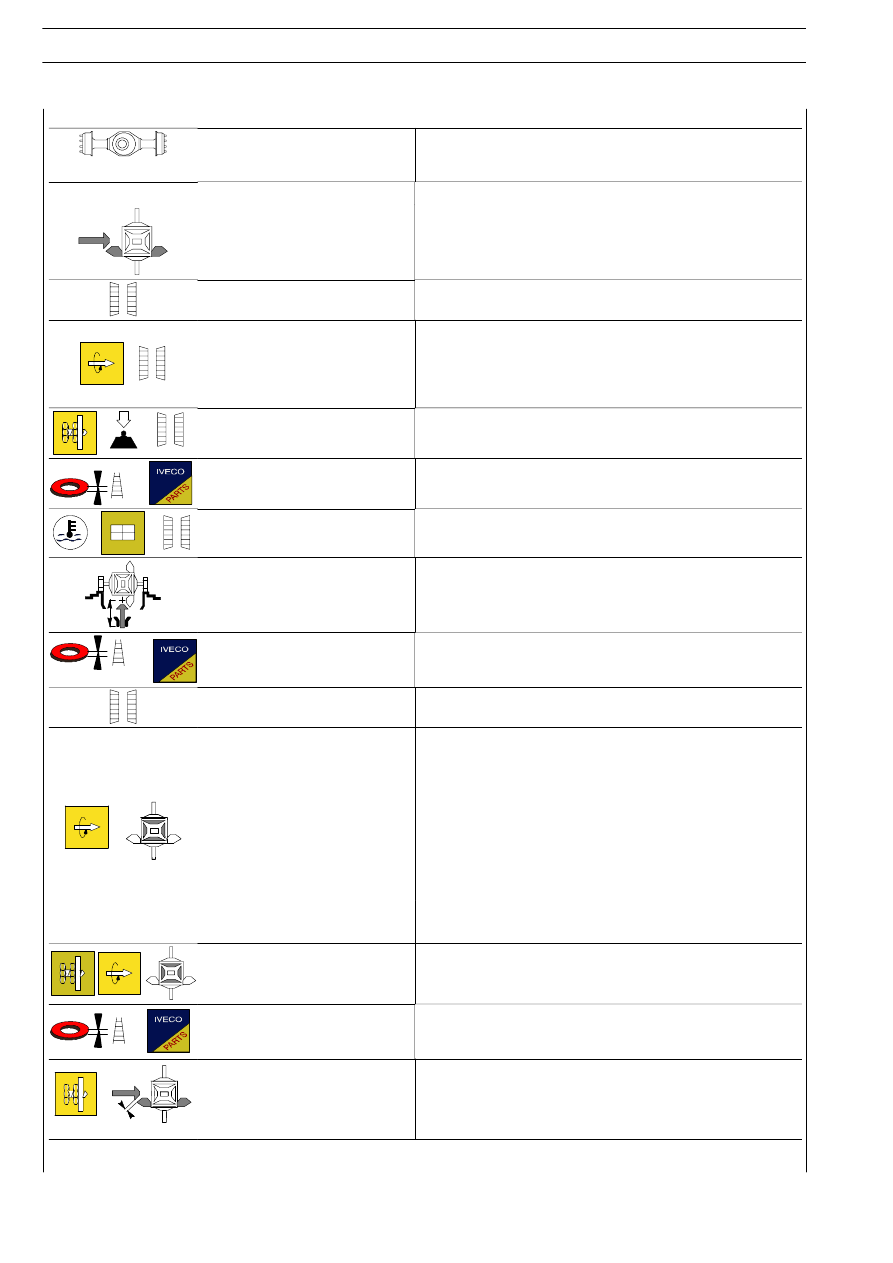

SPECIFICATIONS AND DATA
Type of rear axle:
450210
Simple reduction type
450210
DIFFERENTIAL UNIT
Reduction bevel gear pair ratio
(No. of teeth: pinion/crown)
15/44 (1/2.93) - 13/41 (1/3.15) - 12/41 (1/3.41) - 12/43
(1/3.58) - 12/47 (3.91) - 10/41 (1/4.10) - 9/40 (1/4.44) - 11/49
(1/4.45) - 9/44 (1/4.88) - 8/41 (1/5.12) - 8/45 (1/5.63)
Bevel pinion bearings
2 with taper rollers
Bevel pinion bearings rolling torque
(bearings lubricated and without
gasket)
Nm
New bearings
kgm
2.3
÷ 3.3
0.23
÷ 0.33
Adjustment of pre-load of bevel
pinion bearings
By means of adjustment ring
>
Bevel pinion bearings pre-load
adjustment ring thicknesses
5.125
÷ 6.150 mm
with progression of 0.025 mm.
Temperature of assembly of inner
bearing ring on bevel pinion
-
Position of bevel pinion with
respect to differential casing
By means of adjustment ring
>
Thickness
of
adjustment
rings
placed between bevel pinion and
differential casing
3.2
÷ 4.1 mm
with progression of 0.05 mm.
Bearings for gear housing
2 with taper rollers
Differential casing bearings rolling
torque (bearings lubricated and
without gasket)
- 15/44 - 13/41- 12/41
- 12/43 - 12/47 - 10/41:
DaNm
0.27
÷ 0.39
kgm
0.27
÷ 0.39
- 11/49 - 9/40 - 9/44
- 8/41 - 8/45:
DaNm
0.26
÷ 0.37
kgm
0.26
÷ 0.37
Adjustment of differential casing
bearings rolling torque
By means of adjustment rings
>
Thickness of adjustment rings of
differential casing bearings rolling
torque
2.550
÷ 3.350 mm
with progression of 0.025 mm.
Clearance between pinion and ring
bevel gear with reduction ratios
- 13/41 - 12/43 - 9/43 - 8/45:
0.13
÷ 0.18 mm
- 10/41 - 9/40:
0.15
÷ 0.20 mm
