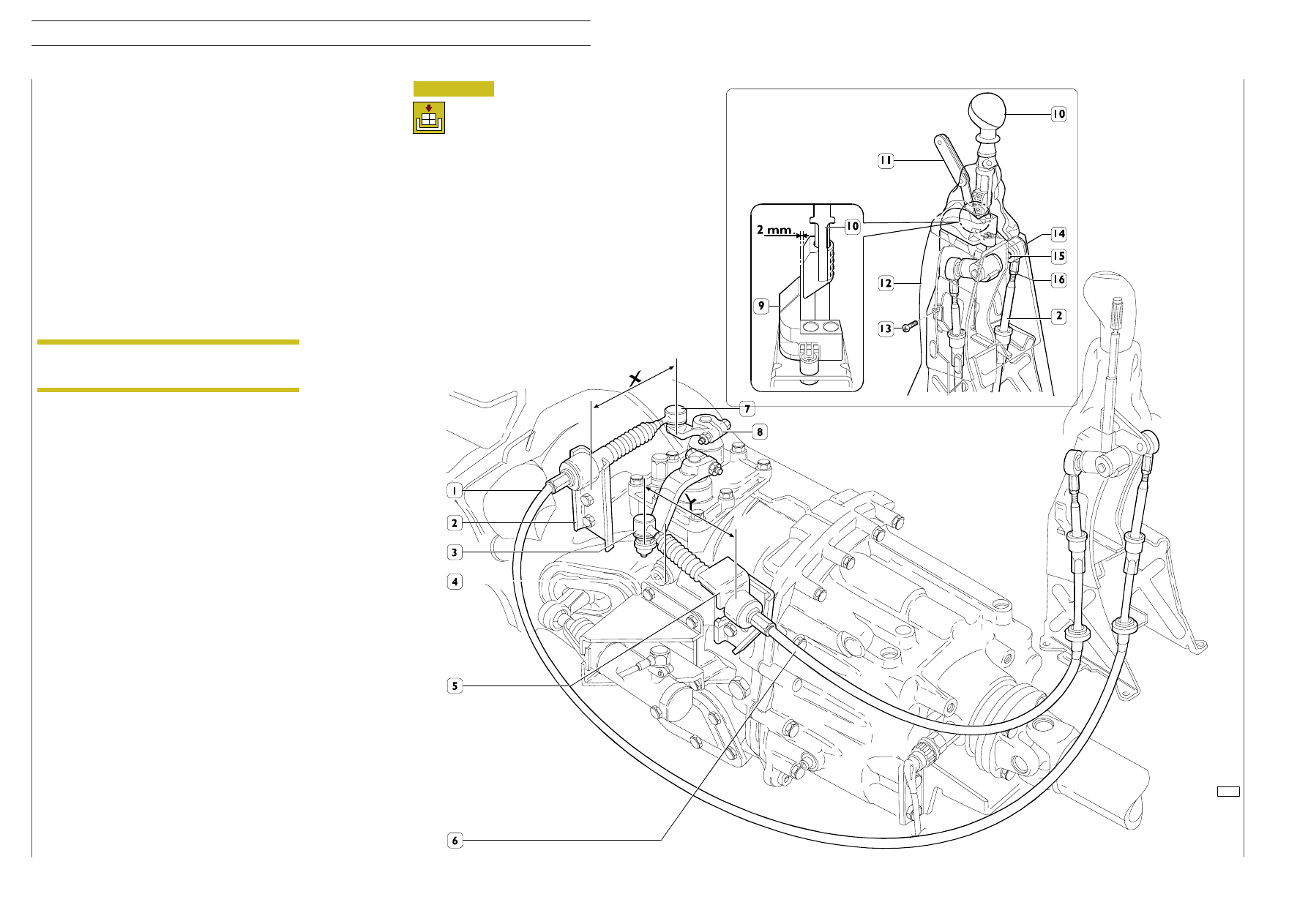

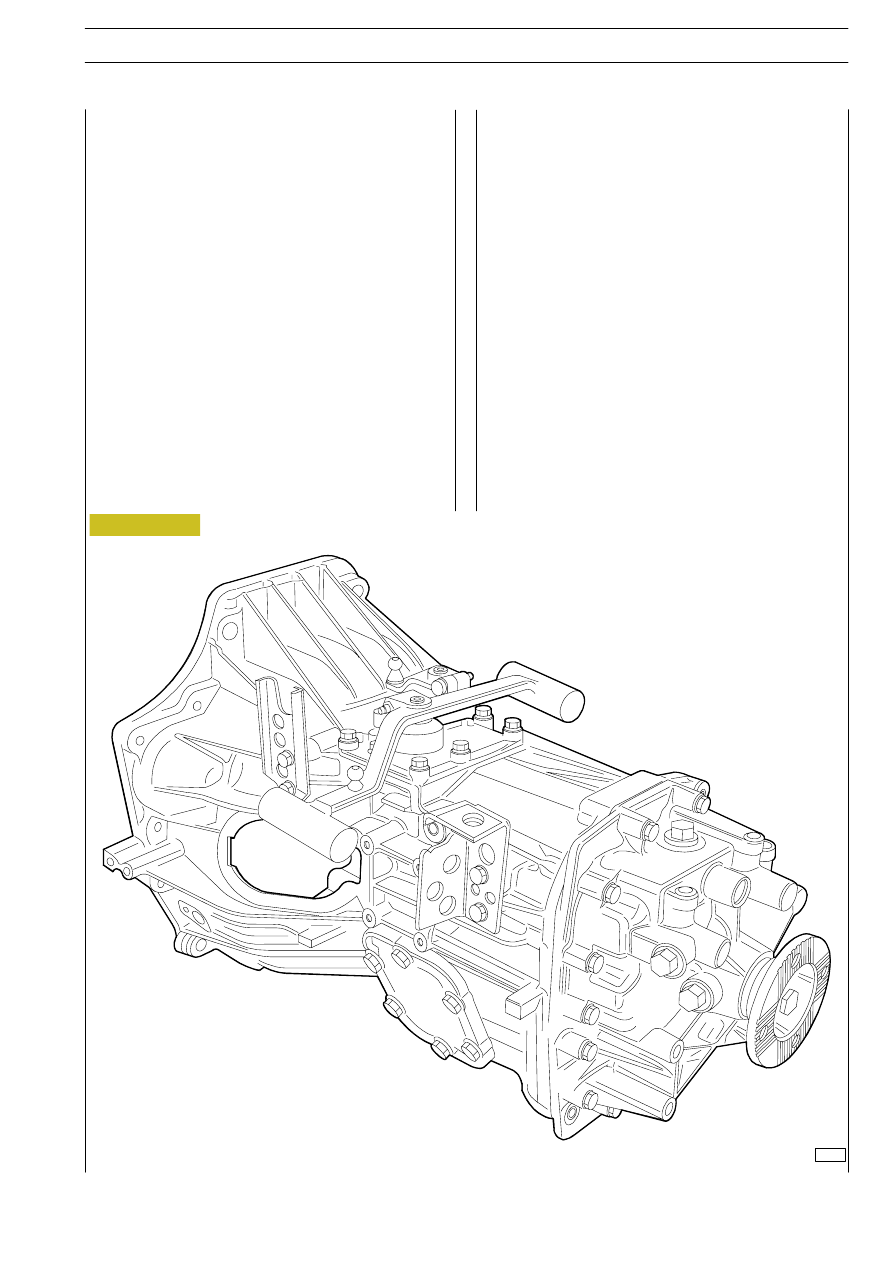

Figure 2 Before assembly, lubricate the points of connection GEAR CONTROL Gear control is accomplished with two Bowden cables. The - 780 ±2 mm engagement cable (6); - 1280 ±2 mm selection cable (1). The selection (8) and engagement (4) levers must be - between the c/c distance of the pin of the lever (8) for connecting the swivel head and the outside of the ±0.75 mm; - between the c/c distance of the pin of the lever (4) for connecting the swivel head (3) and the outside of the ±0.75 mm. - Engagement cable (6): ¤ Left-hand drive vehicles, 758.5 ±2 mm. ¤ Right-hand drive vehicles, 1058.5 ±2 mm. - Selector cable (1): ¤ Left-hand drive vehicles, 1216 ±2 mm. ¤ Right-hand drive vehicles, 1566.5 ±2 mm. For vehicles fitting 6S300 transmission and synchronised Remove the screw (13) and detach the cover (12) from the Engage either 1 st of 2 nd gear and check that there is a distance of 2 mm between the gear lever (10) and the stop (9); - remove the ball joint (14) from the connecting ball pin (15); - loosen the fastening nut (16); - arrange a 2 mm shim (11) between stop (9) and lever (10); - hold the lever (10), shim (11) and stop (9) in contact and turn the ball joint (15) until it reaches the ball pin (15); - fasten and check that all the gears can be engaged; - tightening the fastening nut (16); - reattach the cover (12) and tighten the fastening screws (13). 85960 NOTE 8 TRANSMISSION D AILY Base - May 2004 |
