8
REAR AXLE NDA RS
D
AILY
E
URO
4

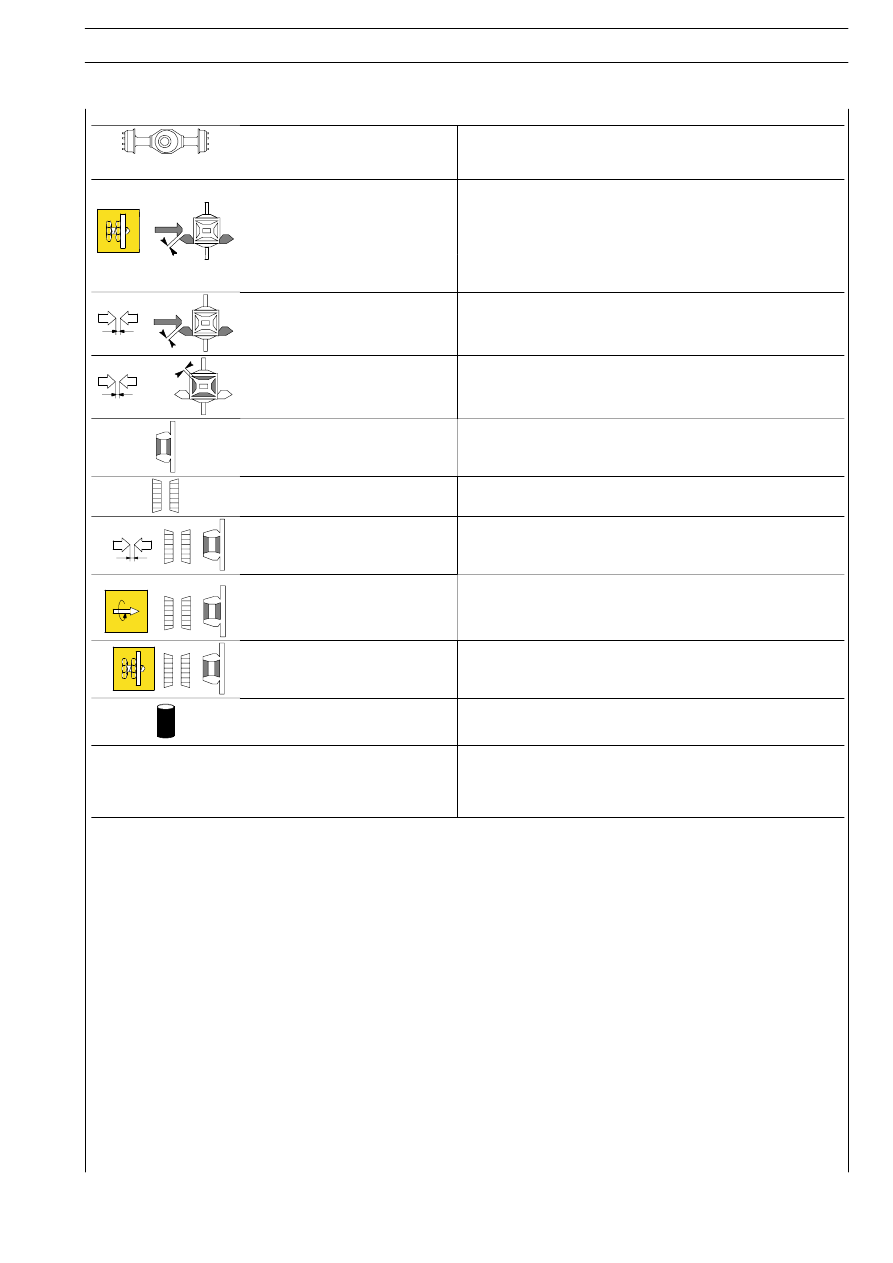

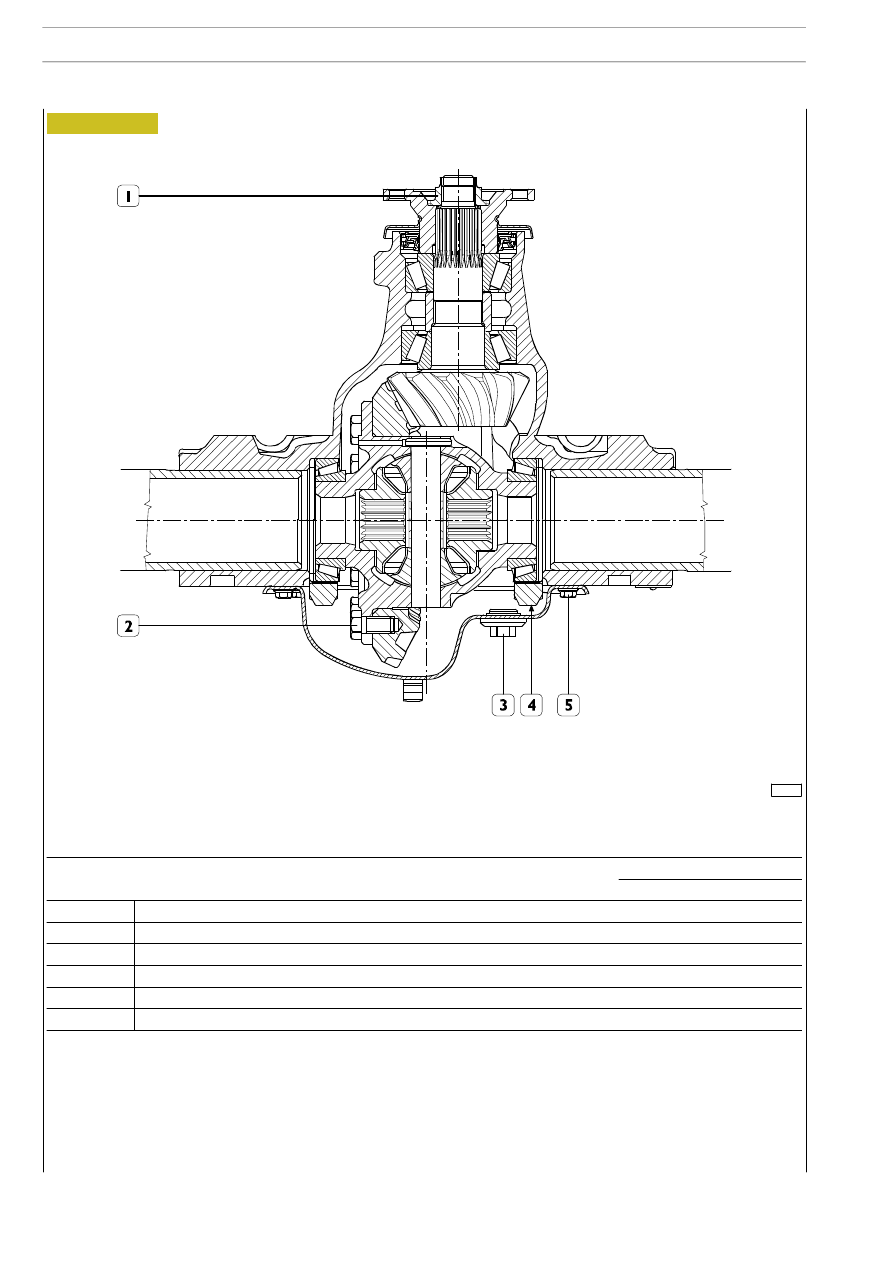

Type of rear axle:
NDA RS
Simple reduction type
NDA RS

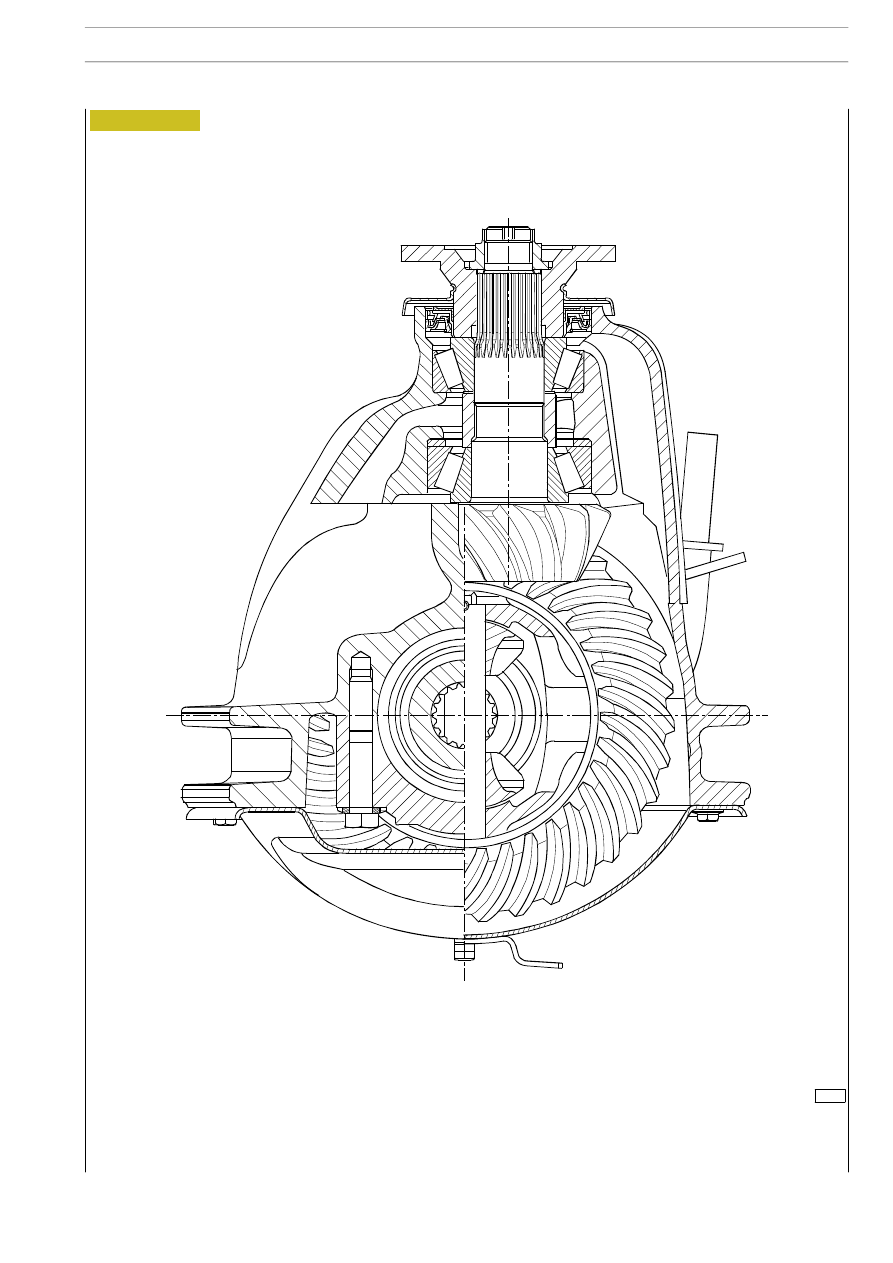

DIFFERENTIAL UNIT
Reduction bevel gear pair ratio
(No. of teeth: pinion/crown)
1/3,154 (13/41) - 1/3,416 (12/41) - 1/3,727 (11/41) - 1/3,916
(12/47) - 1/4,182 (11/46) - 1/4,444 (9/40) - 1/4,889(9/44) -
1/5,111 (9/46)
Bevel pinion bearings
2 with taper rollers
Bevel pinion bearings rolling torque
(bearings lubricated and without
gasket)
Nm
New bearings
kgm
2.3
÷ 3.3
0.23
÷ 0.33
Adjustment of pre-load of bevel
pinion bearings
By means of adjustment rings
>
Bevel pinion bearings pre-load
adjustment rings
0.545
÷ 1.070 mm
with progression of 0.025 mm.
Temperature at assembly of inner
bearing ring on bevel pinion
-
Position of bevel pinion with
respect to differential casing
By means of adjustment spacers
>
Thickness
of
adjustment
rings
placed between bevel pinion and
differential casing
3.585
÷ 4.235 mm
with progression of 0.025 mm.

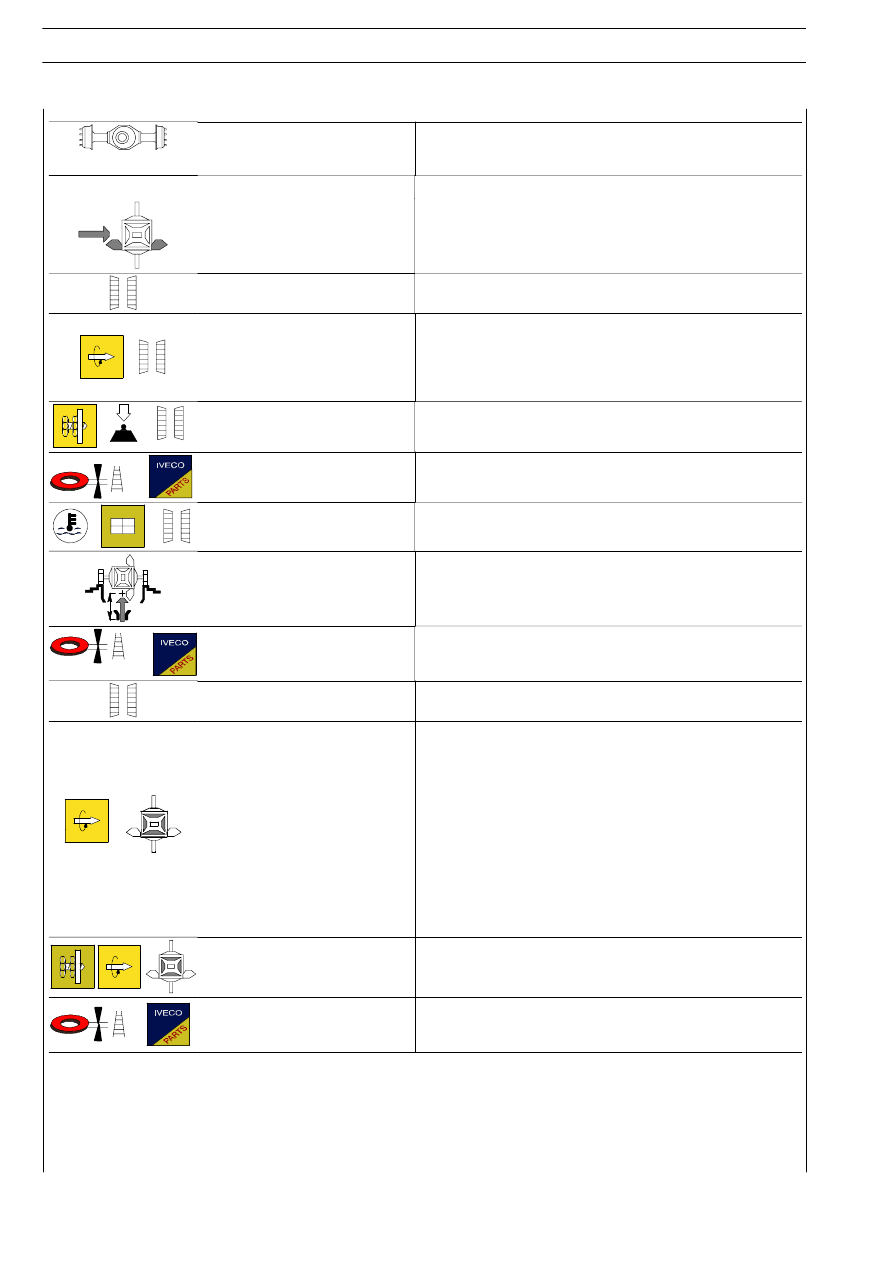

Bearings for gear housing
2 with taper rollers
Differential casing bearings rolling
torque (bearings lubricated and
without gasket)
- 15/44 - 13/41- 12/41
- 12/43 - 12/47 - 10/41:
Nm
2.7
÷ 3.9
kgm
0.27
÷ 0.39
- 11/49 - 9/40 - 9/44
- 8/41 - 8/45:
Nm
2.6
÷ 3.7
kgm
0.26
÷ 0.37
Adjustment of differential casing
bearings rolling torque
By means of adjustment rings
>
Thickness of adjustment rings of
differential casing bearings rolling
torque
1
÷ 1,95 mm
with progression of 0.05 mm.
