EXTERIOR/INTERIOR TRIM

8J–3

Consoles

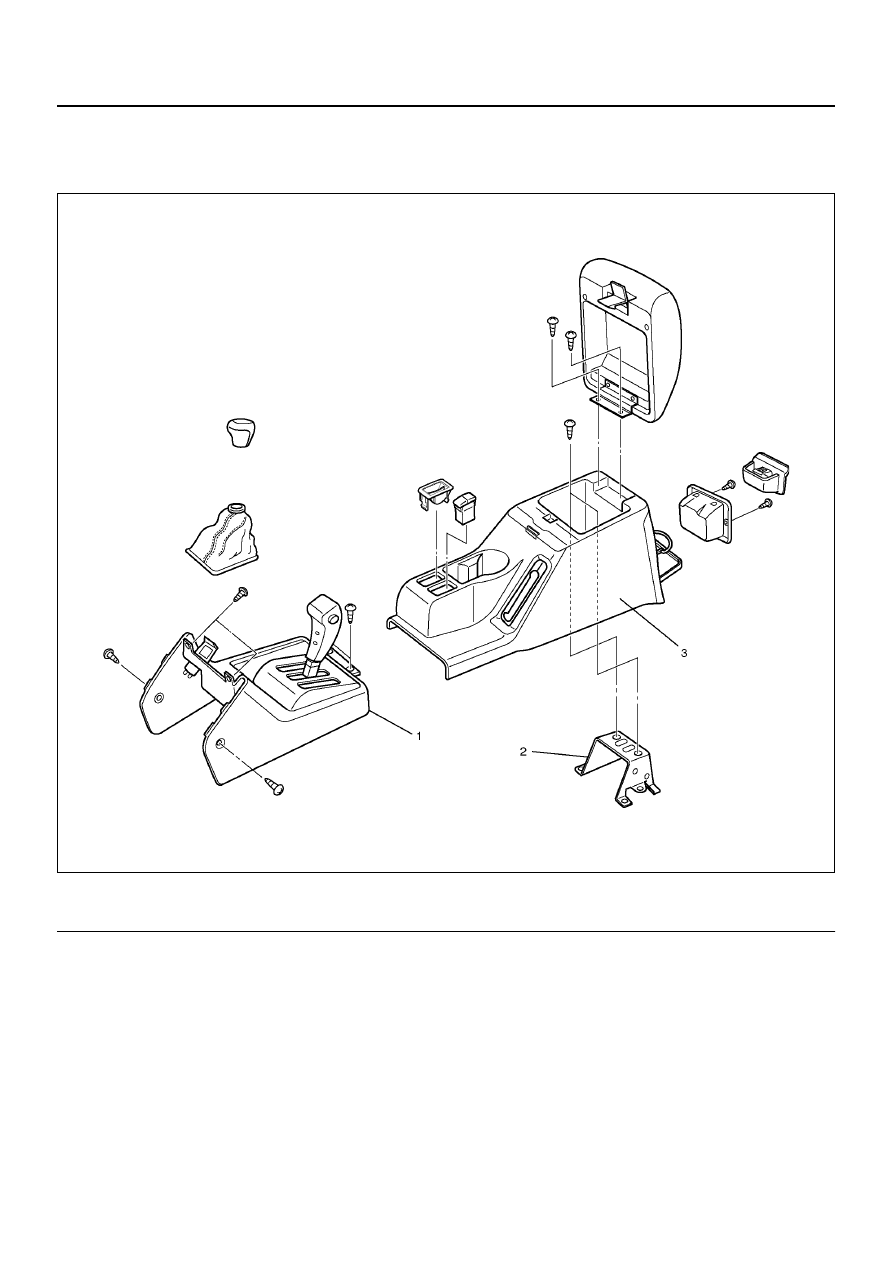

Consoles and Associated Parts

745R200007

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the shift knob (M/T) / transfer knob (4

´4).

3. Remove the rear console assembly.

• Open the rear console lid and remove two

screws.

• Disconnect the switch connector.

4. Remove the front console assembly.

• Remove six fixing screws and disconnect the

accessory socket connectors.

Installation

To install, follow the removal steps in the reverse order.

Legend

(1) Front Console

(2) Console Brackets
(3) Rear Console Assembly

8J–4

EXTERIOR/INTERIOR TRIM

Front Door Trim Panel

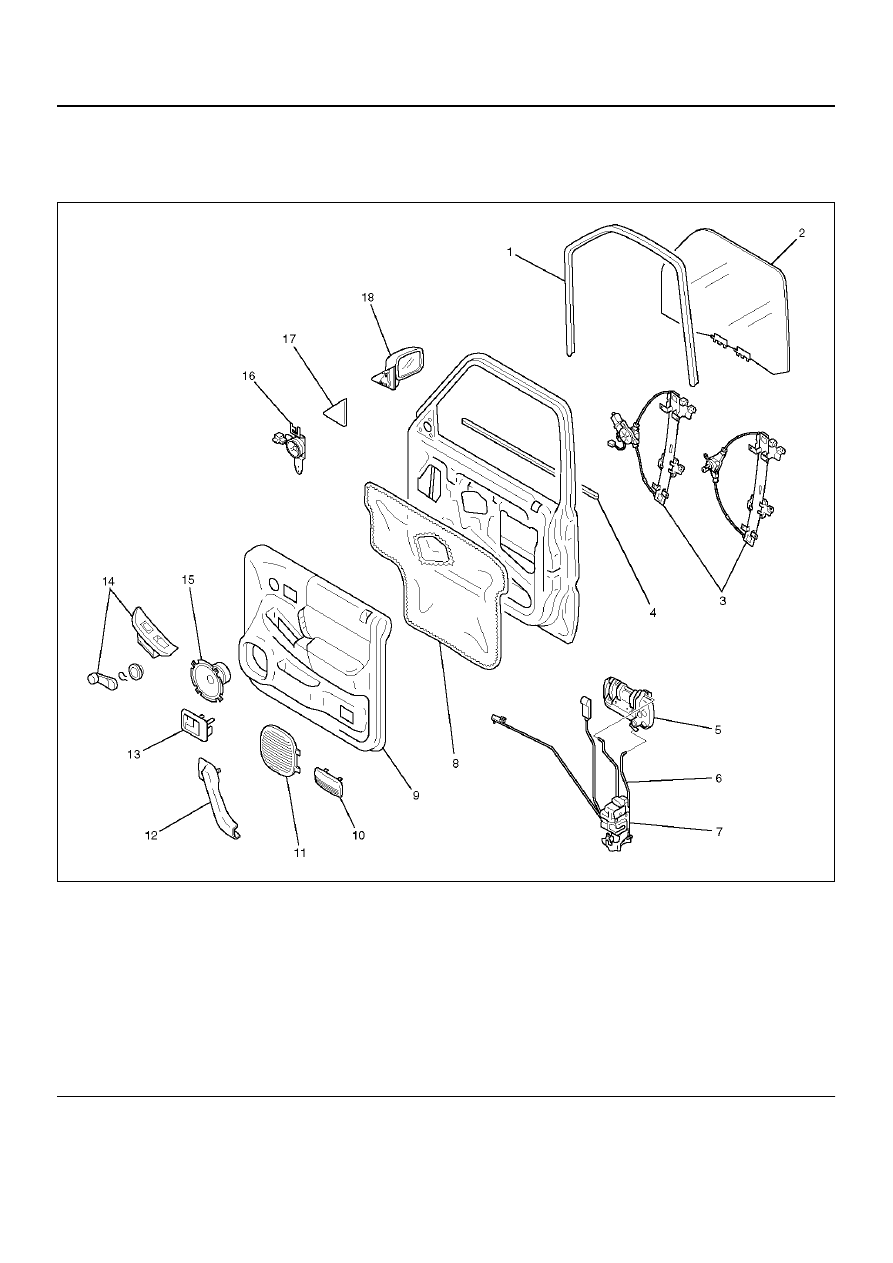

Front Door Trim Panel and Associated Parts

635R100001

EndOFCallout

Legend

(1) Glass Run
(2) Glass
(3) Window Regulator/Power Window Regulator
(4) Outer Waste Seal
(5) Outside Handle
(6) Door Lock Cylinder
(7) Door Lock Assembly/Door Lock Actuator
(8) Waterproof Sheet
(9) Door Trim Panel

(10) Courtesy Light Lens

(11) Speaker Grill

(12) Grip Cover
(13) Inside Handle
(14) Power Window Switch/Window Regulator

Handle

(15) Speaker Assembly
(16) Tweeter
(17) Door Mirror Cover
(18) Door Mirror Assembly

EXTERIOR/INTERIOR TRIM

8J–5

Removal

1. Disconnect the battery ground cable.

2. Remove the door mirror assembly.

• Refer to Door Mirror Assembly in this section.

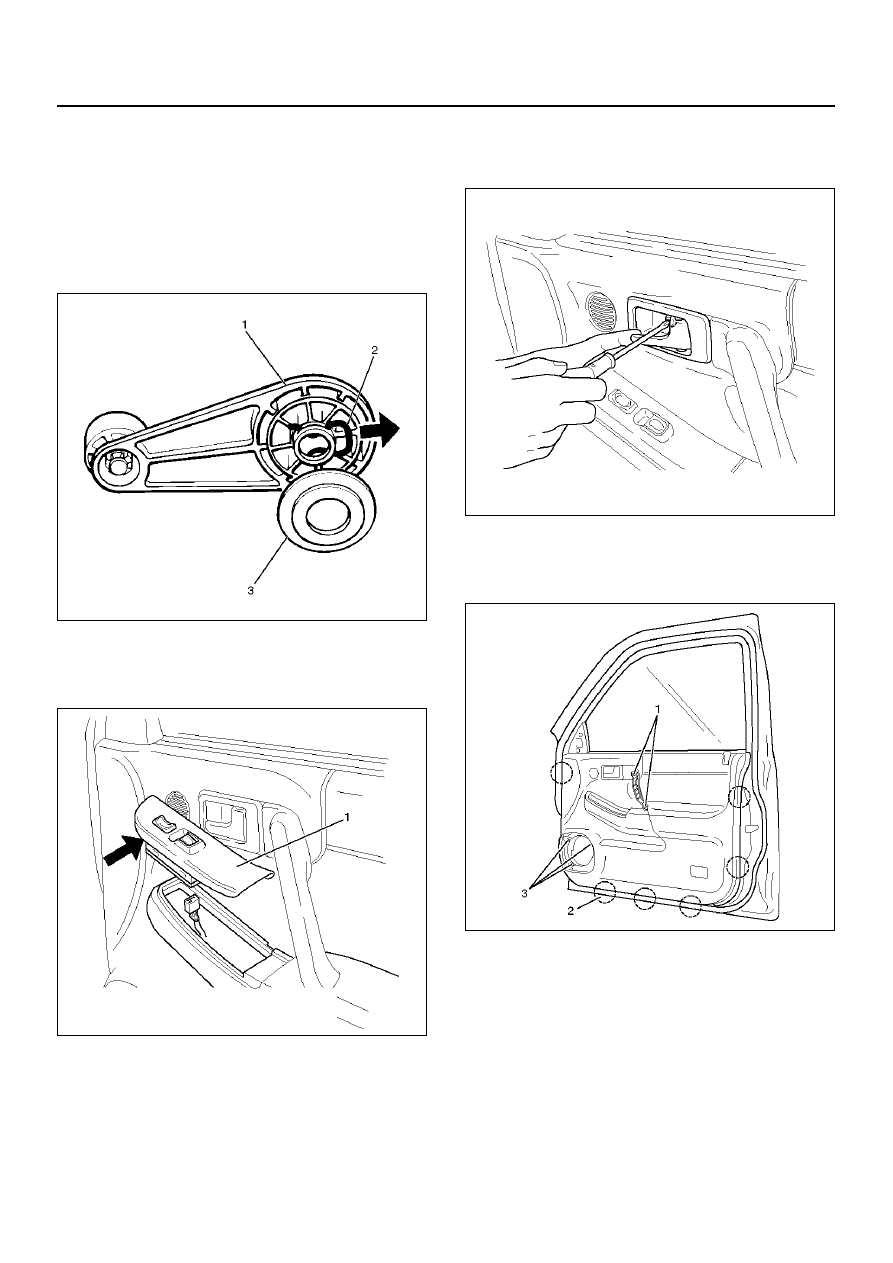

3. Remove the regulator handle (1).

• Pull the hook (2) out and remove the regulator

handle.

631RW004

4. Remove the power window switch (1).

• Pry the power window switch out and disconnect

the switch connector.

825RW097

5. Remove the speaker cover.

6. Remove the front speaker.

• Remove the front speaker fixing screws in order

to disconnect the speaker connector.

7. Remove the inside handle fixing screw.

CAUTION:  Do not apply excessive force on the
inside handle link or damage may occur, which
could make the inside handle difficult to operate.

632RW003

8. Remove the door trim panel.

• Remove 5 fixing screws (1), (3) in order to take

off 6 clips (2) from the door panel.

635RW007

• Disconnect the tweeter and courtesy light

connectors to lift the door trim panel and unlock
the engagement of the waist seal section. Then,
pass the inside handle through the mounting hole
of the trim panel, and detach the trim panel.

9. Remove the inside handle.

10. Remove the tweeter.

Installation

To install, follow the removal steps in the reverse order.

8J–6

EXTERIOR/INTERIOR TRIM

Rear Door Trim Panel

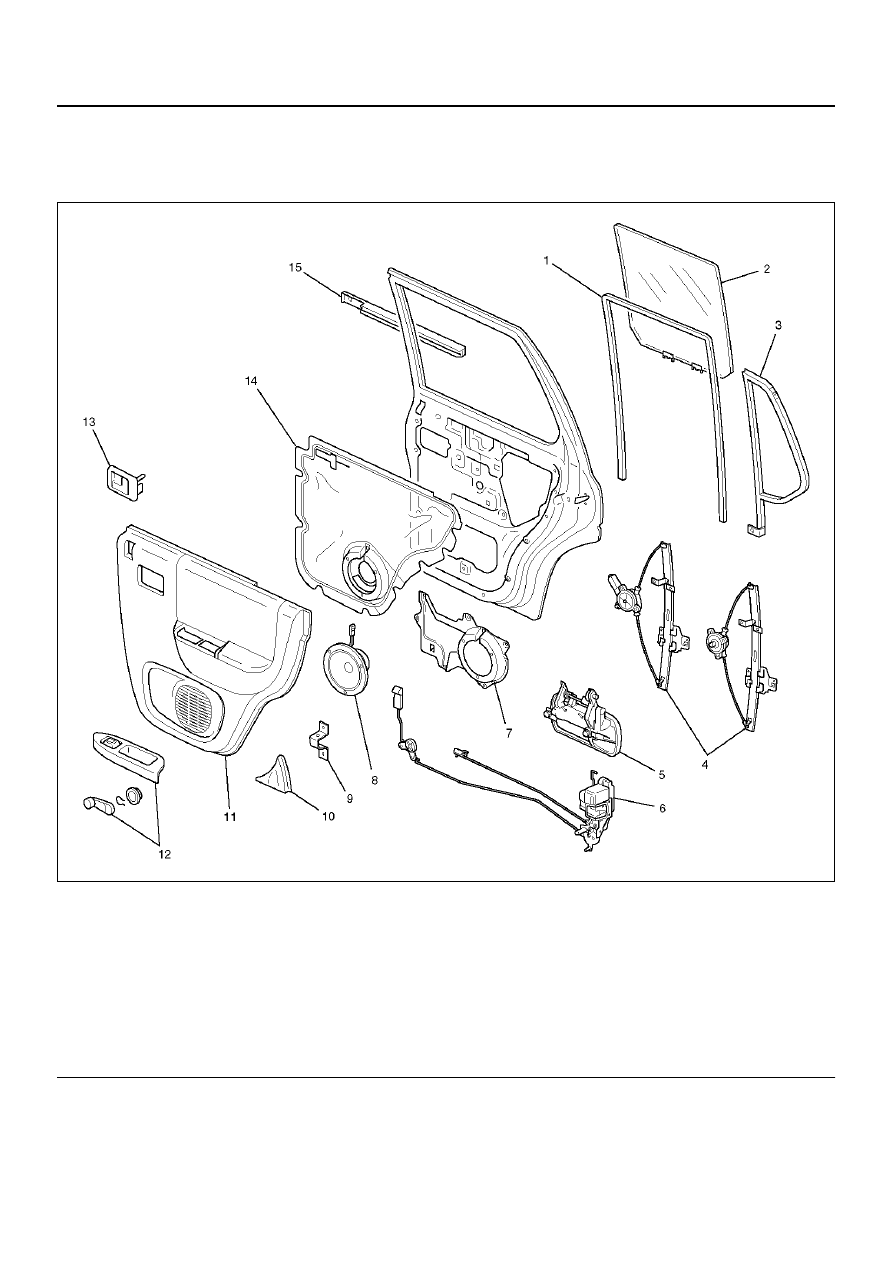

Rear Door Trim Panel and Associated Parts

655R100001

EndOFCallout

Legend

(1) Glass Run
(2) Glass
(3) Fix Window Glass
(4) Window Regulator/Power Window Regulator
(5) Outside Handle
(6) Door Lock Assembly
(7) Speaker Bracket
(8) Speaker

(9) Bracket

(10) Rear Door Corner Garnish

(11) Door Trim Panel

(12) Power Window Switch and Pull Case/Window

Regulator Handle

(13) Inside Handle
(14) Waterproof Sheet
(15) Outer Waste Seal
