SEATS

8G–7

(22) Trim Cover
(23) Pad Assembly
(24) Seat Heater
(25) Frame Assembly
(26) Pad Assembly

(27) Trim Cover
(28) Seat Heater
(29) Frame Assembly
(30) Head Rest
(31) Seat Back Assembly

Disassembly

1. Disconnect the battery ground cable.
2. Remove the head rest.
3. Remove the switch knob.

D

Pull the switch knob out.

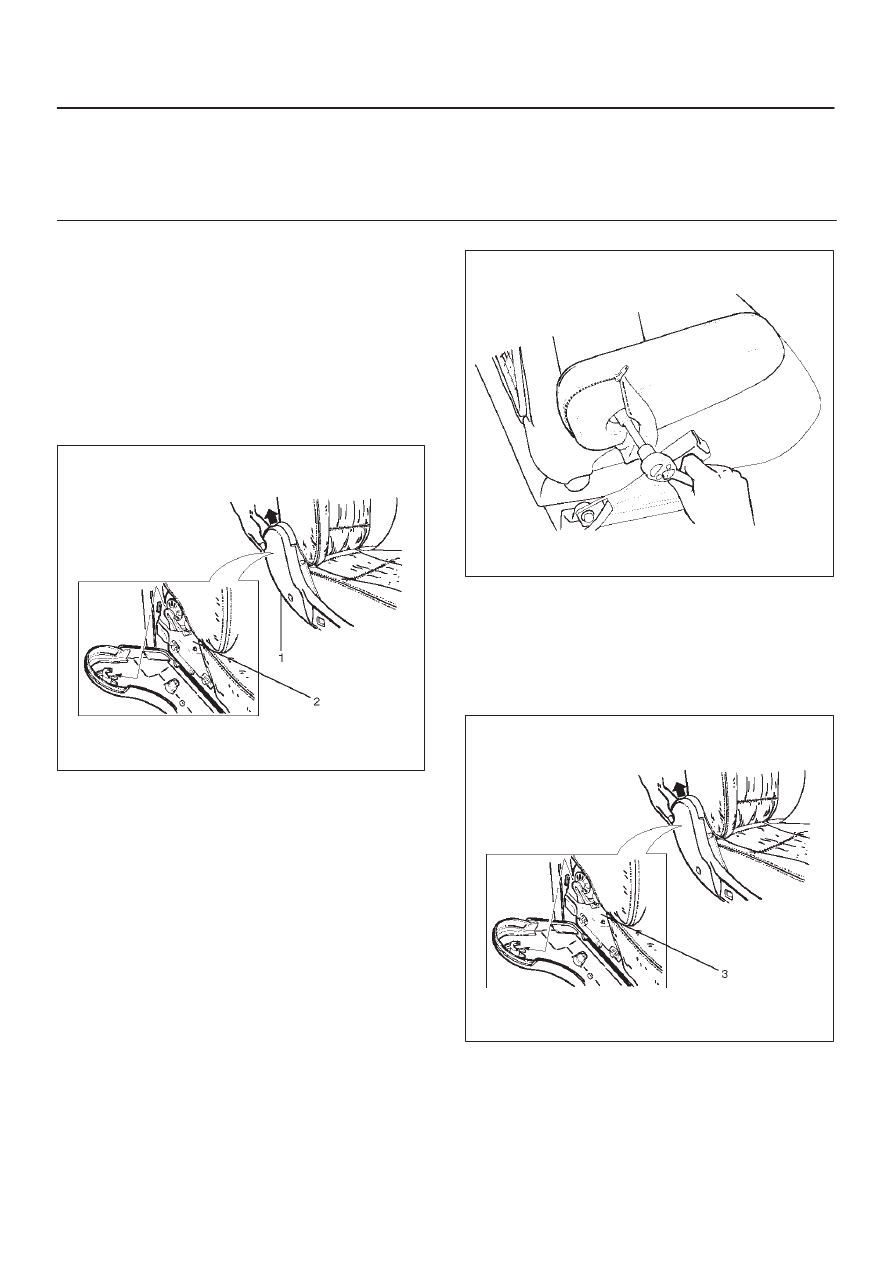

4. Remove the outer cover cap.
5. Remove the outer cover fixing screws.

D

Pull up the outer cover(1) to remove the cover from
the reclining device(2).

750RS012

6. Remove the front cover.
7. Remove the front lower cover.
8. Remove the rear cover.
9. Remove the outer cover.

D

Disconnect the switch connectors and remove the
harness fixing clips.

10. Remove the switch assembly.

D

Remove the switch fixing screws from the outer
cover.

11. Remove the armrest assembly.

D

Open the armrest fastener and remove the fixing
bolt.

750RS004

12. Remove the trim cover.
13. Remove the pad & frame assembly.
14. Remove the inner cover

D

Remove the cover fixing screw.

D

Pull up the inner cover to remove the cover from the
reclining device(3).

750RW007

8G–8

SEATS

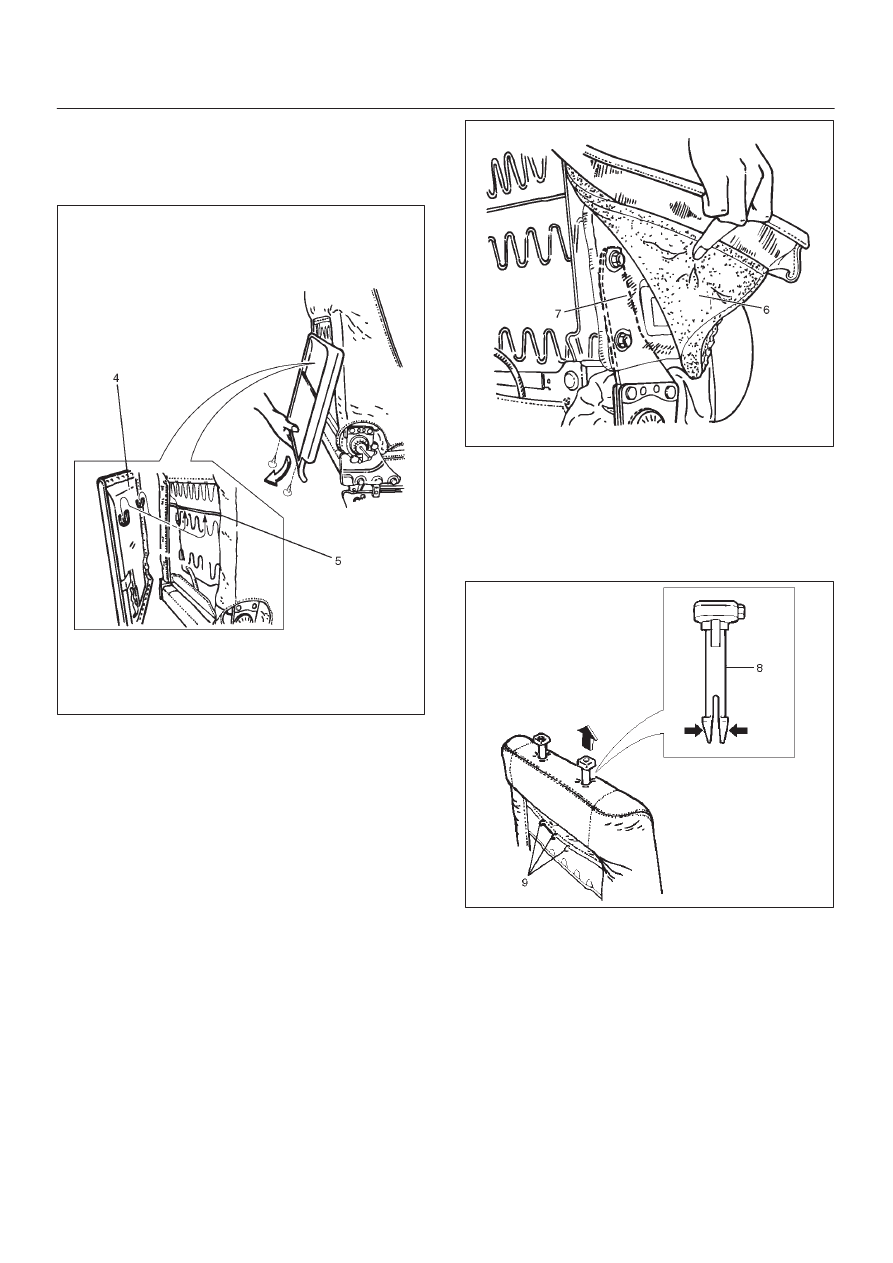

15. Remove the back board assembly(4).

D

Remove the board fixing screws.

D

Pull the back board downward and remove the
board from the seat back frame(5).

750R200025

16. Remove the reclining device(7).

D

Remove the device lower side fixing bolt in order to
separate the seat back from the seat cushion.

D

Disconnect the seat heater connector.

D

Remove the trim cover(6) hog rings from the
backside of the seat back assembly.

D

Turn up the seat back trim cover to remove the
reclining device upper side fixing bolt.

D

Disconnect the connecting shaft and the reclining
device connectors.

750R200026

17. Remove the seat back assembly.
18. Remove the guide holder(8).

D

Remove the trim cover fixing hog rings(9) from the
backside of the seat back assembly.

D

Hold the tip end of the guide holder and pull the
holder out from the seat back assembly.

750RW010

19. Remove the trim cover.

D

Remove the trim cover hog rings from the backside
of the seat back.

D

With close attention paid to the hog rings and the
wire which connect the trim cover and pad & frame
assembly, remove the trim cover while turning it up.

20. Remove the seat heater.
21. Remove the pad assembly.
22. Remove the frame assembly.
23. Remove the outer lower cover.
24. Remove the inner lower cover.
25. Remove the adjuster assembly.

D

Disconnect the connectors and remove the fixing
bolts.

SEATS

8G–9

D

Remove the power seat harness from the adjuster
assembly.

26. Remove the seat cushion assembly.
27. Remove the trim cover.

D

Remove the trim cover hog rings from the backside
of the seat cushion assembly.

D

With close attention paid to the hog rings and the
wire which connect the trim cover and the pad &
frame assembly, remove the trim cover while
turning it up.

28. Remove the seat heater.
29. Remove the frame assembly.
30. Remove the pad assembly.

Reassembly

To reassemble, follow the disassembly steps in the
reverse order, noting the following point.

1. Tighten the fixing bolts to the specified torque.

D

Refer to the Torque Specifications in this section.

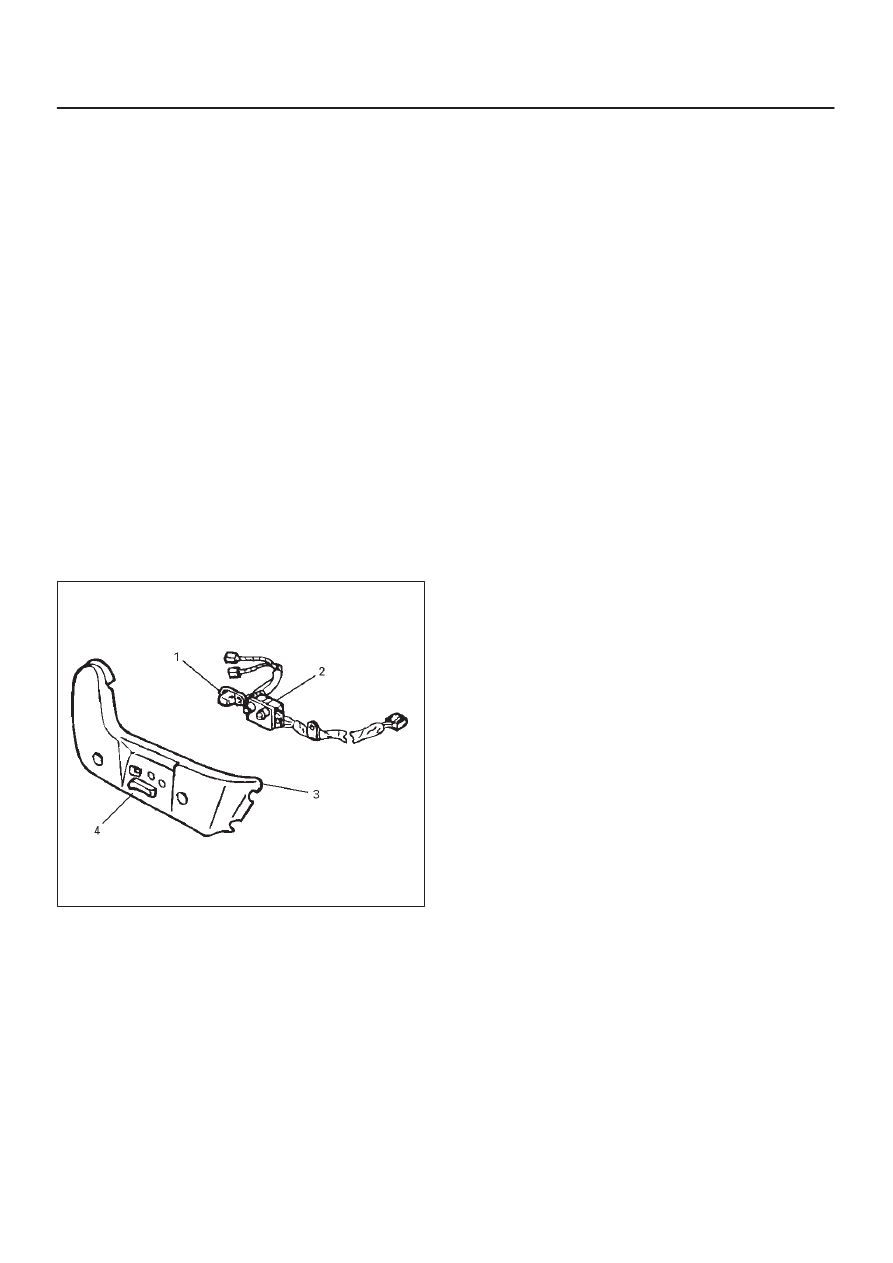

Power Seat Switch

Removal

1. Remove the side cover(3).

D

Refer to the Power Seat Assembly in this section.

2. Remove the tilt & slide switch lever(4).

D

Hold the switch lever with your fingers and pull it
toward you.

3. Remove the tilt & slide switch(2).

D

Remove two screws.

4. Remove the recliner switch(1).

D

Remove two screws.

750RS025

Installation

To install, follow the removal steps in the reverse order.

8G–10 SEATS

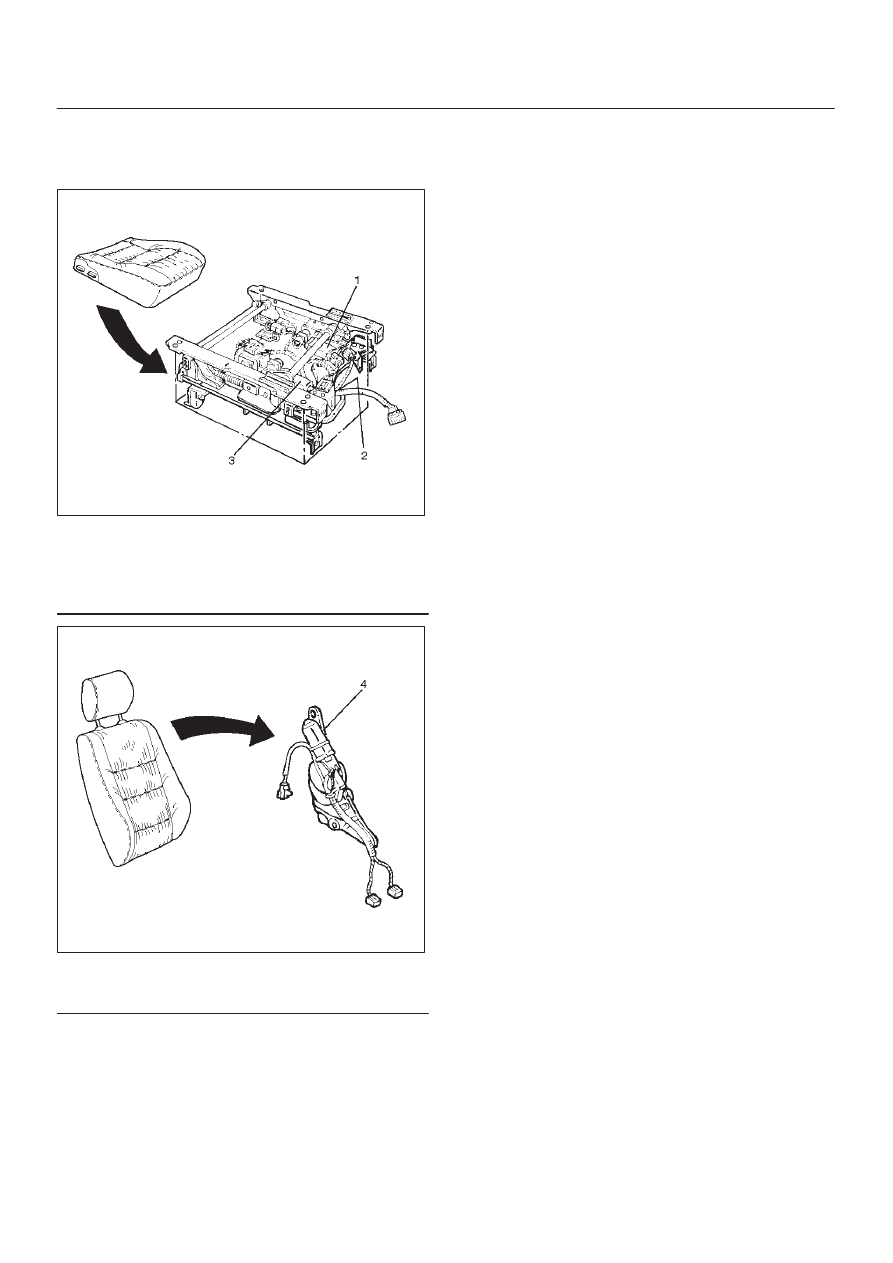

Front Tilt Motor / Rear Tilt Motor / Slide Motor / Recliner Motor

Parts Location

750RS027

Legend

(1) Tilt Motor
(2) Slide Motor
(3) Tilt Motor

750RS028

Legend

(4) Recliner Motor

Removal and Installation

Refer to the Power Seat Assembly in this section.
