SEATS

8G–3

1. Tighten the front seat assembly fixing bolts to the

specified torque.

Torque: 40 N·m (30 lb ft)

2. Install the longest bolt to the rear inner side fixing

location, if this model is equipped with power seats.

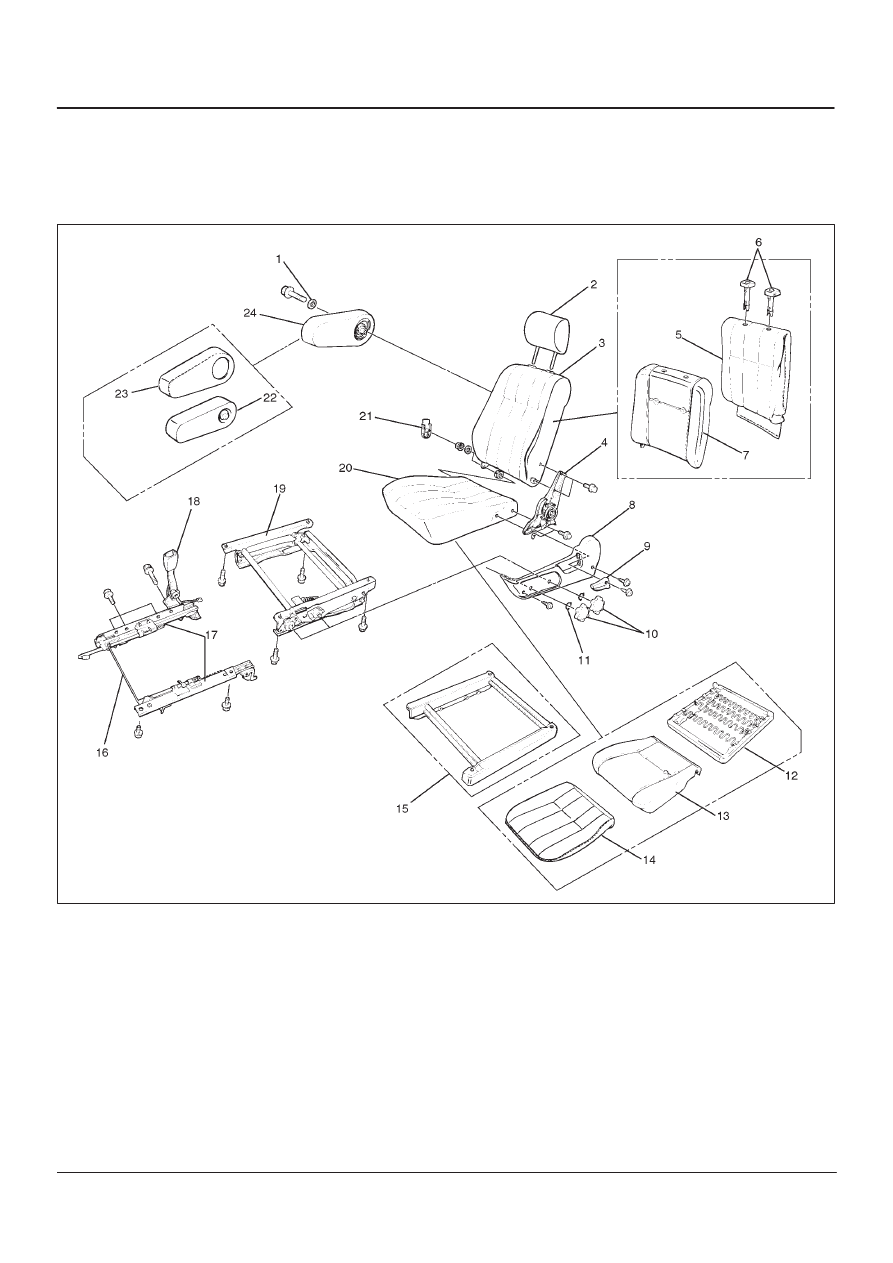

Disassembled View

750R200028

Legend

(1) Spring Washer
(2) Head Rest
(3) Seat Back Assembly
(4) Reclining Device
(5) Trim Cover
(6) Guide Holder
(7) Pad & Frame Assembly
(8) Slide Cover
(9) Reclining Knob

(10) Dial (W/Height Adjuster)

(11) Lock Spring

(12) Frame Assembly

(13) Pad Assembly
(14) Trim Cover
(15) Spacer (W/O Height Adjuster)
(16) Release Wire
(17) Seat Adjuster
(18) Seat Belt Knuckle Assembly
(19) Height Adjuster
(20) Seat Cushion Assembly
(21) Hinge Cover
(22) Pad & Frame Assembly
(23) Trim Cover
(24) Armrest Assembly

8G–4

SEATS

Disassembly

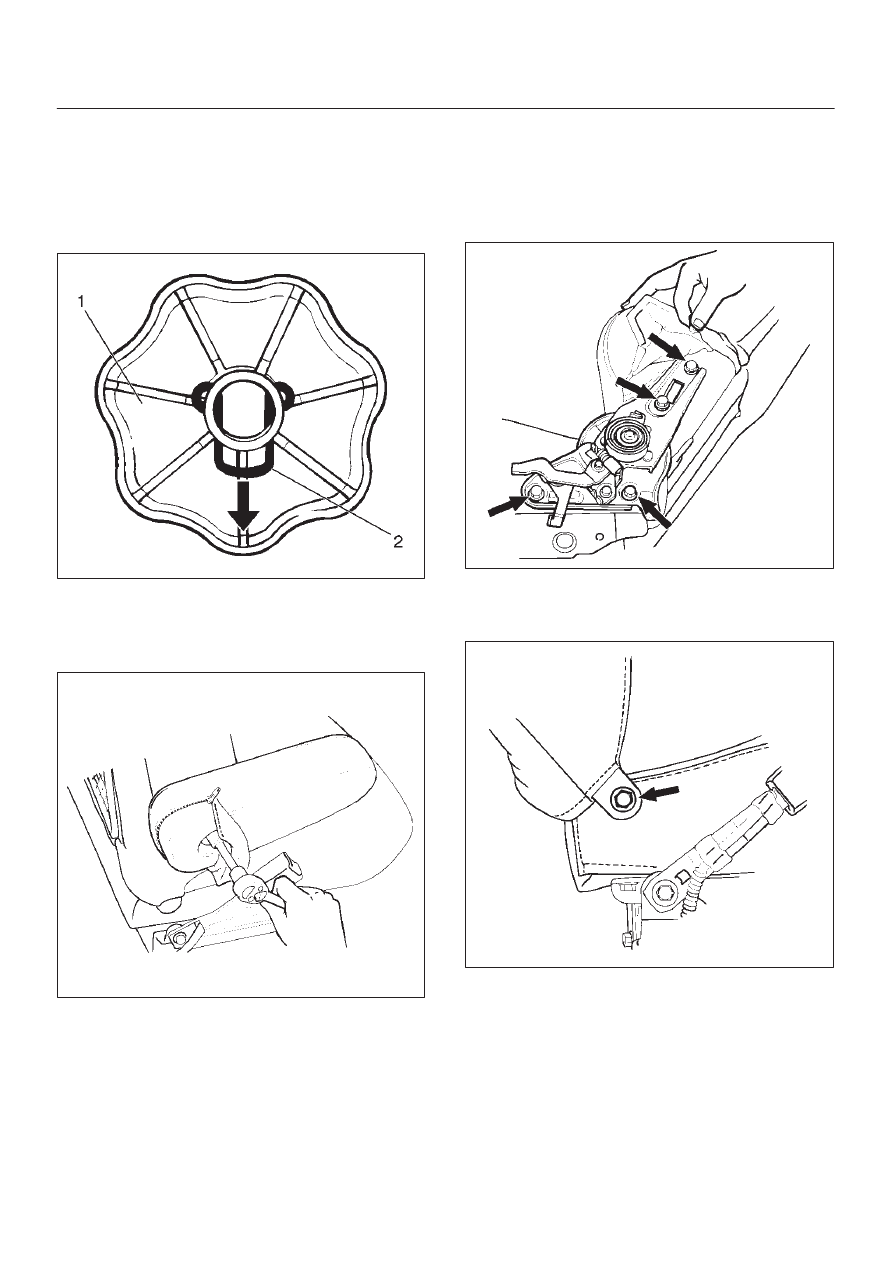

1. Remove the head rest.
2. Remove the reclining knob.
3. Remove the dial(1) (W/height adjuster).

D

Remove the side cover fixing screws and the dial
lock spring(2).

750RW025

4. Remove the side cover.
5. Remove the armrest assembly.

D

Open the armrest fastener and remove the armrest
fixing bolt.

750RS004

6. Remove the trim cover.
7. Remove the pad and frame assembly.
8. Remove the hinge cover.
9. Remove the reclining device.

D

Turn up the seat back trim cover in order to remove
the reclining device fixing bolts.

750RS006

10. Remove the seat back assembly.

D

Remove the seat back assembly fixing nut on the
opposite side of the reclining device.

750RS007

SEATS

8G–5

11. Remove the guide holder.

D

Pull the guide holder out by holding the bottom end
of it from the seat back assembly.

12. Remove the trim cover.

D

Remove the trim cover hog rings from the back side
of the seat back.

D

With close attention paid to the hog rings and the
wire which connect the trim cover and the pad and
frame assembly, remove the trim cover while
turning it up.

13. Remove the pad and frame assembly.
14. Remove the seat adjuster.

D

Disconnect the release wire(4) and remove the
fixing bolts.

750RW006

D

Remove the seat belt buckle assembly.

15. Remove the height adjuster.
16. Remove the spacer (W/O height adjuster).
17. Remove the seat cushion assembly.
18. Remove the trim cover.

D

Remove the trim cover hog rings from the back side
of the seat cushion assembly.

D

With close attention paid to the hog rings and the
wire which connect the trim cover and the pad and
frame assembly, remove the trim cover while
turning it up.

19. Remove the frame assembly.
20. Remove the pad assembly.

Reassembly

To reassembly, follow the disassembly steps in the
reverse order, noting the following points.

1. Tighten the armrest assembly fixing bolts to the

specified torque.

Torque: 18 N·m (13 lb ft)

2. Tighten the reclining device fixing bolts to the

specified torque.

Torque: 47 N·m (35 lb ft)

8G–6

SEATS

Power Seat Assembly

General Description

The circuit consists of the power seat switch, front tilt
motor (driver’s seat only), rear tilt motor (driver’s seat
only),  slide motor and the recliner motor.

The power seat switch has a tilt & slide switch and a
recliner switch.
The motor built in the seat can be actuated by operating
these switches to move the seat to desired position,
independent of the position of the starter switch.

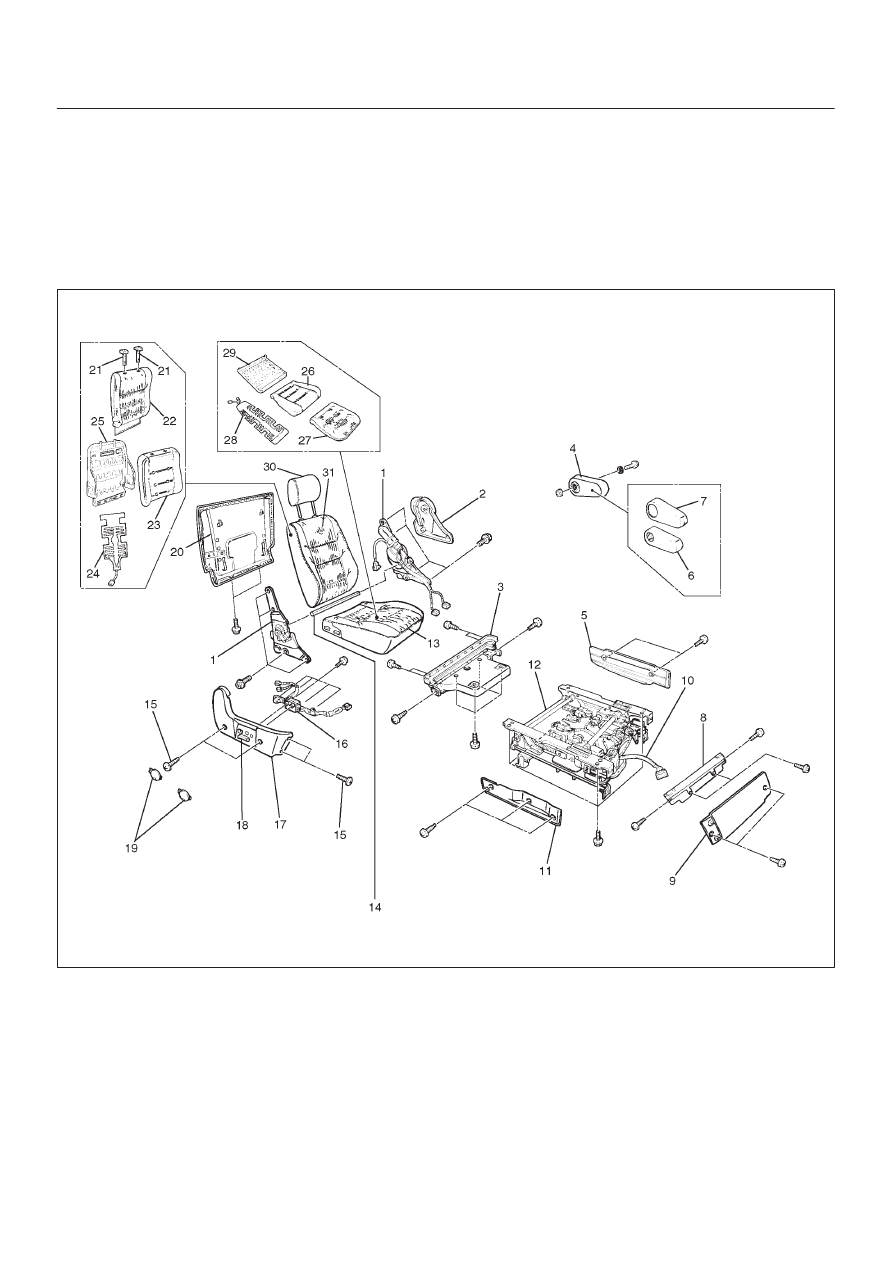

Disassembled View

750R200024

Legend

(1) Reclining Device
(2) Inner Cover
(3) Rear Cover
(4) Armrest Assembly
(5) Inner Lower Cover
(6) Pad & Frame Assembly
(7) Trim Cover
(8) Front Lower Cover
(9) Front Cover

(10) Power Seat Harness

(11) Outer Lower Cover

(12) Adjuster Assembly
(13) Seat Cushion Assembly
(14) Connecting Shaft
(15) Outer Cover Fixing Screws
(16) Switch Assembly
(17) Outer Cover
(18) Switch Knob
(19) Outer Cover Cap
(20) Back Board Assembly
(21) Guide Holder
