Isuzu Trooper (1998-2002 year). Manual - part 544
6G–3
ENGINE LUBRICATION
Oil Pump

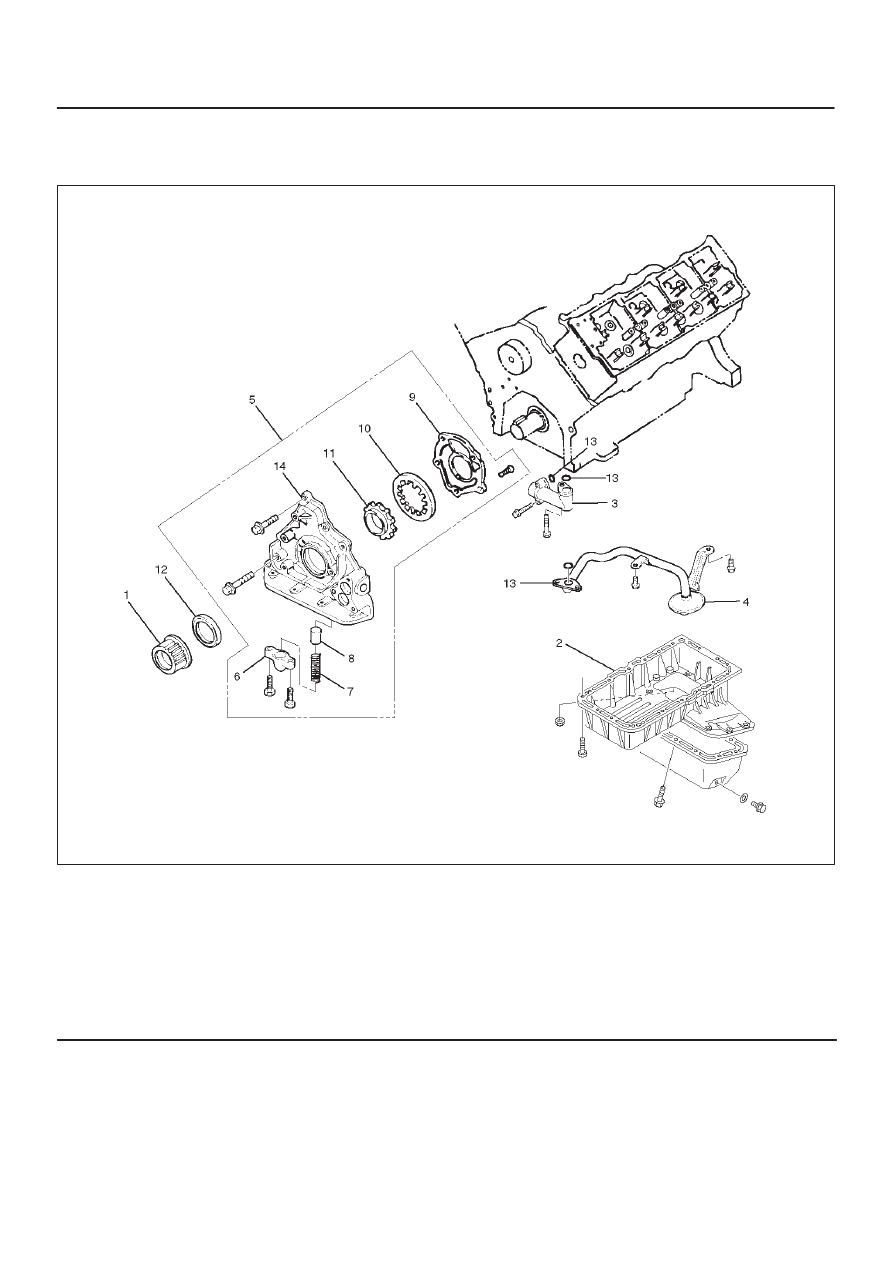

Oil Pump and Associated Parts
051RW005
Legend
(1) Crankshaft Timing Pulley(2) Crankcase with Oil Pan(3) Oil Pipe(4) Oil Strainer(5) Oil Pump Assembly(6) Plug(7) Spring
(8) Relief Valve(9) Oil Pump Cover
(10) Driven Gear
(11) Drive Gear
(12) Oil Seal(13) O-ring(14) Oil Pump Body
